DTC 86

DTC 86 HEIGHT CONTROL SWITCH CIRCUIT

CIRCUIT DESCRIPTION

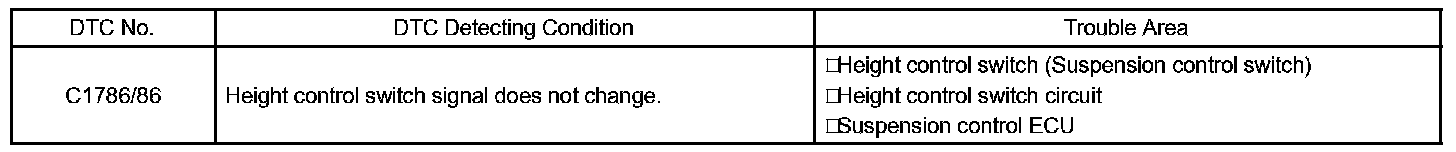

DTC Detection Condition:

The height control switch is integrated in the suspension control switch. Vehicle height can be chosen by pressing the height control switch. By pressing "UP" side, vehicle height goes up.
By pressing "DOWN" side, vehicle height goes down.

Wiring Diagram:

Step 1 - 2:

Step 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester, and start from step 2 when not using the hand-held tester.
