DTC P0453 Evaporative Emission Control System Pressure Sensor/Switch High Input

DTC P0453 EVAPORATIVE EMISSION CONTROL SYSTEM PRESSURE SENSOR/SWITCH HIGH INPUT

CIRCUIT DESCRIPTION




DTC Detection Condition:




Monitor Strategy:

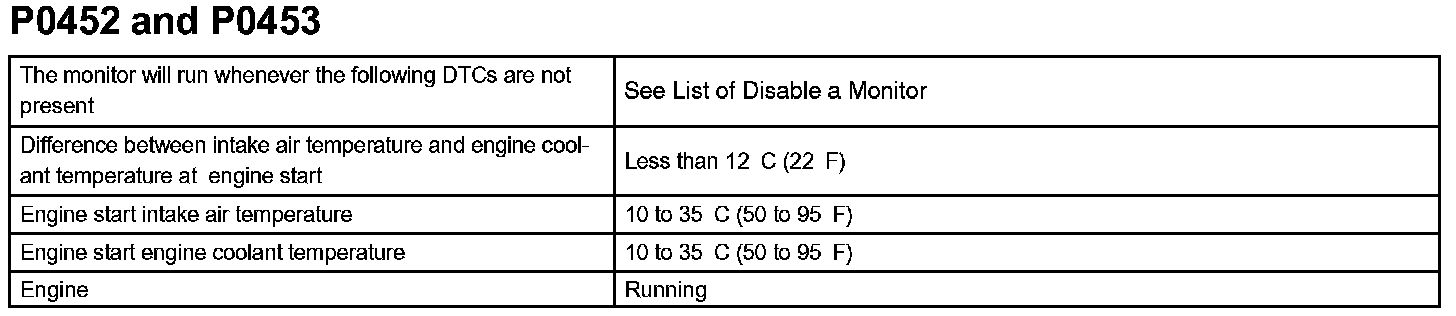

Typical Enabling Conditions:




Typical Malfunction Thresholds:




DTC P0451, P0452 or P0453 is recorded by the ECM when the vapor pressure sensor malfunctions.

P0453
When pressure indicated by the vapor pressure sensor is below -3.999 kpa (-30 mmHg) or above 1.999 kpa (15 mmHg), the ECM interprets this as a malfunction in the vapor pressure sensor. The ECM will turn on the MIL and a DTC will be set.

Wiring Diagram:






Step 1 - 2:




Step 2 (continued) - 3:




INSPECTION PROCEDURE

HINT:
- If DTCs related to different systems that have terminal E2 as the ground terminal are output simultaneously, terminal E2 may have an open circuit.
- If DTC P0441 (Purge Flow), P0446 (VSV for CCV), P0451, P0452 or P0453 (Evaporative Pressure Sensor) is output with DTC P0442 or P0456, first troubleshoot DTC P0441, P0446, P0451, P0452 or P0453. If no malfunction is detected, troubleshoot DTC P0442 or P0456 next.
- Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
- When the ENGINE RUN TIME in the freeze frame data is less than 200 seconds, carefully check the vapor pressure sensor.

CHECK FOR INTERMITTENT PROBLEMS

HINT:
Hand-held tester only:
Inspect the vehicle's ECM using check mode. Intermittent problems are easier to detect when the ECM is in check mode with a hand-held tester. In check mode, the ECM uses 1 trip detection logic, which has a higher sensitivity to malfunctions than normal mode (default) using 2 trip detection logic.

a. Clear the DTCs.
b. Switch the hand-held tester from normal mode to check mode.
c. Perform a simulation test.
d. Check the connector(s) and terminal(s).
e. Wiggle the harness(s) and connector(s).
