Camshaft (RH Bank)

Camshaft Bearing Cap Bolt Torque and Tightening Sequence





Apply a light coat of engine oil on the threads and under the heads (D and E) of the bearing cap bolts.

HINT: Do not apply engine oil under the heads of the bearing cap bolt (A), (B) and (C).

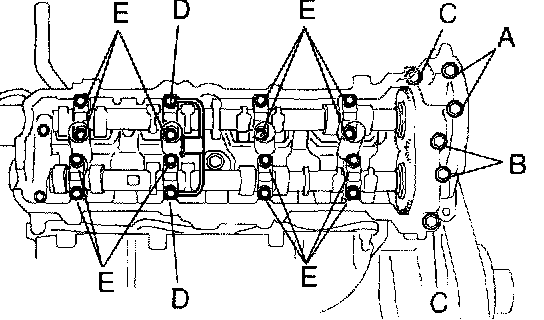

Install the oil feed pipe and the 22 bearing cap bolts as shown.

HINT: Each bolt length is indicated in the illustration.

Bolt length:
94 mm (3.70 inch) for A
72 mm (2.83 inch) for B
25 mm (0.98 inch) for C
52 mm (2.05 inch) for D
38 mm (1.50 inch) for E





Uniformly tighten the 22 bearing cap bolts in several passes, in the sequence shown.





Torque:
Bolt C 7.5 Nm (80 kgf-cm, 66 inch lbs.)
Others 16 Nm (160 kgf-cm, 12 ft. lbs.)
