LEXUS Parking Assist (Clearance Sonar)

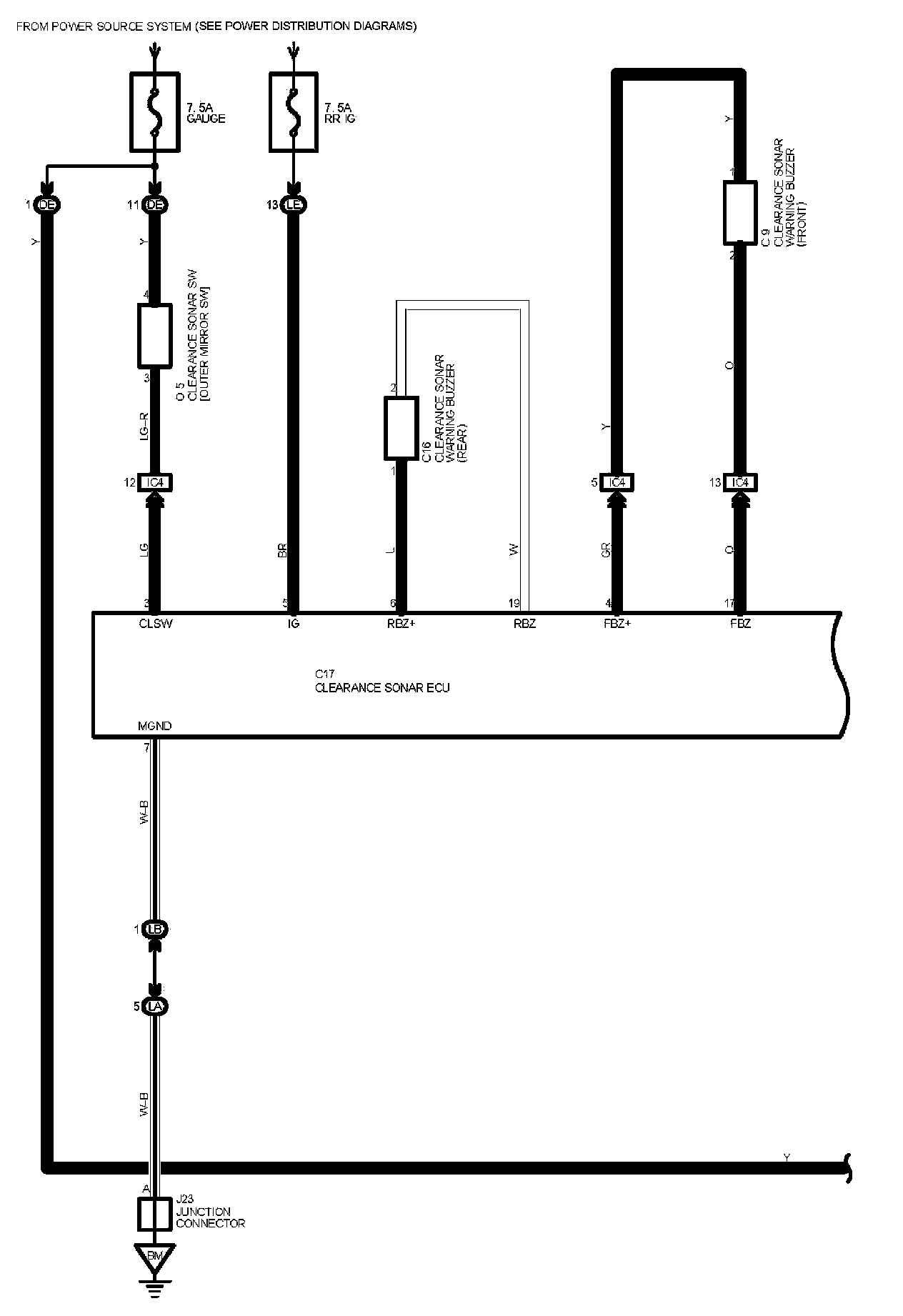

LEXUS Parking Assist (Clearance Sonar) Part 1:

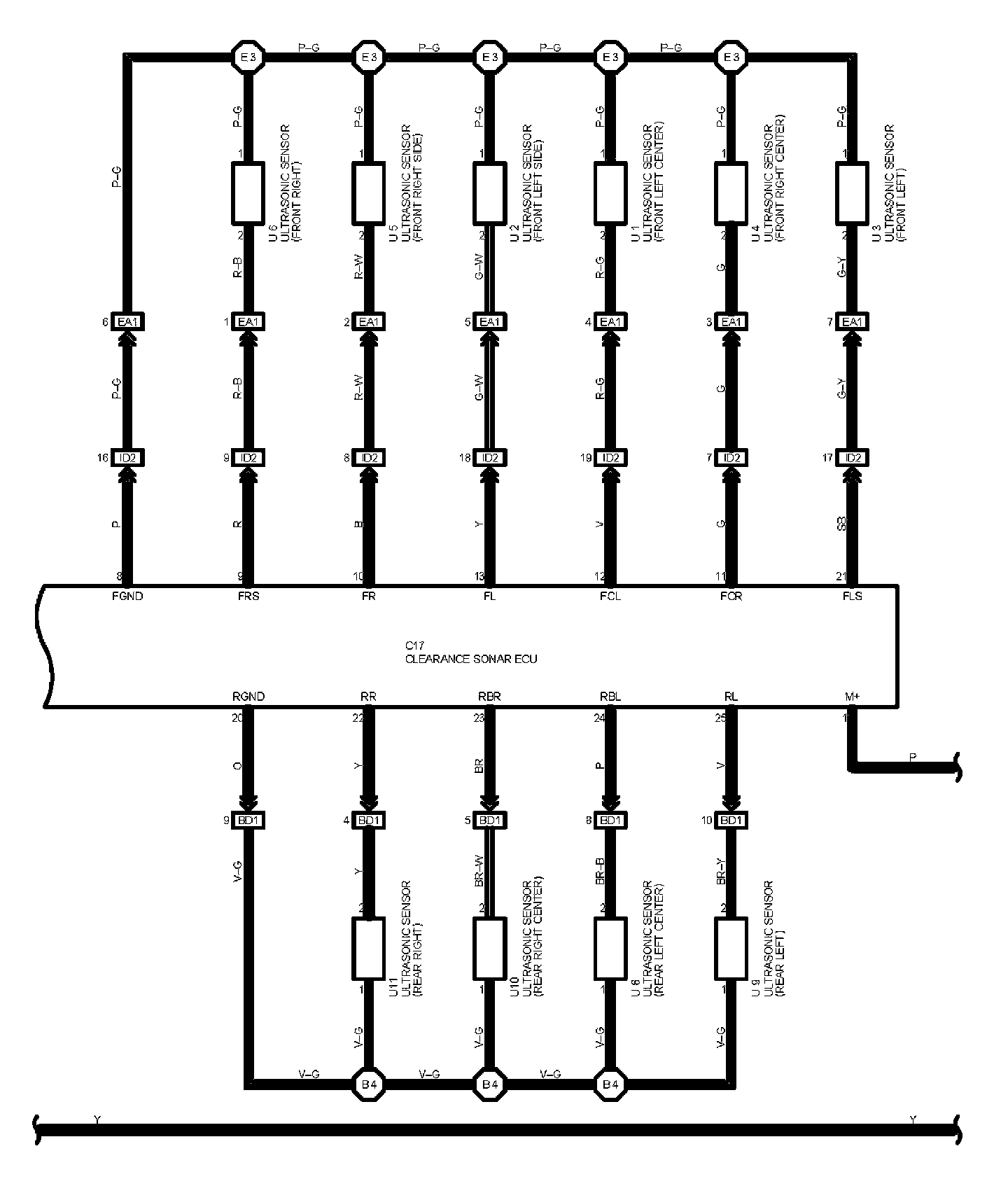

LEXUS Parking Assist (Clearance Sonar) Part 2:

LEXUS Parking Assist (Clearance Sonar) Part 3:

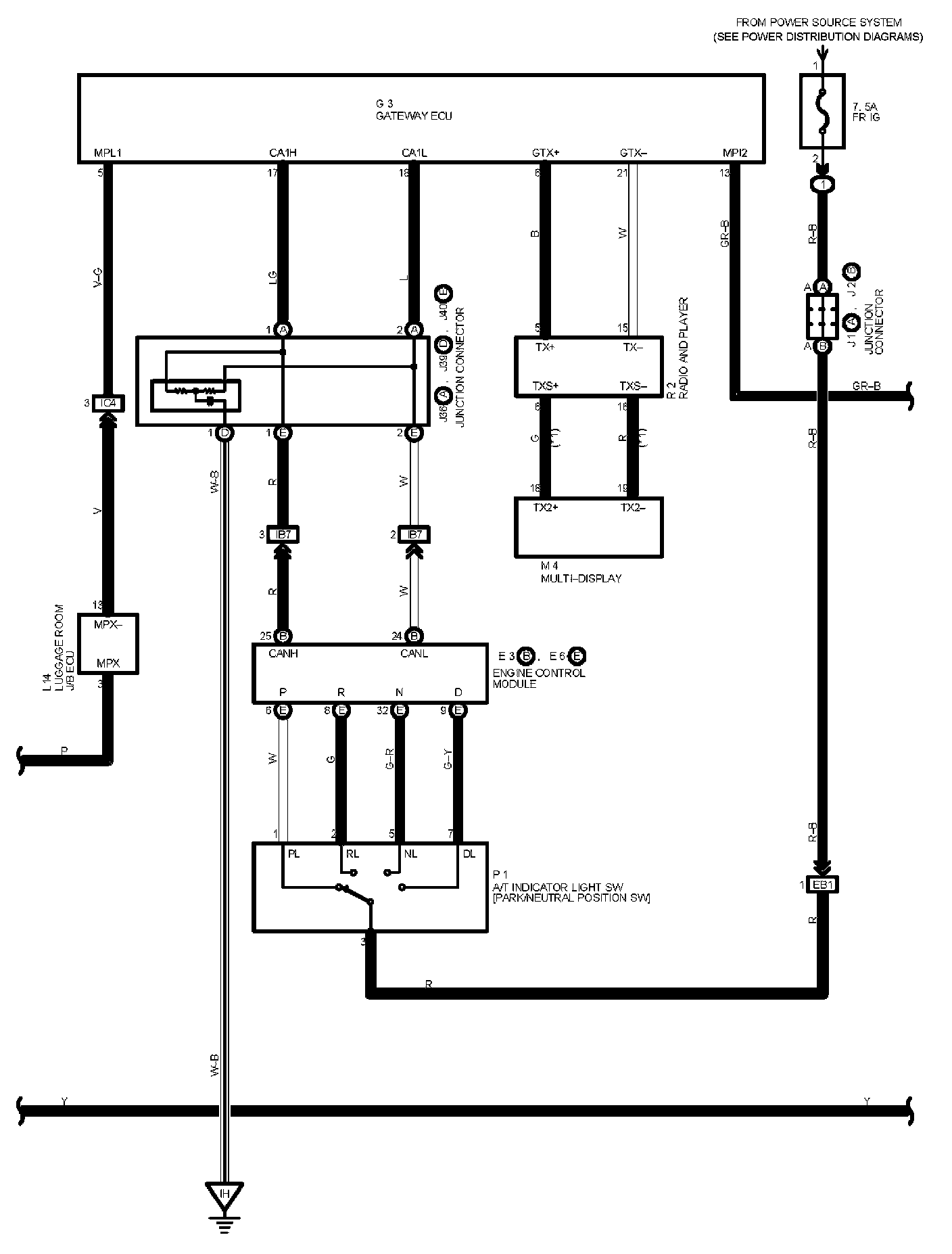

LEXUS Parking Assist (Clearance Sonar) Part 4:

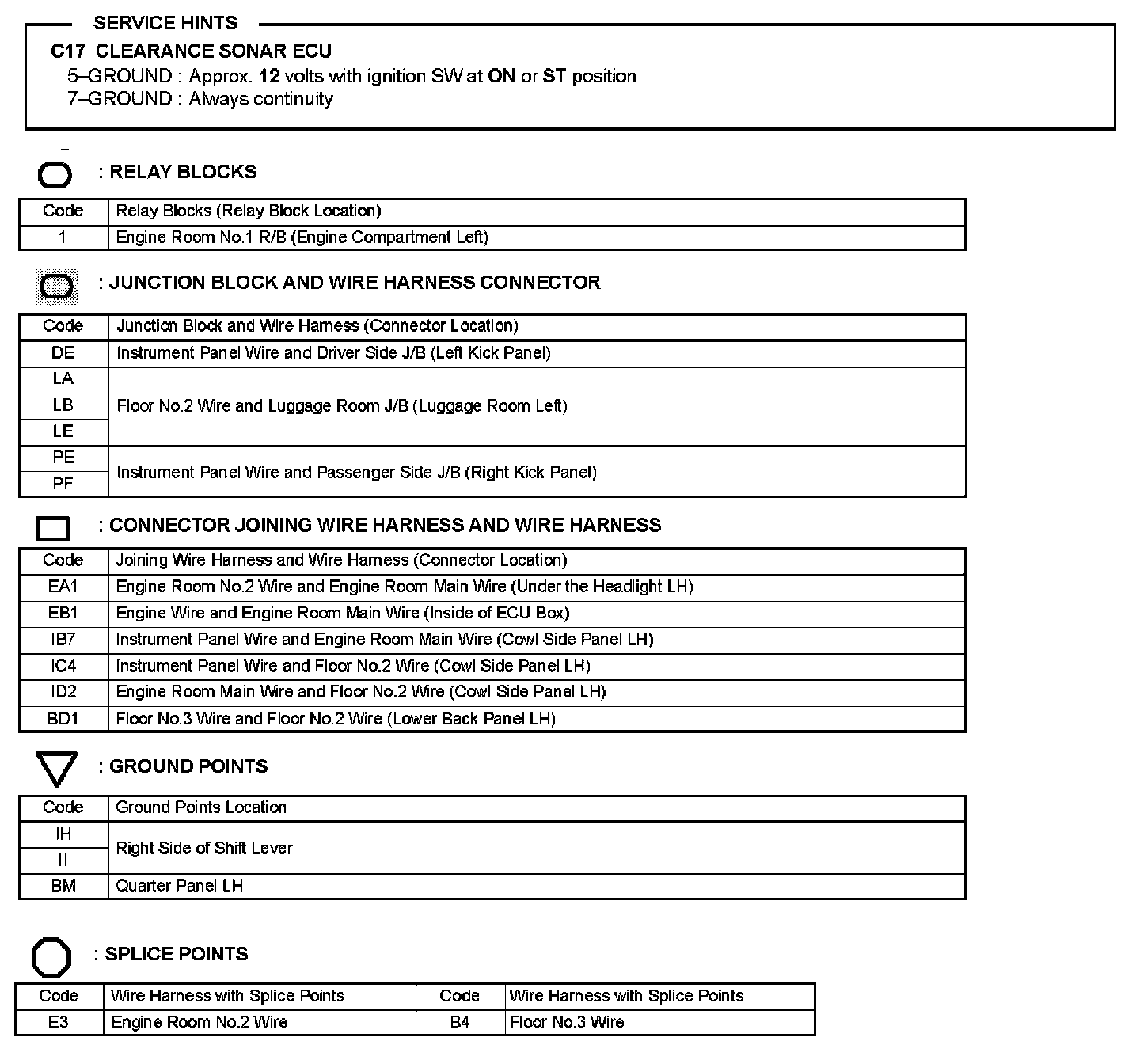

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
