While "Service Call " Is Working, Voice Cannot Reach LEXUS....

WHILE "SERVICE CALL" IS WORKING, VOICE CANNOT REACH LEXUS LINK CENTER

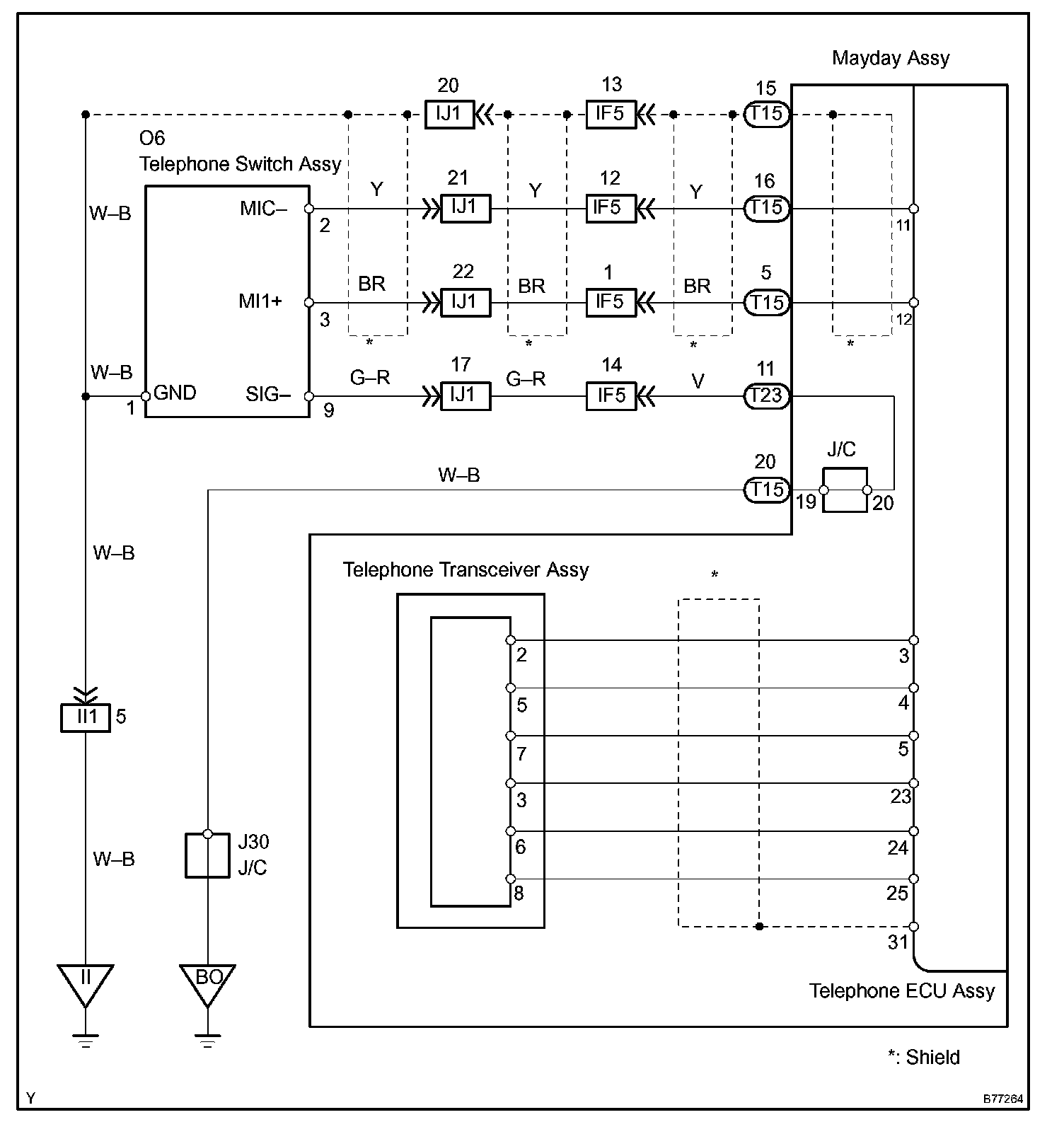

Wiring Diagram:






Step 1 - 2:

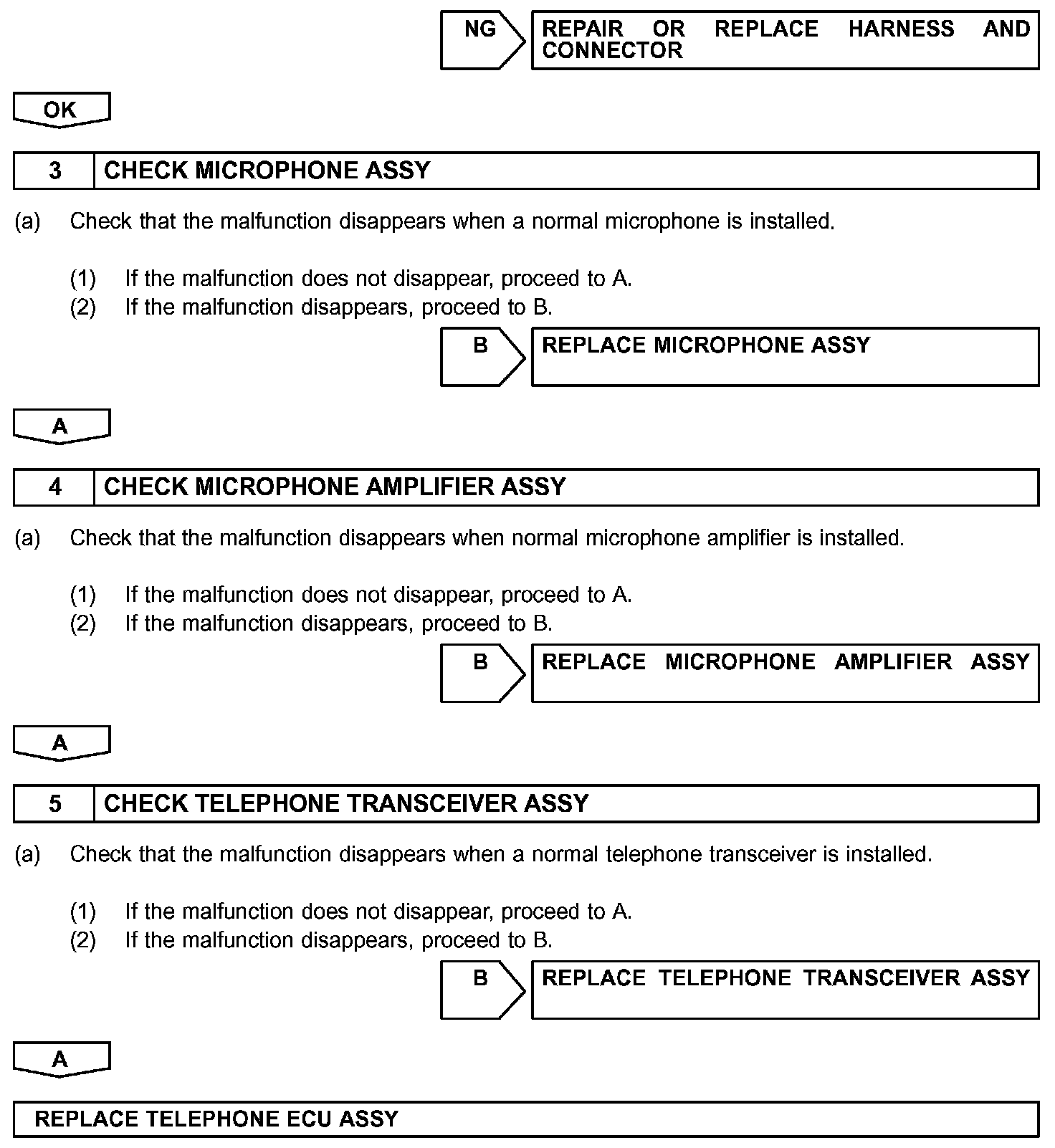

Step 2 (Continued) - 5:




INSPECTION PROCEDURE
