Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

1. CHECK DRIVER DOOR ECU

Terminals Of ECU / Pinouts - Check Driver Door ECU:

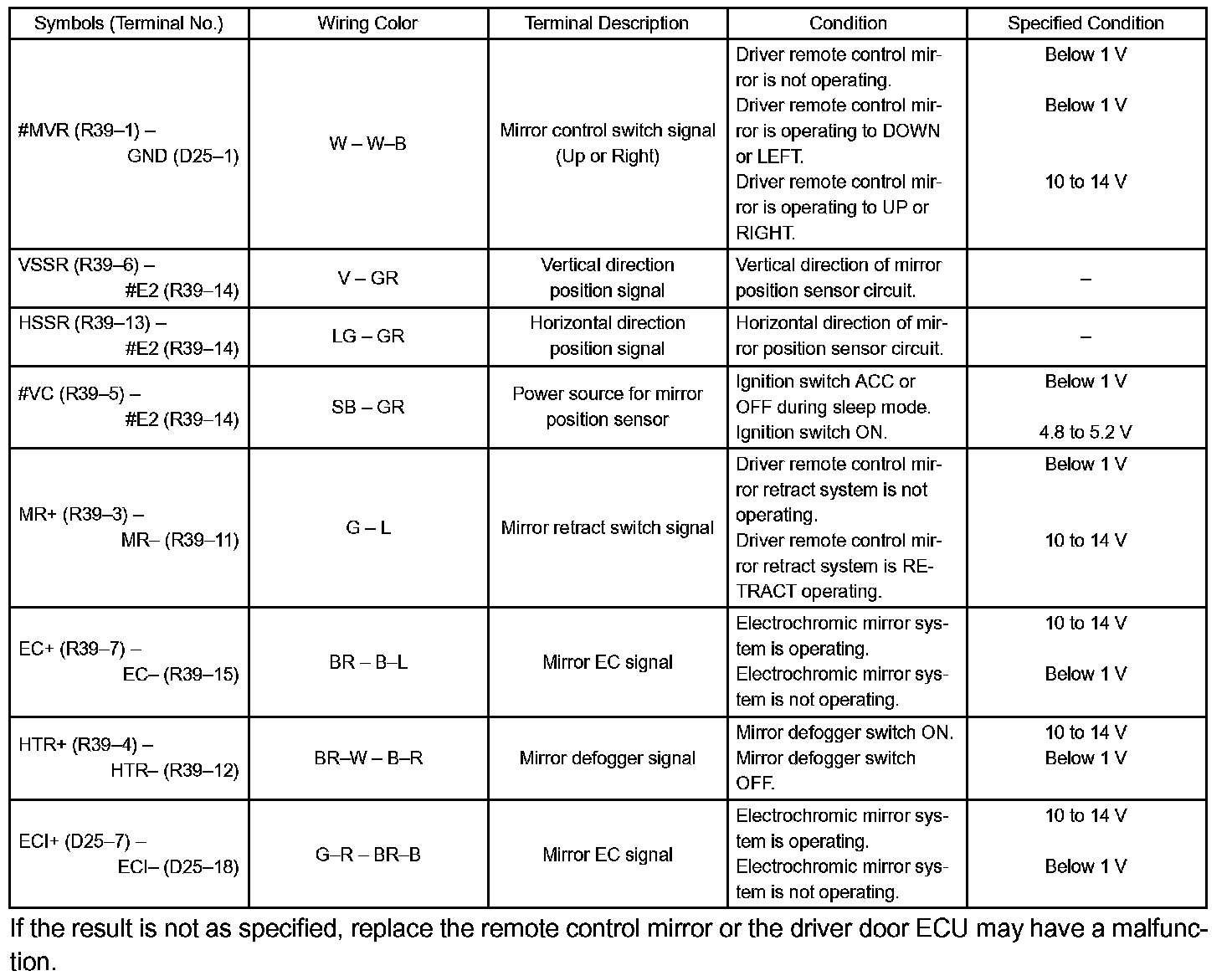

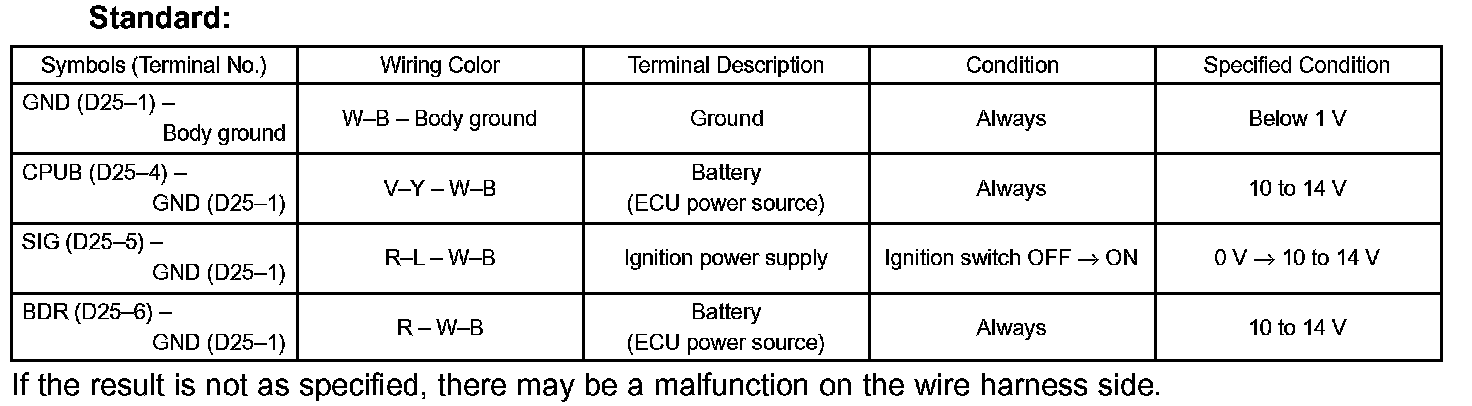

a. Disconnect the D25 ECU connector.




b. Measure the voltage of the wire harness side connector.
c. Reconnect the D25 ECU connector.

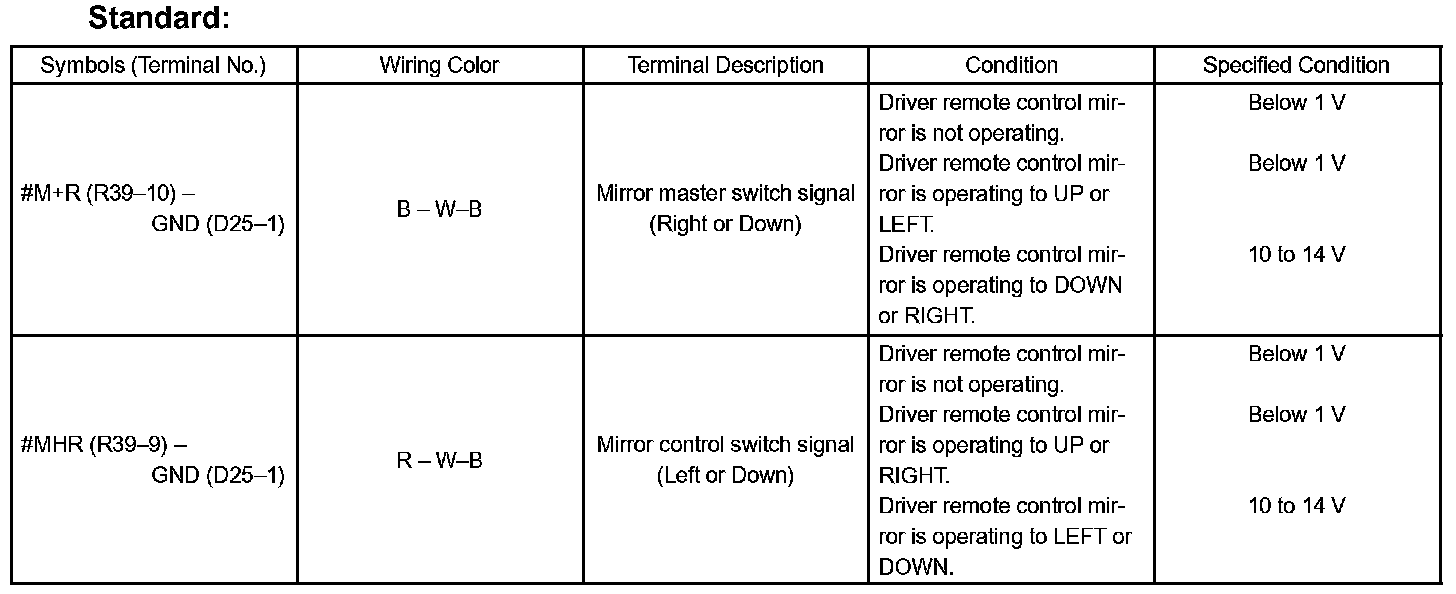

d. Measure the voltage of the connectors.

2. CHECK FRONT PASSENGER DOOR ECU

Terminals Of ECU / Pinouts - Check Front Passenger Door ECU:

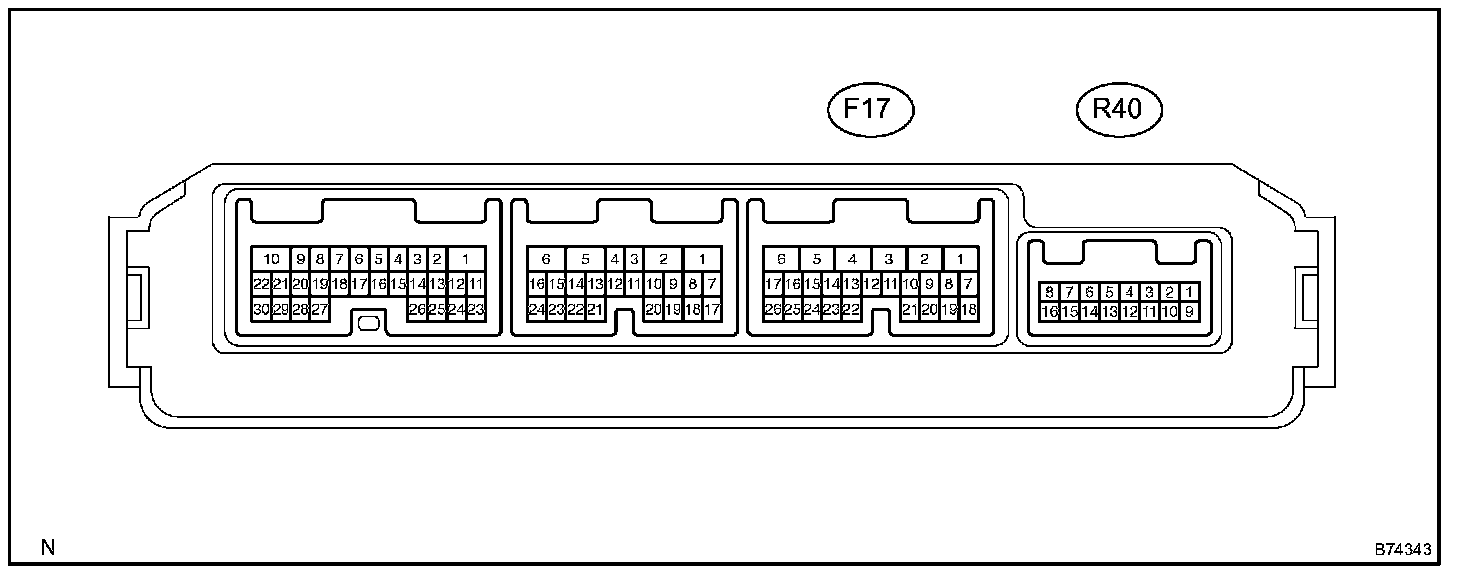

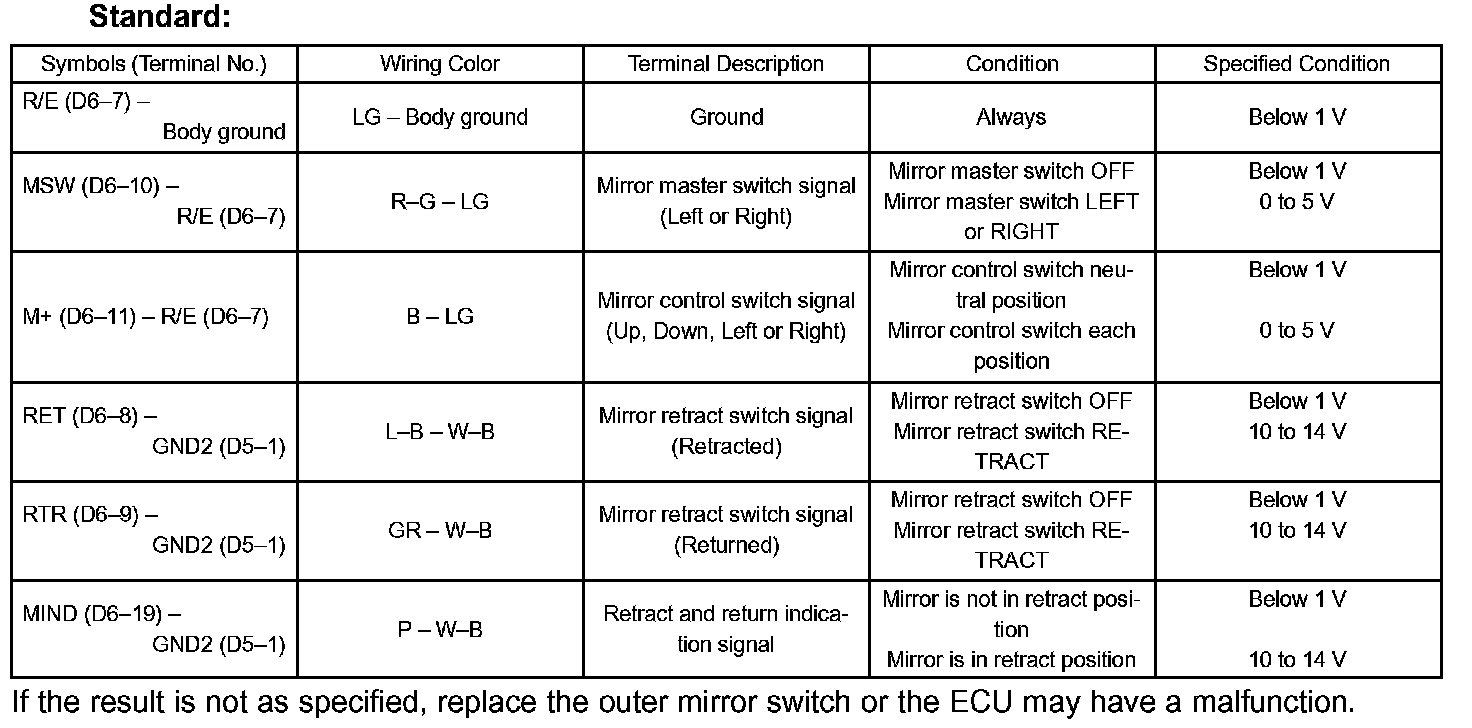

a. Disconnect the F17 ECU connector.

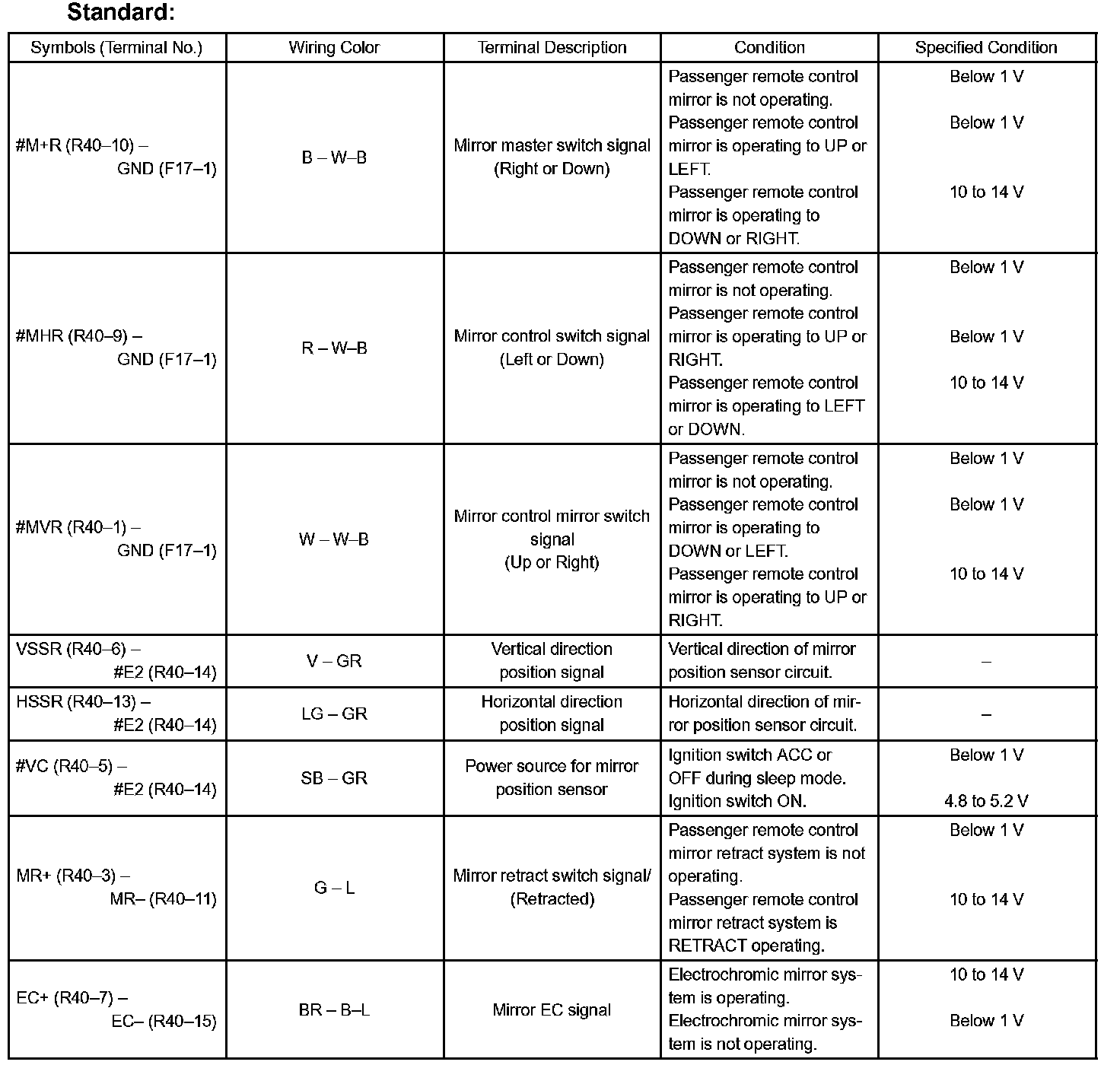

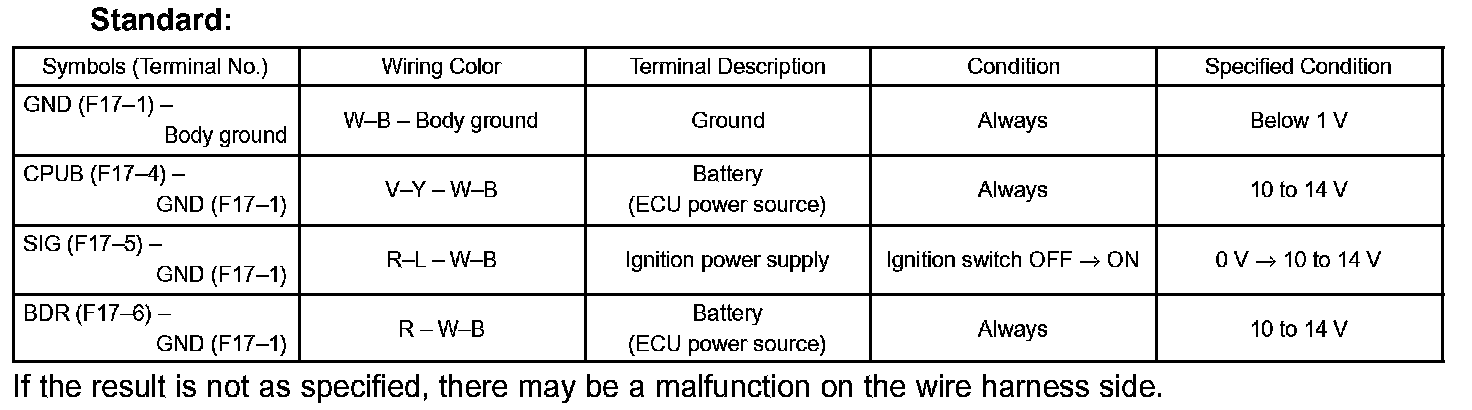

b. Measure the voltage of the wire harness side connector.
c. Reconnect the F17 ECU connector.

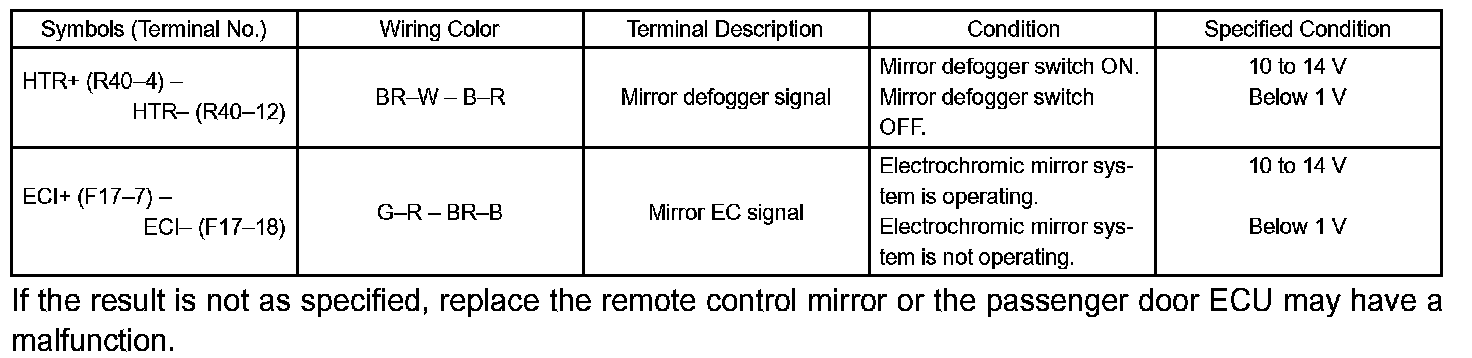

d. Measure the voltage of the connectors.

3. CHECK DRIVER SIDE J/B (DRIVER SIDE J/B ECU)

Terminals Of ECU / Pinouts - Check Driver Side J/B (Driver Side J/B ECU):

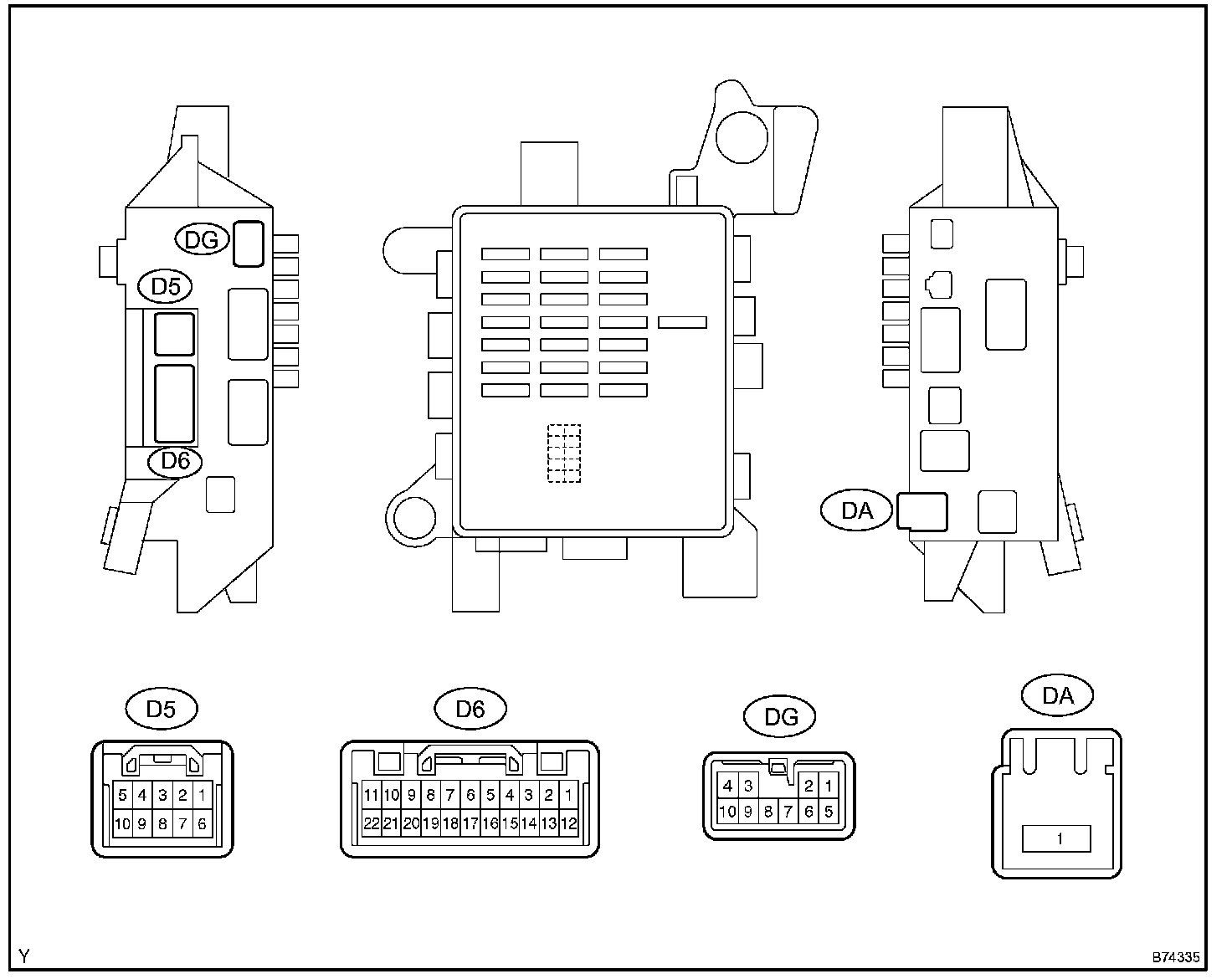

a. Disconnect DA and DG JB connectors.
b. Disconnect the D5 ECU connector.

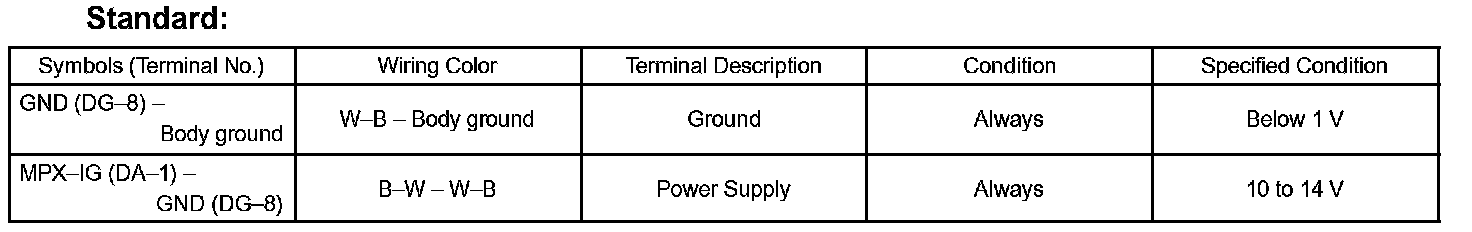

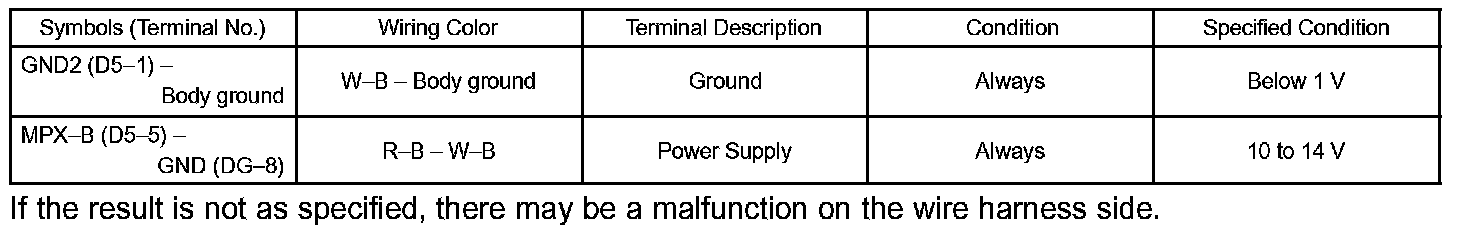

c. Measure the voltage of the wire harness side connectors.
d. Reconnect the DA and DG JB connectors.
e. Reconnect the D5 ECU connector.




f. Measure the voltage of the connectors.
