Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lexus
>>
2004
>>
LS 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
P4 - P41
P4 - P41

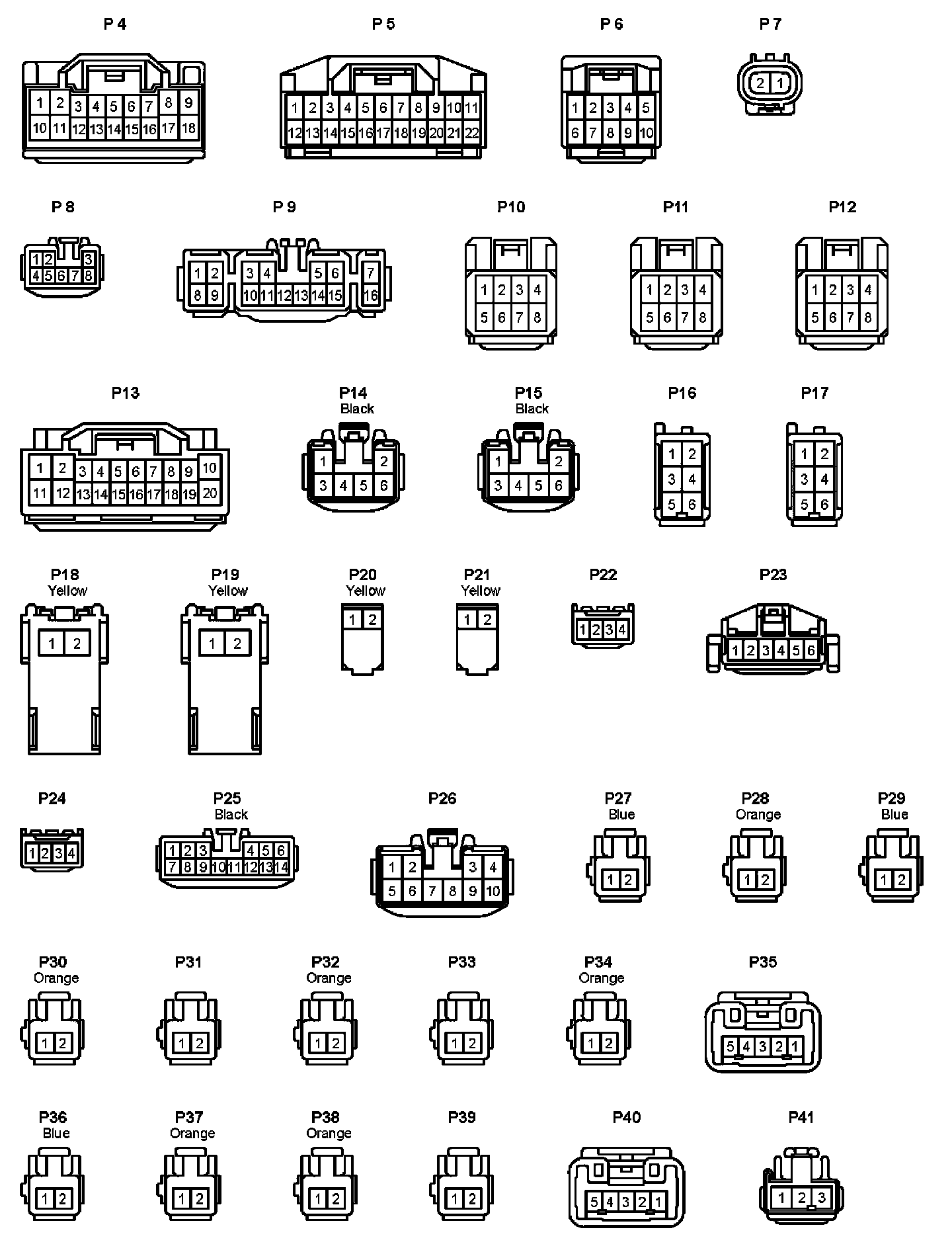

P4 - P41:
