Rear Blower Motor Circuit

CIRCUIT DESCRIPTION

The luggage room J/B ECU requests the rear A/C amplifier to operate the rear blower motor and controls its operation via the rear blower resistor in this circuit.

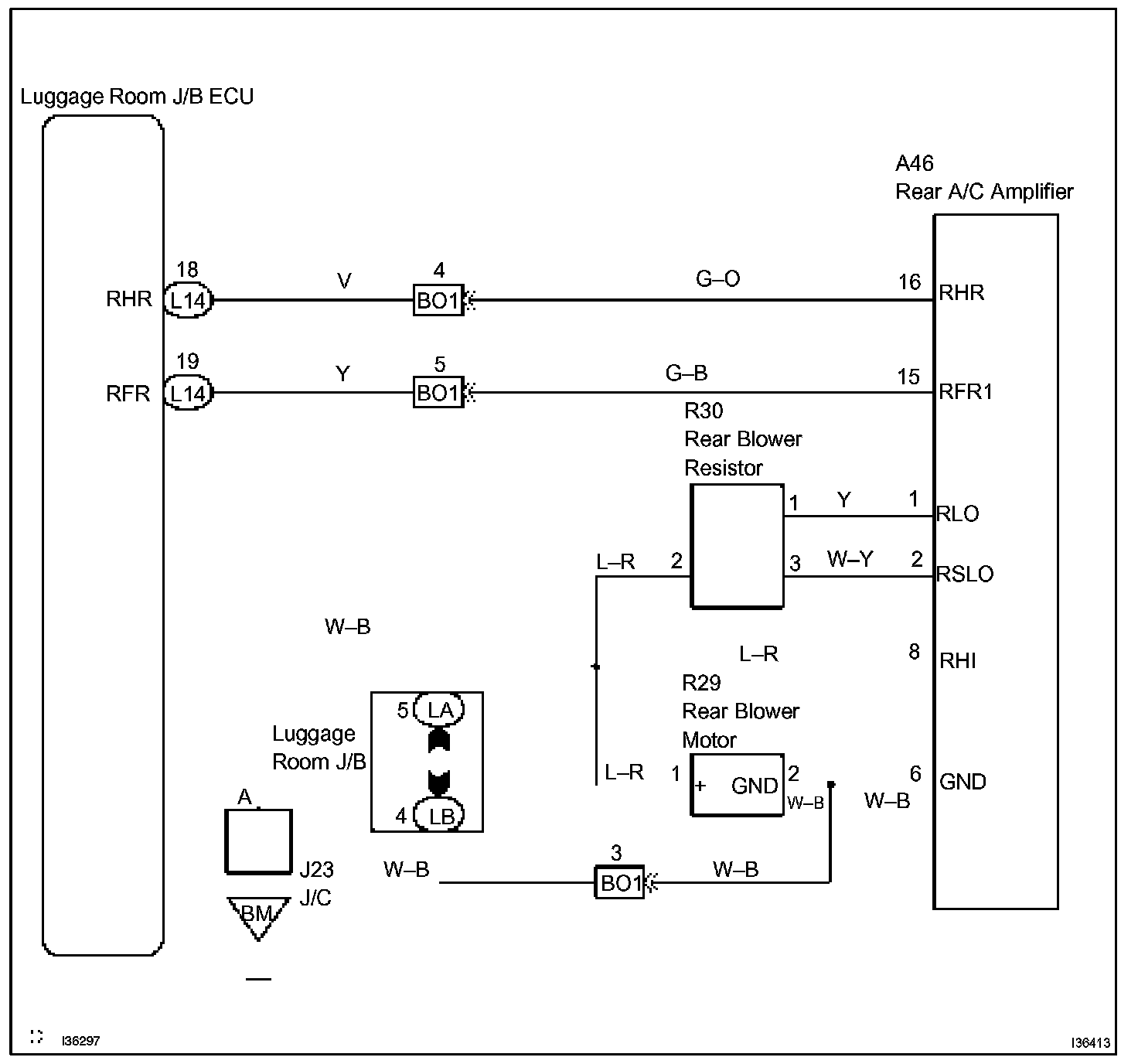

Wiring Diagram:

Step 1:

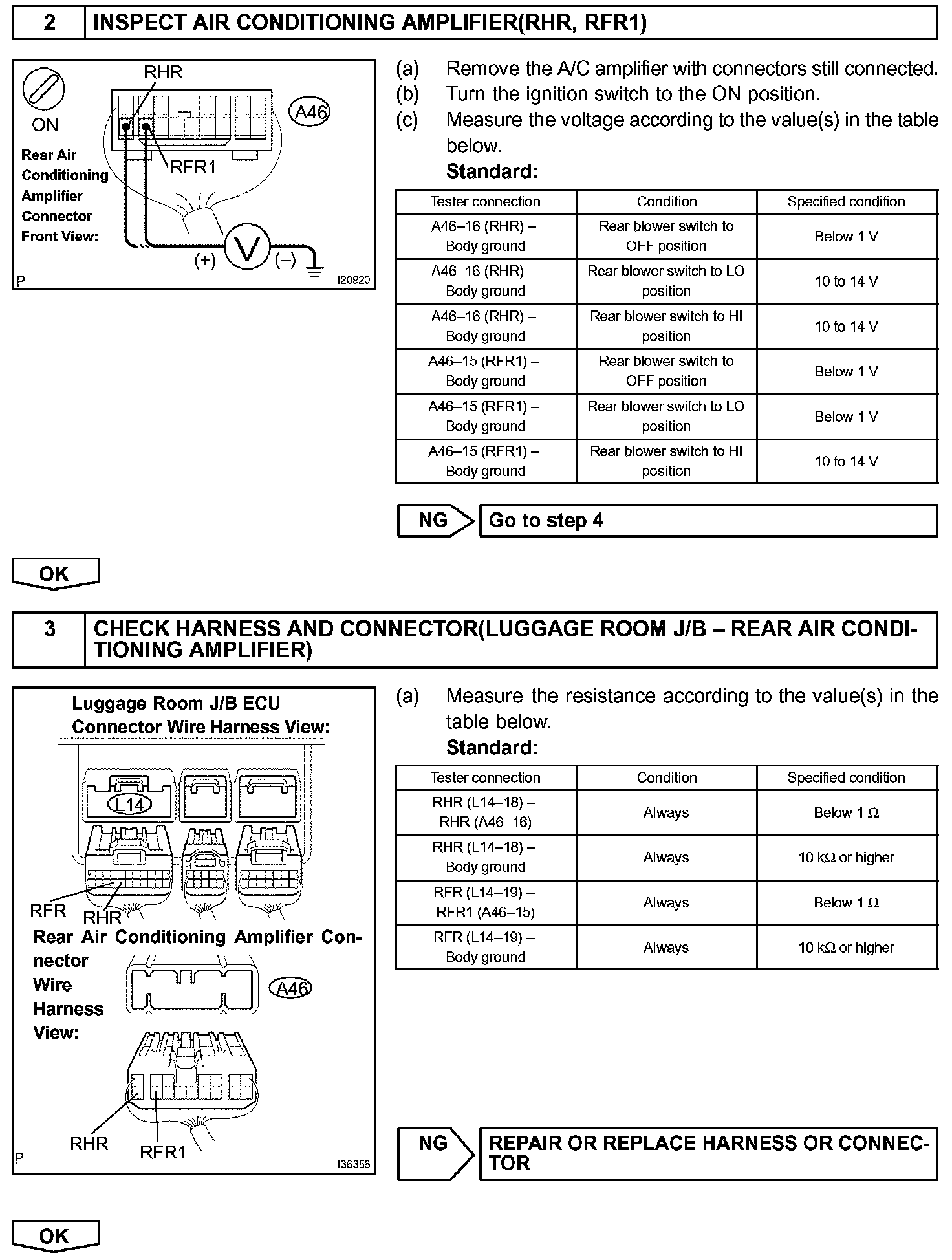

Step 2 - 3:

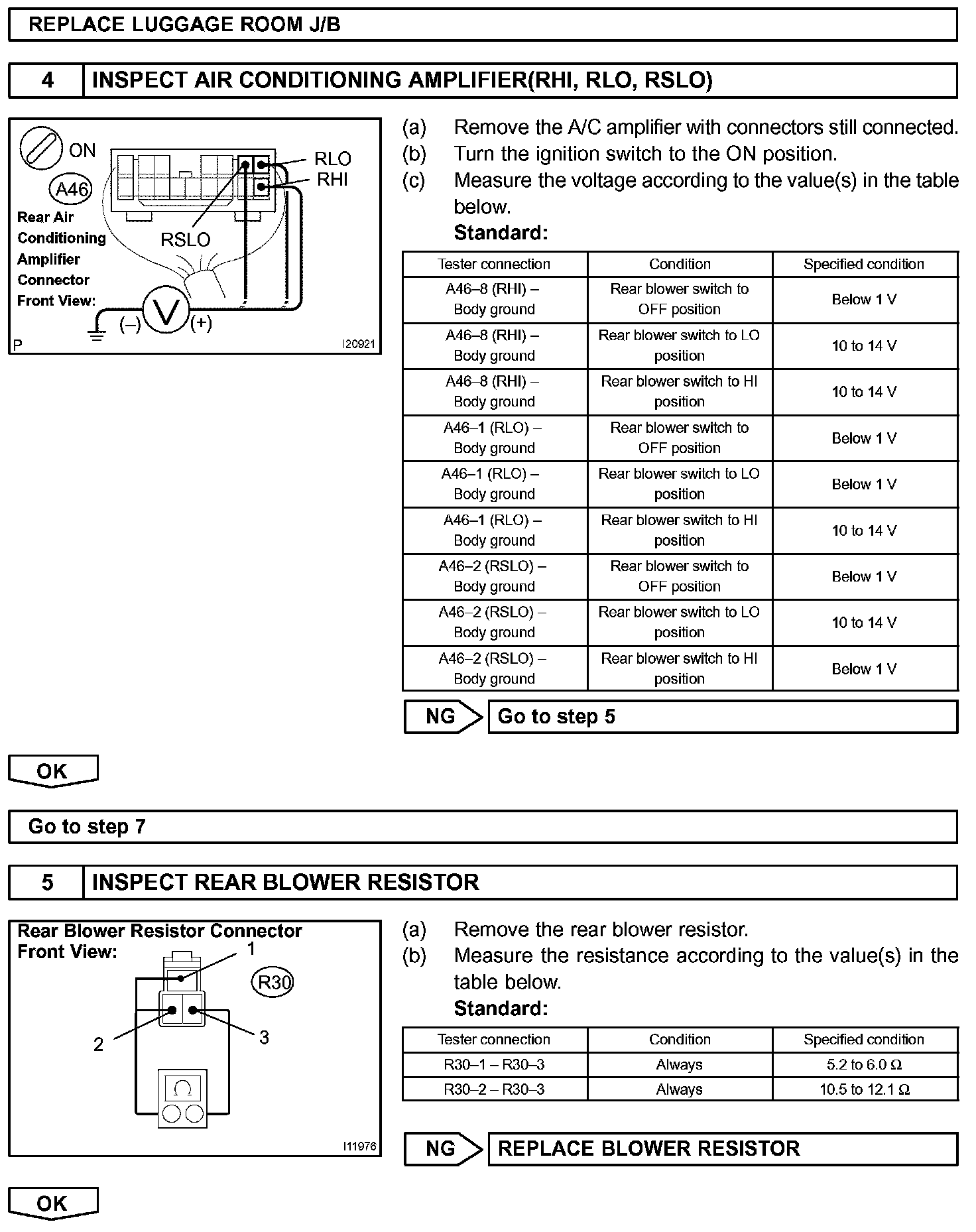

Step 4 - 5:

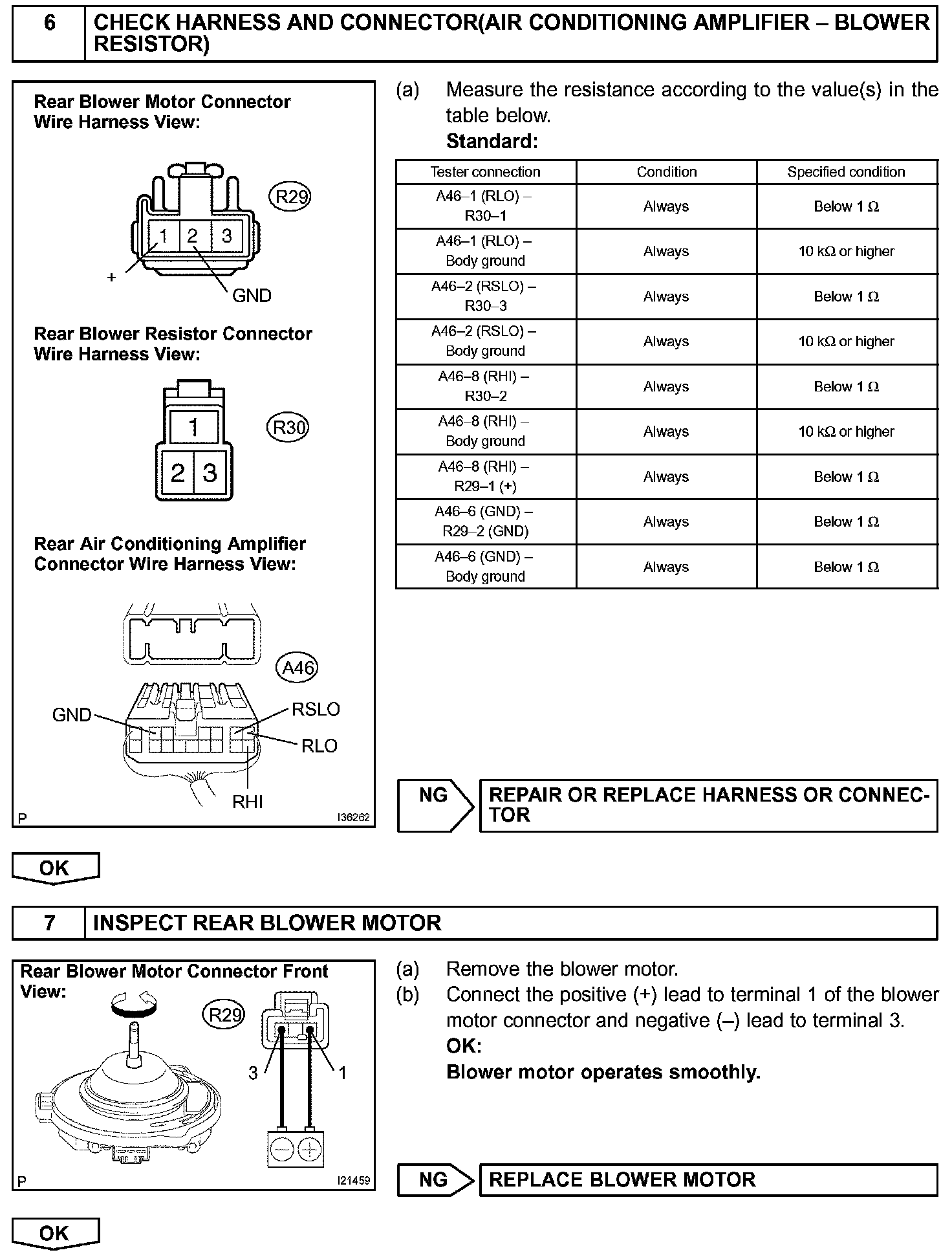

Step 6 - 7:

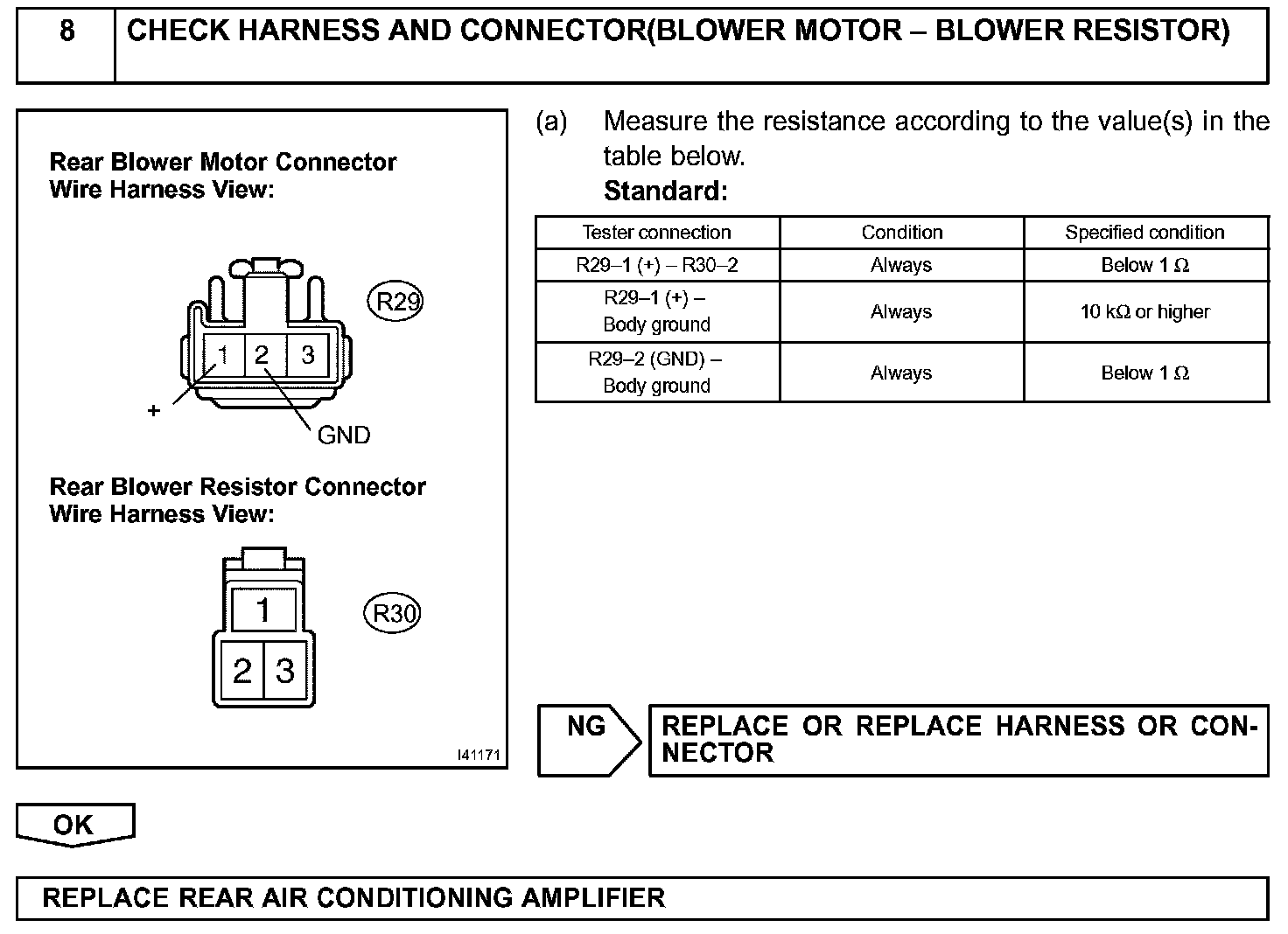

Step 8:

INSPECTION PROCEDURE
