Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

1. CHECK DRIVER DOOR ECU

a. Disconnect the D24 and D25 ECU connectors.
b. Measure the voltage and resistance of the wire harness side connectors.

c. Reconnect the D24 and D25 ECU connectors.
d. Check the voltage of the connector.

2. CHECK PASSENGER DOOR ECU

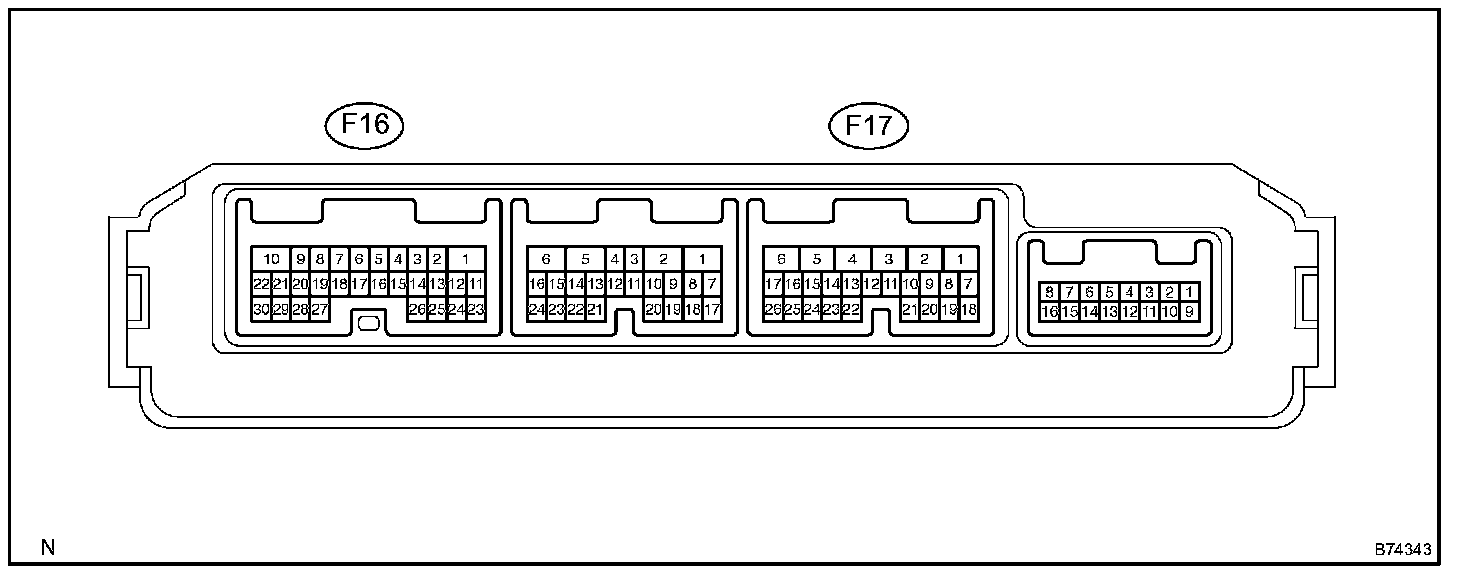

a. Disconnect the F16 and F17 ECU connectors.
b. Measure the voltage and resistance of the wire harness side connectors.

c. Reconnect the R16 and R17 ECU connectors.
d. Measure the voltage of the connector.

3. CHECK REAR DOOR LH ECU

a. Disconnect the R12 and R13 ECU connectors.
b. Measure the voltage and resistance of the wire harness side connectors.

c. Reconnect the R12 and R13 ECU connectors.
d. Measure the voltage of the connectors.

4. CHECK REAR DOOR RH ECU

a. Disconnect the R14 and R15 ECU connectors.
b. Measure the voltage and resistance of the wire harness side connectors.

c. Reconnect the R14 and R15 ECU connectors.
d. Measure the voltage of the connector.
