Data List

DATA LIST

HINT: By the DATA LIST displayed on the Hand-held tester, you can read the value of the switch, sensor, actuator and so on without removing any parts. Reading the DATA LIST as a first step of troubleshooting is one of the method to shorten the labor time.
a. Turn the ignition switch OFF.
b. Connect the hand-held tester to DLC3.
c. Turn the ignition switch ON.
d. According to the display on tester, read the "DATA LIST".

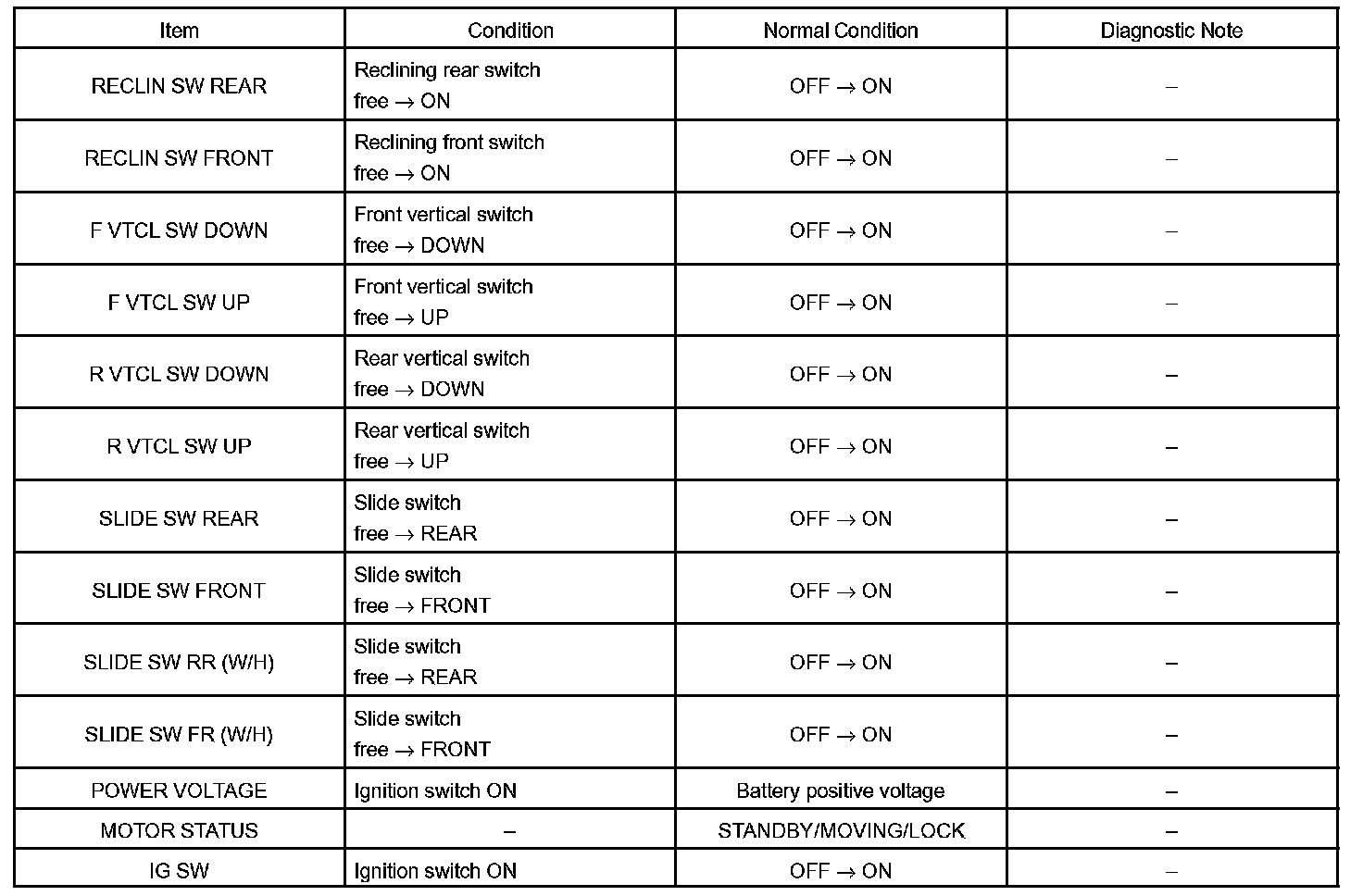

Power Seat Control ECU Part 1:

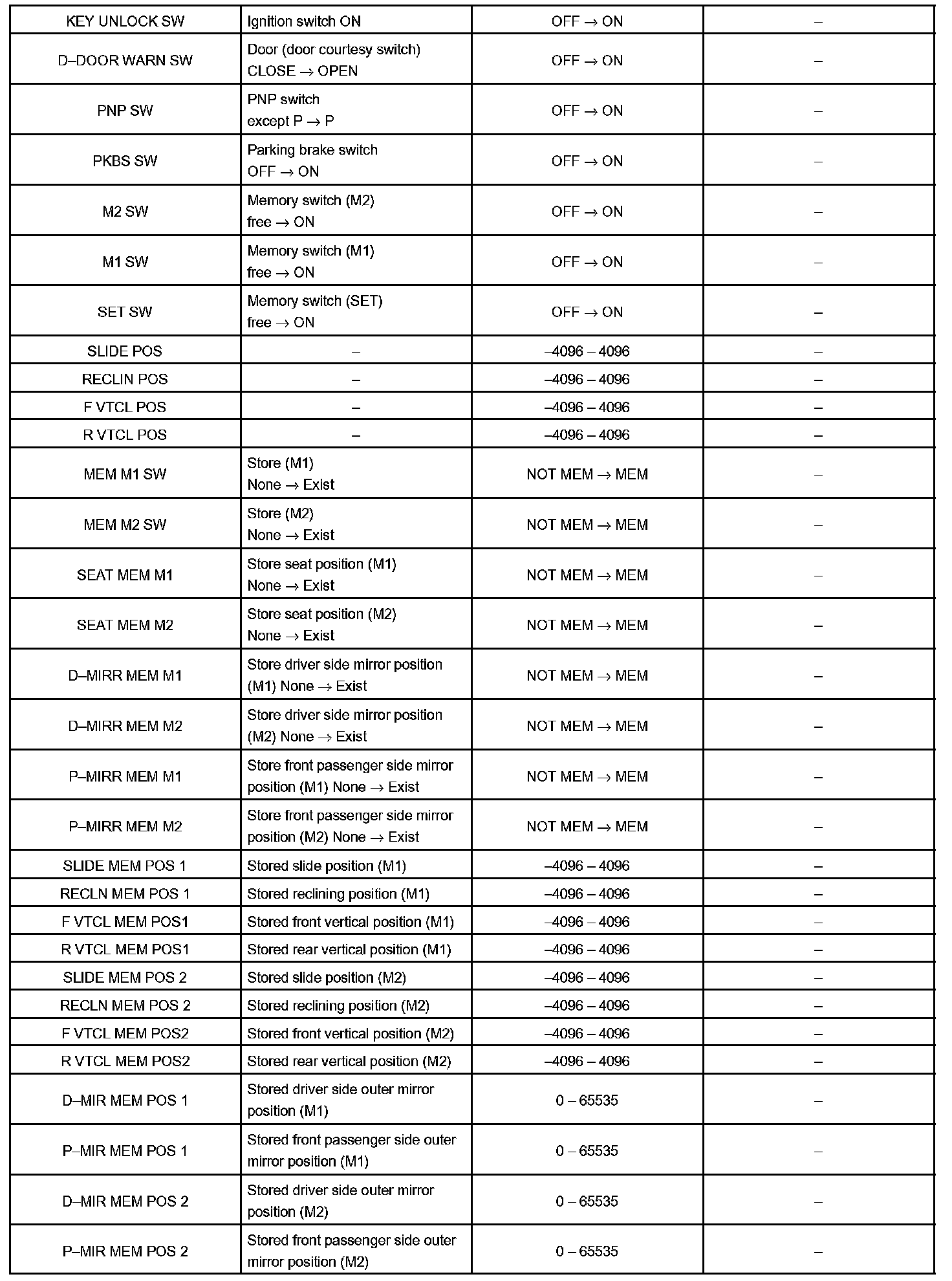

Power Seat Control ECU Part 2:

POWER SEAT CONTROL ECU:

Mirror Control ECU:

MIRROR CONTROL ECU:
