Flex Plate

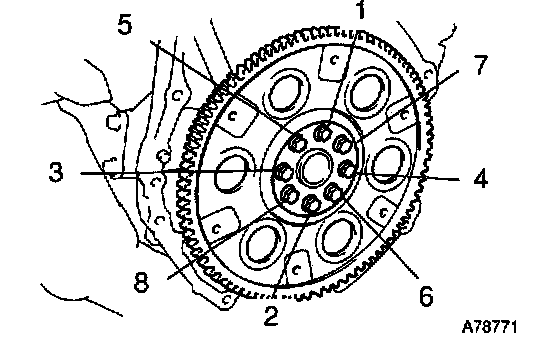

Drive plate & ring gear sub-assy x Crankshaft 83 Nm (846 kgf-cm, 61 ft. lbs.)
Drive plate runout
Maximum 0.20 mm (0.0079 inch)
Torque converter clutch x Drive plate 48 Nm (489 kgf-cm, 35 ft. lbs.)
