With Manufacturer Scan Tool

CHECK DTC

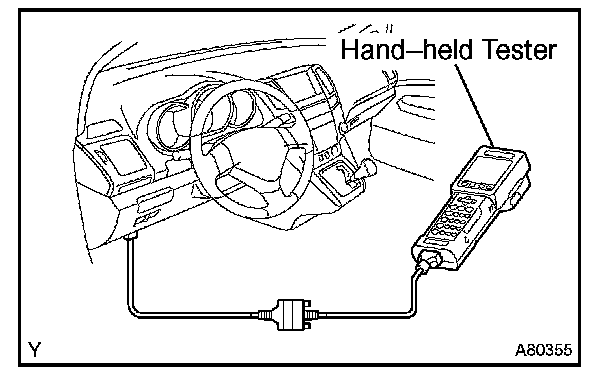

a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch ON.
c. Read the DTC by following the prompts on the tester screen.

HINT: Refer to the hand-held tester operator's manual for further details.

USING HAND-HELD TESTER

a. Connect the hand-held tester to the DLC3.
b. Monitor the ECU data by following the prompts on the tester screen.

HINT: The hand-held tester has a "Snapshot" function which records the monitored data. Refer to the hand-held tester operator's manual for further details.
