Security Indicator Circuit

SECURITY INDICATOR CIRCUIT

CIRCUIT DESCRIPTION
Even when the theft deterrent system is in the disarmed state, the security indicator flashes due to a signal output from the immobilizer system. The security indicator flashes continuously due to a continuous signal it receives from the immobilizer system while in the armed state.

The multiplex network body ECU causes the security indicator to light up or blink only during the arming preparation state and alarm sounding state.

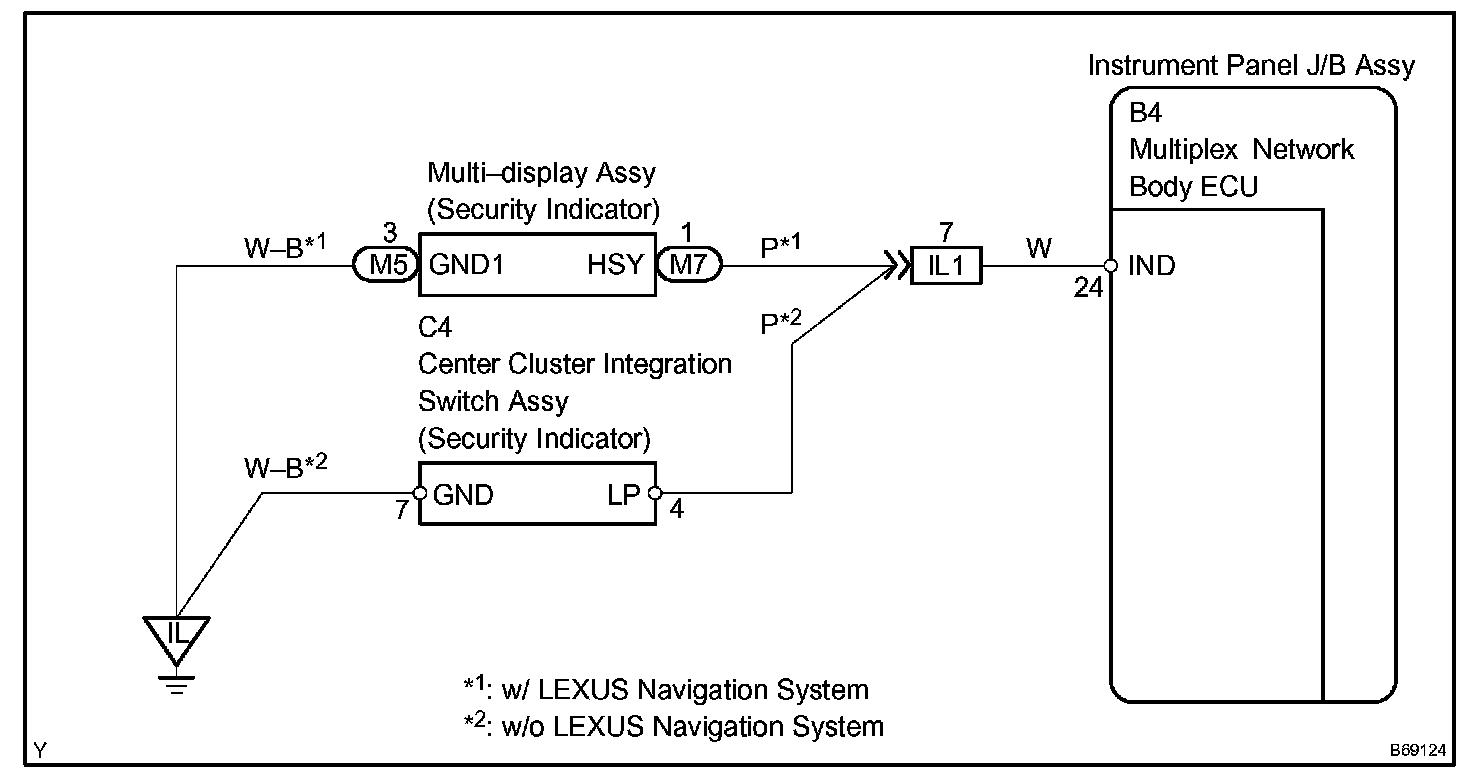

Wiring Diagram:

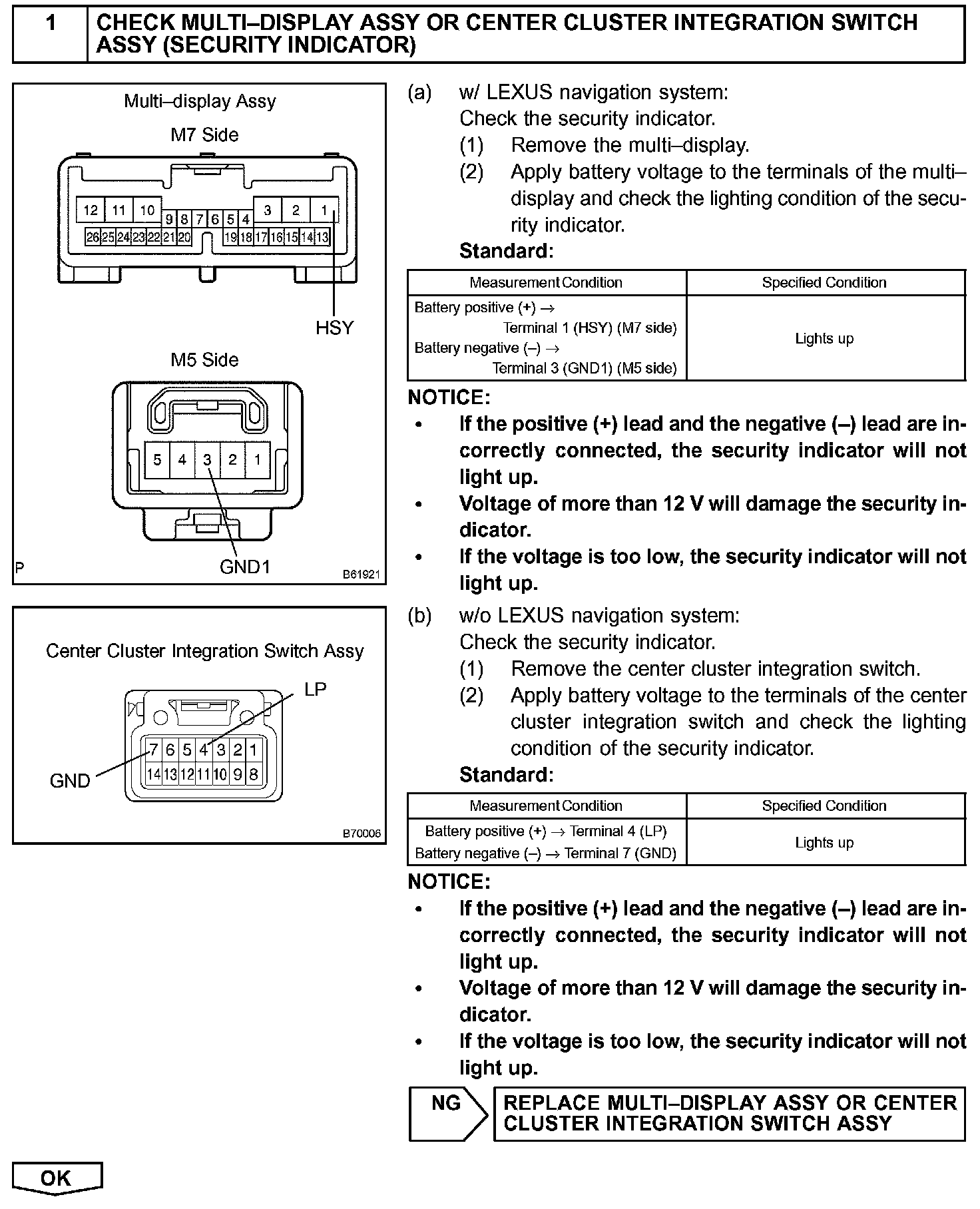

Step 1:

Step 2:

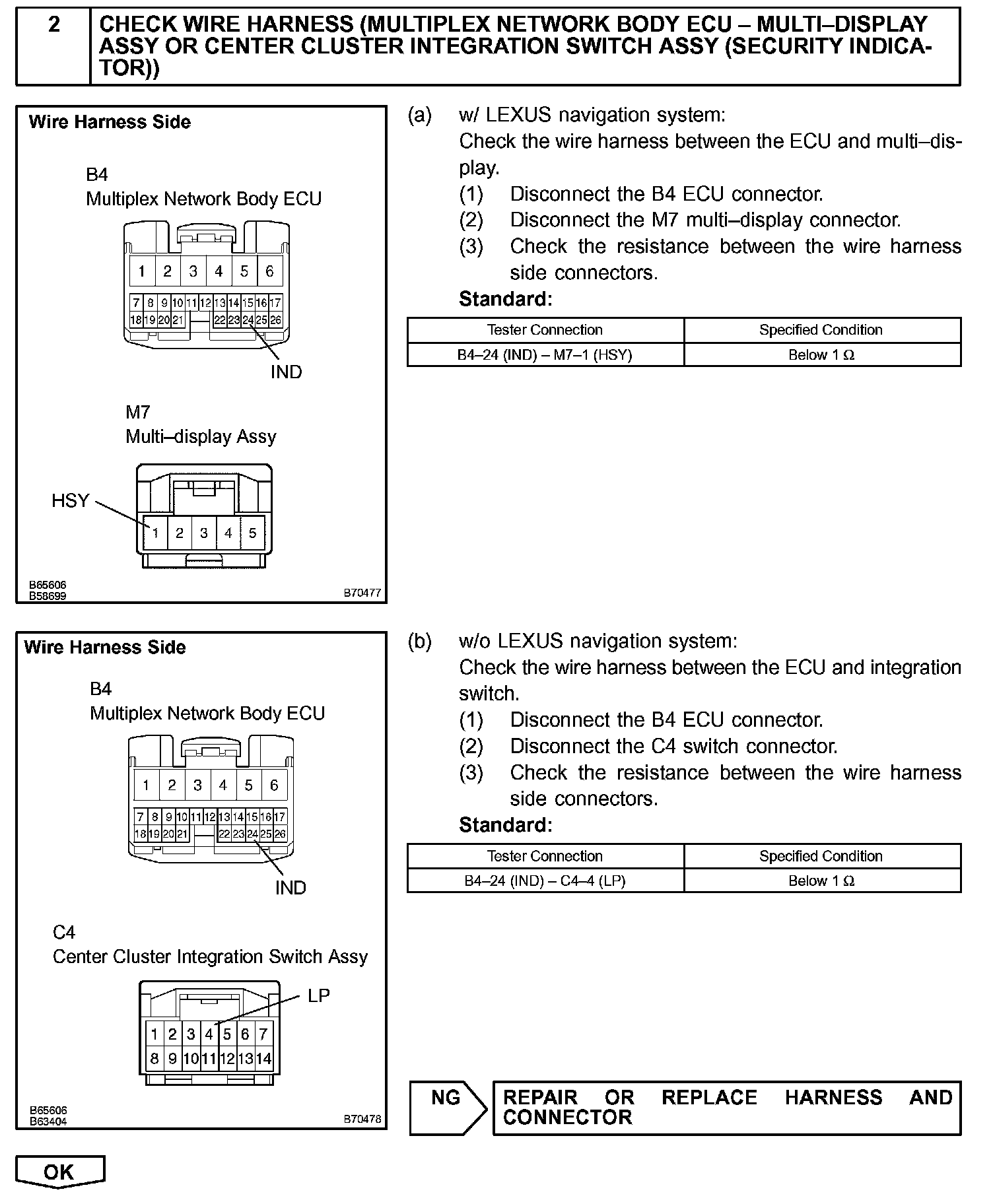

Step 3:

INSPECTION PROCEDURE
