Display Check Mode

DISPLAY CHECK MODE




1. DIAGNOSIS CHECK

HINT: Diagnosis system mode is operated as follows.

HINT: The multi-display controller sub-assy inspects the devices composing the sub AVC-LAN (RSE system).

a. Starting main AVC-LAN diagnosis mode.

HINT:
- When the diagnosis mode of main AVC-LAN is started, the sub AVC-LAN also enters the diagnosis mode and the diagnosis operation is performed on the multi-display controller sub-assy.

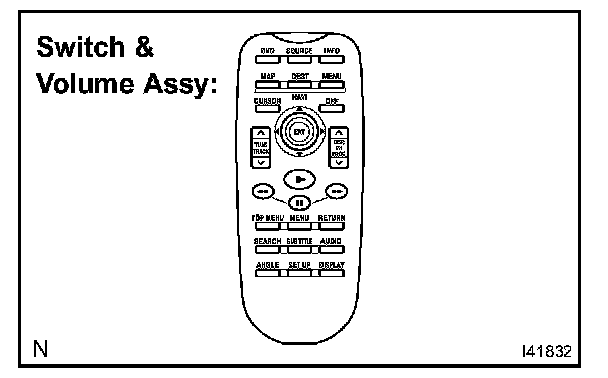

- Use a switch & volume assy to operate the diagnosis mode.

b. Finishing the diagnosis mode.
Turn the ignition switch off.




2. DISPLAY CHECK MODE

HINT: Display check mode is operated as follows.

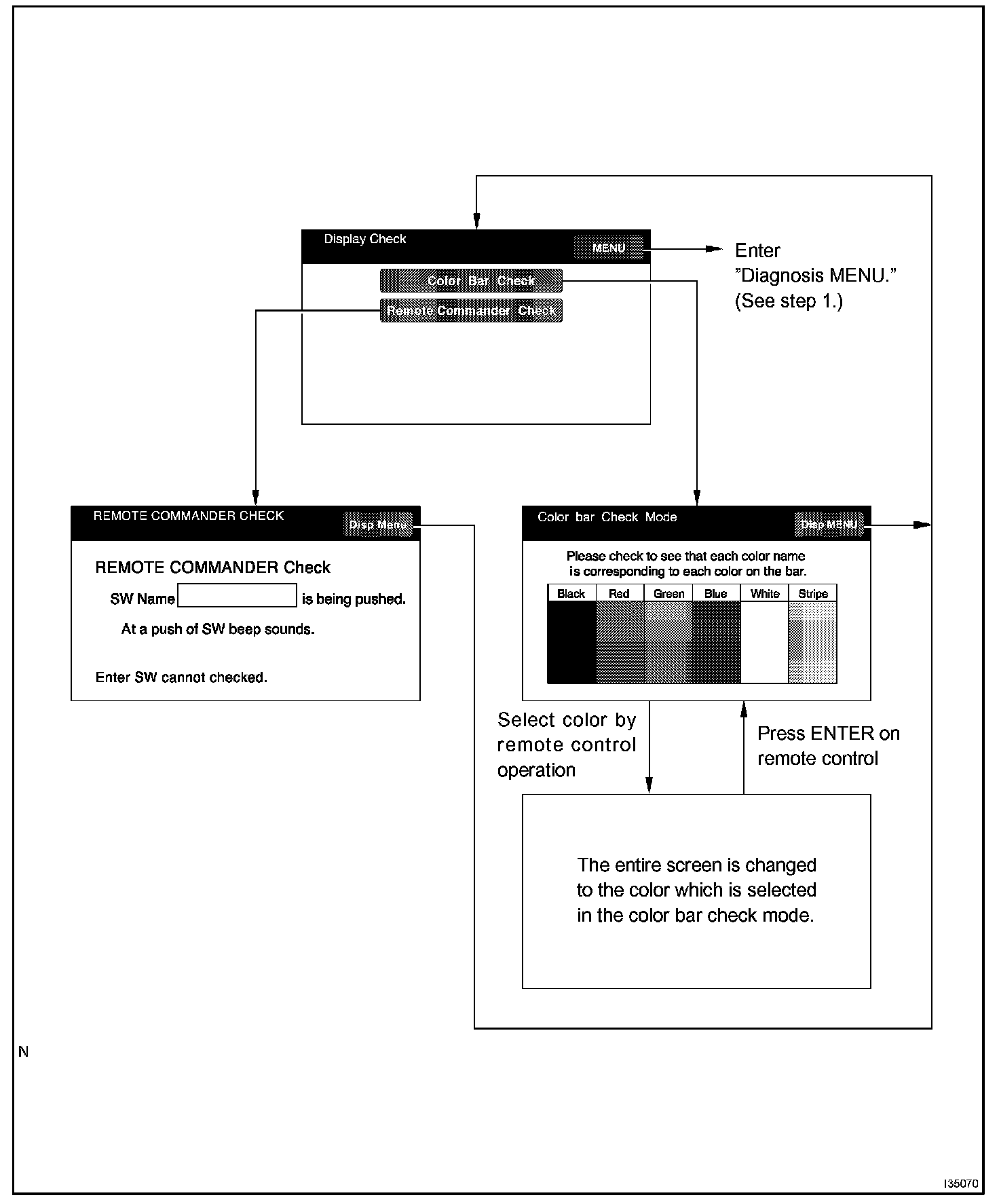

a. Display Check Mode

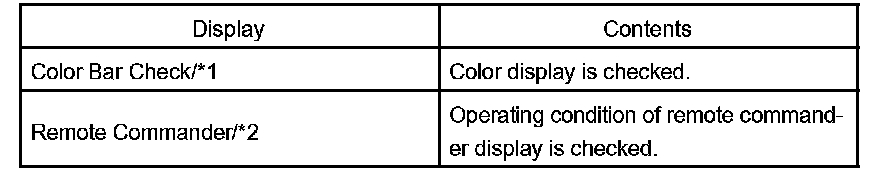

HINT: In Display Check Mode, the above checks can be performed.




b. Display Color Bar Check
1. Start the Diagnosis System.
2. Select "MENU".

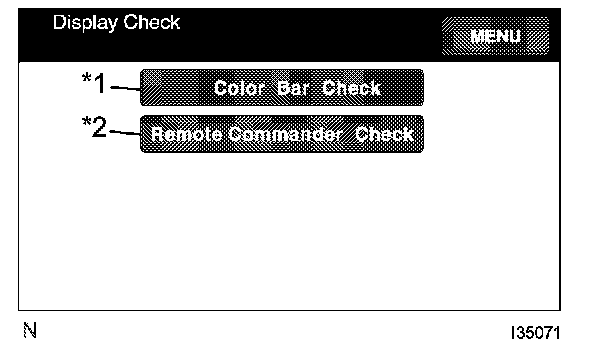

3. Select "Display Check".

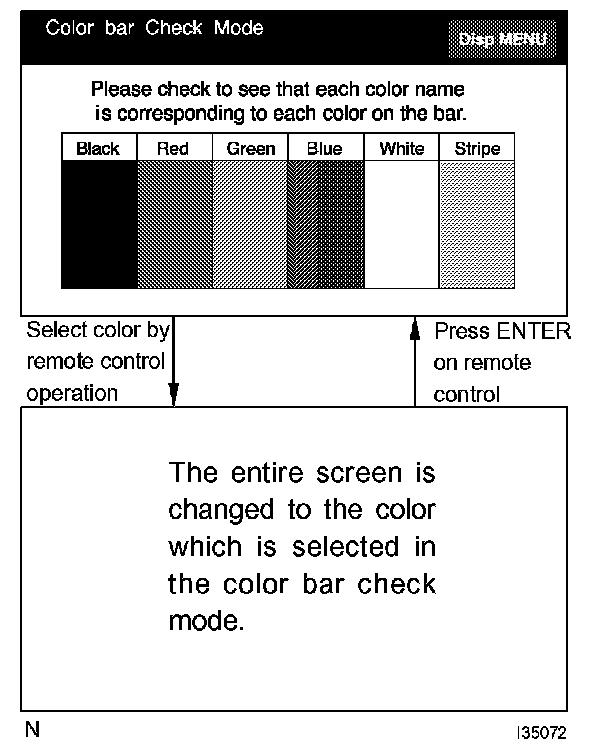

4. Select "Color Bar Check".
5. Make sure that each color name is corresponding to each color on the bar.

HINT: Select Black, Red, Green, Blue, White and Stripe to display selected colors and stripe on the entire screen.

6. Compare the color with the "Color Bar Check", and make sure that the color is the same.




c. Display Remote Commander Check
1. Start the Diagnosis system.
2. Select "MENU".
3. Select "Display Check".

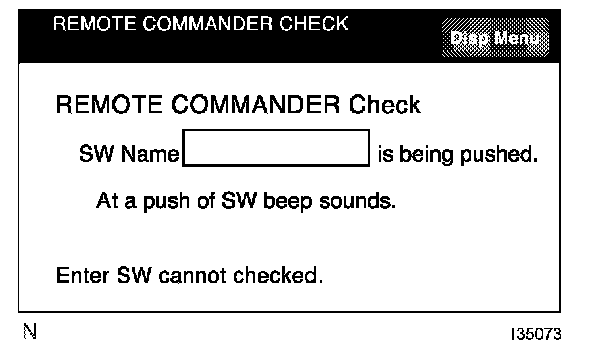

4. Select "Remote Commander".
5. Press each switch and make sure that it corresponds to the display on the screen.
