Power Source Circuit (Television Display Assy)

POWER SOURCE CIRCUIT(TELEVISION DISPLAY ASSY)

CIRCUIT DESCRIPTION

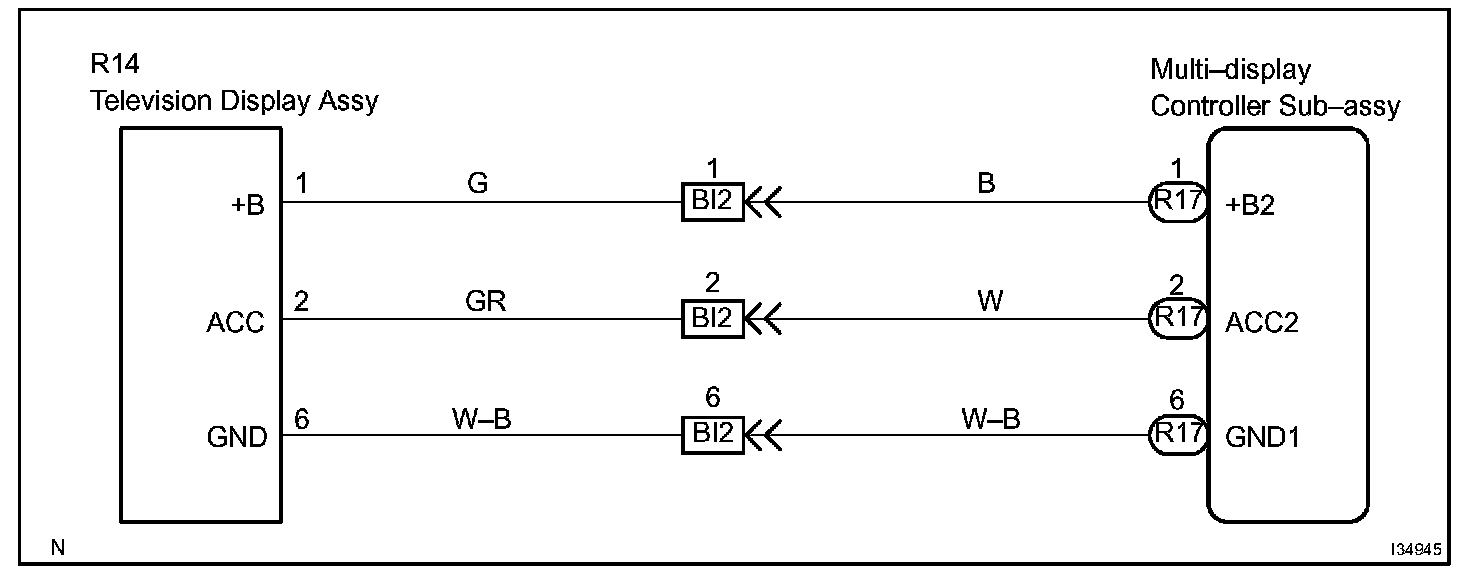

This is the power source circuit to operate the television display assy. The power source is sent from the battery to the television display assy through the multi-display controller sub-assy.
