Power Source Circuit (Multi-Display Controller Sub-Assy)

POWER SOURCE CIRCUIT(MULTI-DISPLAY CONTROLLER SUB-ASSY)

CIRCUIT DESCRIPTION
This circuit provides power to the multi-display controller sub-assy.

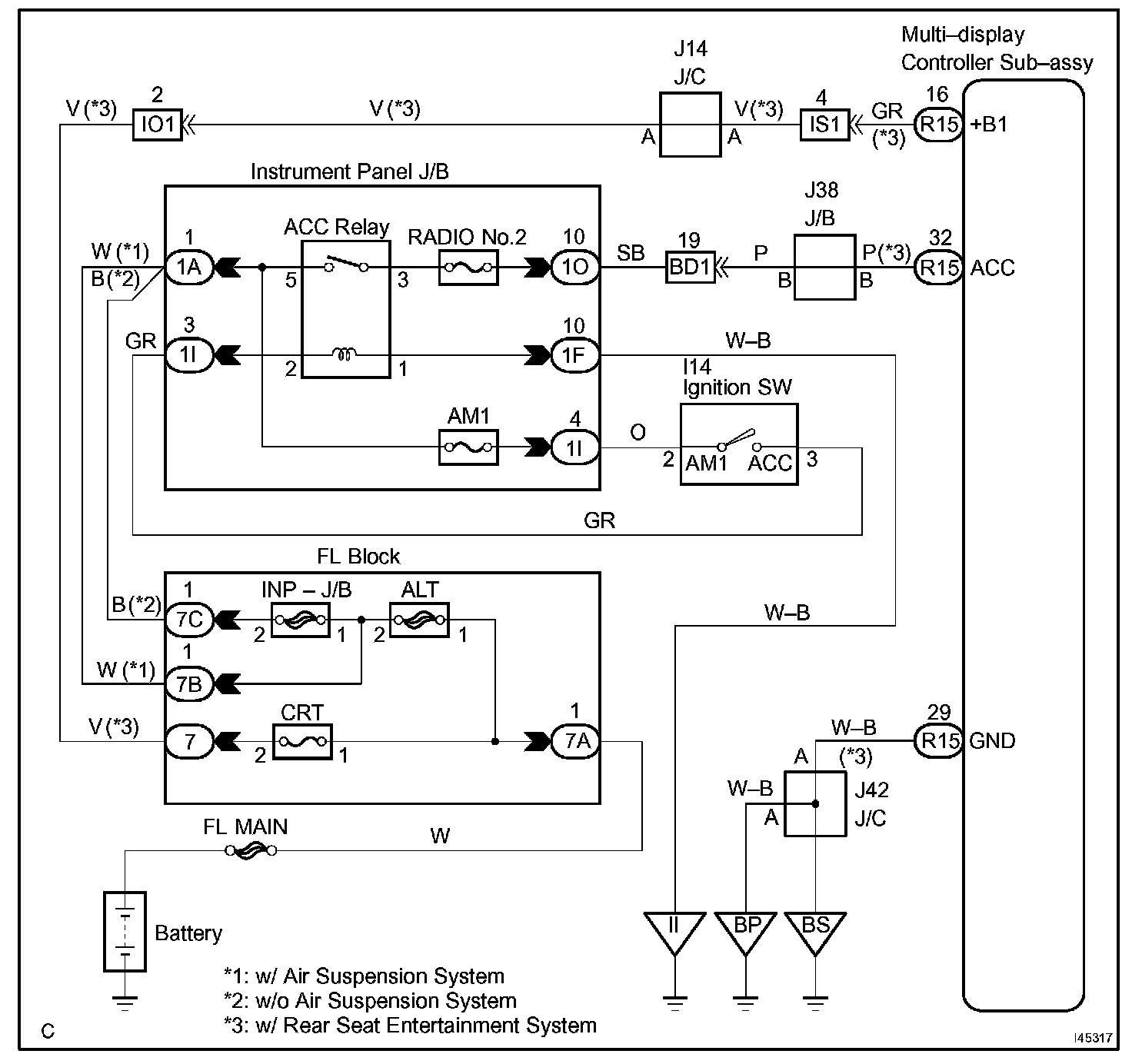

Wiring Diagram:

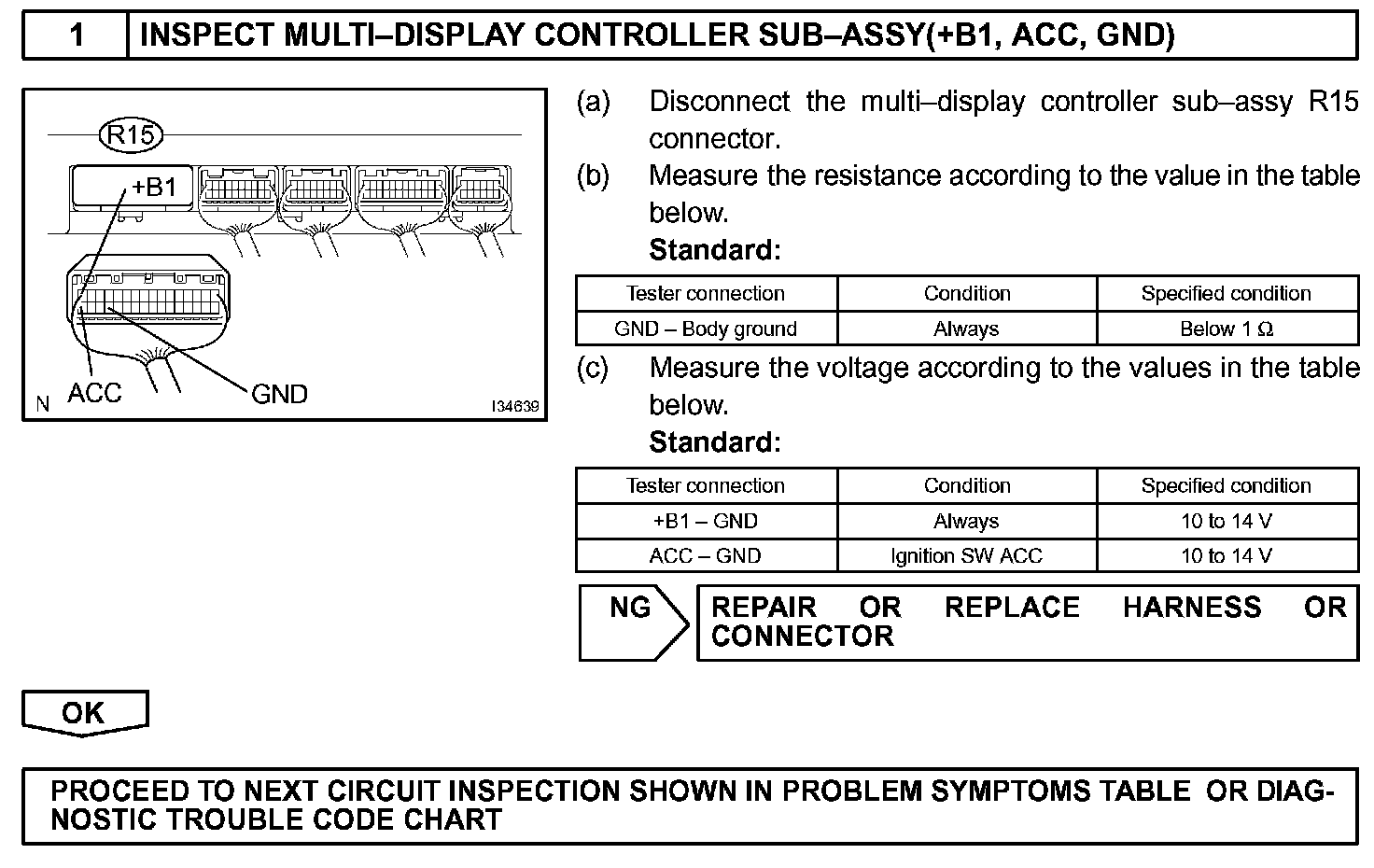

Step 1:




INSPECTION PROCEDURE
