Front Door: Adjustments
ADJUSTMENTHINT:
- Use the same procedures on the RH side as on the LH side.

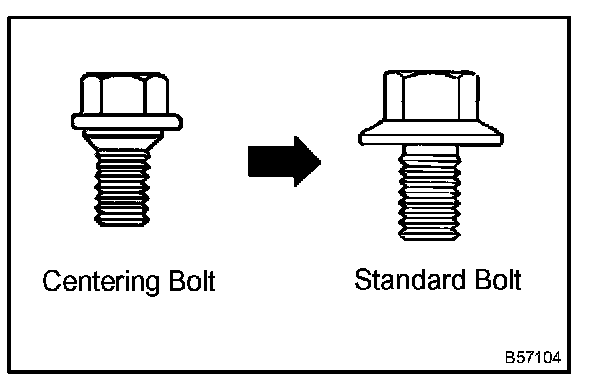

- Since a centering bolt is used as a door hinge mounting bolt on the body side and the door side, the door can not be adjusted with them on. Substitute a bolt with a washer for the centering bolt.
1. INSPECT FRONT DOOR PANEL SUB-ASSEMBLY LH

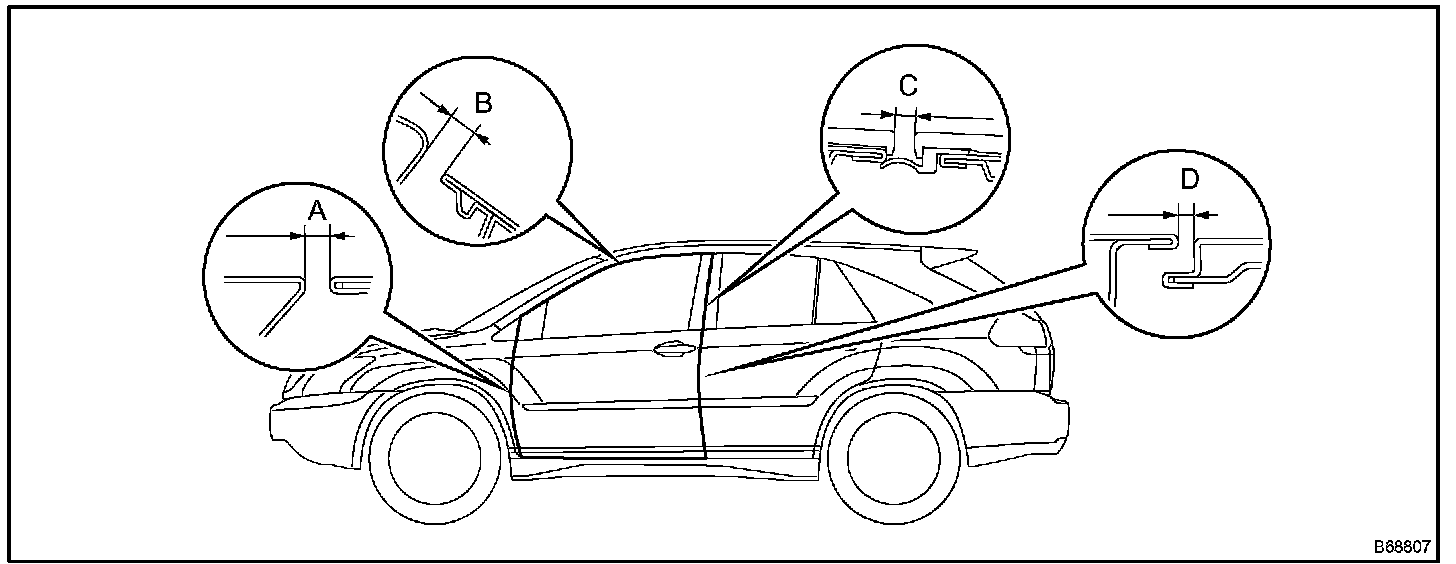

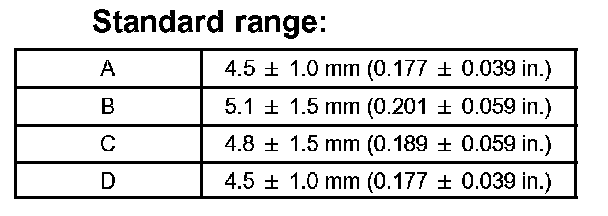

a. Check that the clearance is within the standard range.
2. ADJUST FRONT DOOR PANEL SUB ASSEMBLY LH
a. Using SST, horizontally and vertically adjust the door by loosening the body side hinge bolts.
SST 09812-00010, 09812-00020
b. Tighten the body side hinge bolts after the adjustment.
Torque: 26 Nm (265 kgf.cm, 19 ft.lbf)

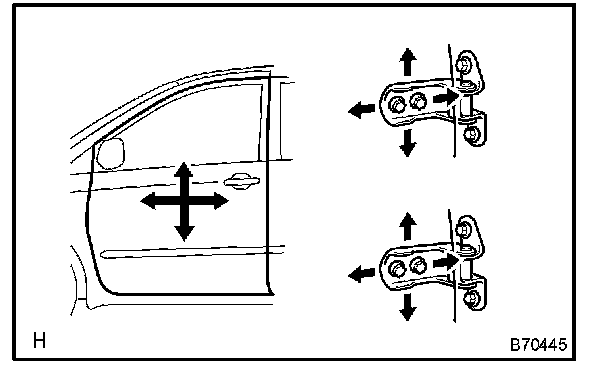

c. Adjust the door forward/rearward and vertically by loosening the door side hinge bolts.
d. Tighten the door side hinge bolts after the adjustment.
Torque: 26 Nm (265 kgf.cm, 19 ft.lbf)

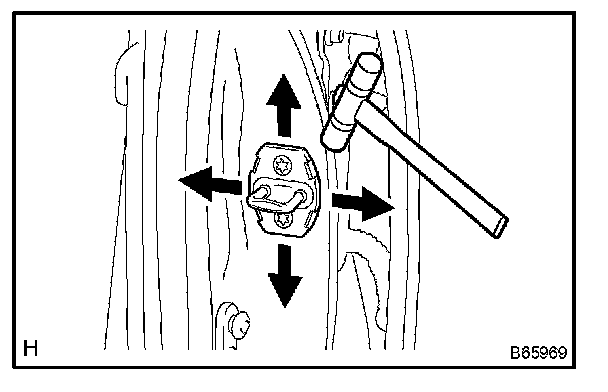

e. Adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a plastic-faced hammer.
f. Tighten the striker mounting screws after the adjustment.
Torque: 23 Nm (235 kgf.cm, 17 ft.lbf)
