Component Tests and General Diagnostics

INSPECTION

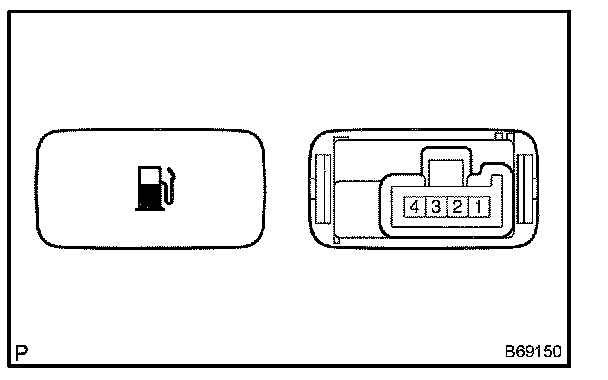

1. INSPECT FUEL LID OPENER SWITCH

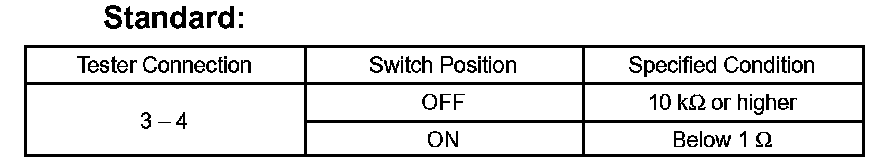

a. Check the fuel lid opener switch resistance.

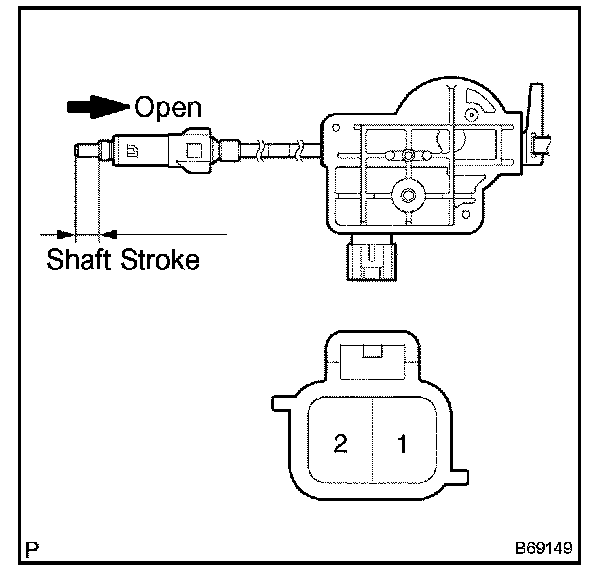

2. INSPECT FUEL LID LOCK CONTROL ASSEMBLY

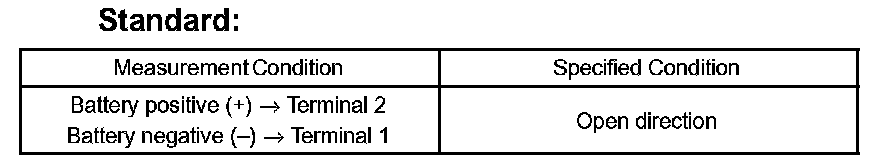

a. Apply battery voltage to the lock control and check the motor operates in the direction.
b. Check the shaft stroke.
Standard: 10.3 mm (0.406 in.) or more
