Power Back Door
Power Back Door

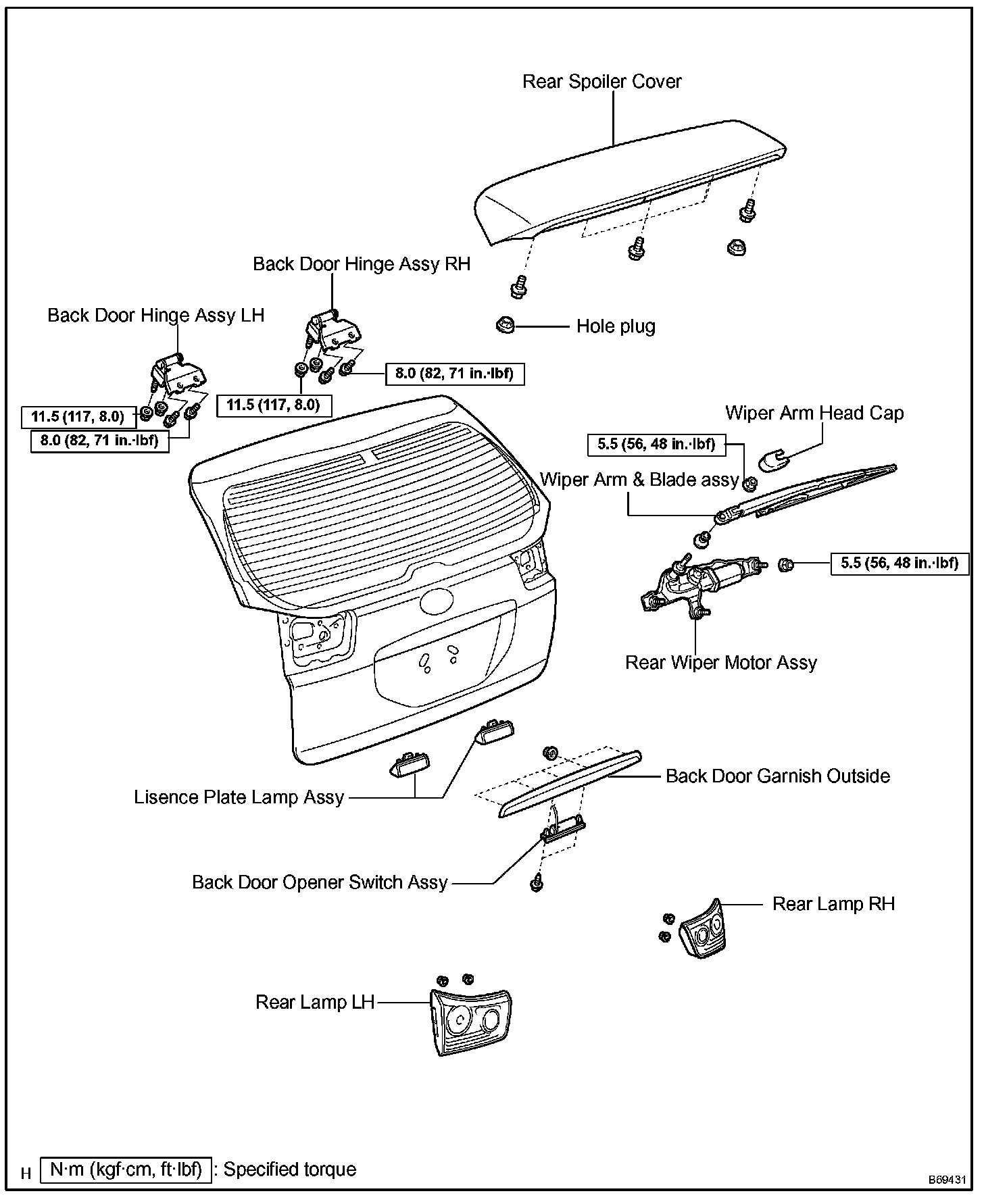

Power Back Door - Part 1:

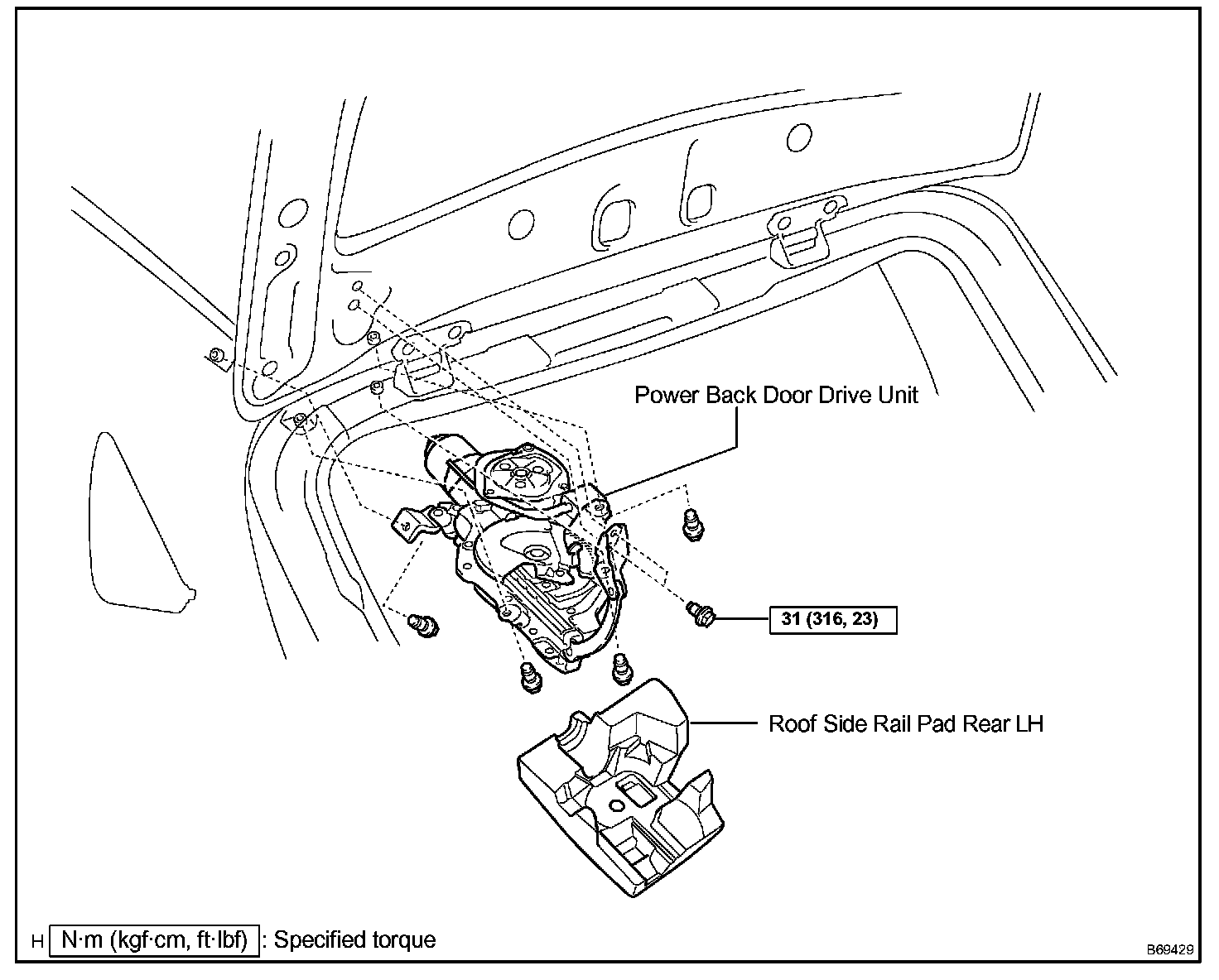

Power Back Door - Part 2:
Power Back Door - Part 3:
