Keyless Entry Transmitter: Service and Repair

TRANSMITTER SUB-ASSEMBLY MODULE SET DOOR CONTROL

REPLACEMENT

HINT: The installation is in the reverse order of the removal.




1. REMOVE TRANSMITTER SUB-ASSEMBLY MODULE SET DOOR CONTROL

NOTE: Special caution should be taken when handling each component as they are precise electronic components.

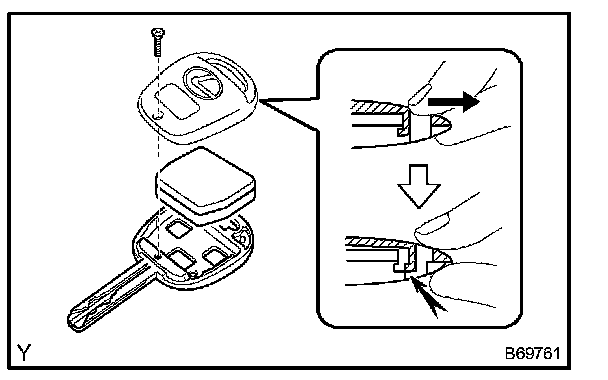

a. Using a screwdriver, remove the screw.
b. Push the cover with your finger as shown in the illustration so a gap appears. Then, pry out the cover using that gap.

NOTE: Do not forcibly pry up the cover.
