Pre-Check

PRE-CHECK

1. WIRELESS DOOR LOCK CONTROL SYSTEM DESCRIPTION

a. This system is a convenient system for locking and unlocking all the doors at a distance. The wireless control system has the following features:
- In this system, the door control receiver performs the code identification process and the multiplex network body ECU operates the door lock control. A serial data link is provided for communication between the door control receiver and the multiplex network body ECU.
- w/o Power back door:
A key-integrated type transmitter is used and it contains the following 3 switches: the door lock switch, door unlock switch and panic switch.
- w/ Power back door:
A key-integrated type transmitter is used and it contains the following 3 switches: the door lock (panic) switch, door unlock switch and power back door switch.
- A power window down function and a sliding roof (standard type only) open function are used in the wireless door lock control system.
- A LED (Light Emitting Diode) is mounted on the transmitter to show if the battery is discharged.

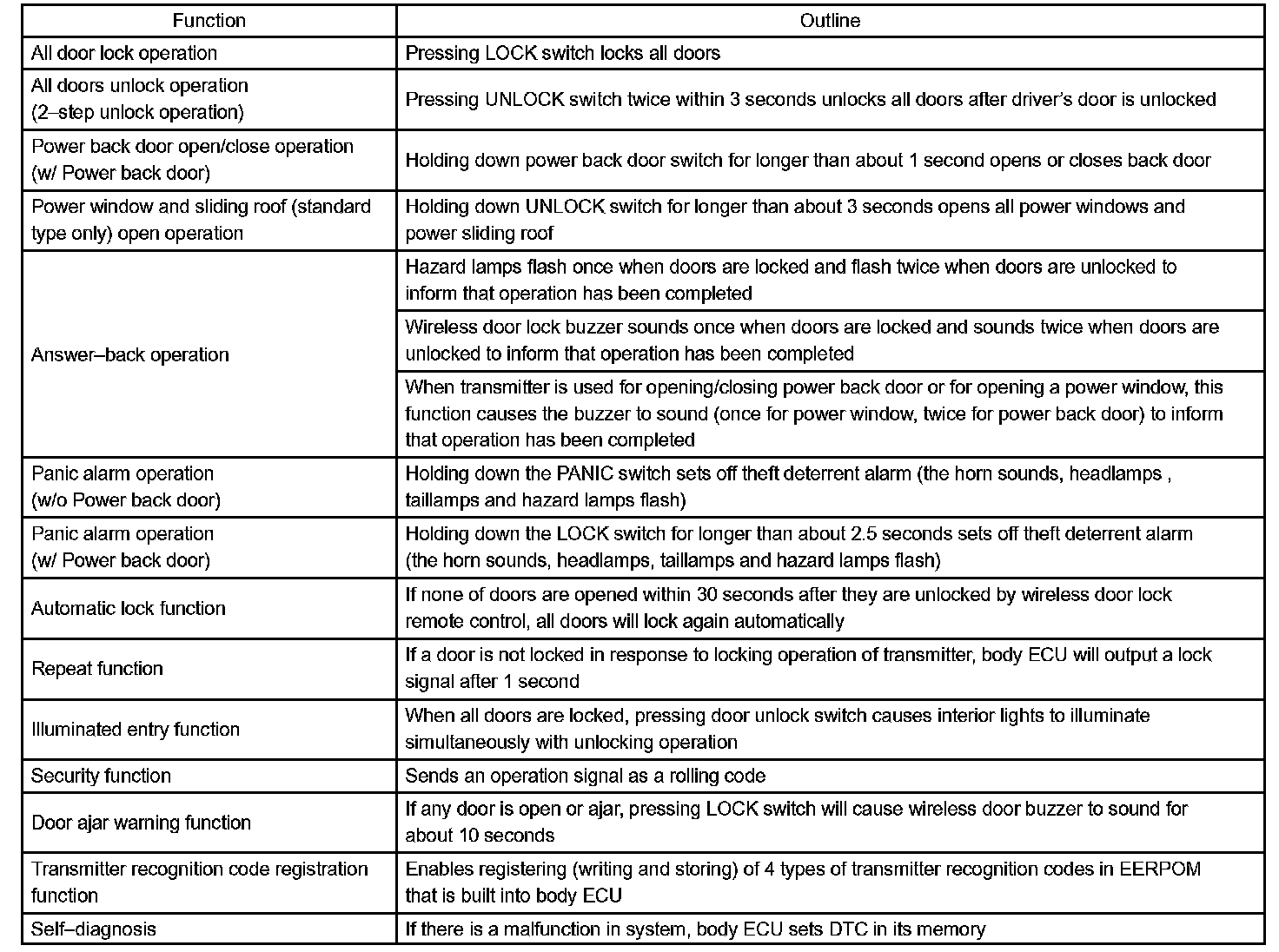

b. The wireless door lock control system has the following functions.
