Displaying & Reading Trouble Codes
>>
With Manufacturer Scan Tool
With Manufacturer Scan Tool
CHECK DTC
a.

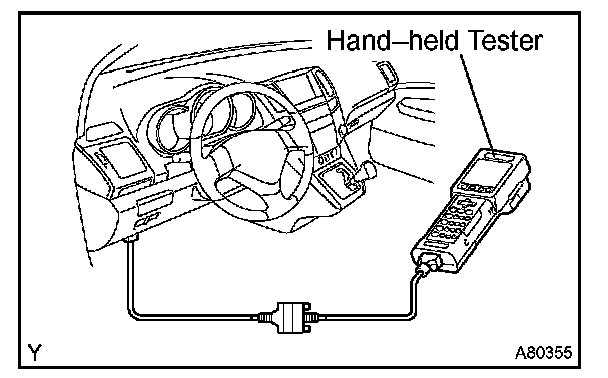

Connect the hand-held tester to the DLC3.
b.
Turn the ignition switch ON.
c.
Read DTCs by following the prompts on the tester screen.
HINT:
Refer to the hand-held tester operator's manual for further details.
