All Doors Cannot Be Locked/Unlocked At Once

ALL DOORS CANNOT BE LOCKED/UNLOCKED AT ONCE

CIRCUIT DESCRIPTION
The body ECU drives the door lock motor after receiving a switch signal from the master switch, the door control switch and the driver door key cylinder.

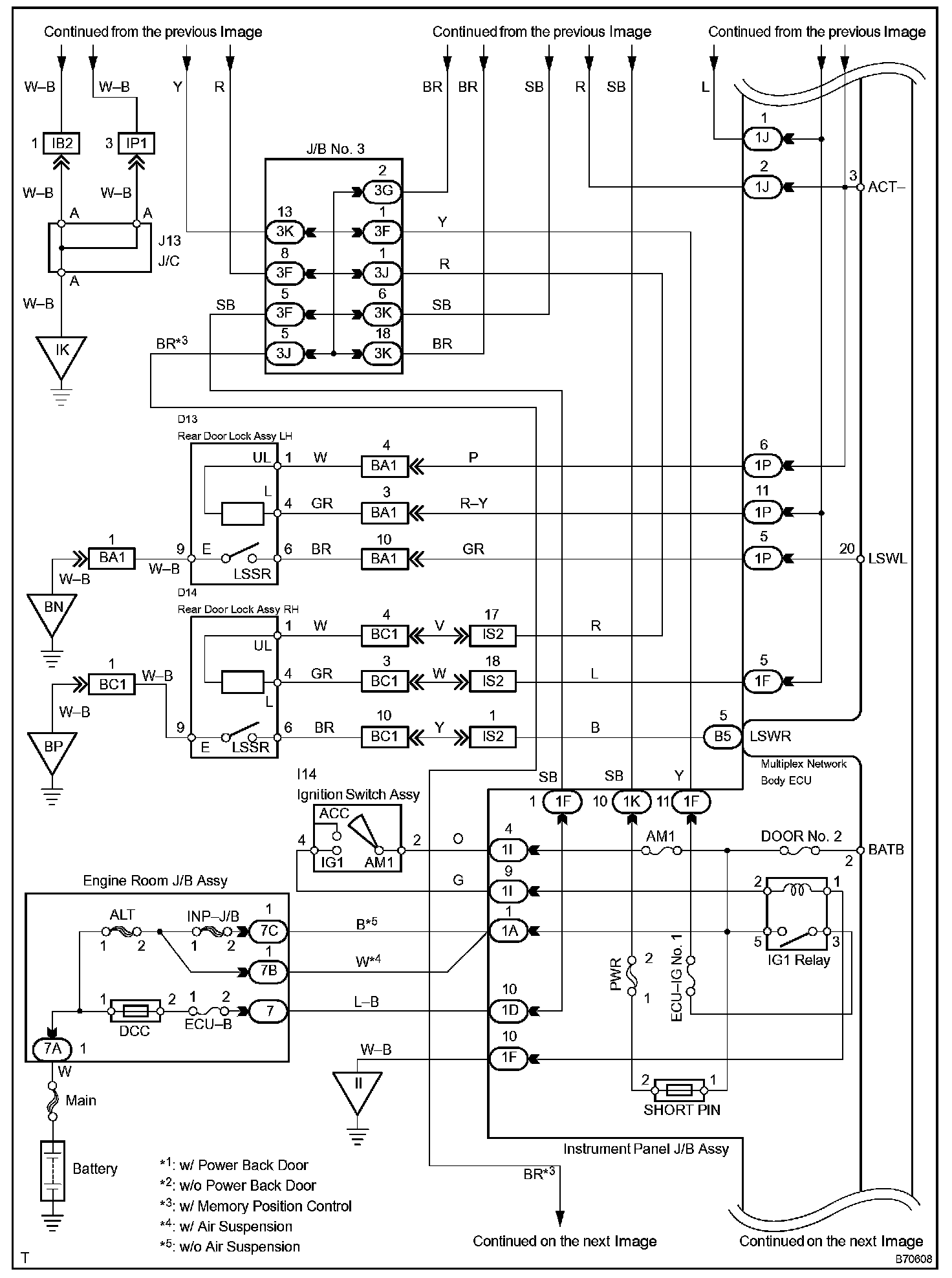

Wiring Diagram:

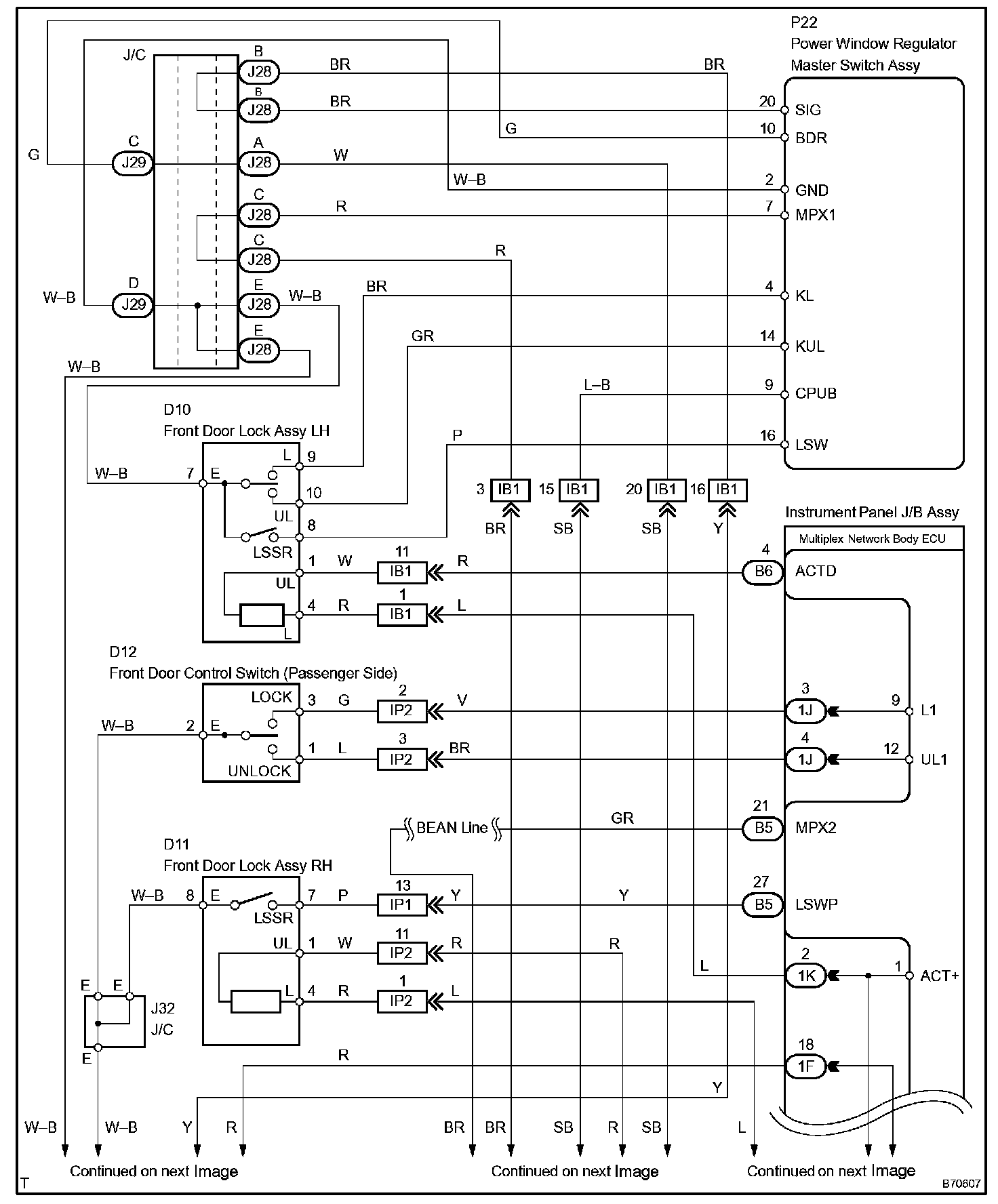

Wiring Diagram:

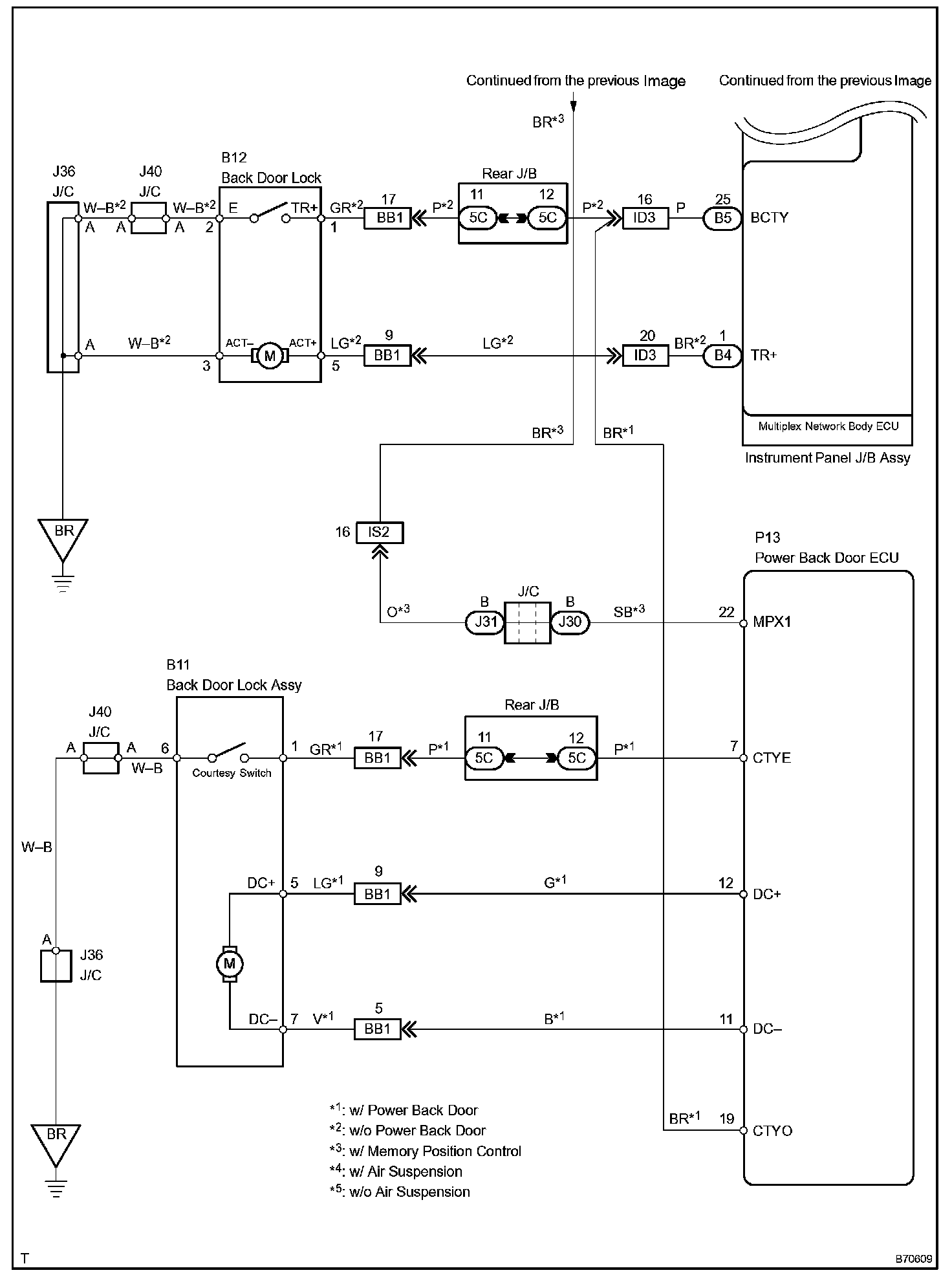

Wiring Diagram:

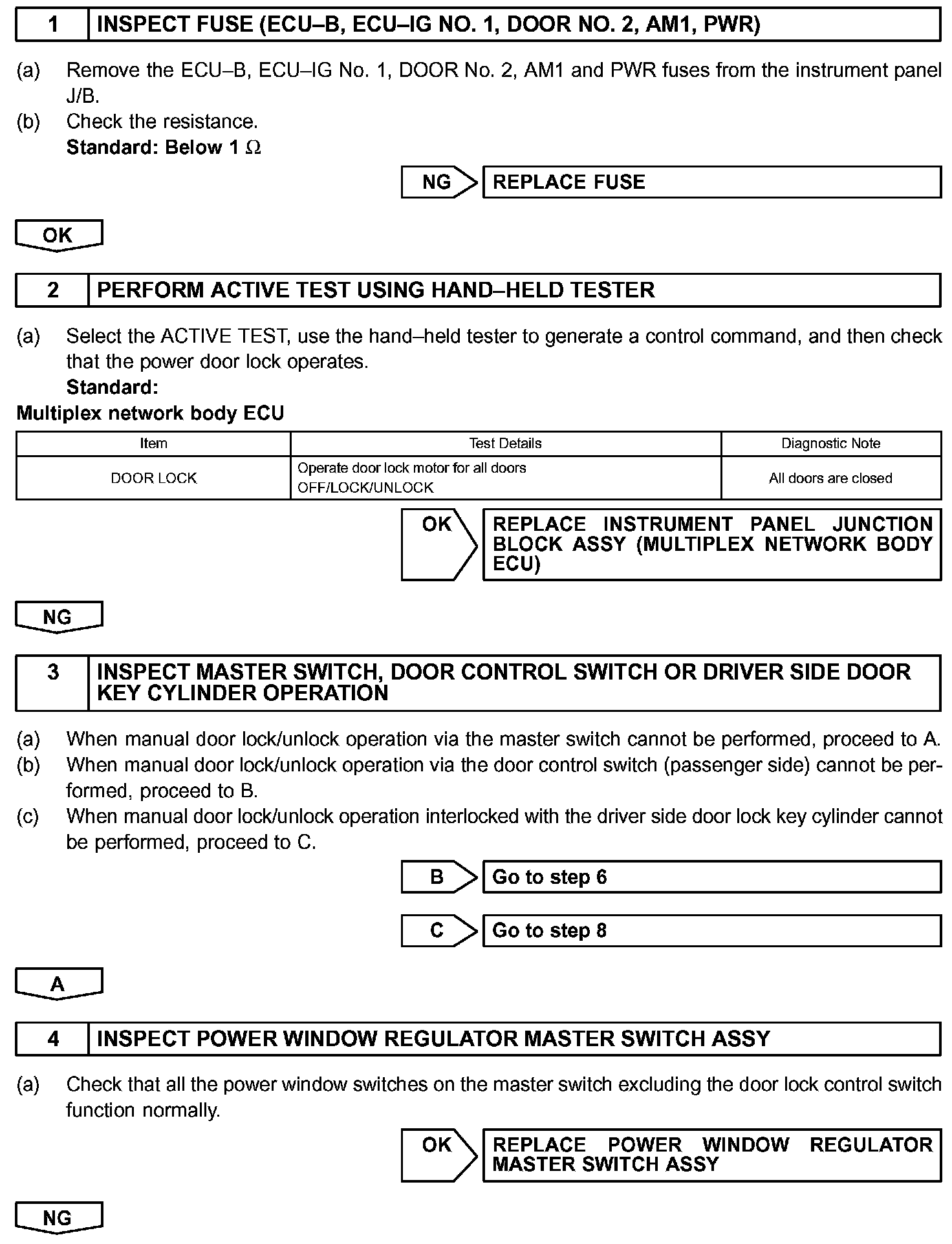

Step 1 - 4:

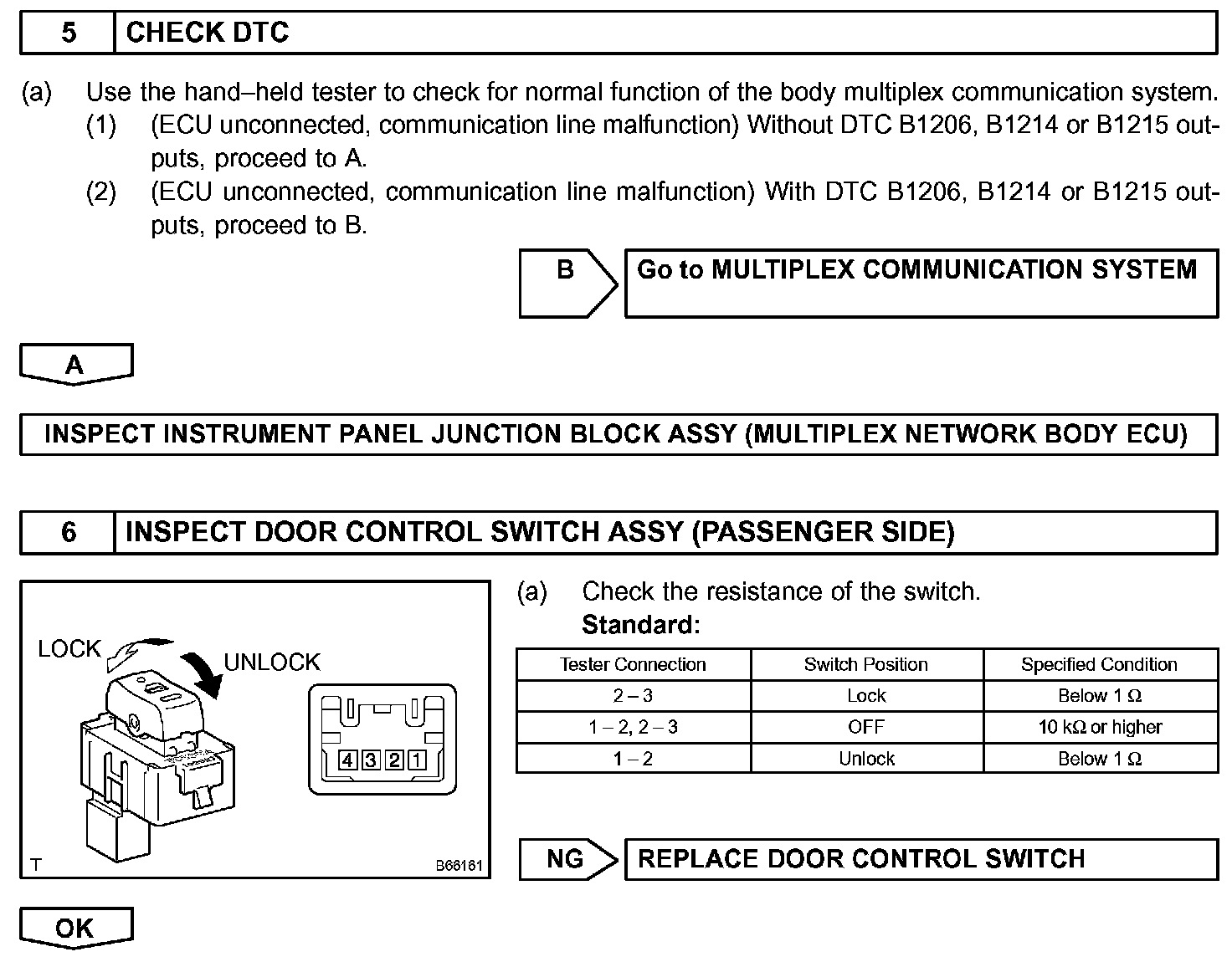

Step 5 - 6:

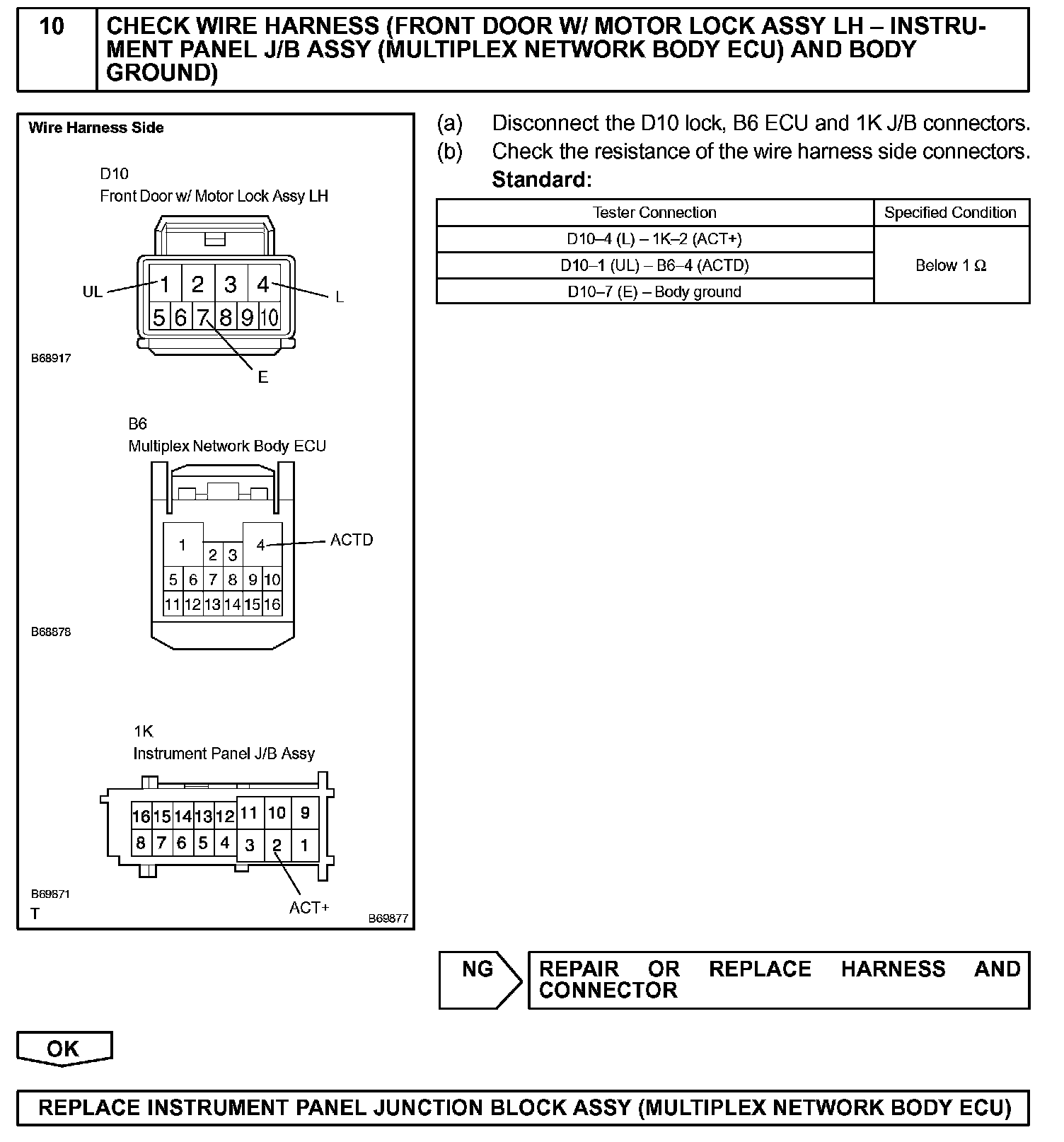

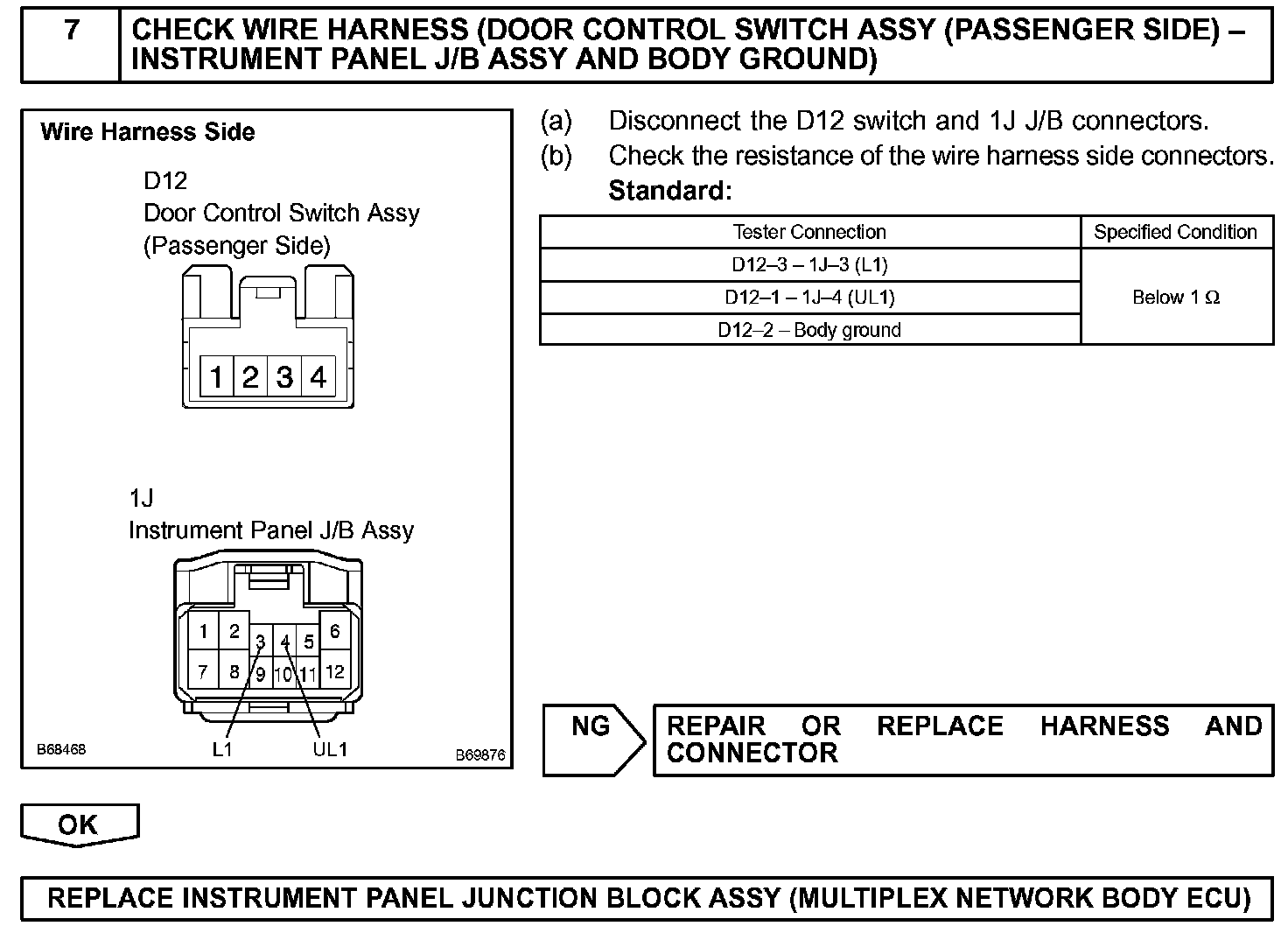

Step 7:

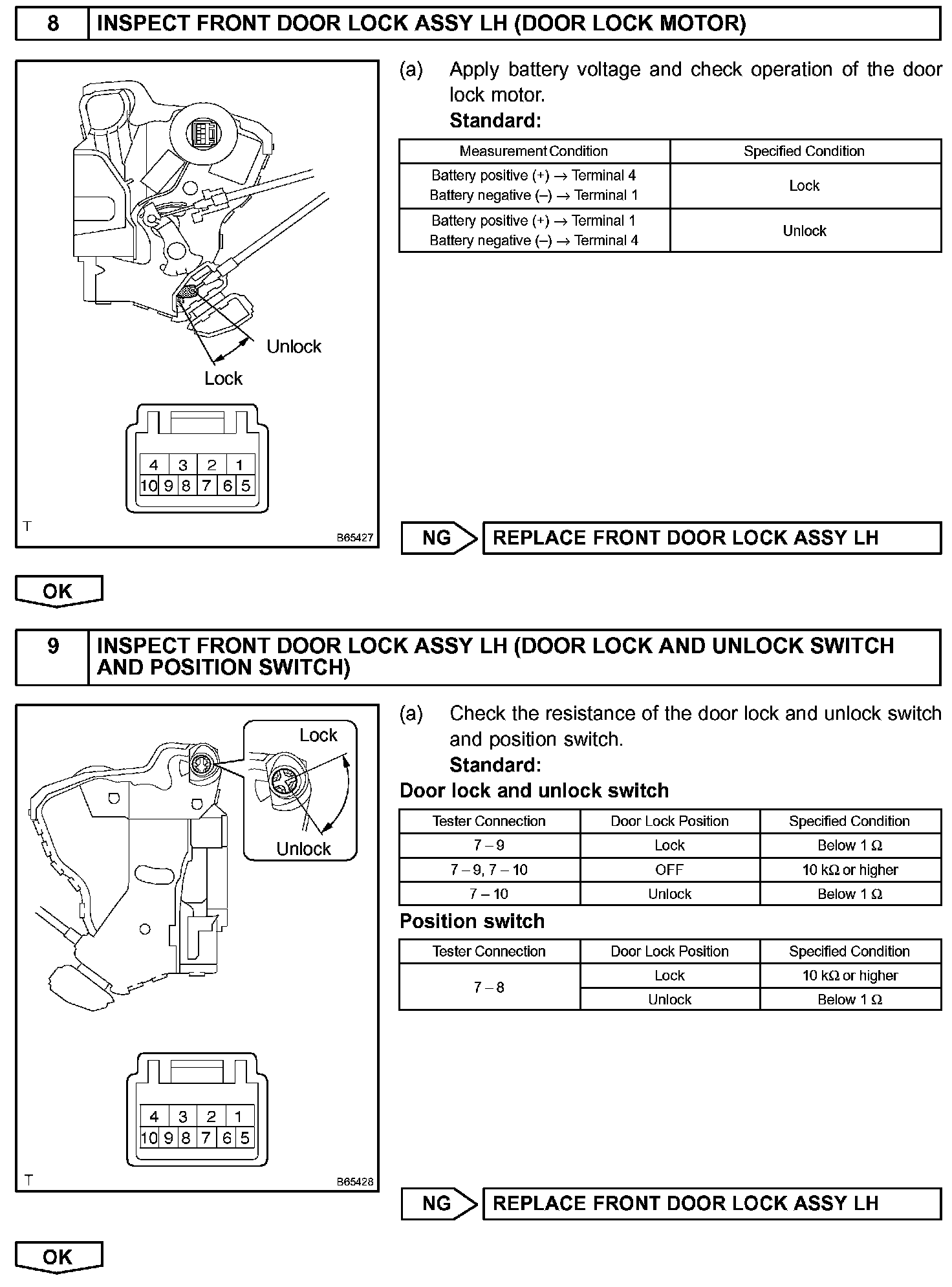

Step 8 - 9:

Step 10:

INSPECTION PROCEDURE
