Outer Rear View Mirror Assy

1. w/ Memory seat:

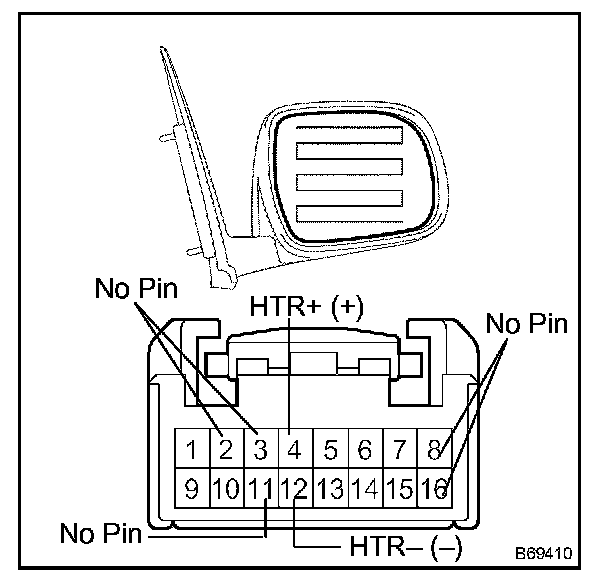

INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH

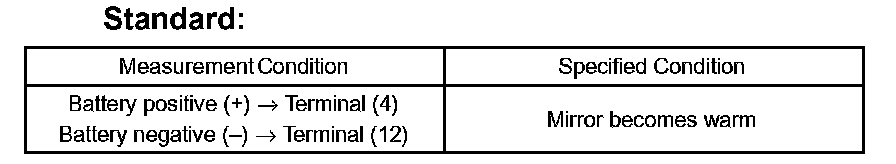

a. Apply battery voltage and check operation of the mirror heater.
If the result is not as specified, replace the mirror assembly.







2. w/ Memory seat:

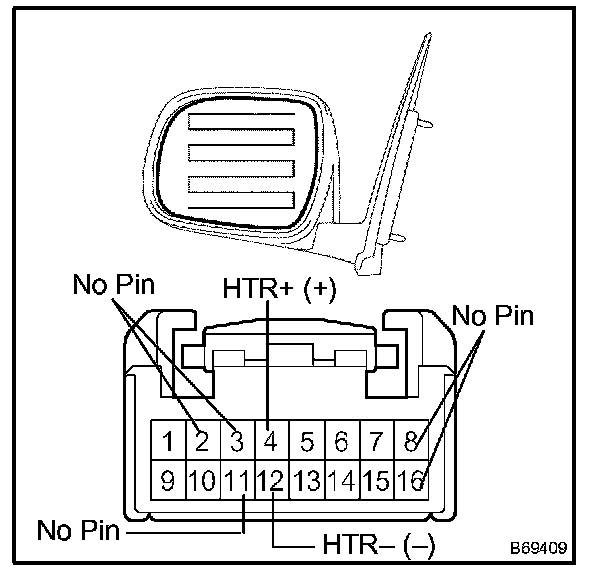

INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH

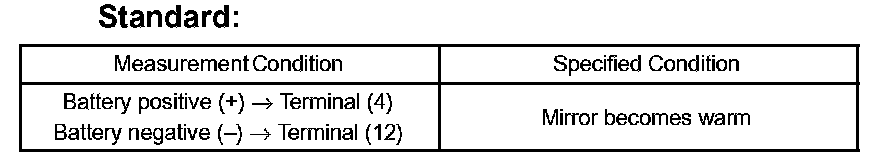

a. Apply battery voltage and check operation of the mirror heater.
If the result is not as specified, replace the mirror assembly.







3. w/o Memory seat:

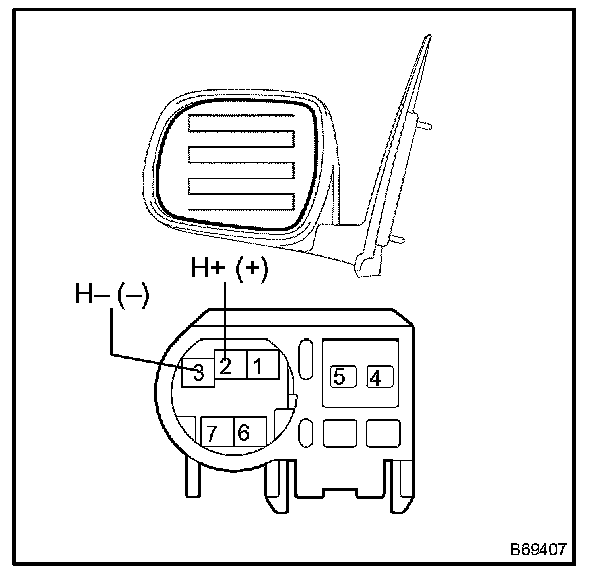

INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH

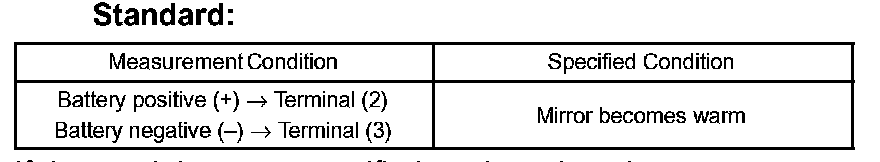

a. Apply battery voltage and check operation of the mirror heater.
If the result is not as specified, replace the mirror assembly.







4. w/o Memory seat:

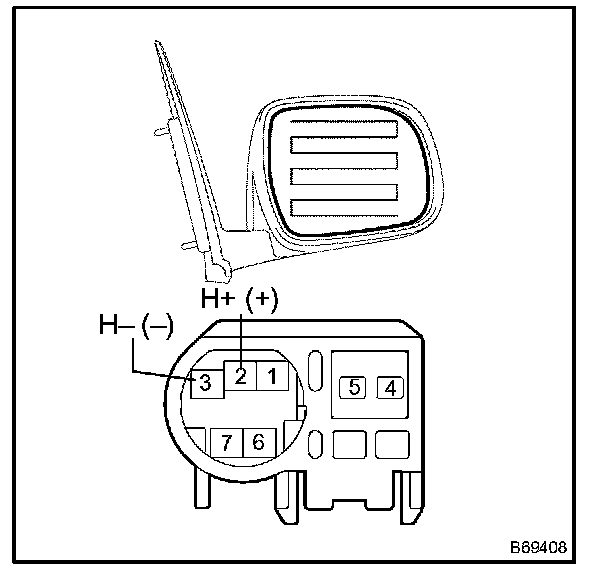

INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH
a. Apply battery voltage and check operation of the mirror heater.
If the result is not as specified, replace the mirror assembly.
