Pinout Values and Diagnostic Parameters
TERMINALS OF ECUTerminals Of Control Module/Pinouts:

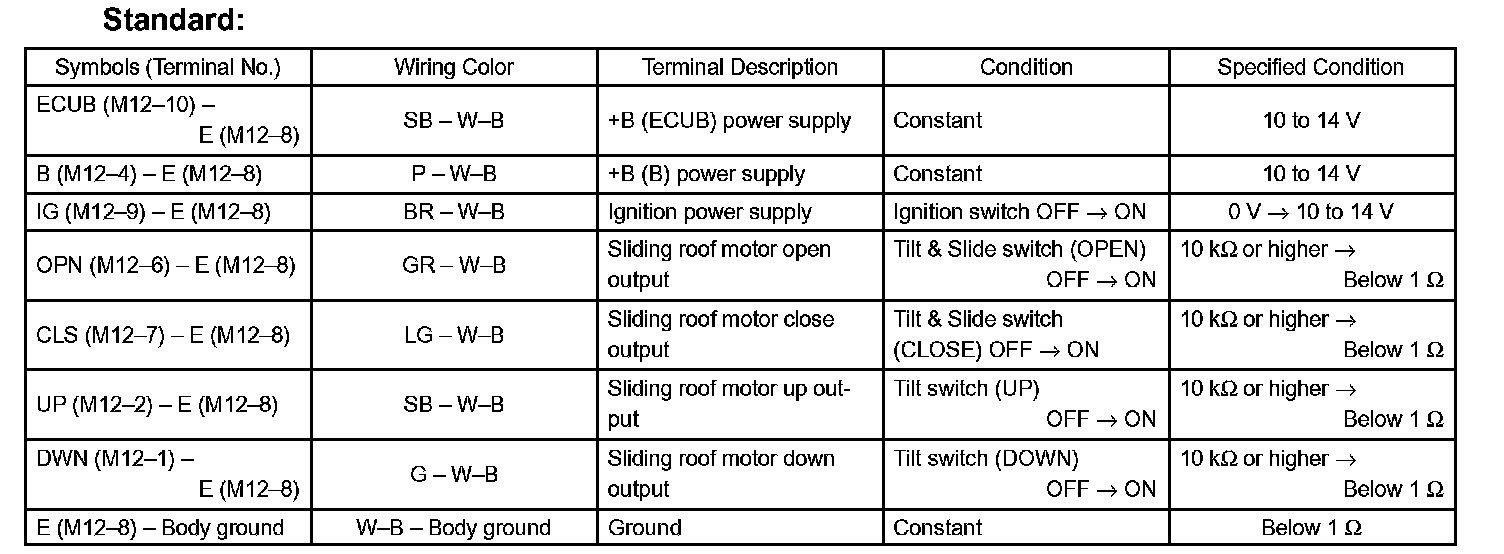

1. Standard type:
CHECK SLIDING ROOF DRIVE GEAR ASSY (SLIDING ROOF ECU)

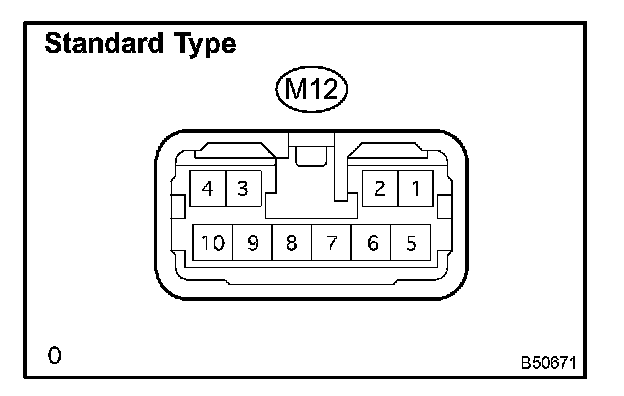

a. Disconnect the M12 ECU connector.

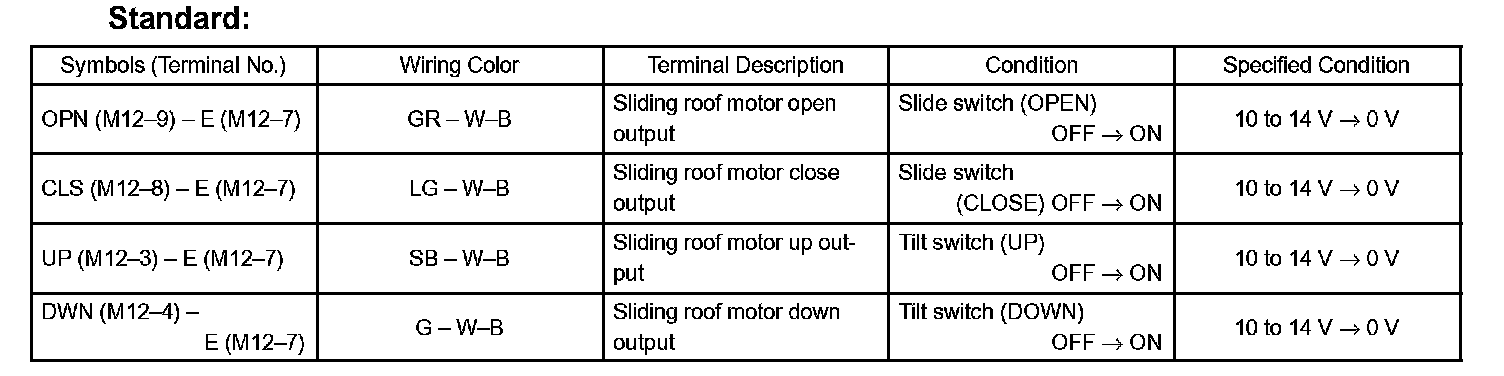

b. Check the voltage and resistance of each terminal of the wire harness side connector.
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the M12 ECU connector.
d. Check the voltage or resistance of each terminal of the connector.
If the result is not as specified, the sliding roof ECU may have a malfunction.
Terminals Of Control Module/Pinouts:
2. Multi panel moon roof type:
CHECK SLIDING ROOF DRIVE GEAR ASSY (SLIDING ROOF ECU)

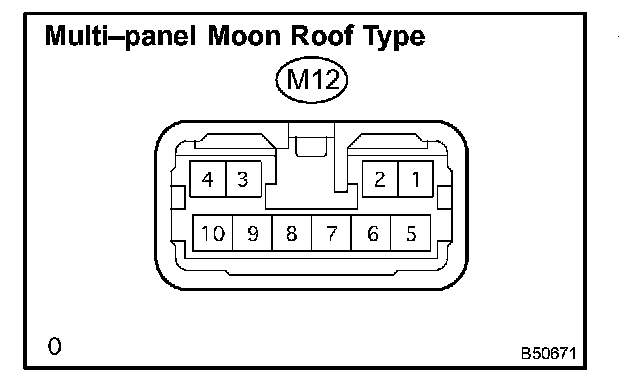

a. Disconnect the M12 ECU connector.
b. Check the voltage and resistance of each terminal of the wire harness side connector.
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the M12 ECU connector.

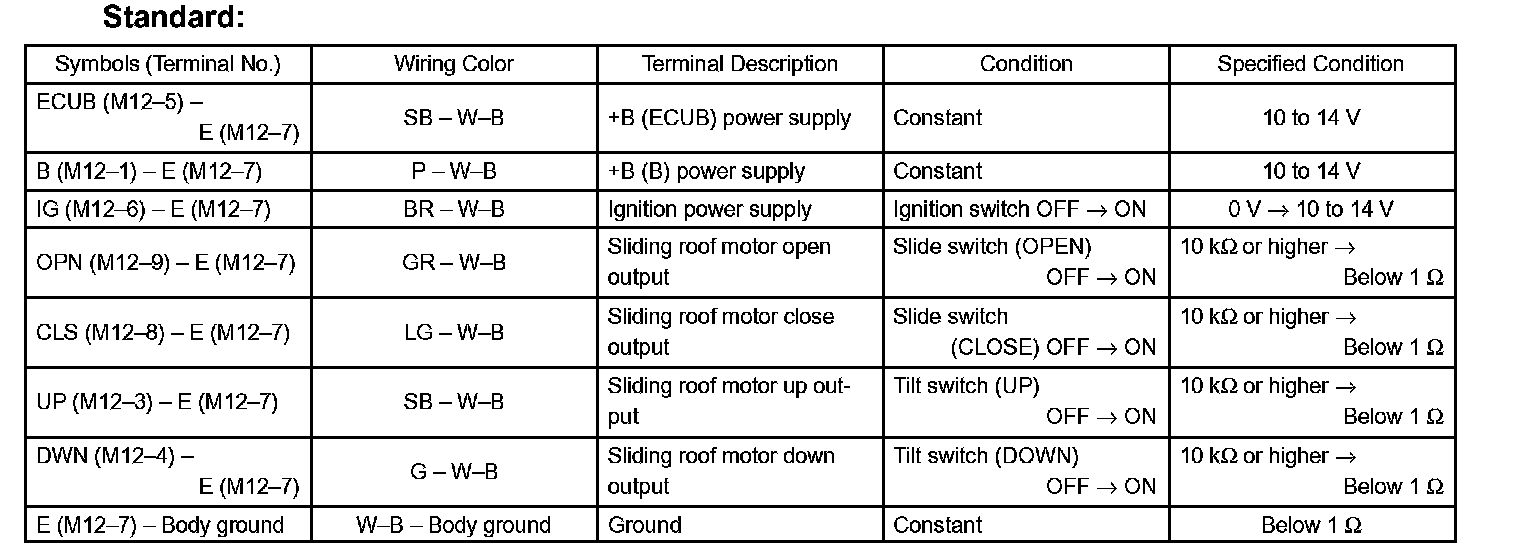

d. Check the voltage and resistance of each terminal of the connector.
If the result is not as specified, the sliding roof ECU may have a malfunction.
Terminals Of Control Module/Pinouts:
3. CHECK INSTRUMENT PANEL J/B ASSY (MULTIPLEX NETWORK BODY ECU)

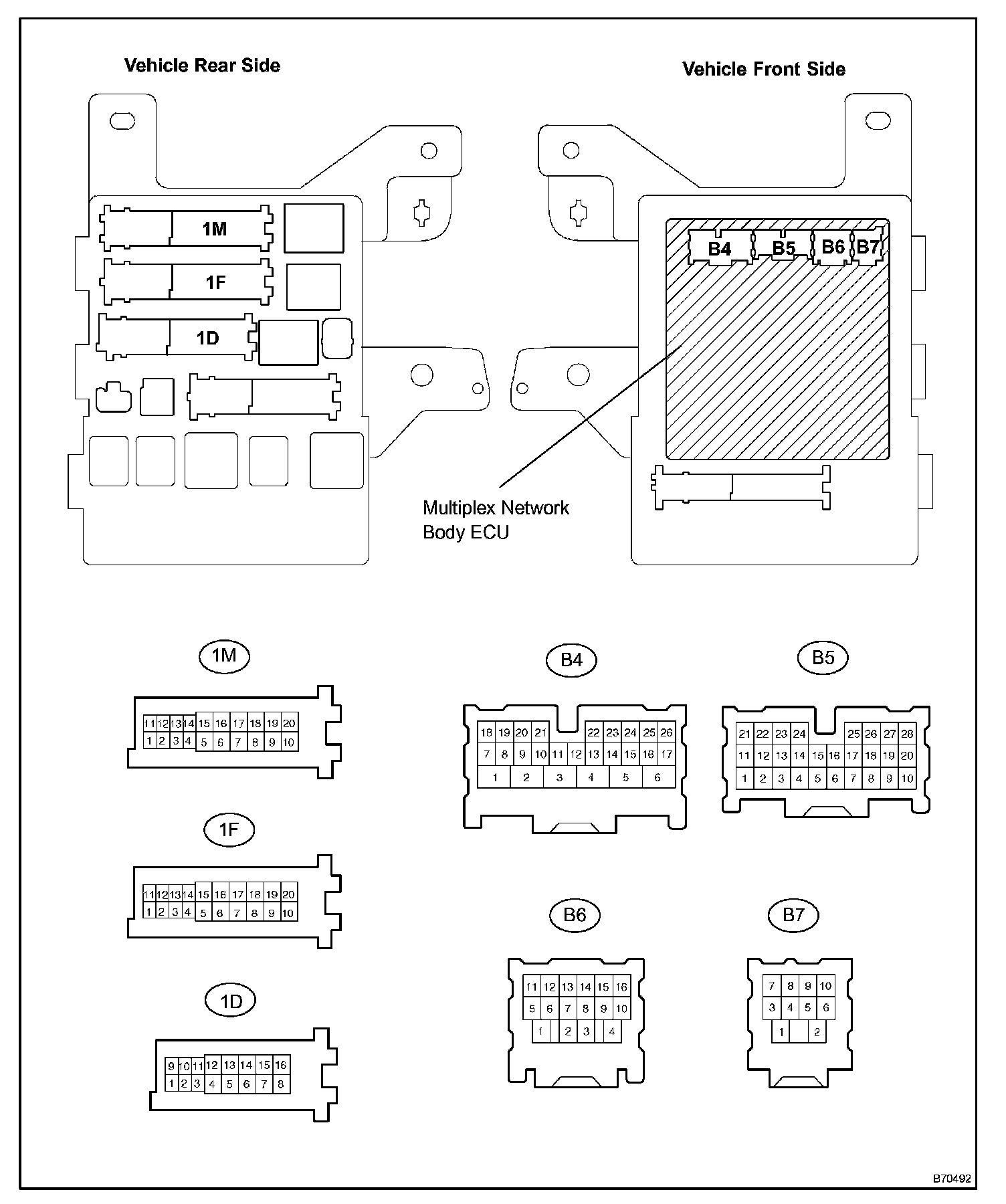

a. Disconnect the 1D, 1F and 1M J/B connectors.

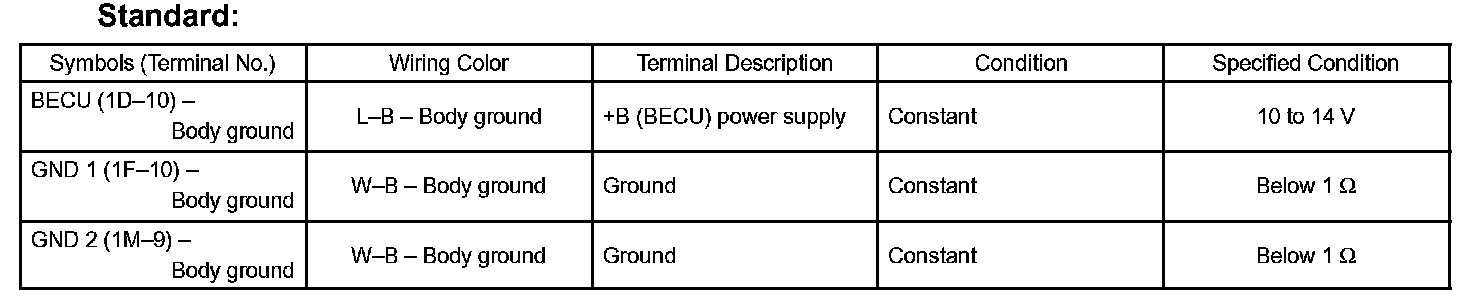

b. Check the voltage and resistance between each terminal of the wire harness side connectors and body ground.
If the result is not as specified, there may be a malfunction on the wire harness side.
4. CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSY
Terminals Of Control Module/Pinouts:

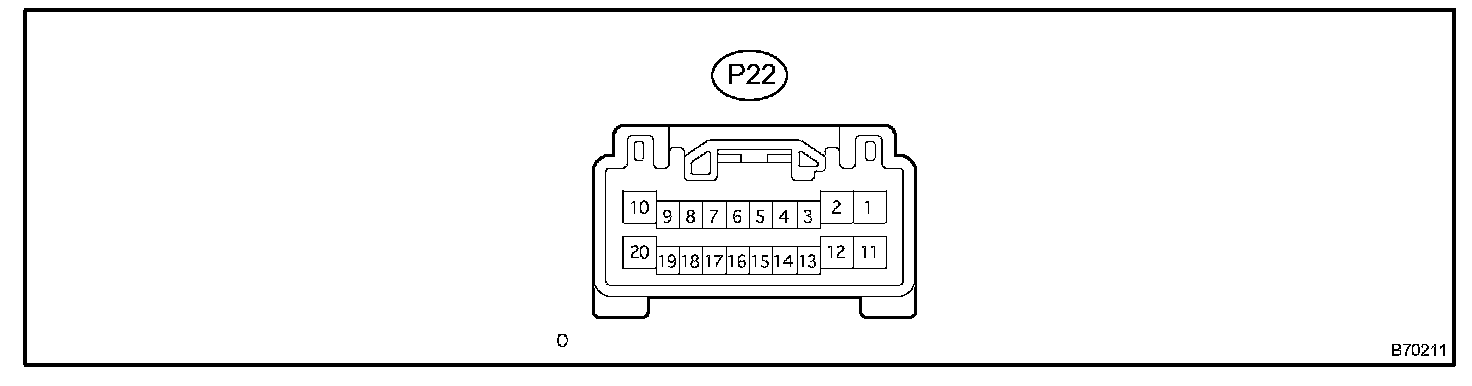

a. Disconnect the P22 ECU connector.

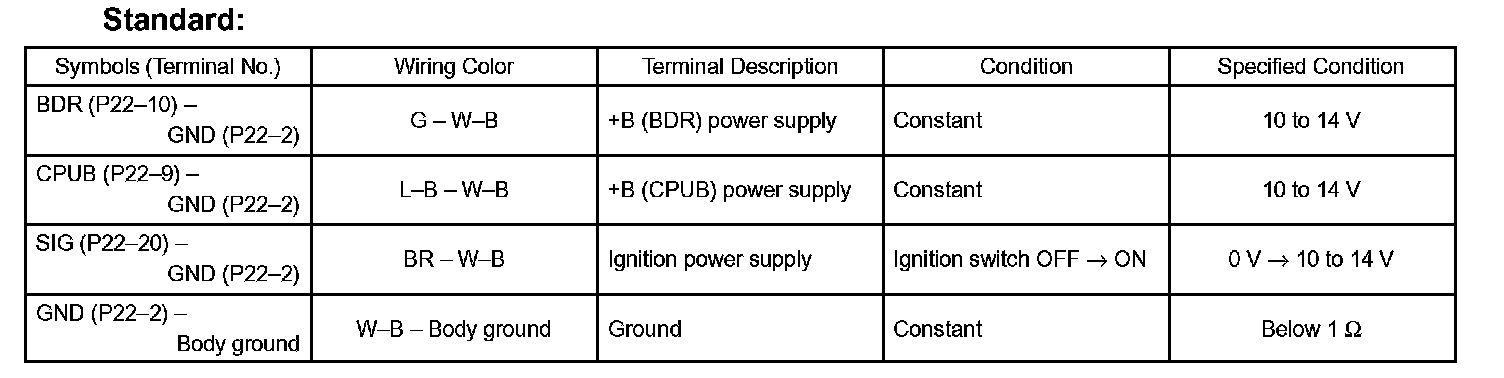

b. Check the voltage and resistance of each terminal of the wire harness side connectors.
If the result is not as specified, there may be a malfunction on the wire harness side.
