Remote Control Mirror and Mirror Heater With Memory

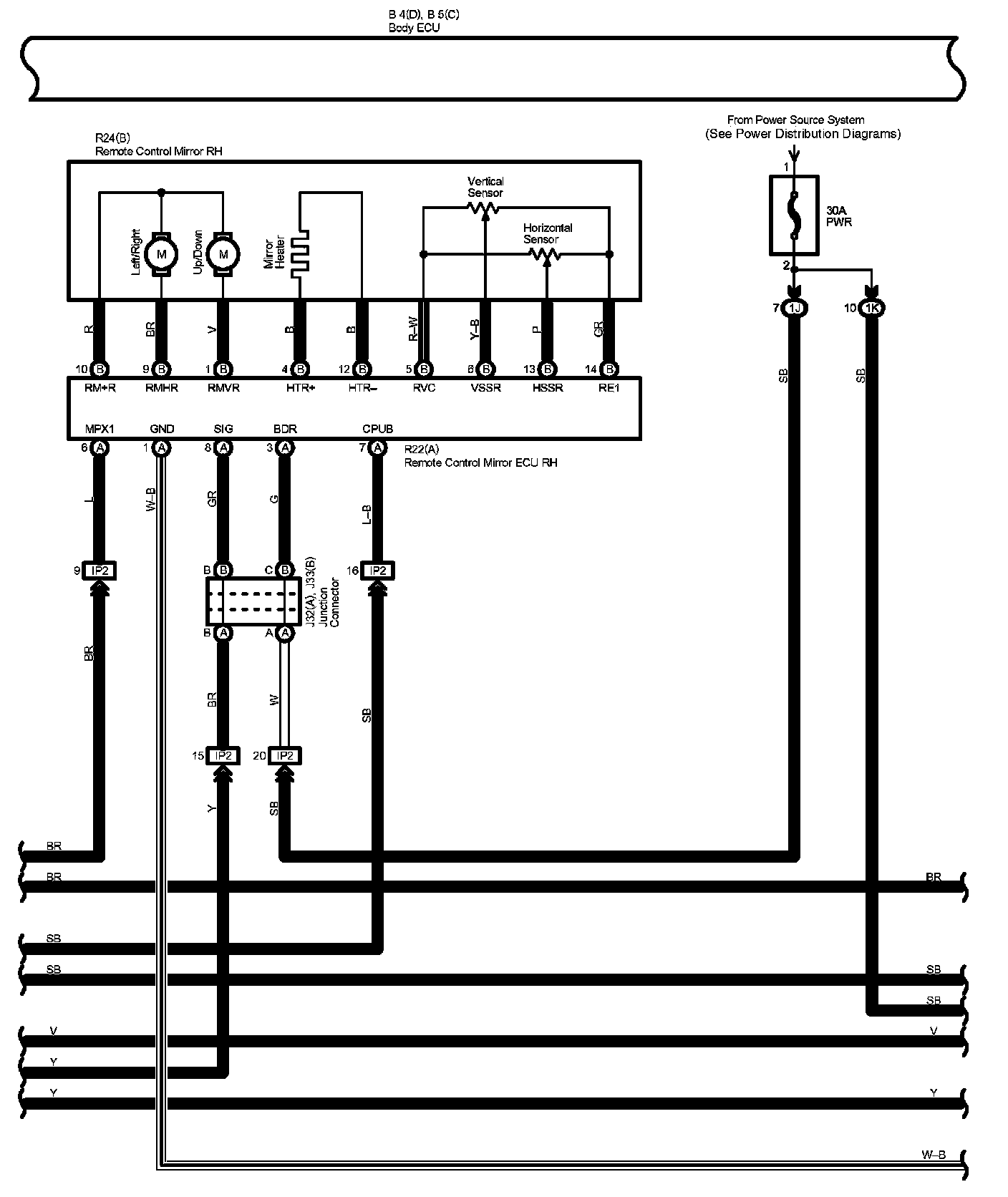

Remote Control Mirror And Mirror Heater With Memory Part 1:

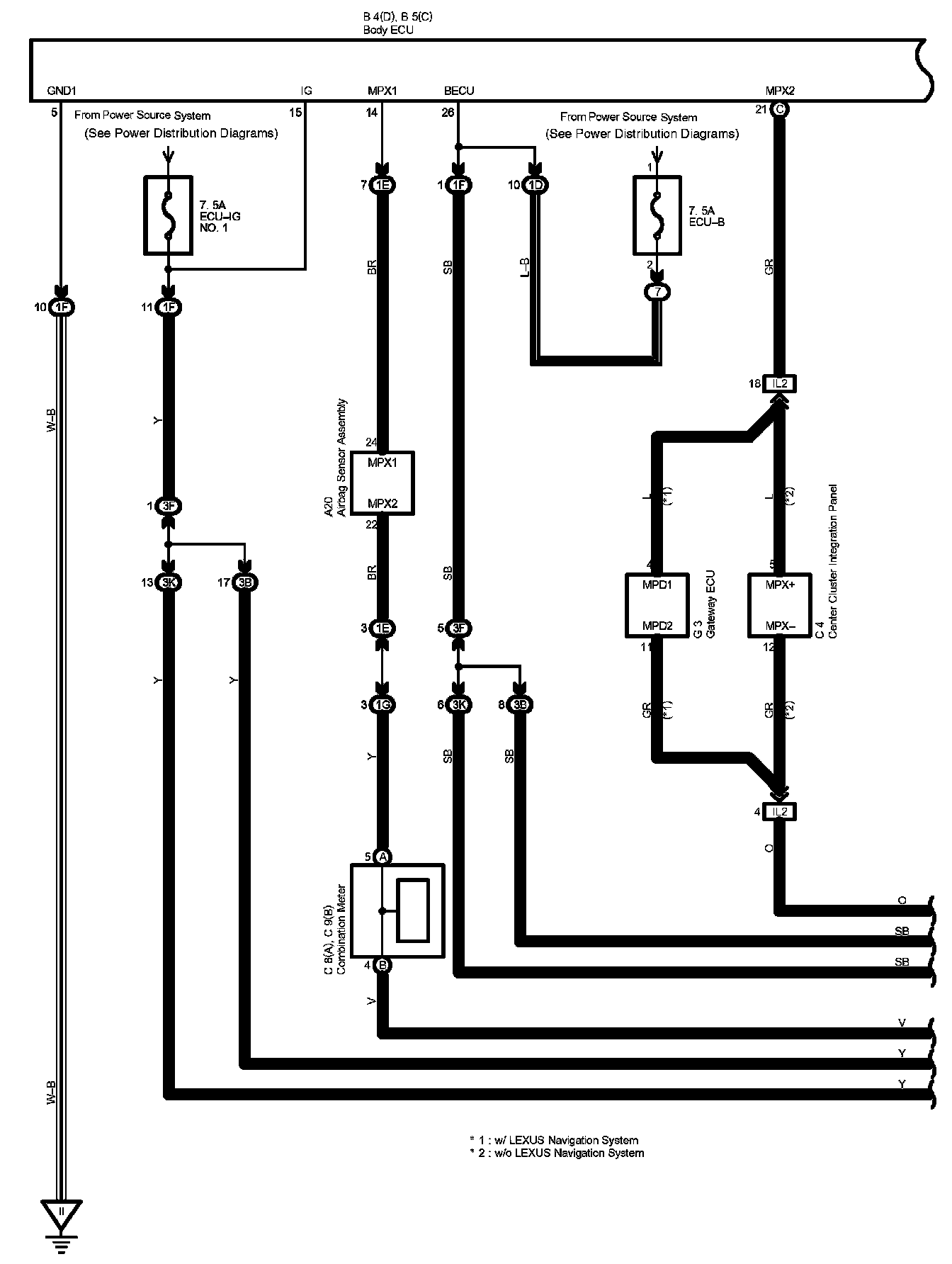

Remote Control Mirror And Mirror Heater With Memory Part 2:

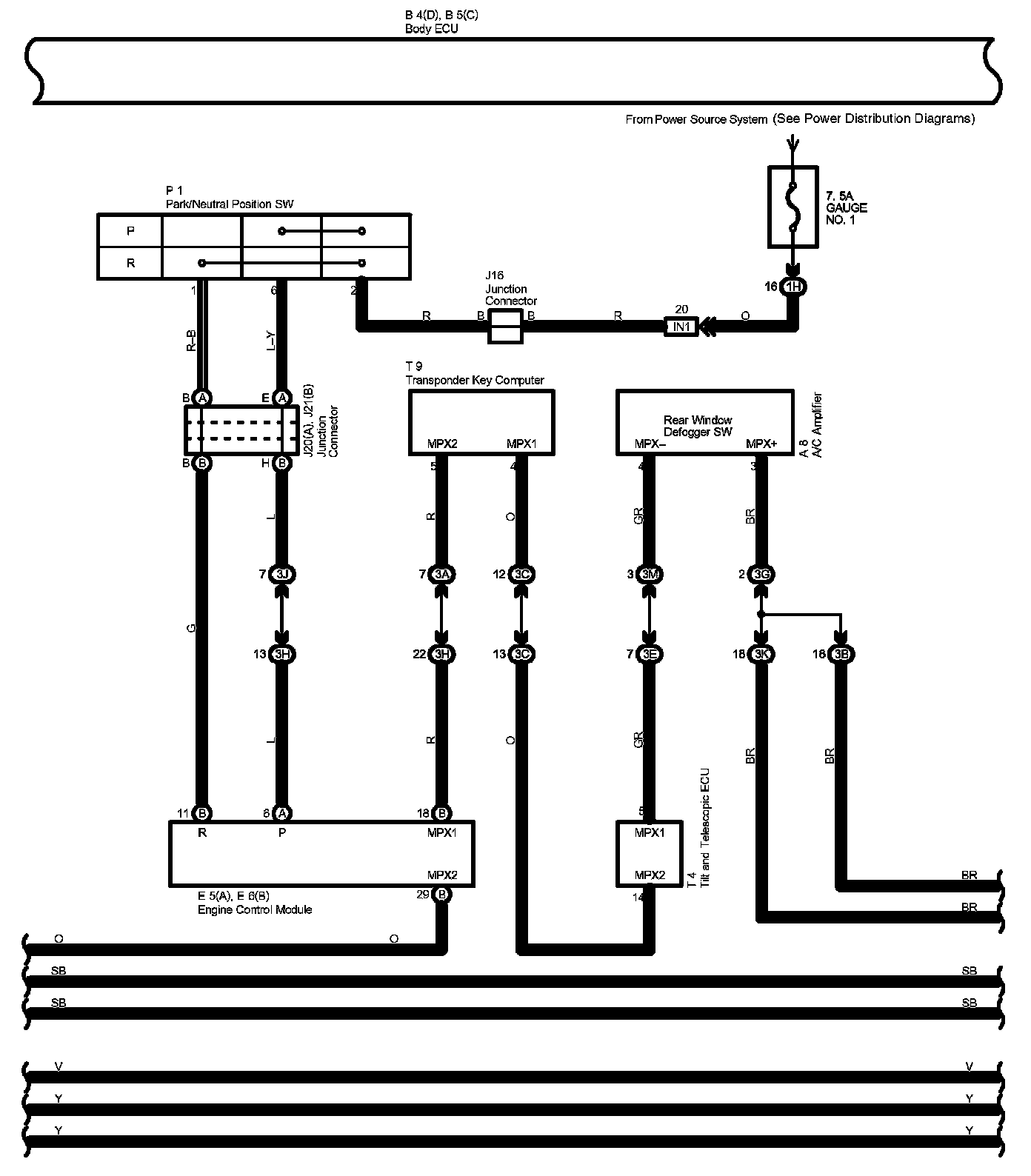

Remote Control Mirror And Mirror Heater With Memory Part 3:

Remote Control Mirror And Mirror Heater With Memory Part 4:

Remote Control Mirror And Mirror Heater With Memory Part 5:

Remote Control Mirror And Mirror Heater With Memory Part 6:

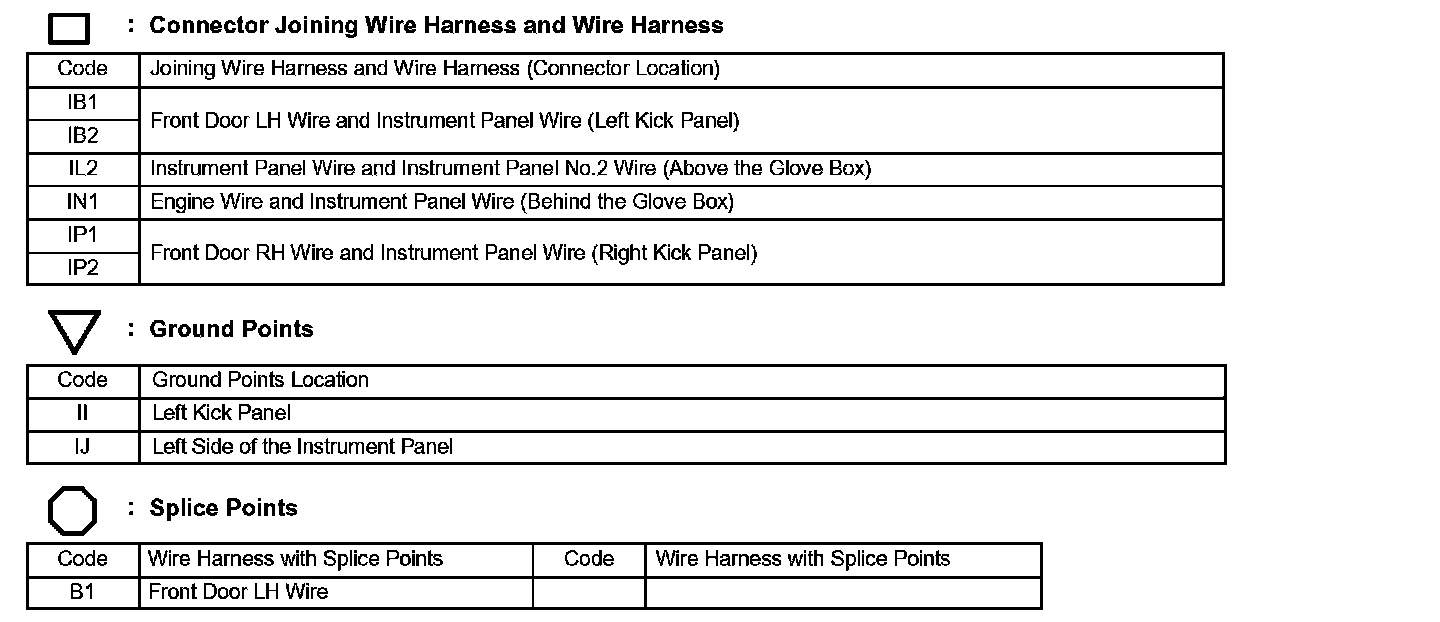

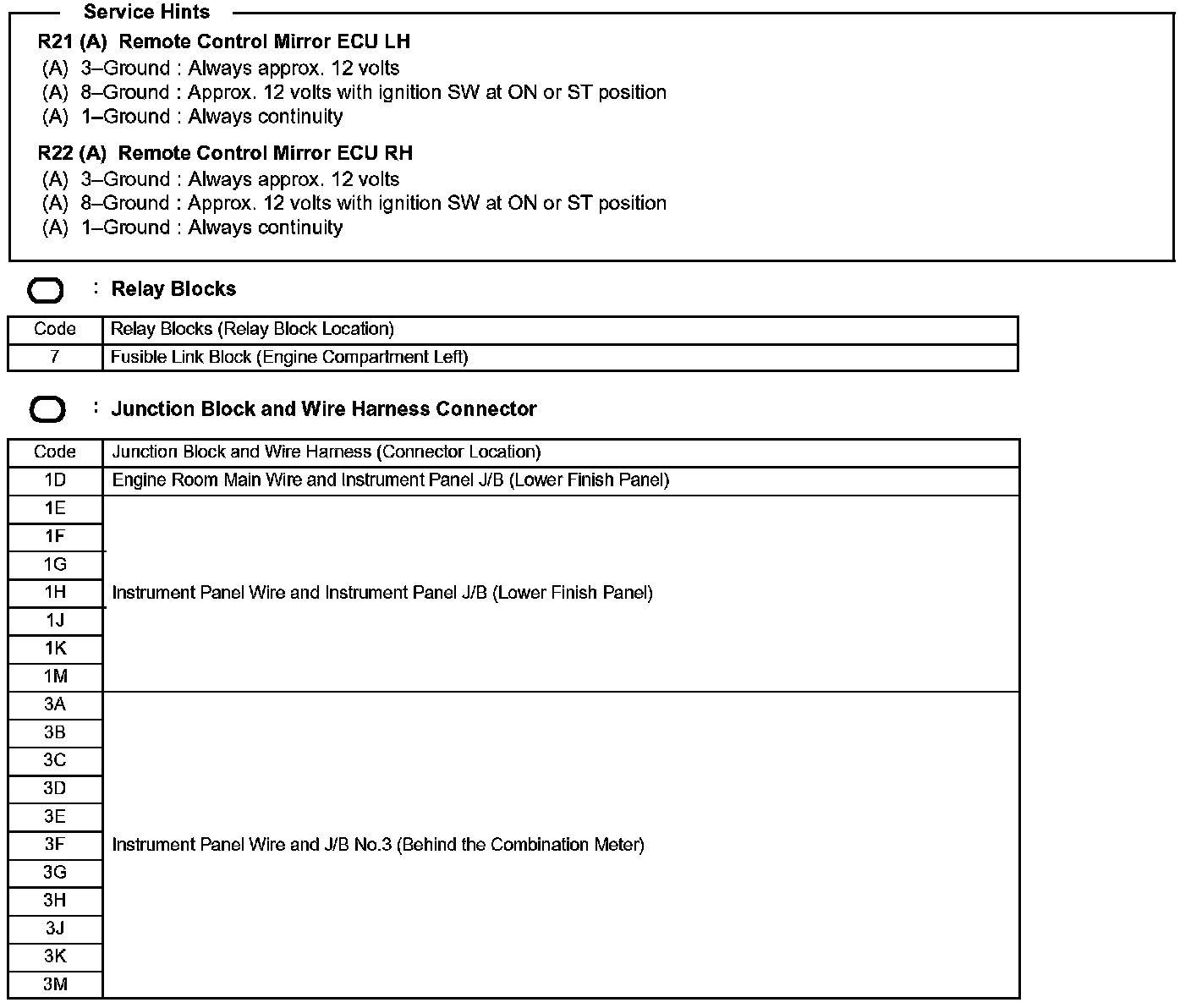

Diagram Legend Part 1:

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
