Problem Symptom Confirmation (Road Test)

PROBLEM SYMPTOM CONFIRMATION (ROAD TEST)

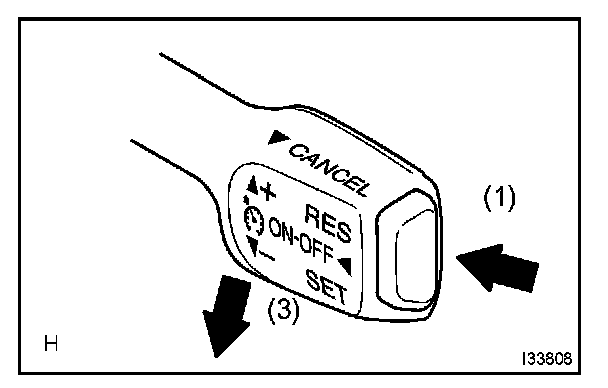

a. Inspect the SET switch.
1. Push the main switch button ON.
2. Drive at a desired speed (40 km/h (25 mph) or higher).
3. Push down the control switch to the -/SET position.
4. After releasing the switch, check that the vehicle cruises at the desired speed.

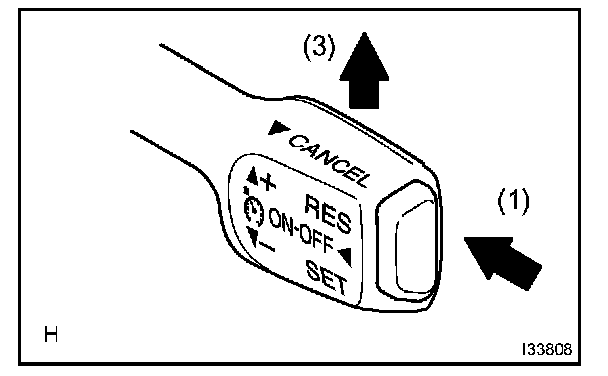

b. Inspect the "+" switch.
1. Push the main switch button ON.
2. Drive at a desired speed (40 km/h (25 mph) or higher).
3. Check that the vehicle speed increases while the control switch is pushed up to +/RES, and that the vehicle cruises at the set speed when the switch is released.
4. Momentarily push the control switch upward to the +/RES, and then immediately release it. Check that the vehicle speed increases by about 1.6 km/h (Tap-up function).

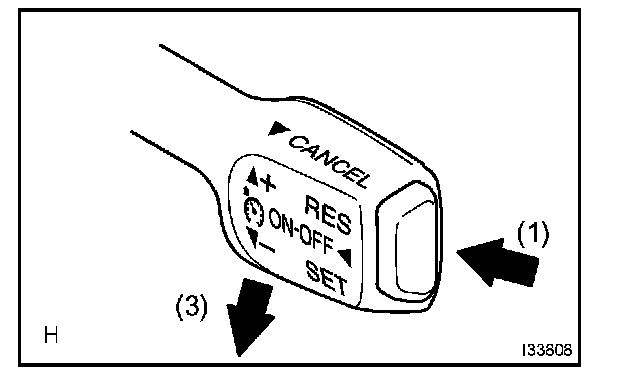

c. Inspect the "-" switch.
1. Push the main switch button ON.
2. Drive at a desired speed (40 km/h (25 mph) or higher).
3. Check that the vehicle speed decreases while the control switch is pushed down to -/SET, and the vehicle cruises at the set speed when the switch is released.
4. Momentarily push the control switch downward to -/SET, and then immediately release it. Check that the vehicle speed decreases by about1.6 km/h (Tap-down function).

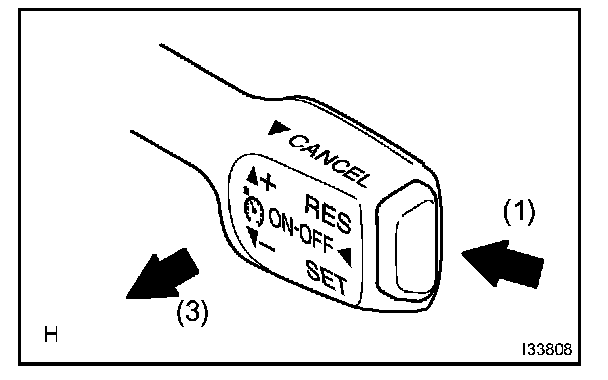

d. Inspect the CANCEL switch.
1. Push the main switch button ON.
2. Drive at a desired speed (40 km/h (25 mph) or higher).
3. When operating one of the followings, check that the cruise control system is cancelled and that the normal driving mode is reset.
- Depressing the brake pedal.
- Shifting to any gear except D.
- Pushing the main switch button OFF.
- Pulling the control switch CANCEL.

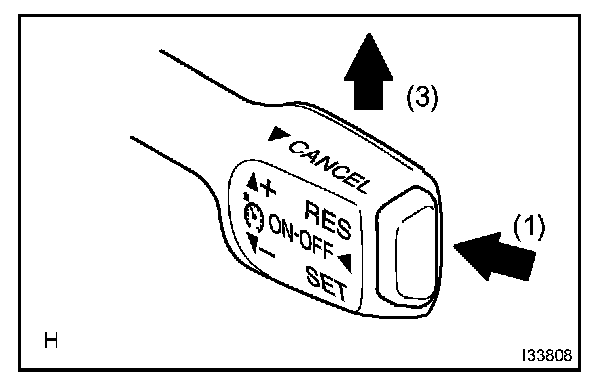

e. Inspect the RES switch.
1. Push the main switch button ON.
2. Drive at a desired speed (40 km/h (25 mph) or higher).
3. When operating one of the followings, check that the cruise control system is cancelled and that the normal driving mode is reset.
- Depressing the brake pedal.
- Shifting to any gear except D.
- Pulling the control switch CANCEL.
4. After the control switch is pressed towards +/RES at the driving speed of more than 40 km/h (25 mph), check that the vehicle resumes the same speed maintained before the cancellation.
