Diagnosis Function

DIAGNOSIS FUNCTION

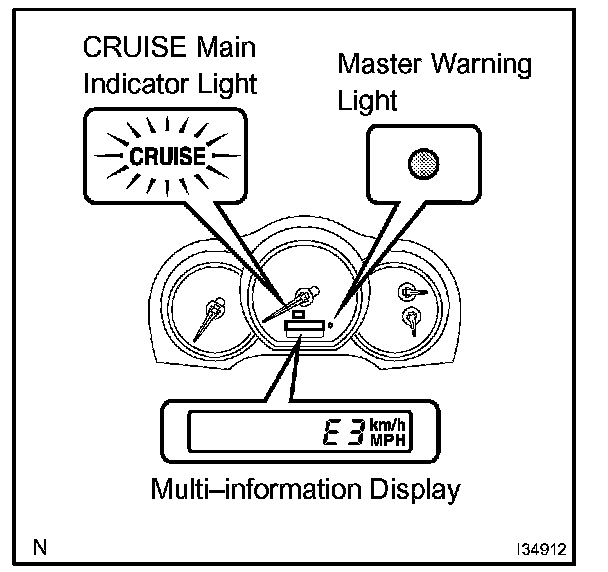

a. The diagnosis function makes the master warning light and the multi-information display come on, and the CRUISE main indicator light blinks as shown in the illustration. When a malfunction occurs in the dynamic laser cruise control system, the DTCs are stored in the ECM.

NOTE:
- The master warning light goes off if the system returns to normal condition.
- Since the stored data in the ECM is erased by disconnecting the EFI No.1 fuse or the battery terminal, do not disconnect them until finishing the inspection.
