Without Scan Tool

DTC CHECK (USING SST CHECK WIRE)




a. Check DTCs using SST check wire.

SST 09843-18040

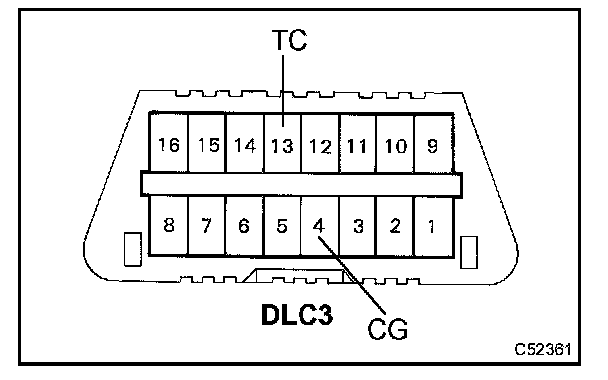

1. Using SST, connect terminals TC and CG of DLC3.

SST 09843-18040

2. Turn the ignition switch to the ON position.

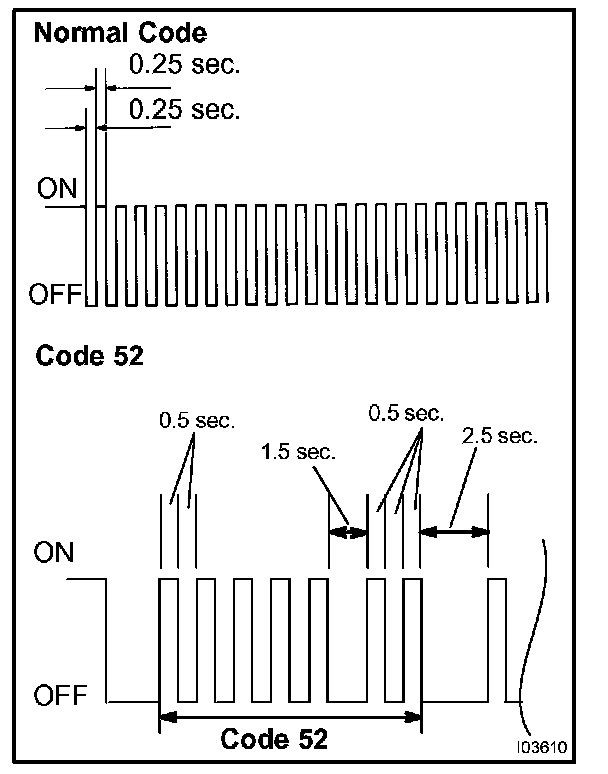

3. Read and record any DTCs from the CRUISE MAIN indicator light on the combination meter. Refer to the chart on the left for examples of a normal code and code 52.

HINT: If the CRUISE MAIN indicator light does not blink any DTC codes or the normal code, inspect the warning light circuit.

TC and CG terminal circuit
CRUISE MAIN indicator light circuit

4. Refer to the Diagnostic Trouble Code Chart for DTC information.
