Cruise Control Switch Circuit
CRUISE CONTROL SWITCH CIRCUITCIRCUIT DESCRIPTION
This circuit carries the -/SET, +/RES, MODE and CANCEL signals (each voltage) to the ECM.
The mode switch on the cruise control main switch changes the vehicle-to-vehicle mode to the constant speed control mode.

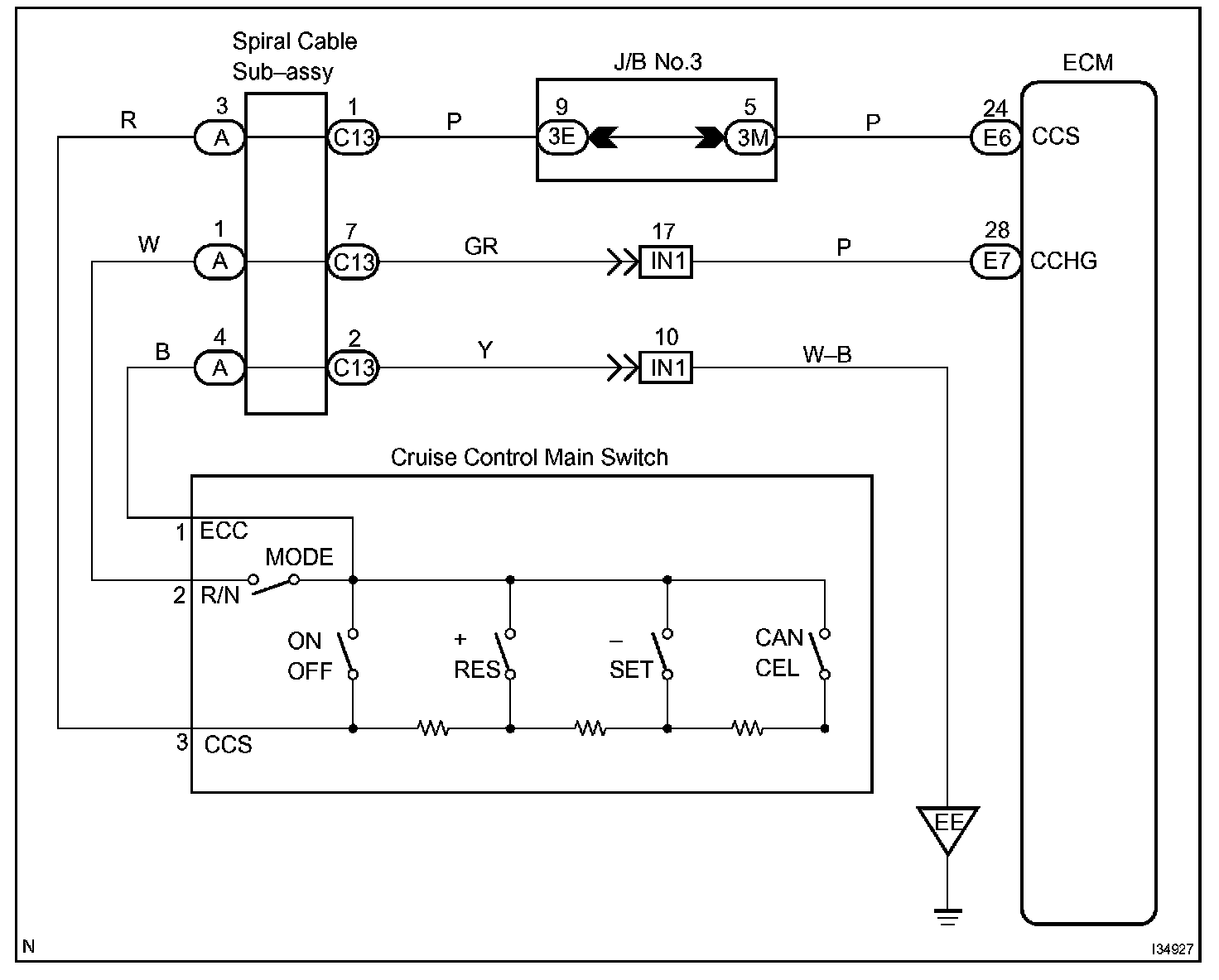

Wiring Diagram:

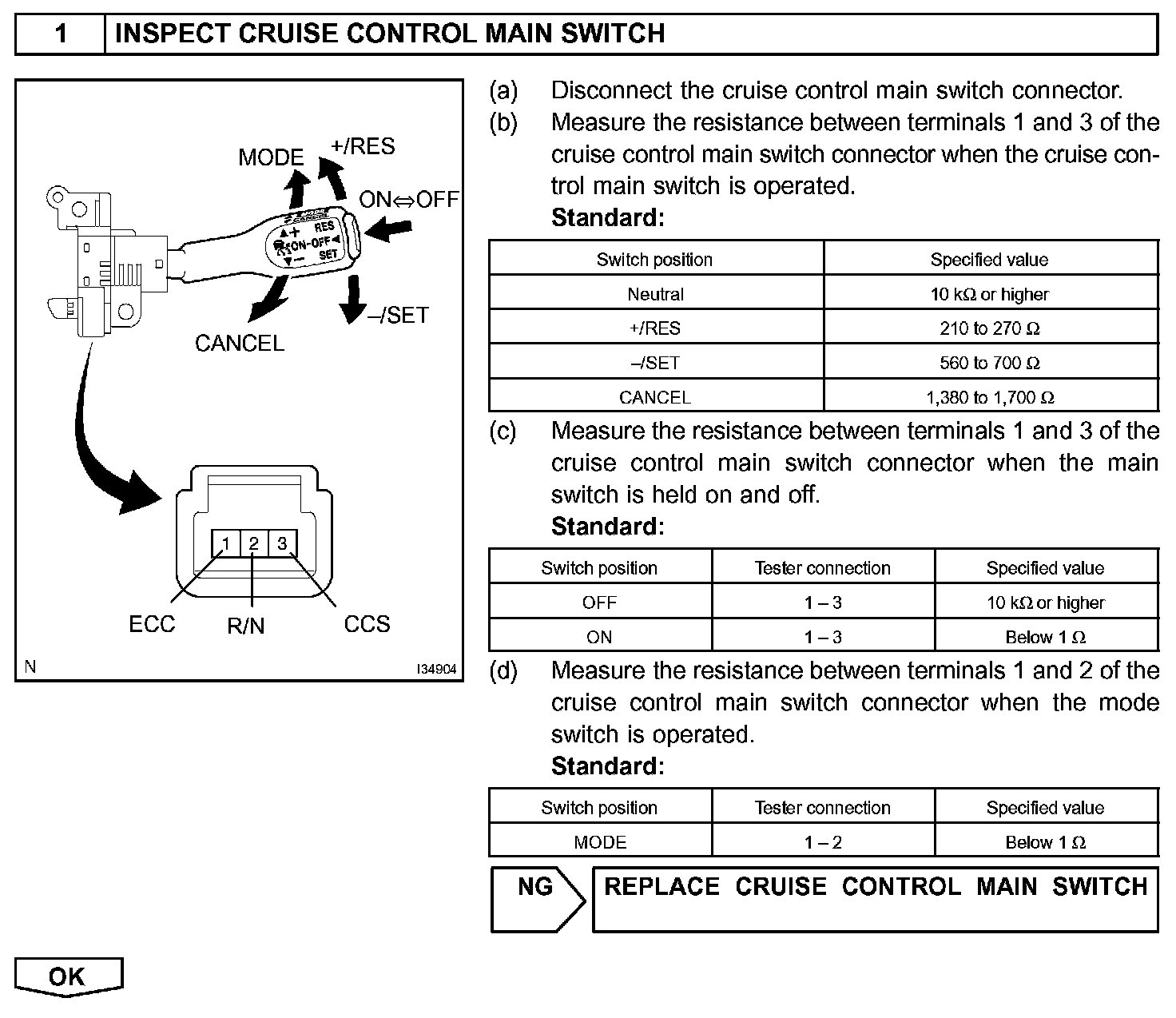

Step 1:

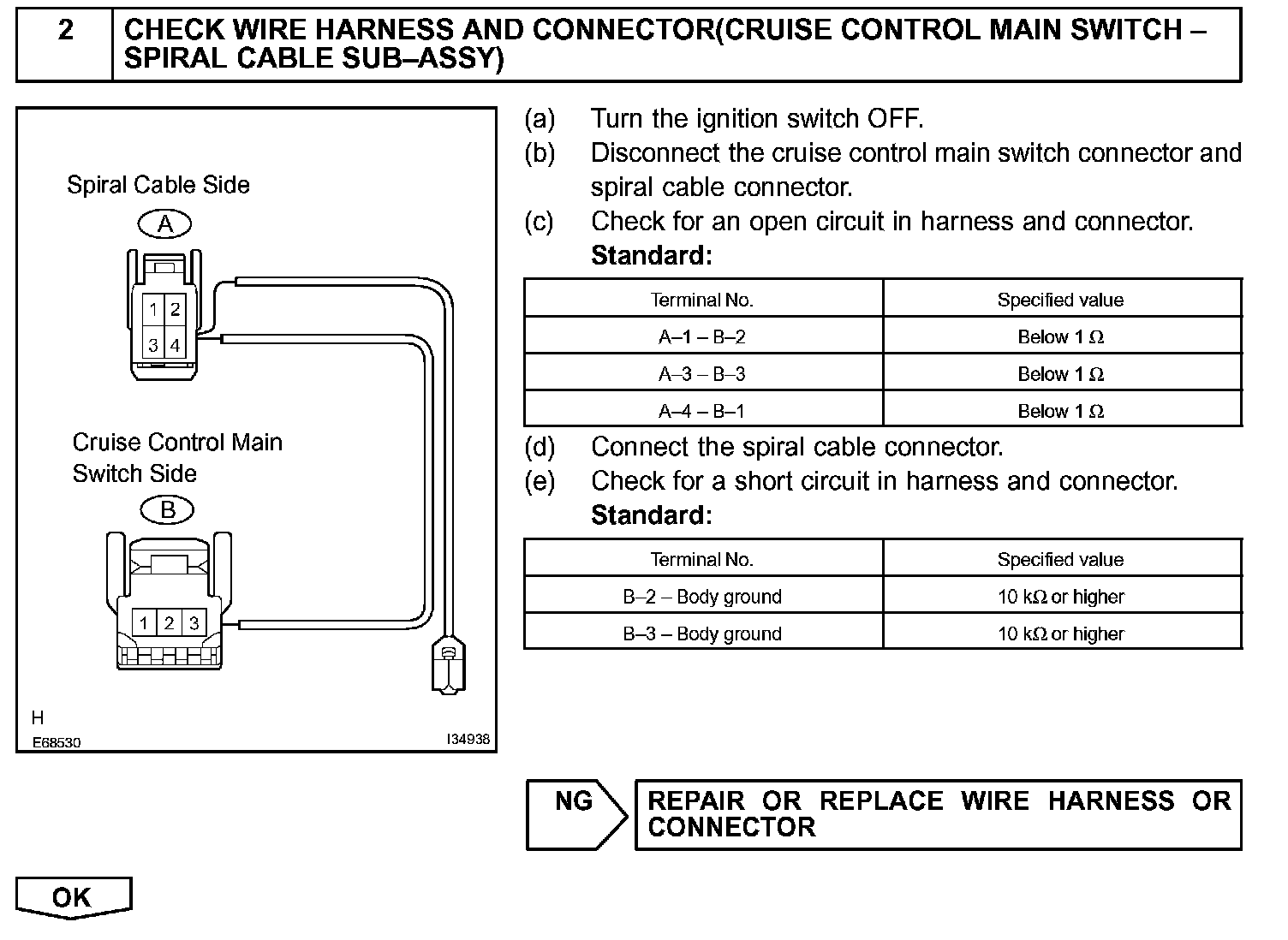

Step 2:

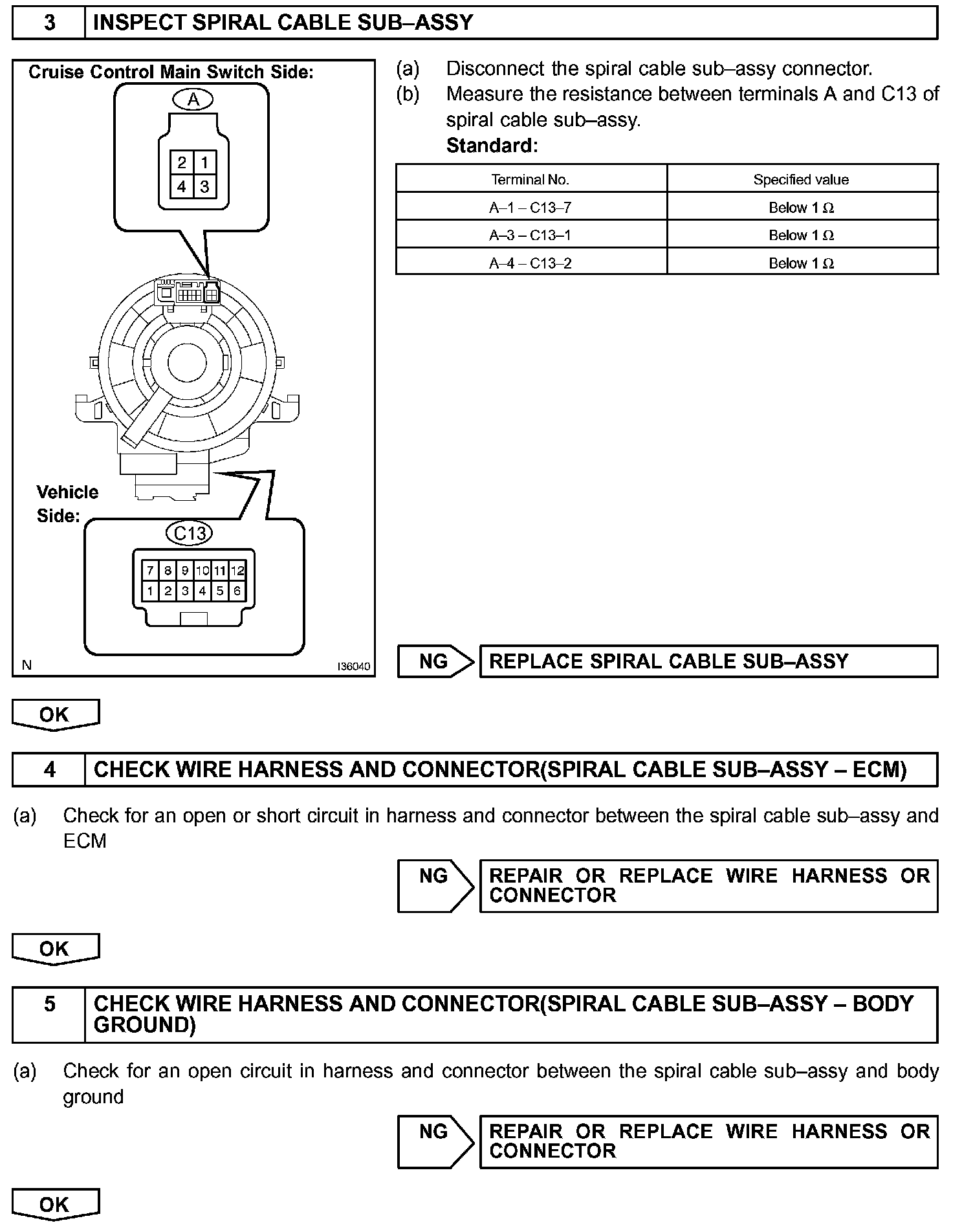

Step 3 - 5:

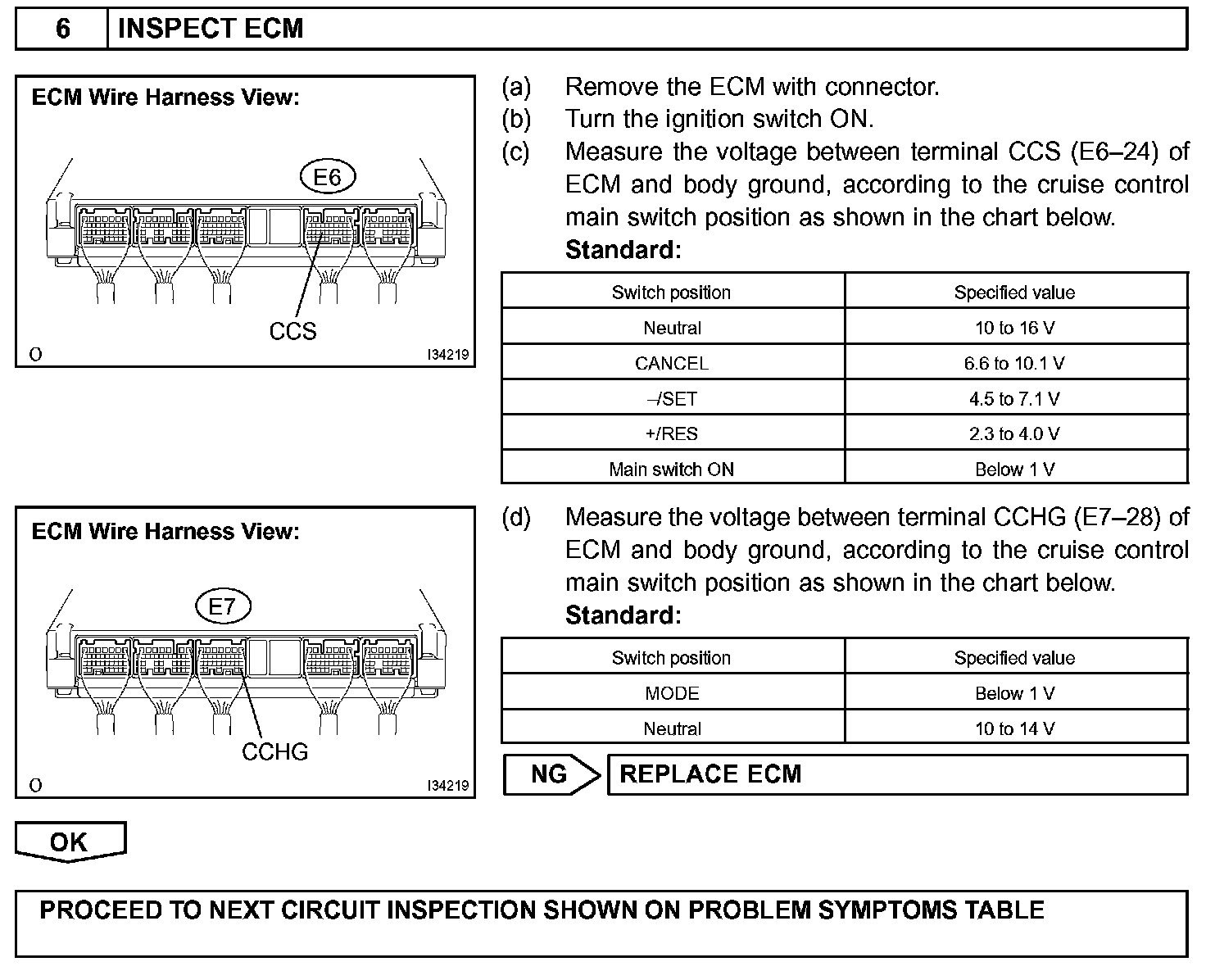

Step 6:
INSPECTION PROCEDURE
