Exhaust Pipe

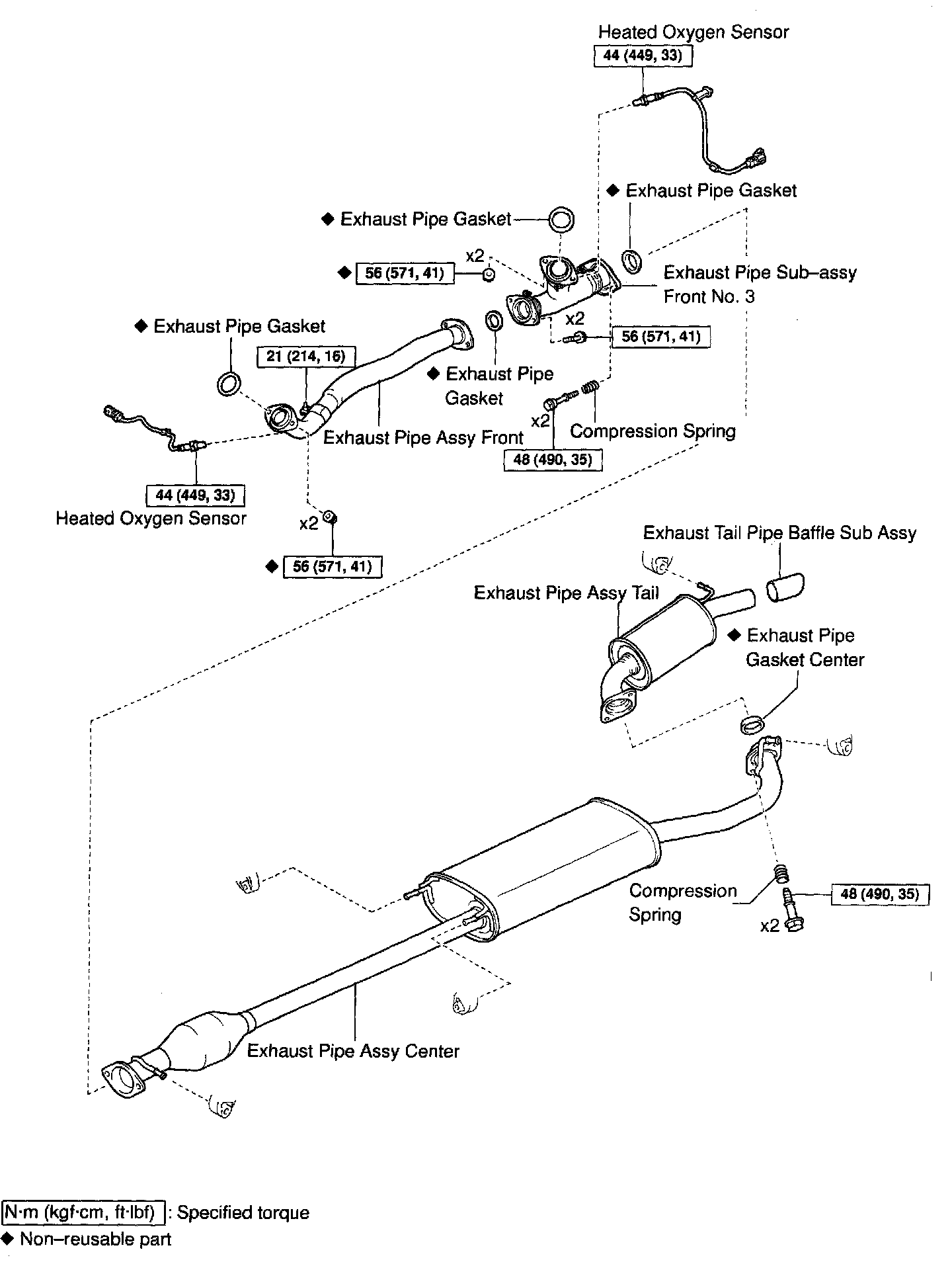

Part 1 Of 2:




Part 2 Of 2:





EXHAUST PIPE ASSEMBLY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
