Ignition Timing: Testing and Inspection
INSPECT IGNITION TIMINGa. Warm up engine.
b. When using hand-held tester or OBD II scan tool:
1. Connect the hand-held tester or OBD II scan tool to the DLC3.
2. Enter DATA LIST MODE on the hand-held tester or OBD II scan tool.
Ignition timing: 8 to 12° BTDC
HINT: Please refer to the hand-held tester or OBD II scan tool operator's manual if you need help to select DATA LIST.
c. When not using hand-held tester or OBD II scan tool:

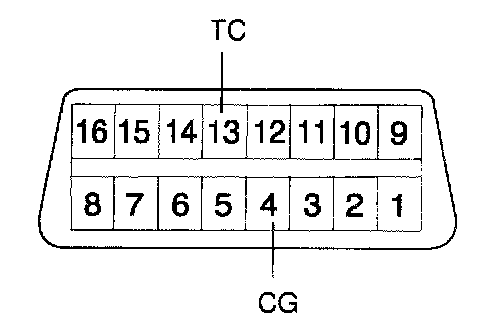

1. Using SST, connect terminals 13 (TC) and 4 (CG) of DLC3.
SST 09843-18040
NOTICE:
^ Make sure of the terminal numbers before connecting them. Connection with a wrong terminal can damage the engine.
^ Turn OFF all electrical systems before connecting the terminals.
^ Perform this inspection after the cooling fan motor is turned OFF.
2. Remove the V-bank cover.
3. Pull out the black-colored wire harness as shown in the illustration.
4. Connect the tester terminal of the timing light to the engine.
NOTICE: Use a timing light which detects the first signal.
5. Inspect ignition timing at idle.
Ignition timing: 8 to 12° BTDC
NOTICE: When checking the ignition timing, the transmission is in the neutral position.
HINT: Run the engine at 1,000 to 1,300 rpm for 5 seconds, check that the engine rpm returns idle speed.
6. Disconnect terminals 13 (TC) and 4 (CG) of the DLC3.
7. Inspect ignition timing at idle.
Ignition timing: 7 to 24° BTDC
