Malfunction In Tachometer

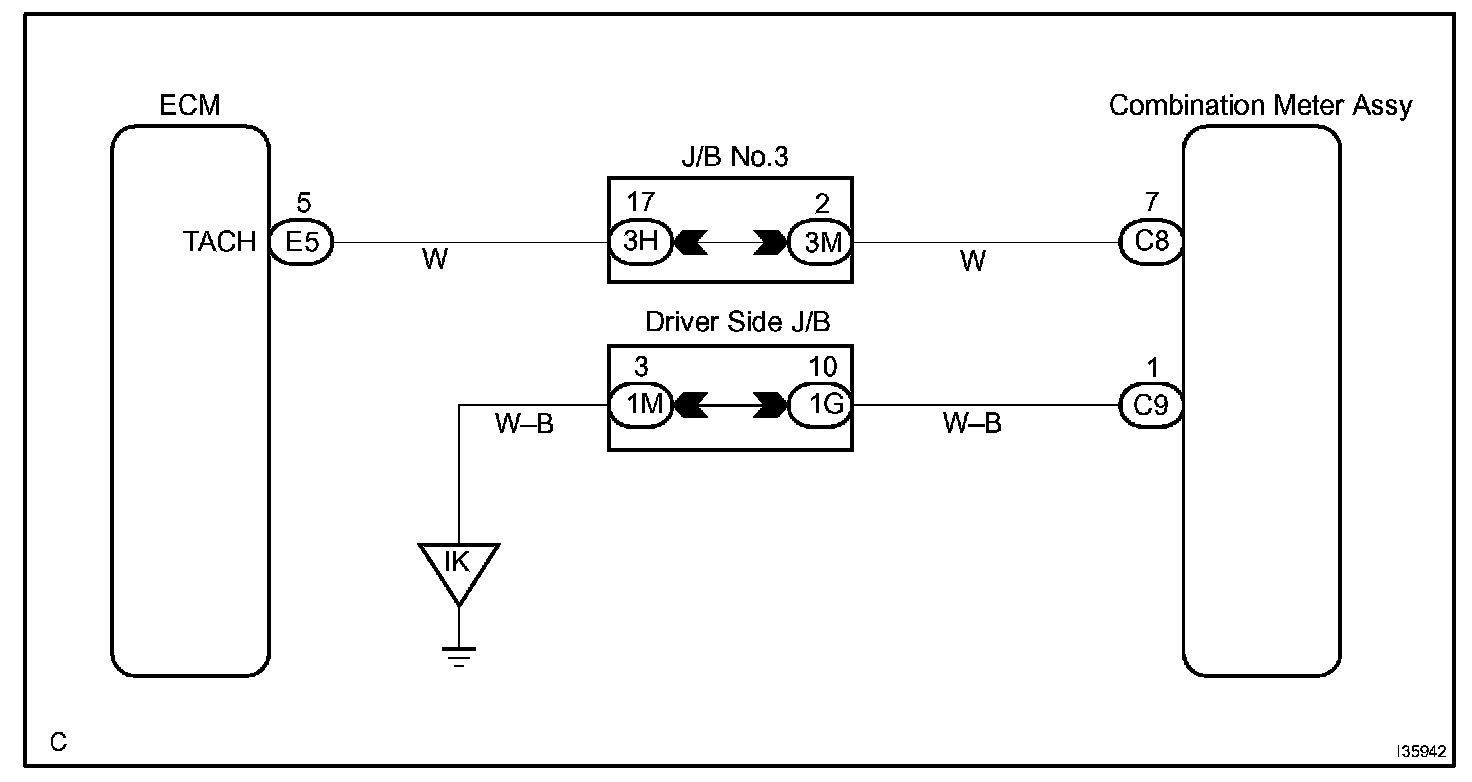

MALFUNCTION IN TACHOMETERWiring Diagram:

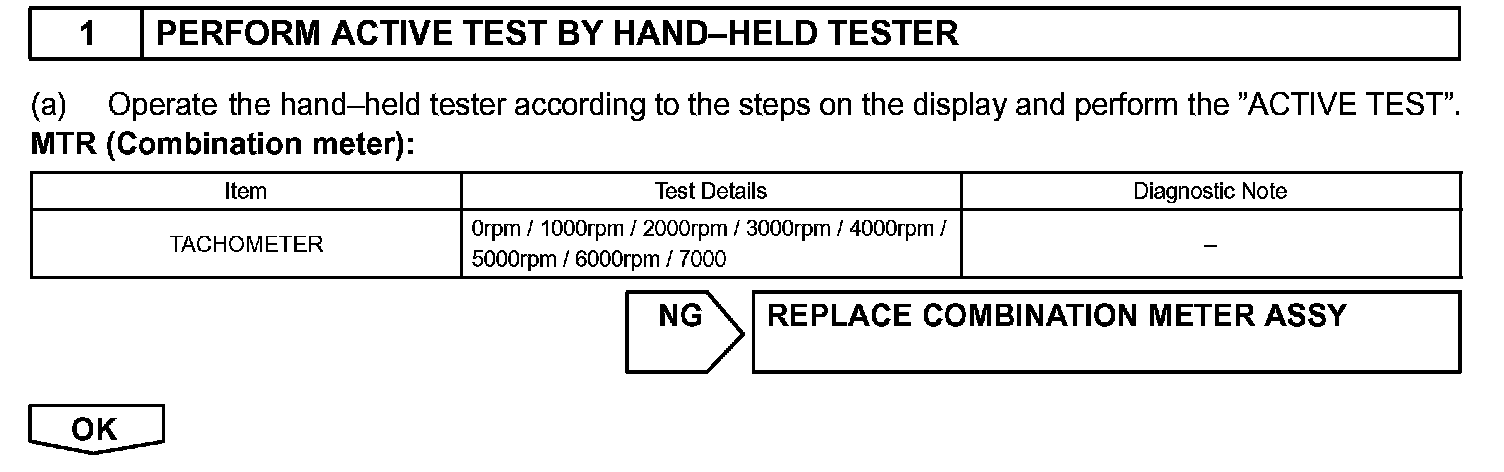

Step 1:

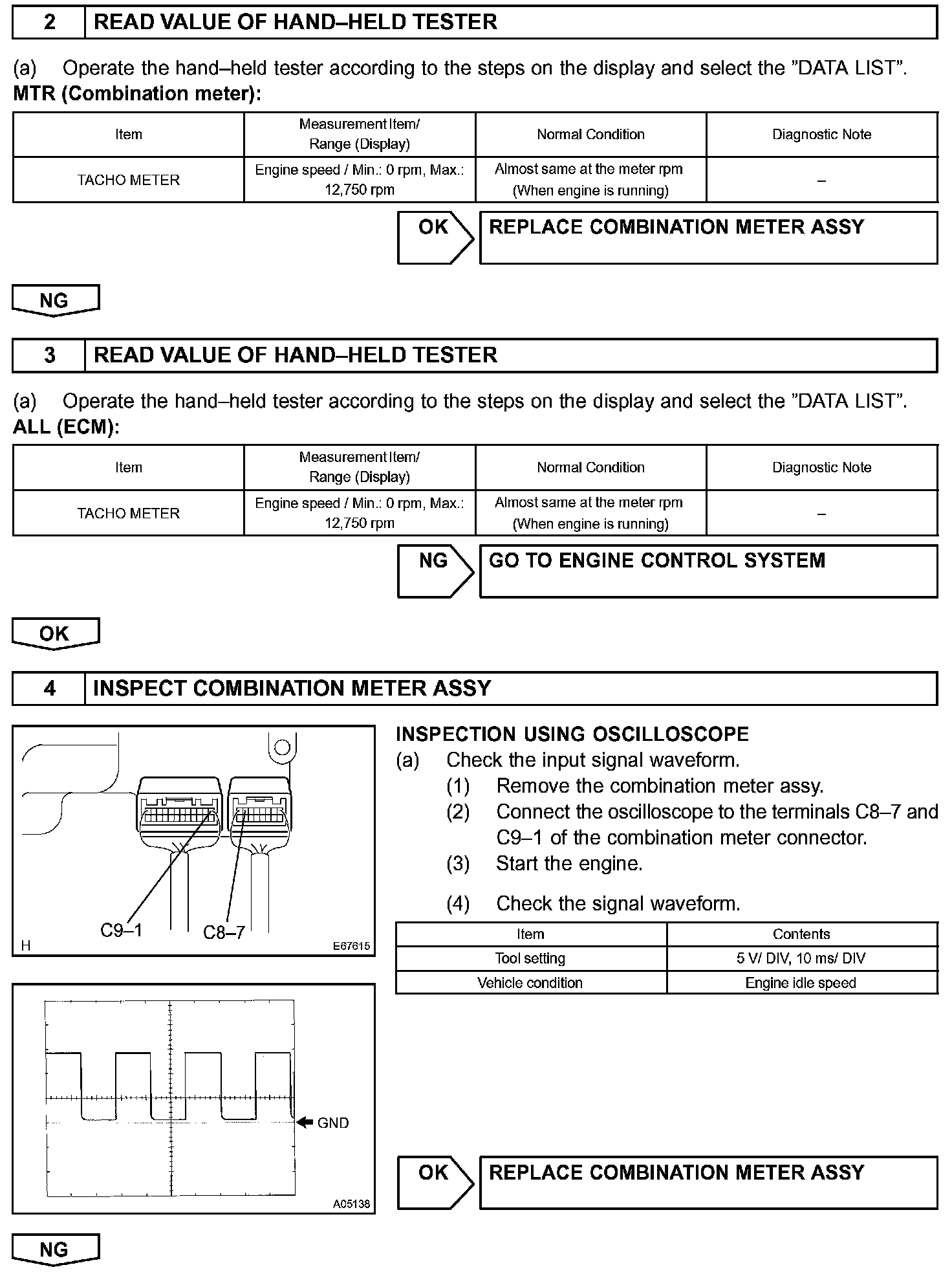

Step 2 - 4:

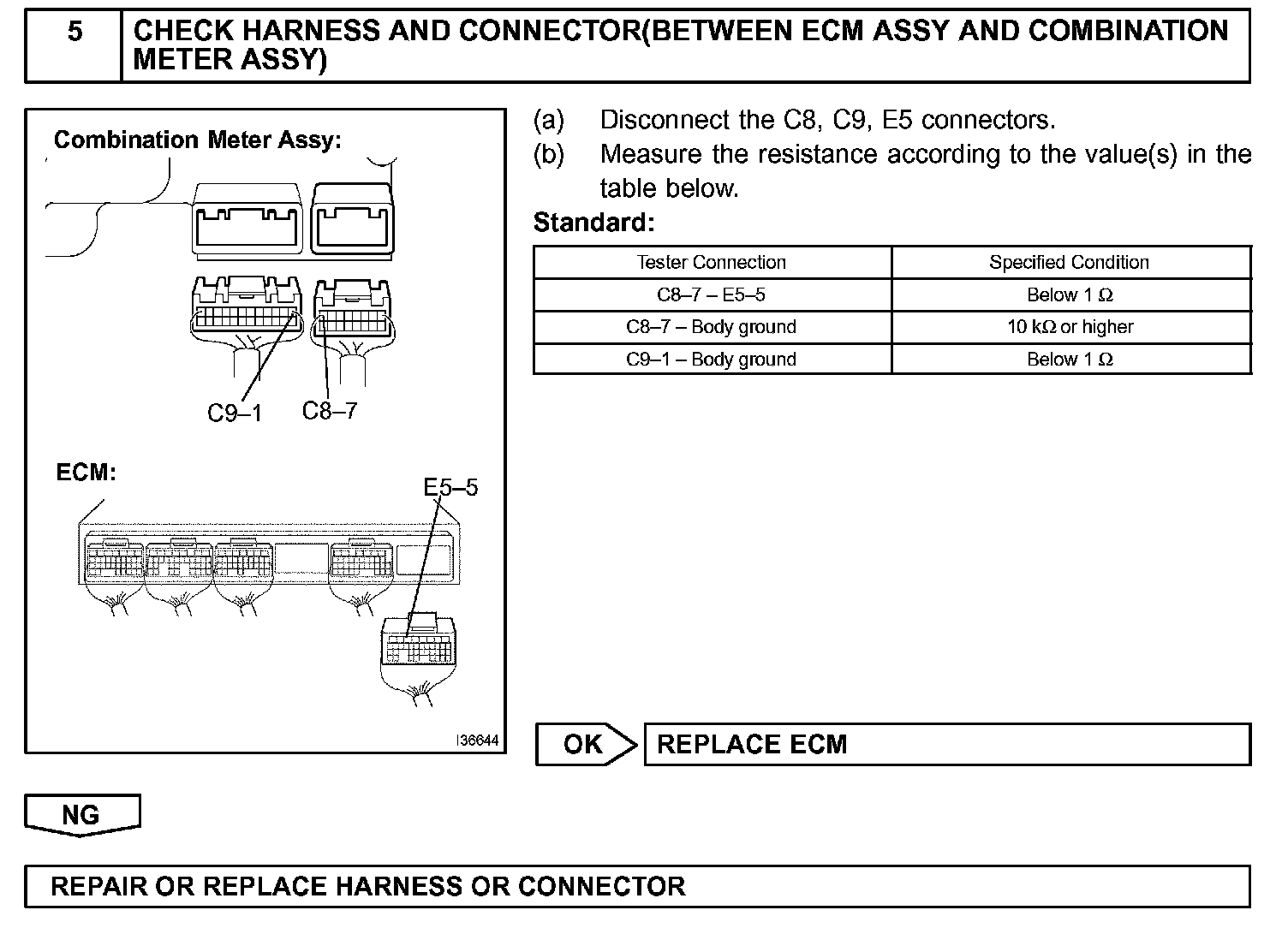

Step 5:
INSPECTION PROCEDURE
HINT: Start the inspection from step 1 when using the hand-held tester and start from step 4 when not using hand-held tester.
INSPECTION PROCEDURE
HINT: Start the inspection from step 1 when using the hand-held tester and start from step 4 when not using hand-held tester.
