Tire Pressure Warning Standardization Switch Circuit
TIRE PRESSURE WARNING STANDARDIZATION SWITCH CIRCUITCIRCUIT DESCRIPTION
Receiving the signal from the tire pressure warning switch, the skid control ECU indicates initialization of the tire pressure warning system.
Wiring Diagram:

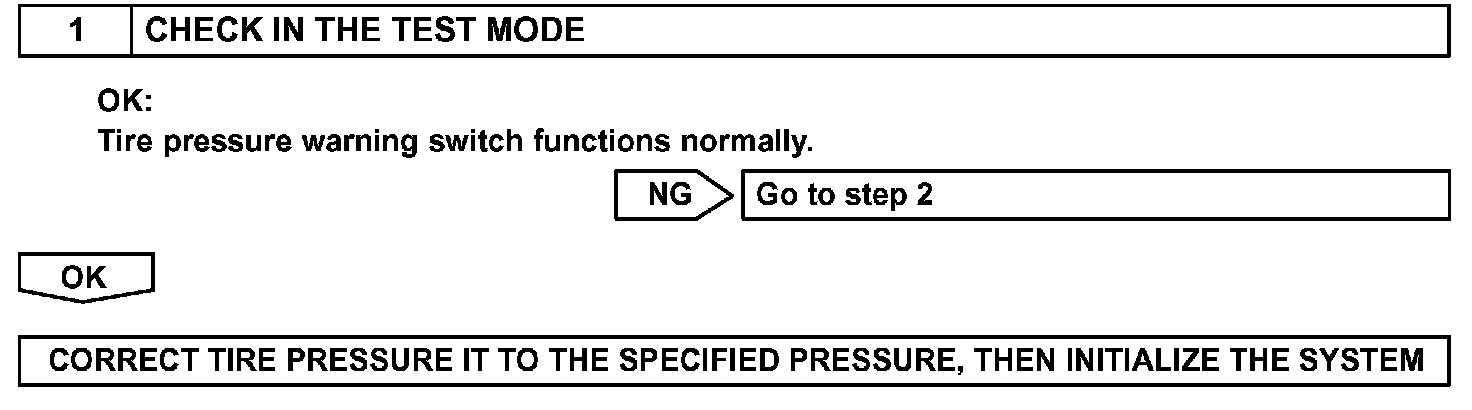

Step 1:

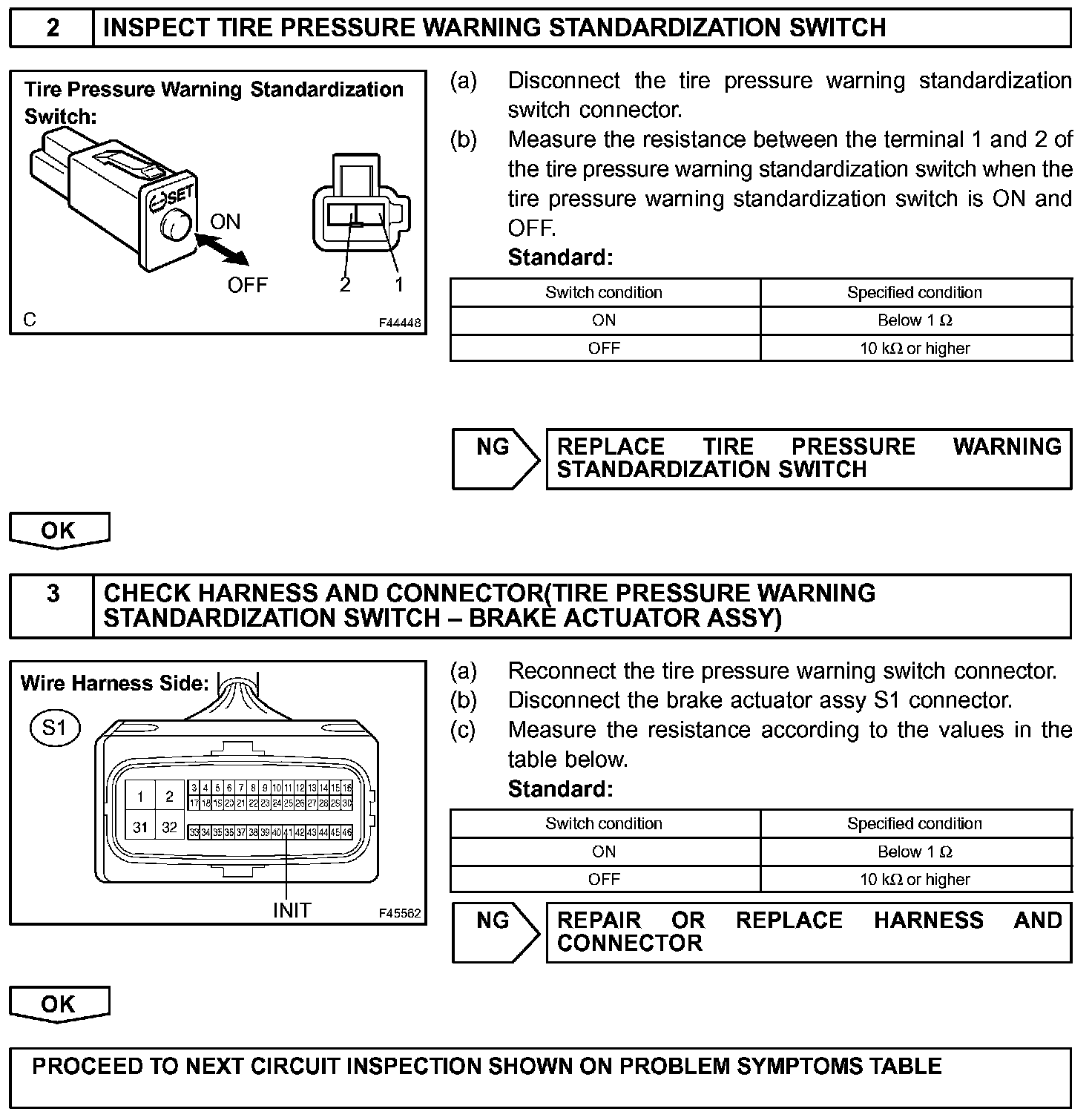

Step 2 - 3:
INSPECTION PROCEDURE
