FAIL-SAFE CHART

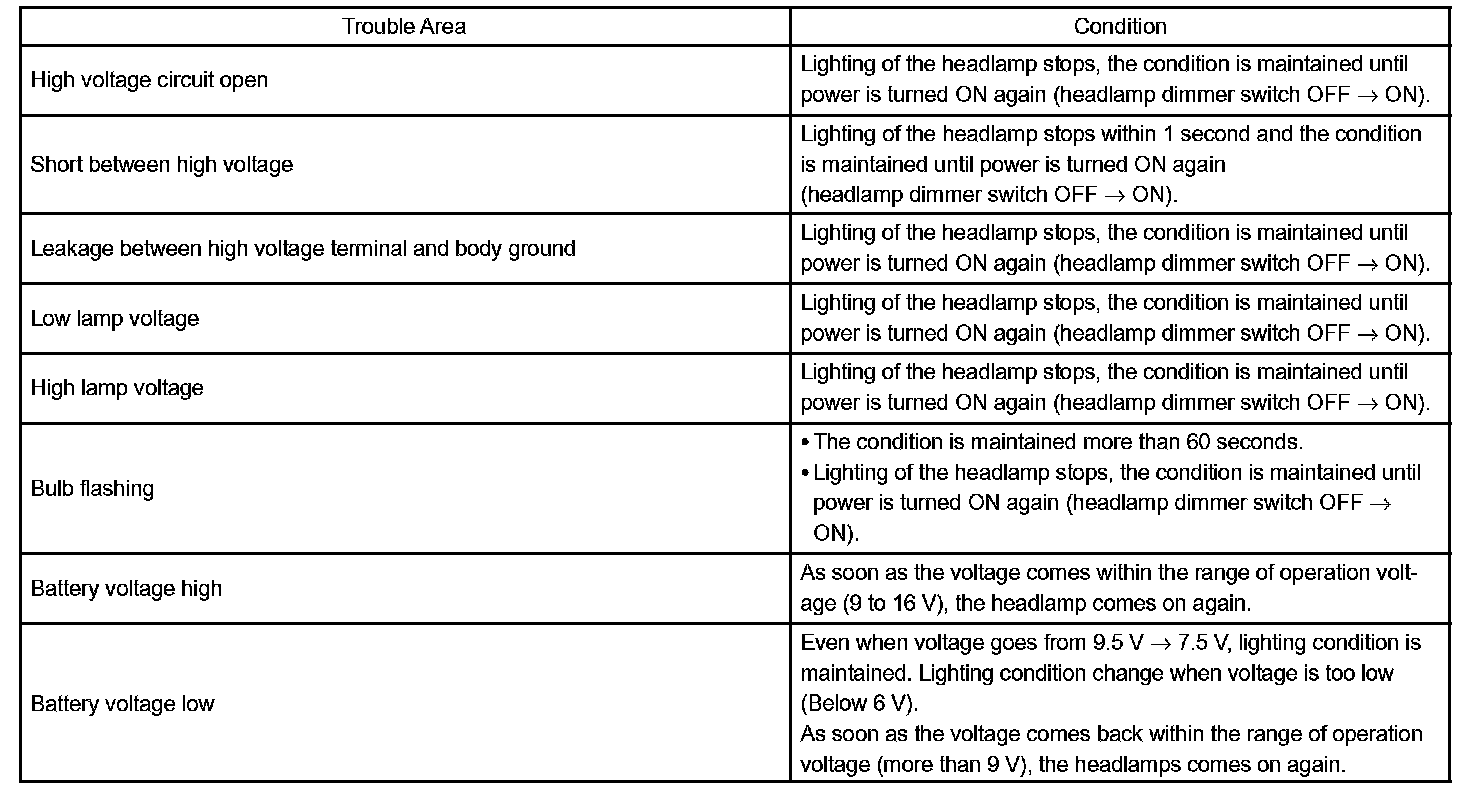

1. Light control computer (HID)




2. Headlamp Leveling ECU Assy

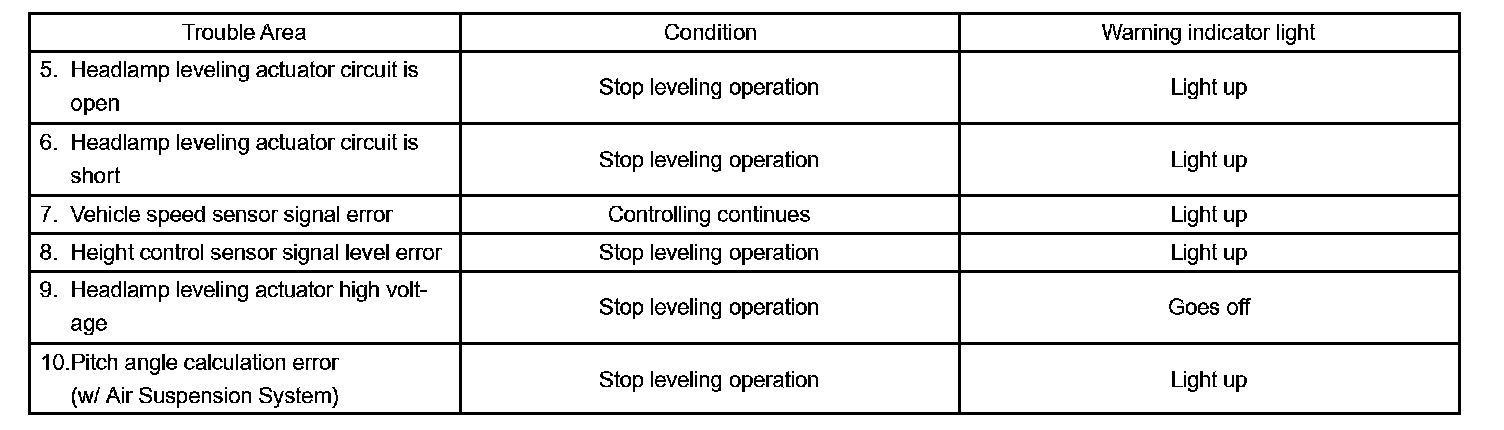

HINT: The Headlamp Leveling Control ECU performs fail-safe when detecting the following troubles.

Recovery condition: Ignition switch off or signal level error cancellation.




3. Headlamp Swivel ECU Assy

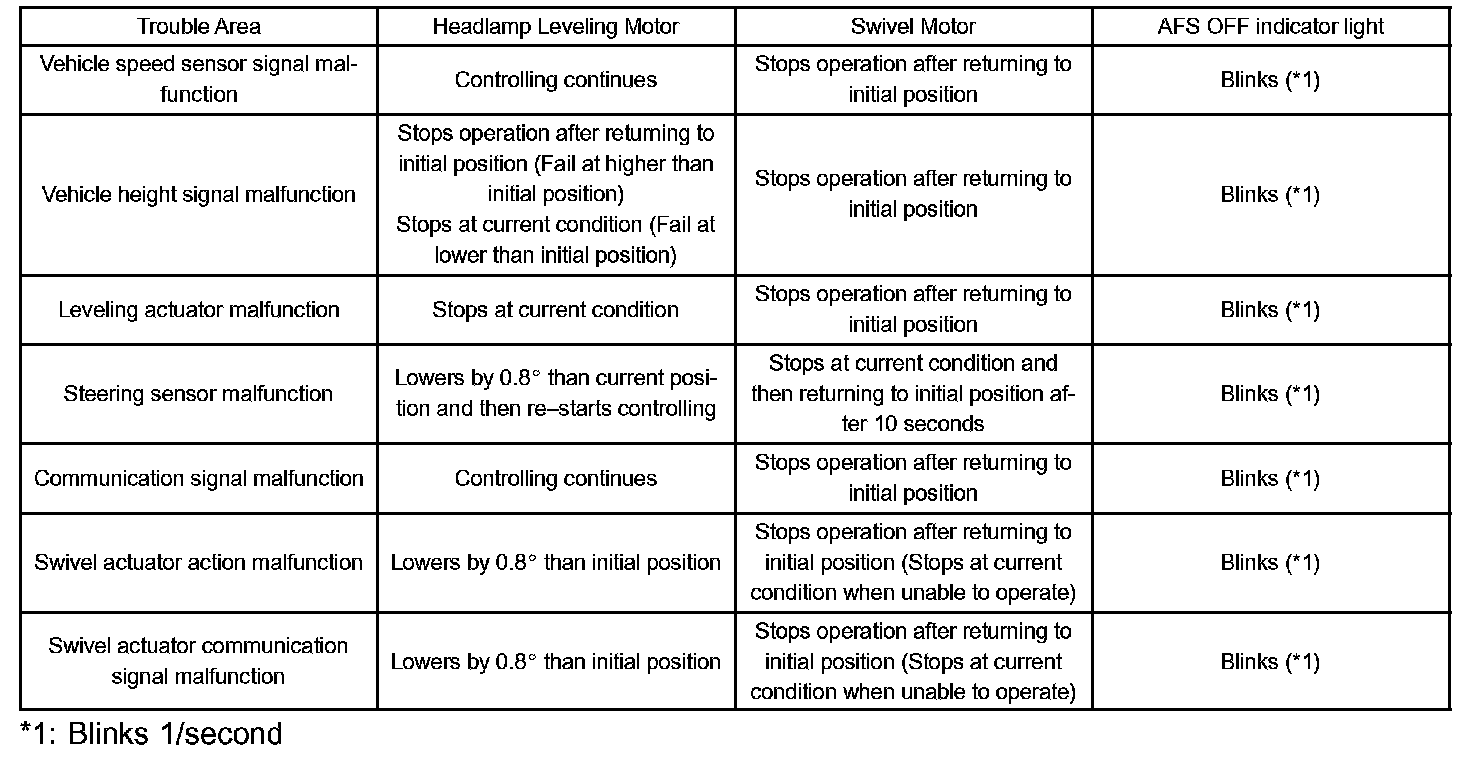

HINT: The Headlamp Swivel ECU performs fail-safe when detecting the following troubles. The AFS OFF indicator light on the combination meter comes on at the same time.
