Ignition Switch Circuit

IGNITION SWITCH CIRCUIT

CIRCUIT DESCRIPTION
This circuit detects the state of the ignition switch and sends it to the multiplex network body ECU.

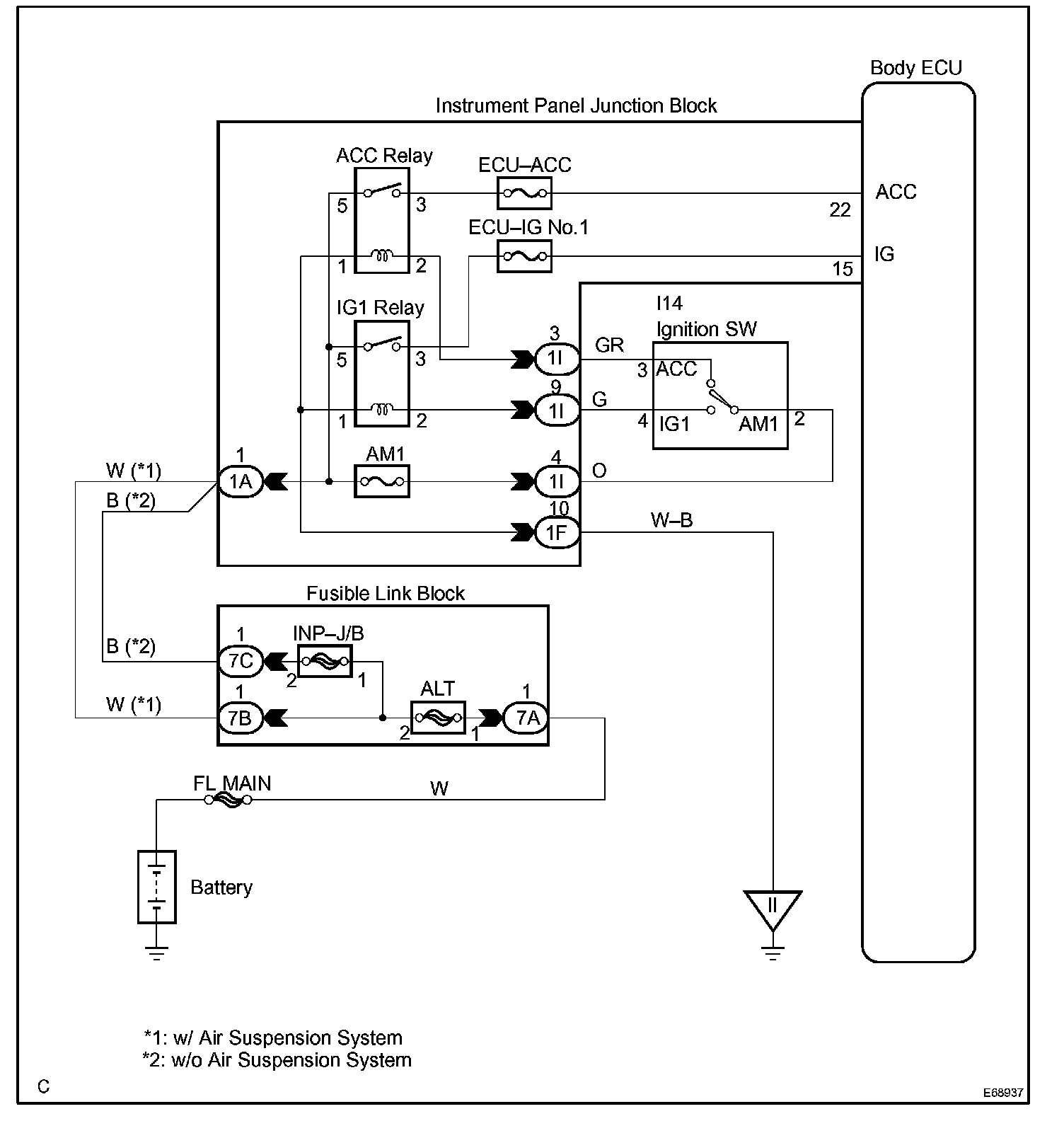

Wiring Diagram:

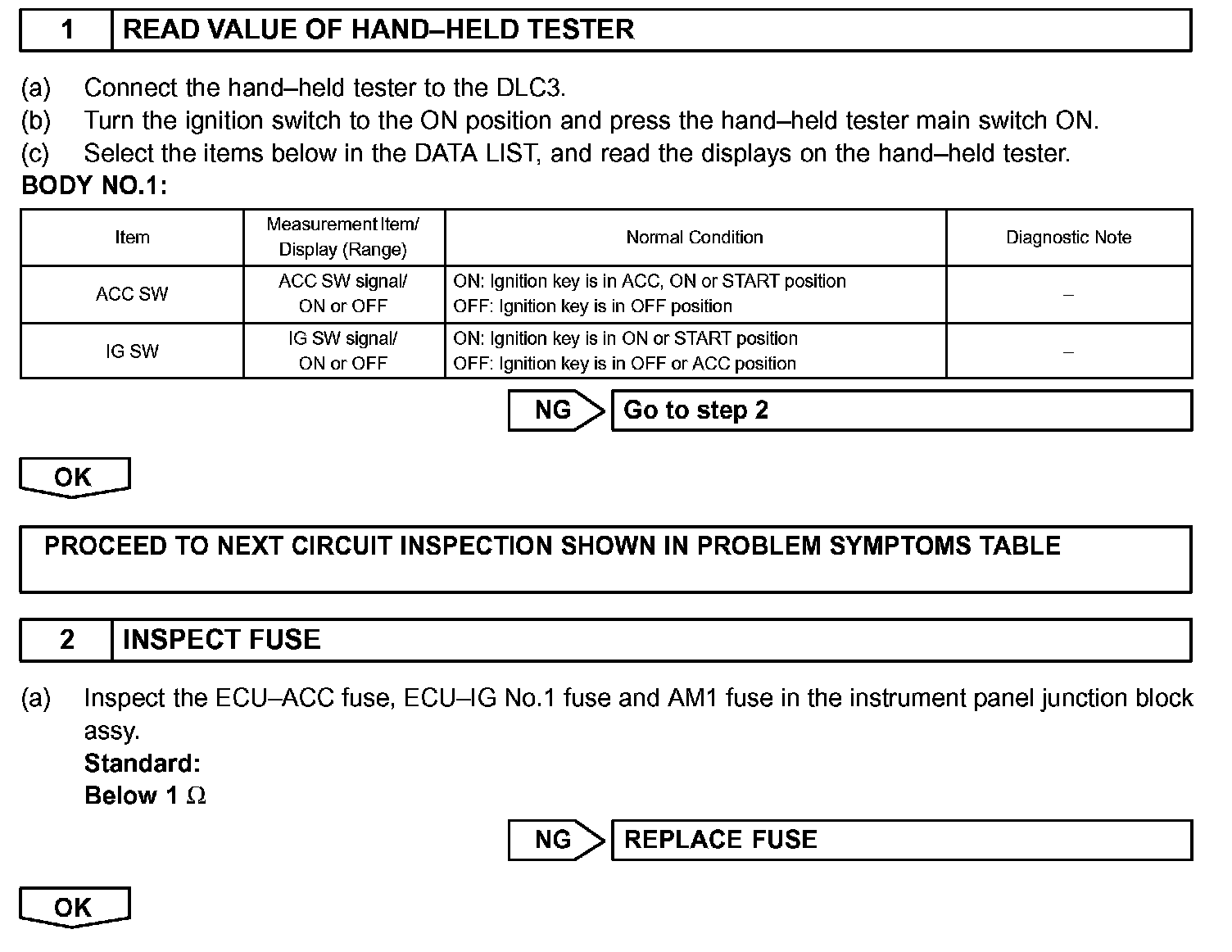

Step 1 - 2:

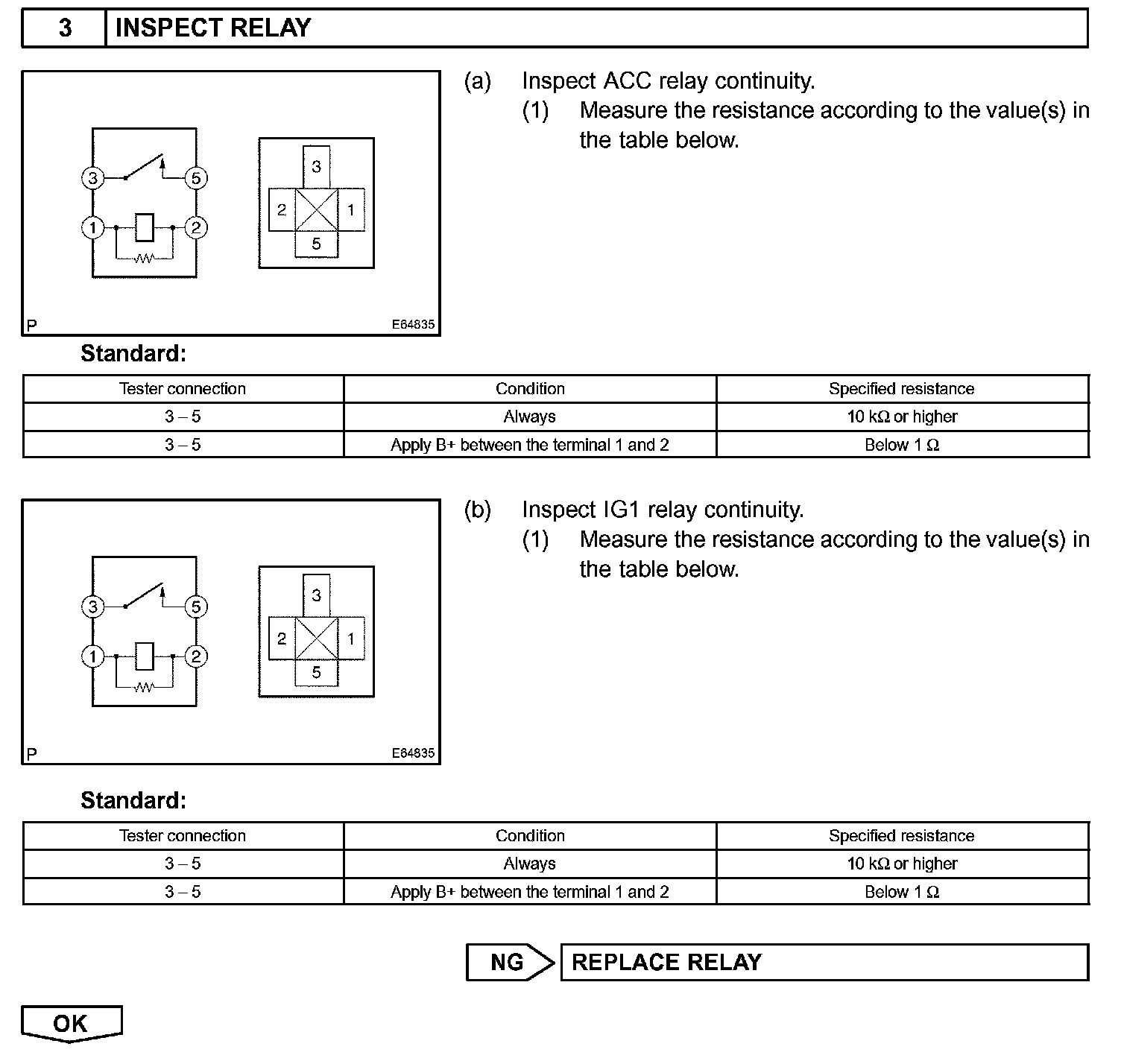

Step 3:

Step 4:

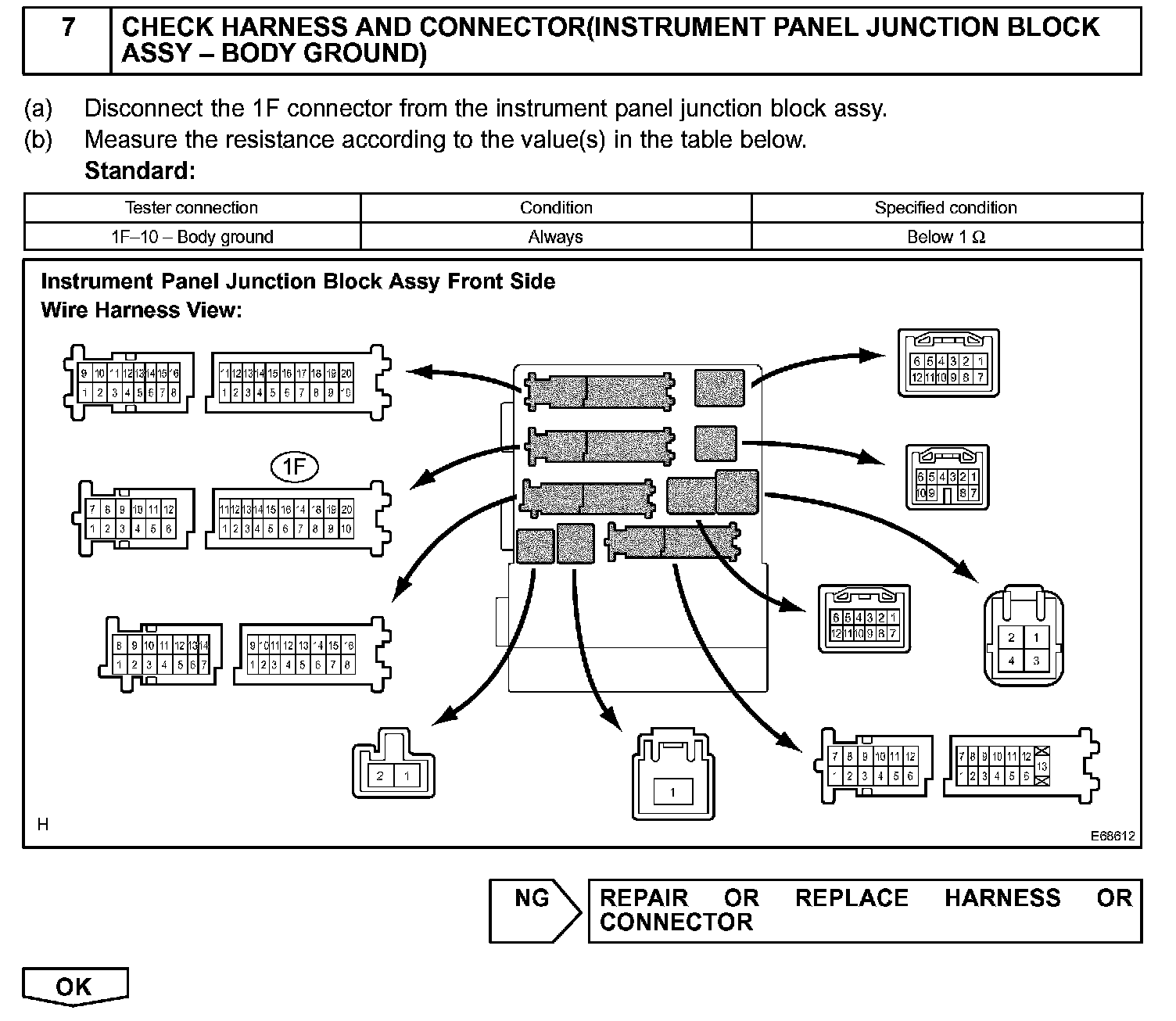

Step 5:

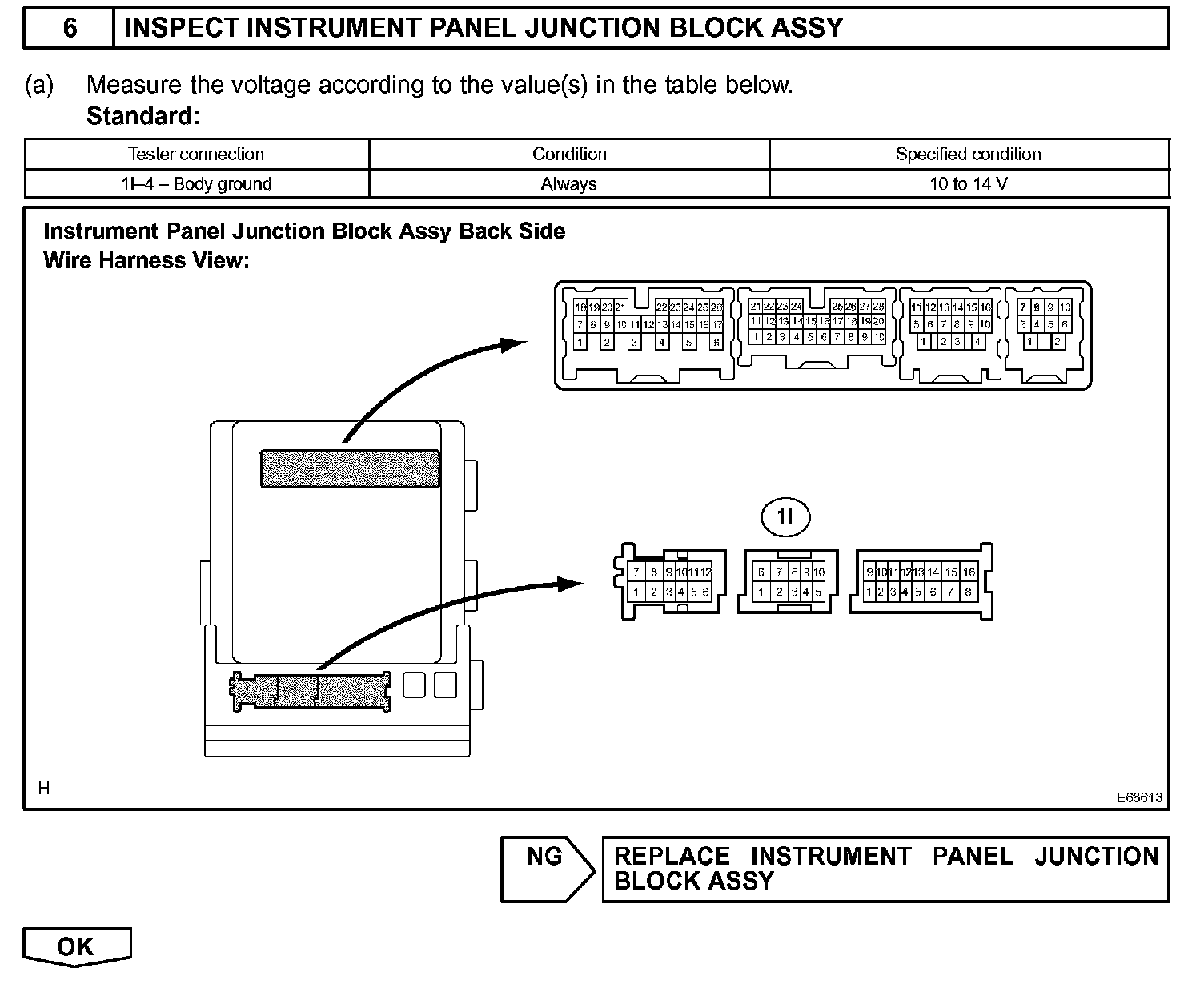

Step 6:

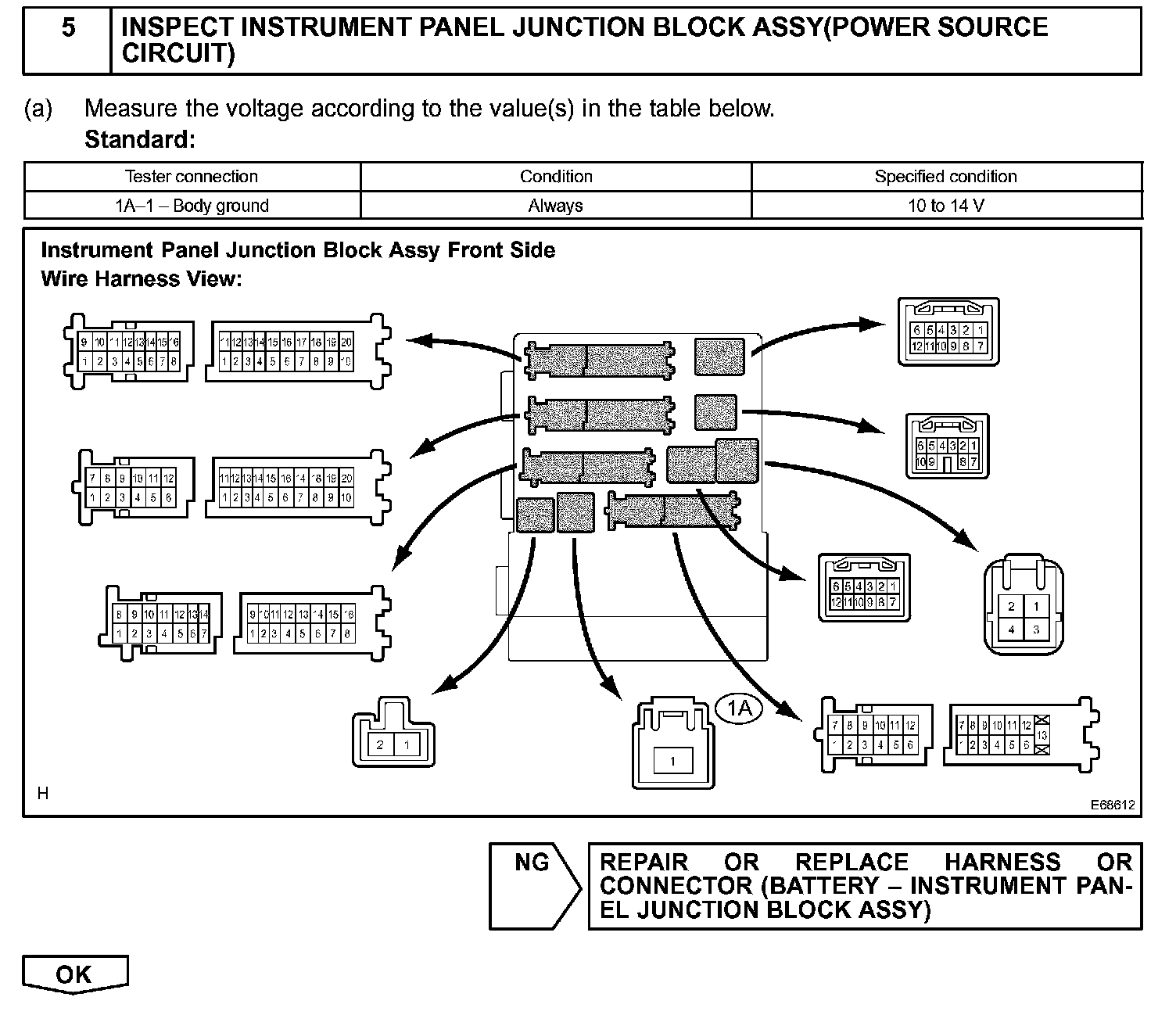

Step 7:

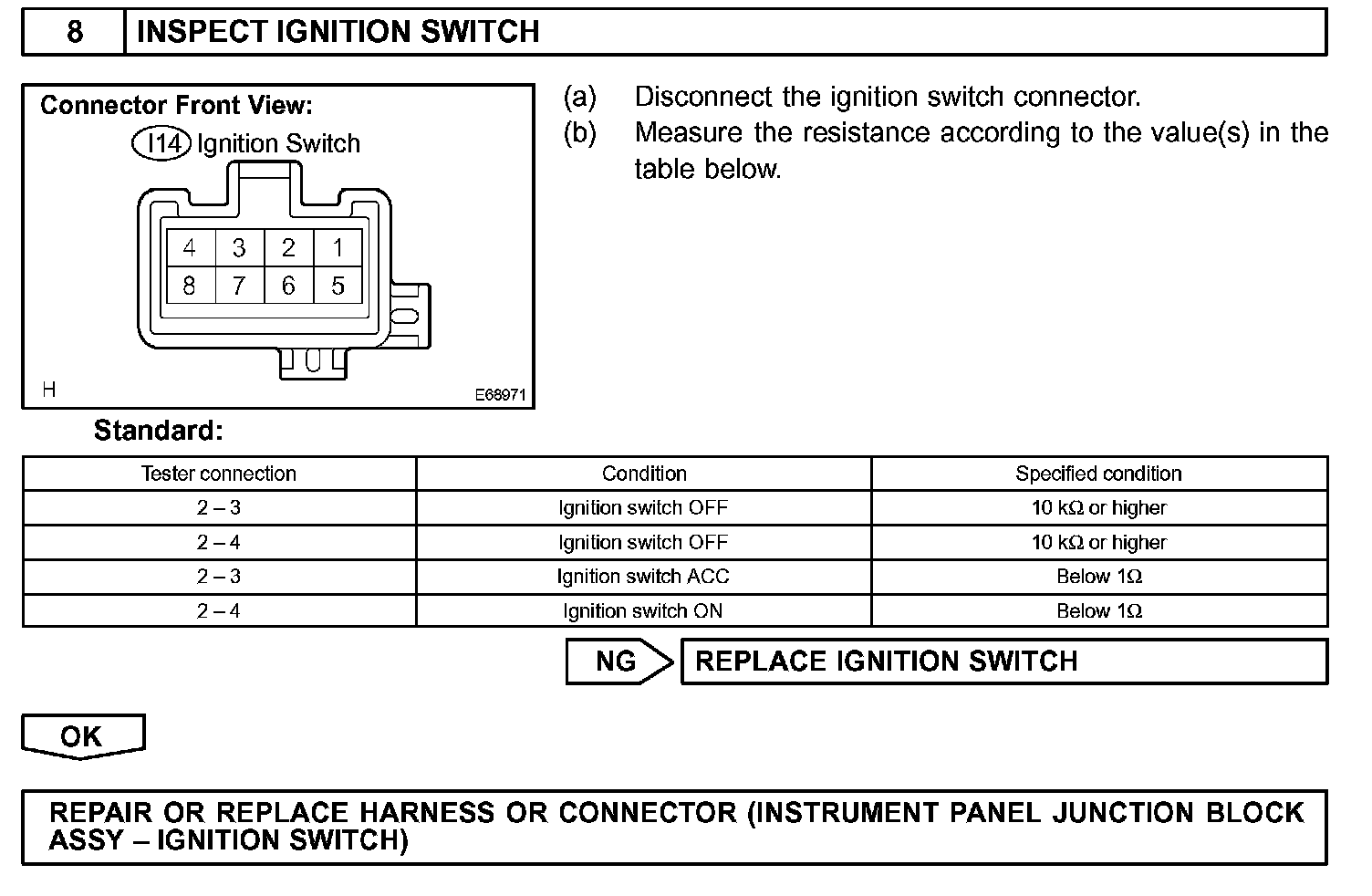

Step 8:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester, and start from step 2 when not using the hand-held tester.
