Instrument Panel J/B Inner Circuit

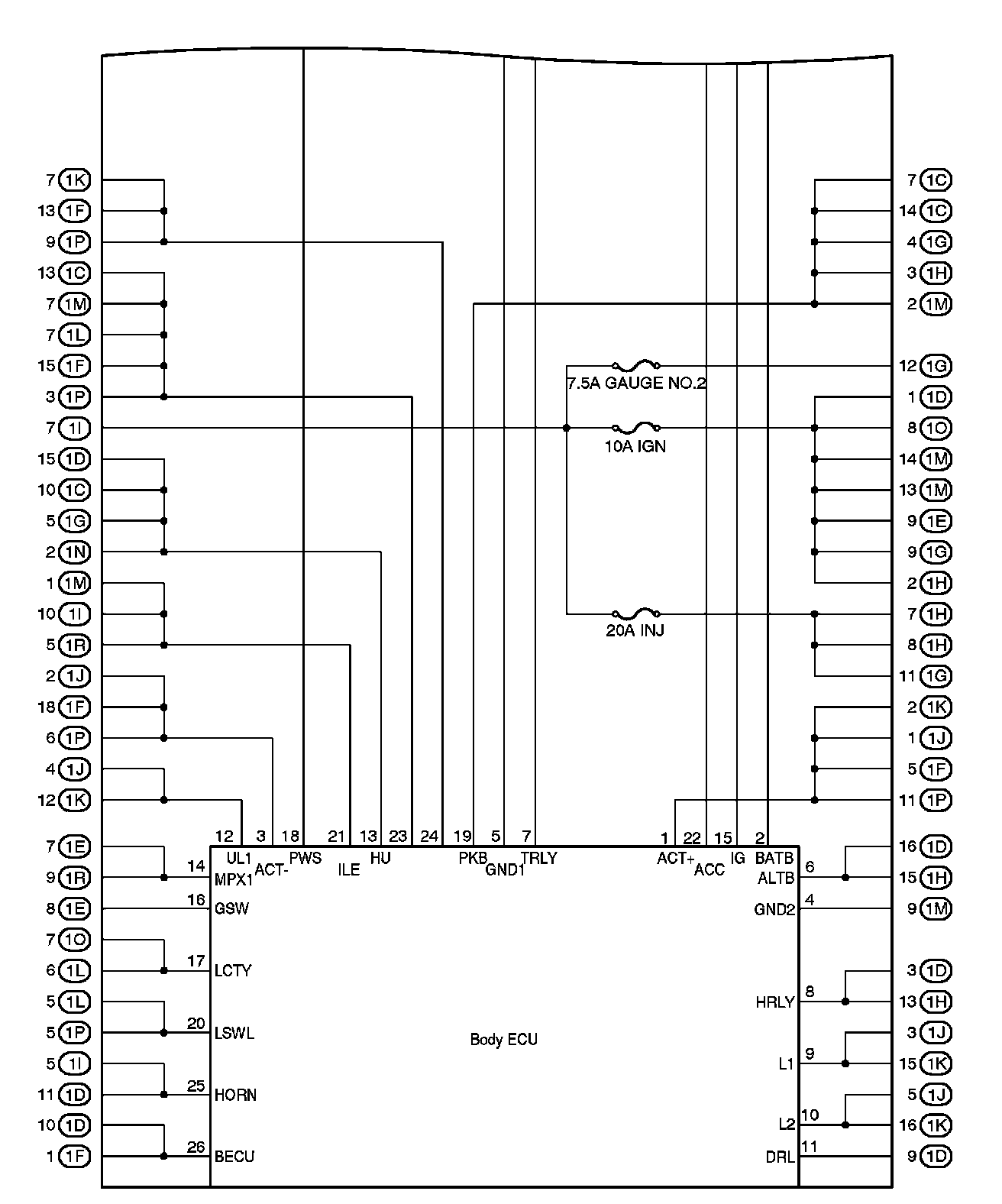

Instrument Panel J/B Inner Circuit:

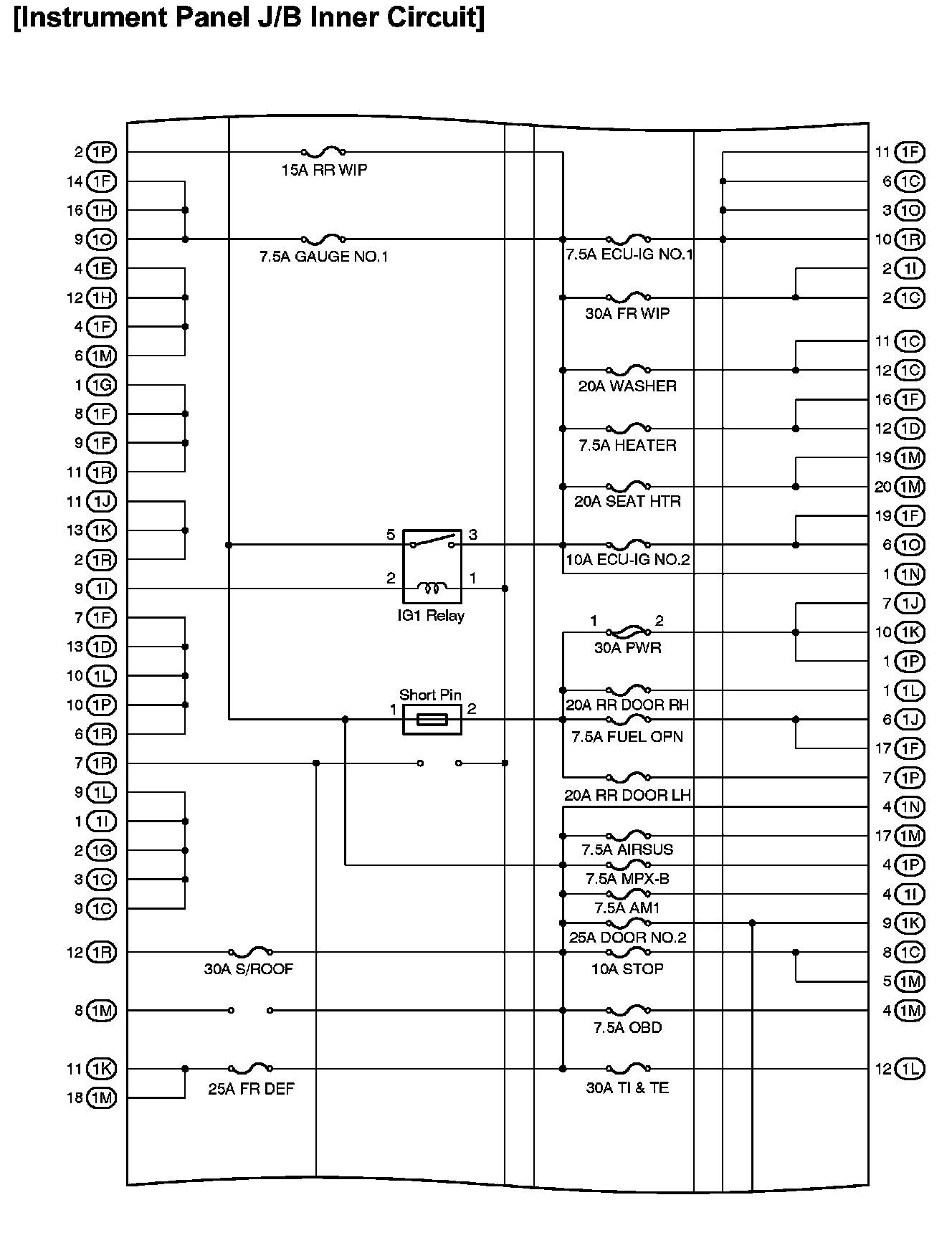

Instrument Panel J/B Inner Circuit:

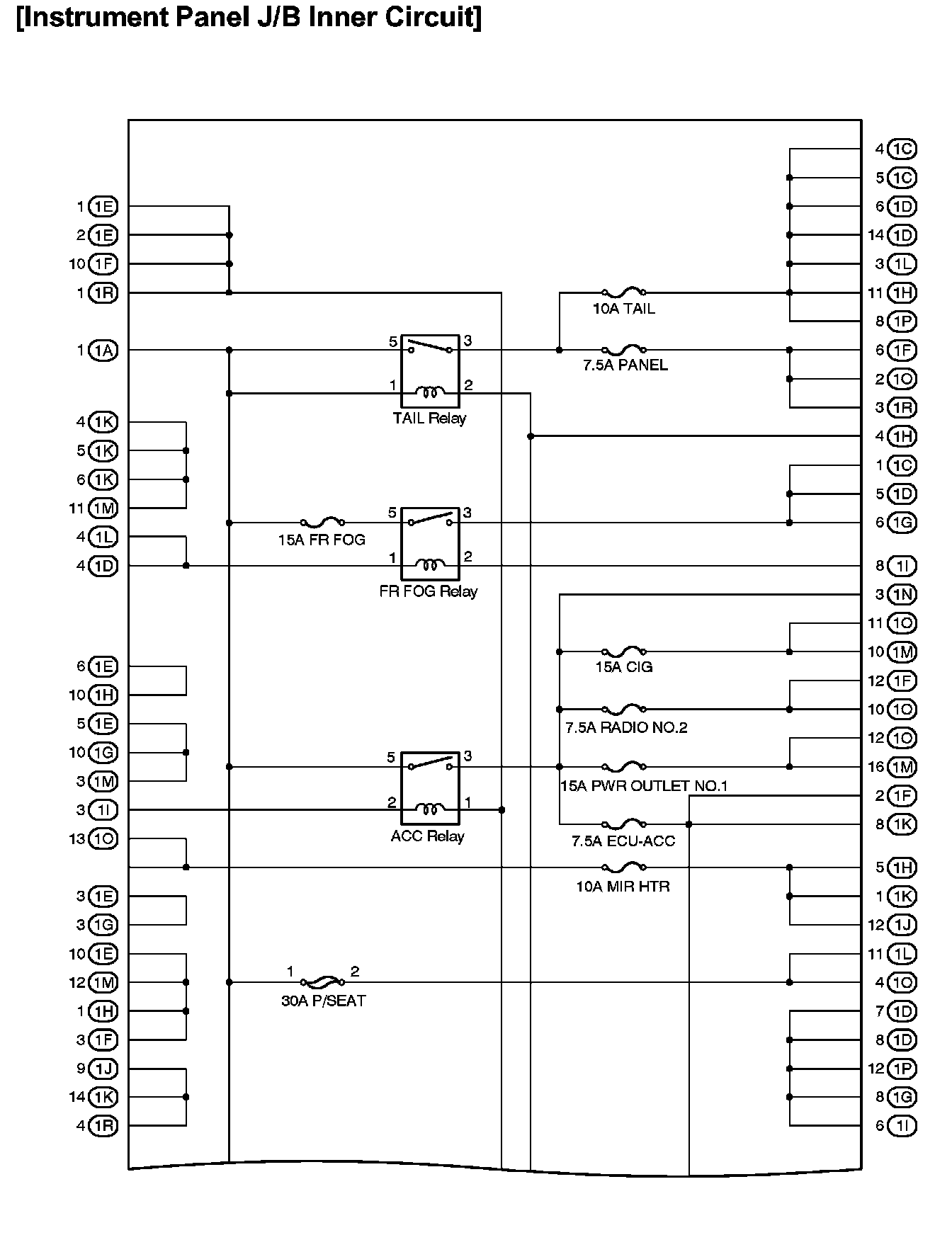

Instrument Panel J/B Inner Circuit:
