Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lexus
>>
2005
>>
RX 330 AWD V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Safing Sensor
>>
Diagrams

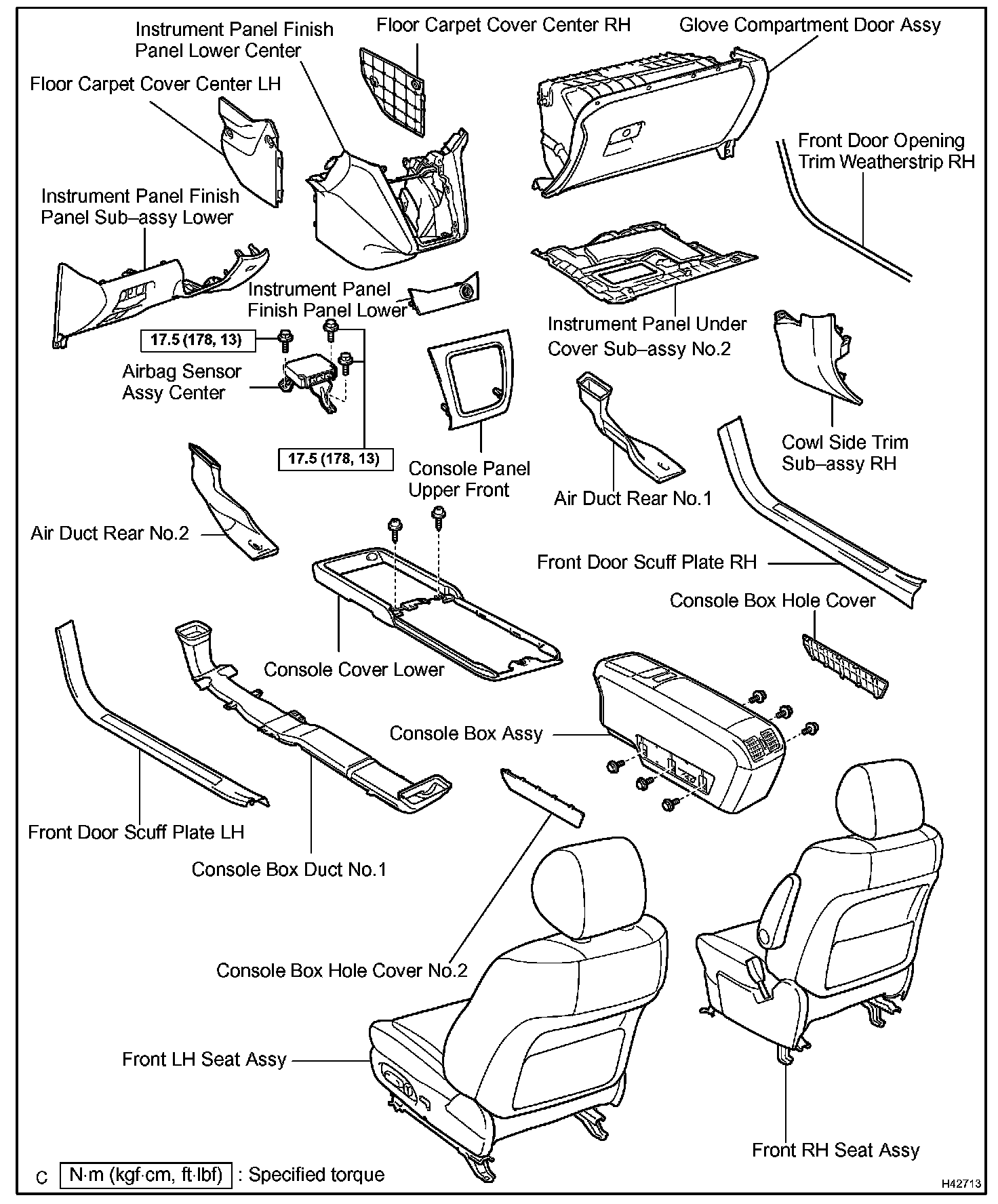

Safing Sensor: Diagrams
Air Bag Sensor Assy Center:
