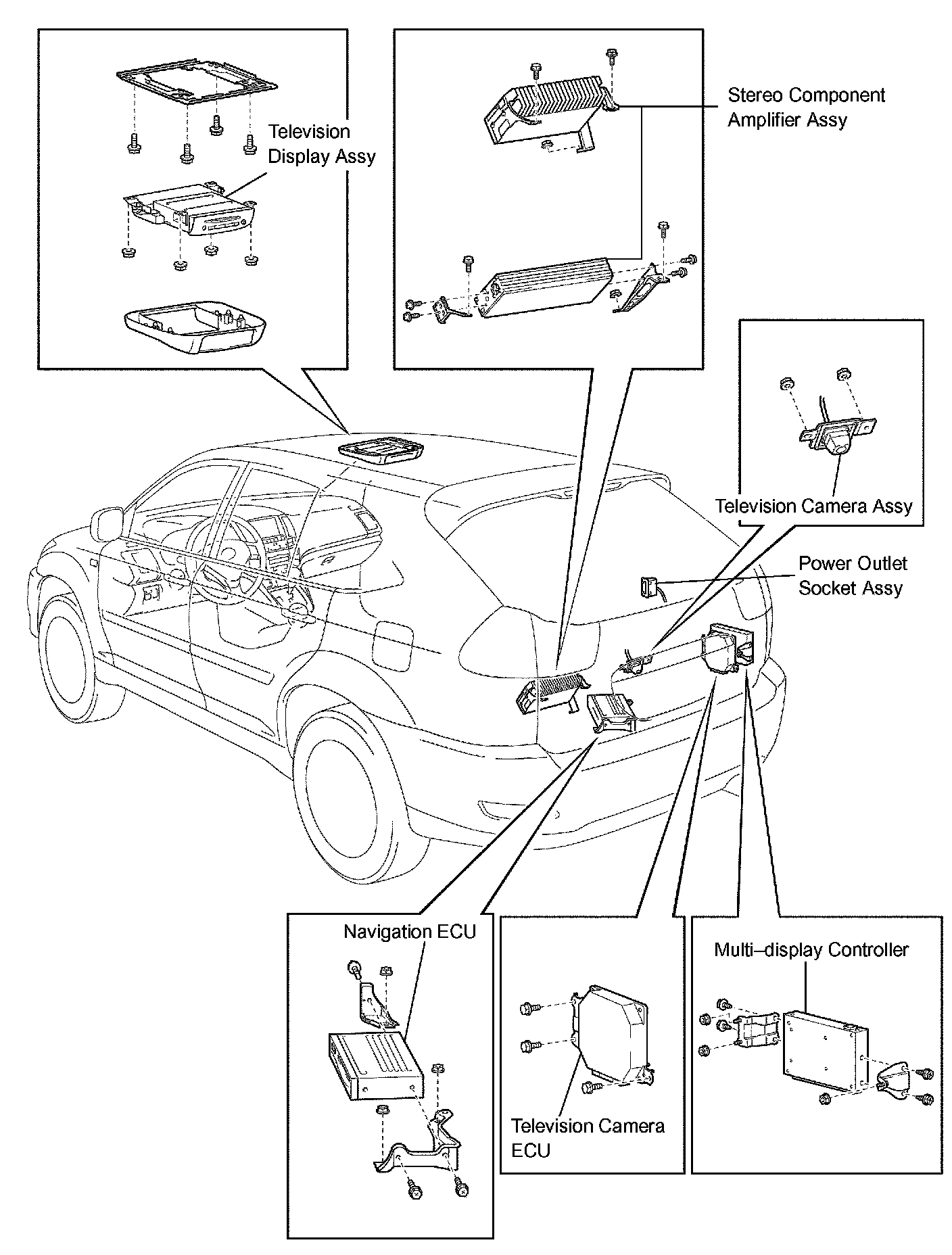

Power Outlet Socket Assy

Audio And Visual System:

POWER OUTLET SOCKET ASSEMBLY

REPLACEMENT
1. REMOVE REAR DOOR SCUFF PLATE RH
2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
3. REMOVE DECK BOARD SUB-ASSEMBLY
4. REMOVE REAR SEAT ASSEMBLY RH (4-2-4 SPLIT SEAT TYPE)
5. REMOVE REAR SEAT ASSEMBLY LH (4-2-4 SPLIT SEAT TYPE)
6. REMOVE TONNEAU COVER ASSEMBLY
7. REMOVE DECK FLOOR BOX FRONT
8. REMOVE DECK FLOOR BOX REAR
9. REMOVE DECK BOARD SUB-ASSEMBLY NO.2
10. REMOVE DECK BOARD SUB-ASSEMBLY NO.3
11. REMOVE BACK DOOR WEATHERSTRIP
12. REMOVE DECK SIDE TRIM BOX RH
13. REMOVE REAR FLOOR FINISH PLATE
14. REMOVE REAR FLOOR FINISH SIDE PLATE RH
15. REMOVE DECK SIDE TRIM COVER RH
16. REMOVE REAR SEAT SIDE COVER RH
17. REMOVE ROPE HOOK
18. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH




19. REMOVE POWER OUTLET SOCKET ASSEMBLY

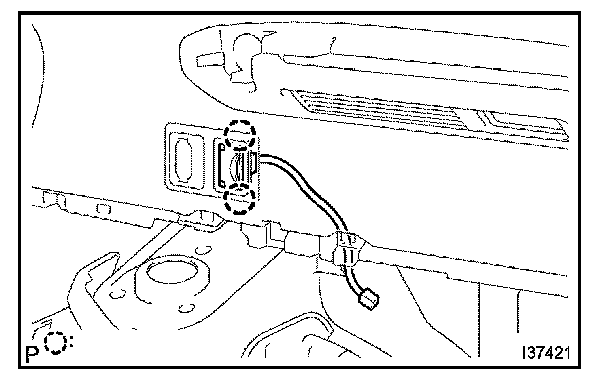

a. Disconnect the connector.
b. Disengage the 2 claws, and remove the power outlet socket assembly.

20. INSTALL REAR SEAT ASSEMBLY RH (4-2-4 SPLIT SEAT TYPE)
21. INSTALL REAR SEAT ASSEMBLY LH (4-2-4 SPLIT SEAT TYPE)
