Relay Box: Locations

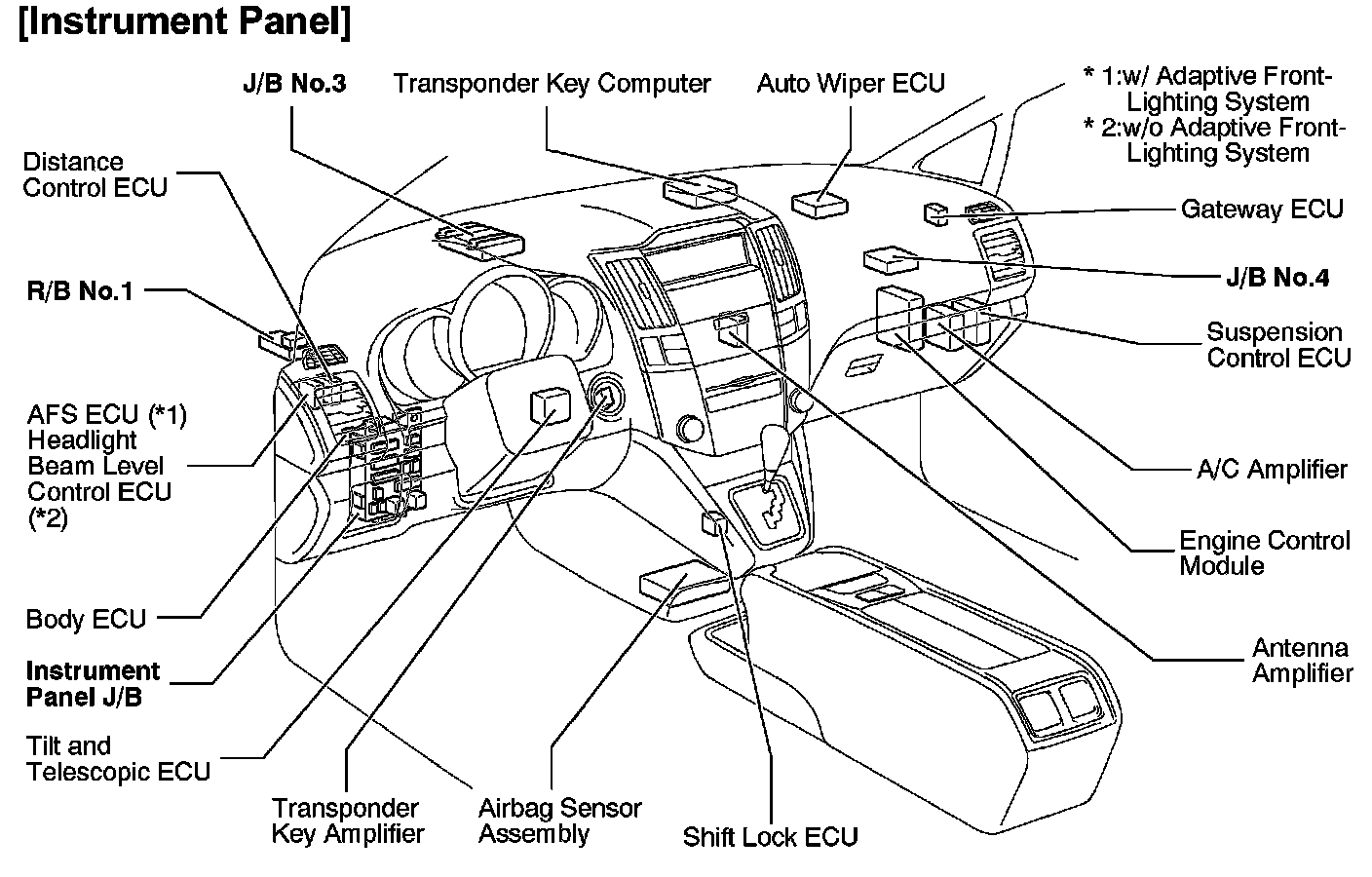

Instrument Panel:

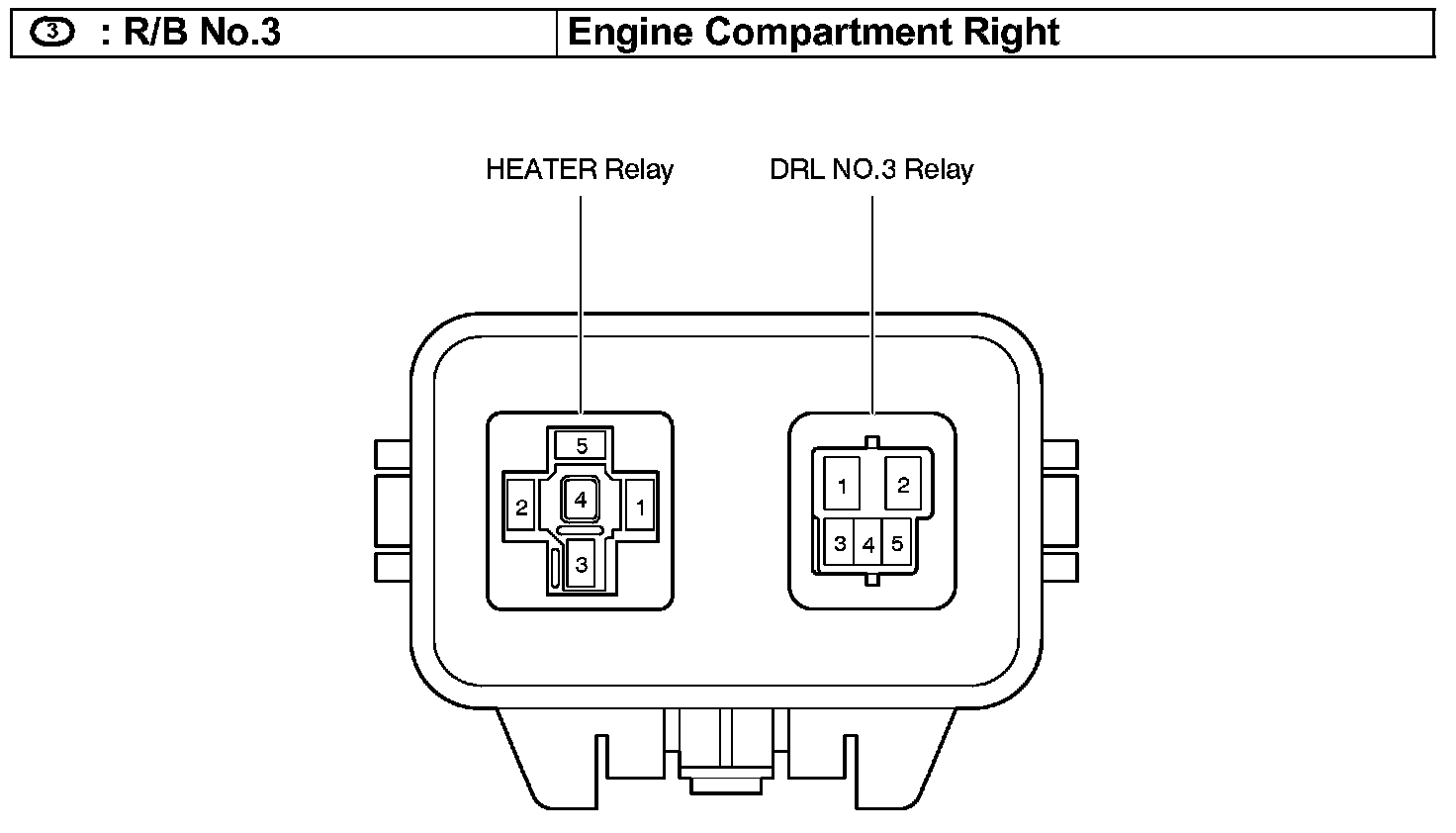

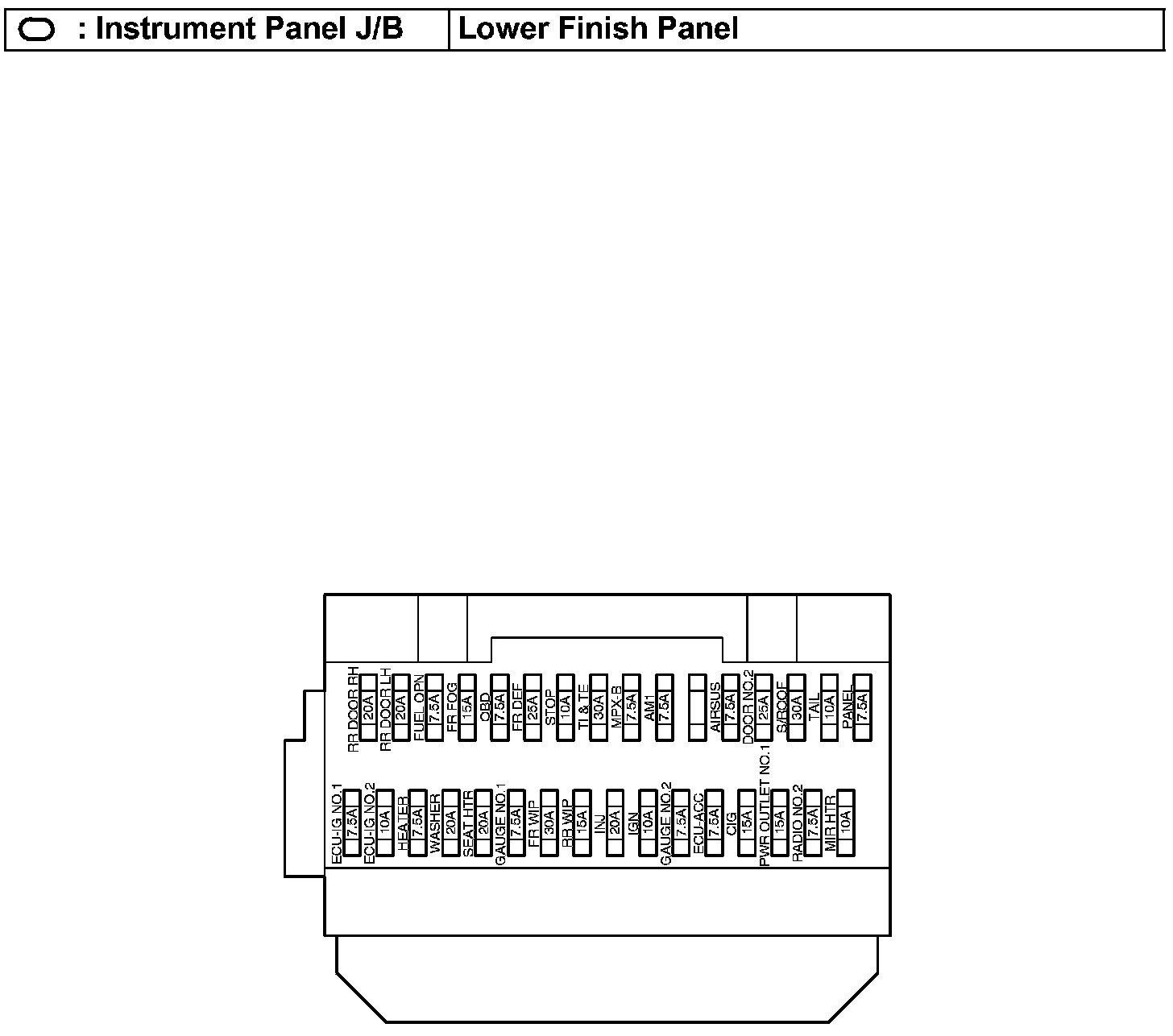

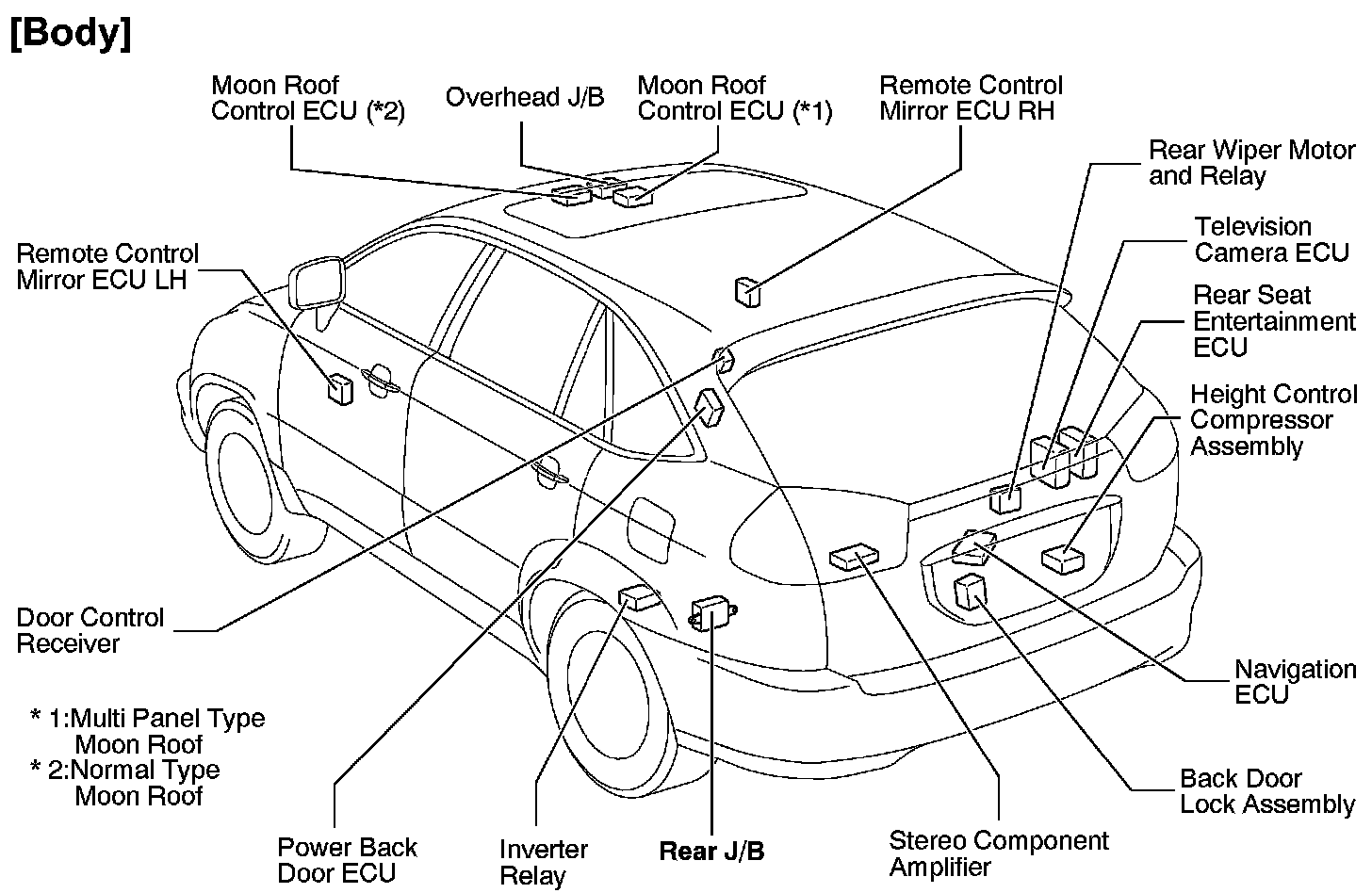

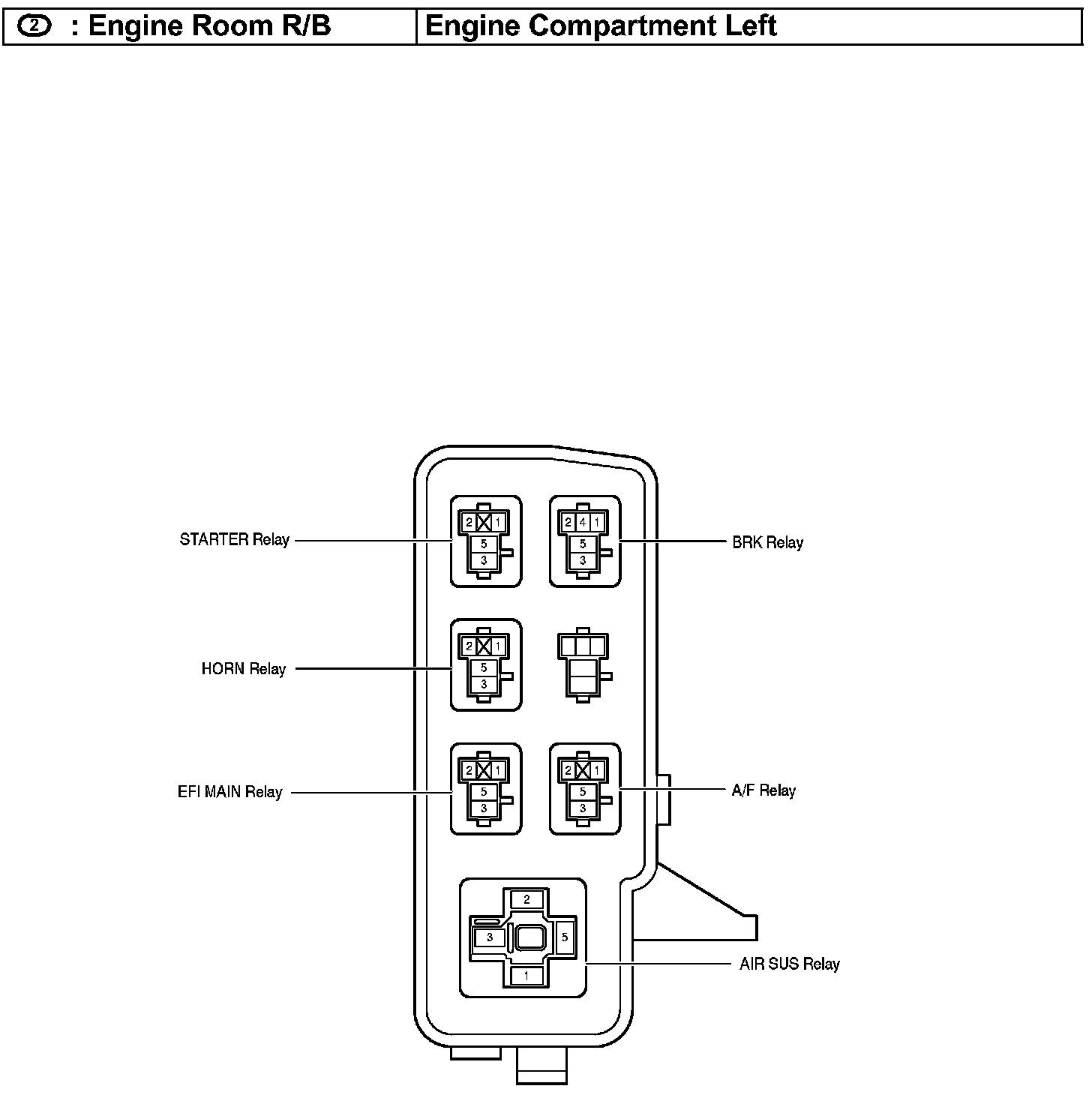

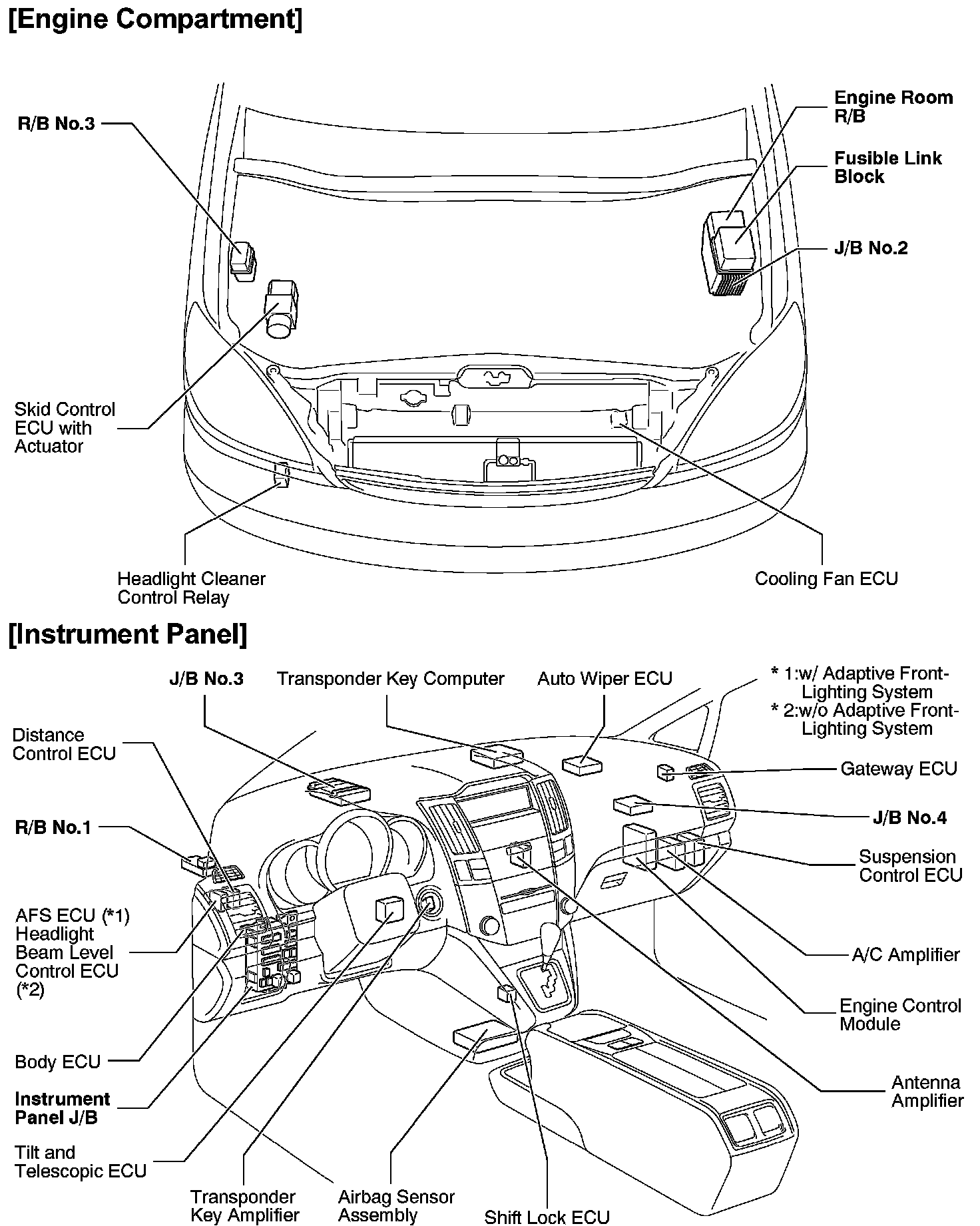

Relay Box Locations

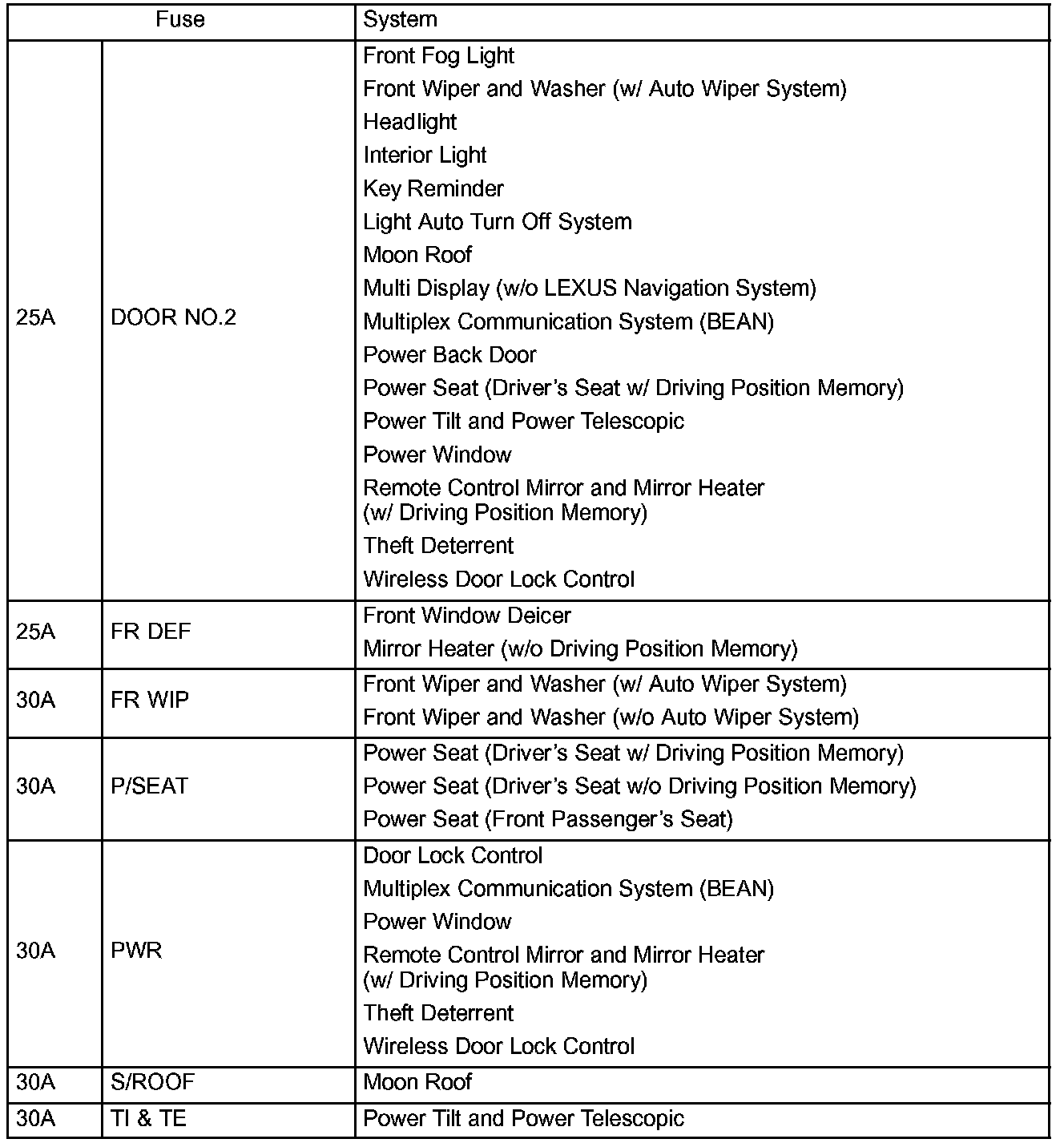

Relay & Fuse Locations

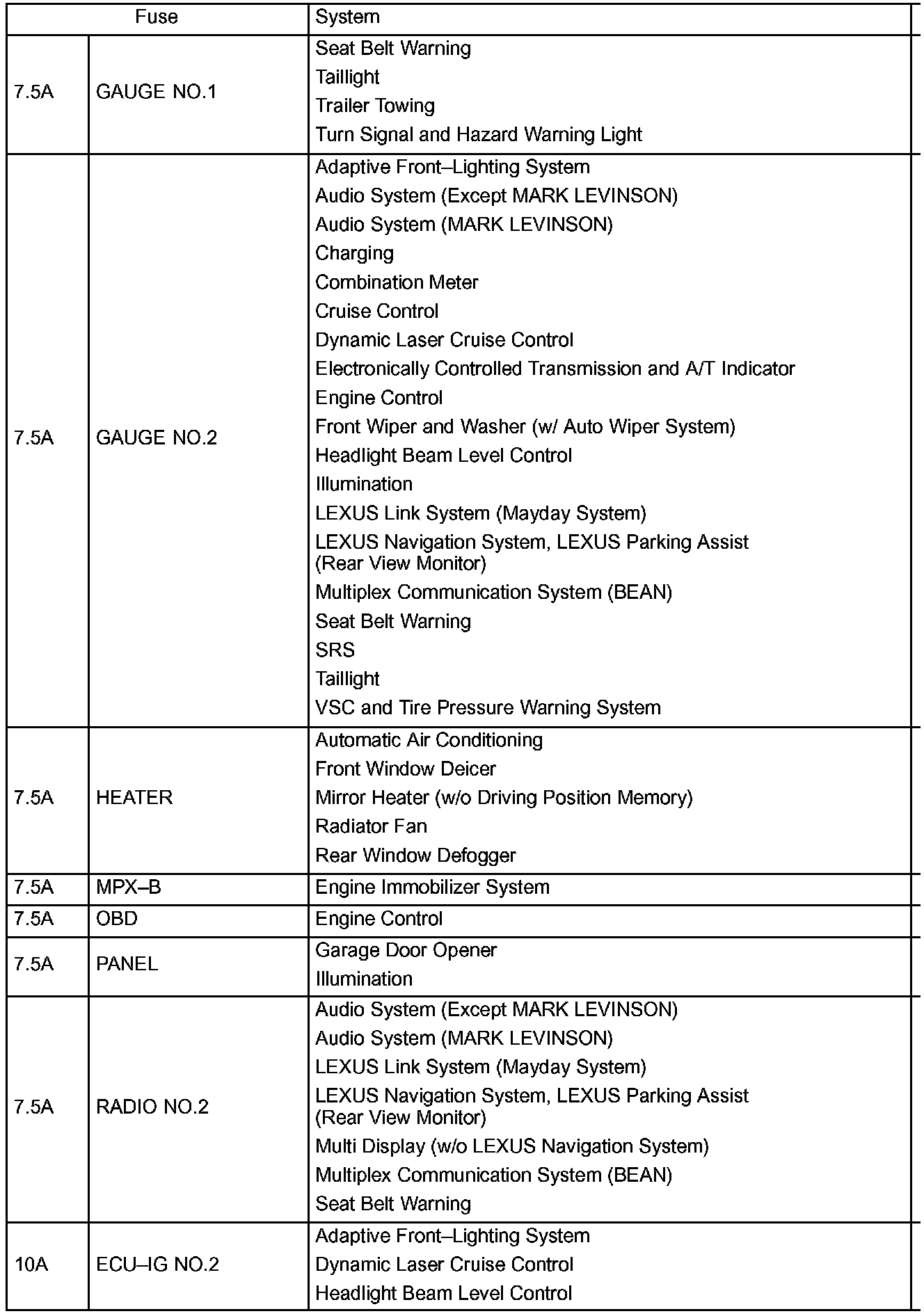

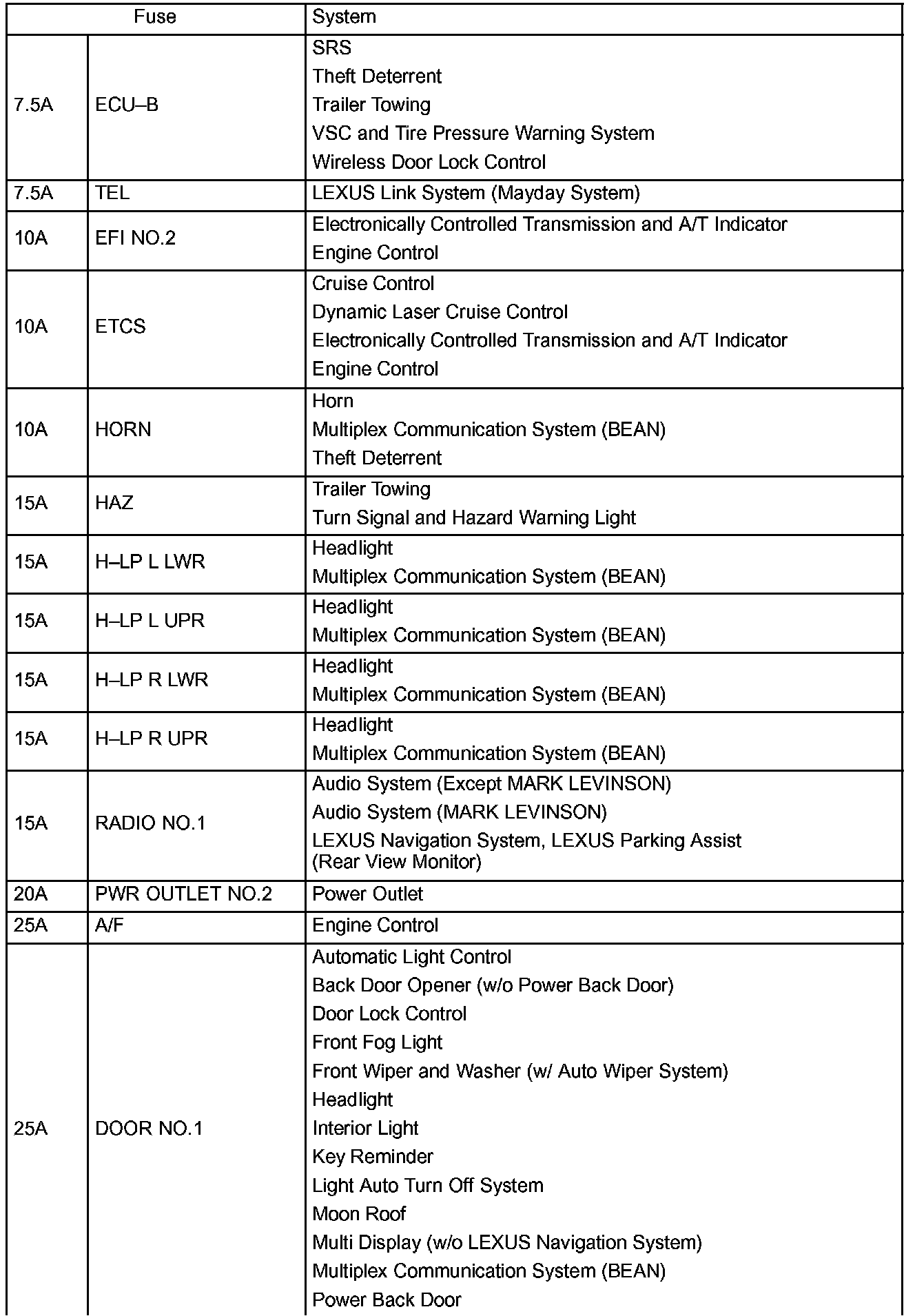

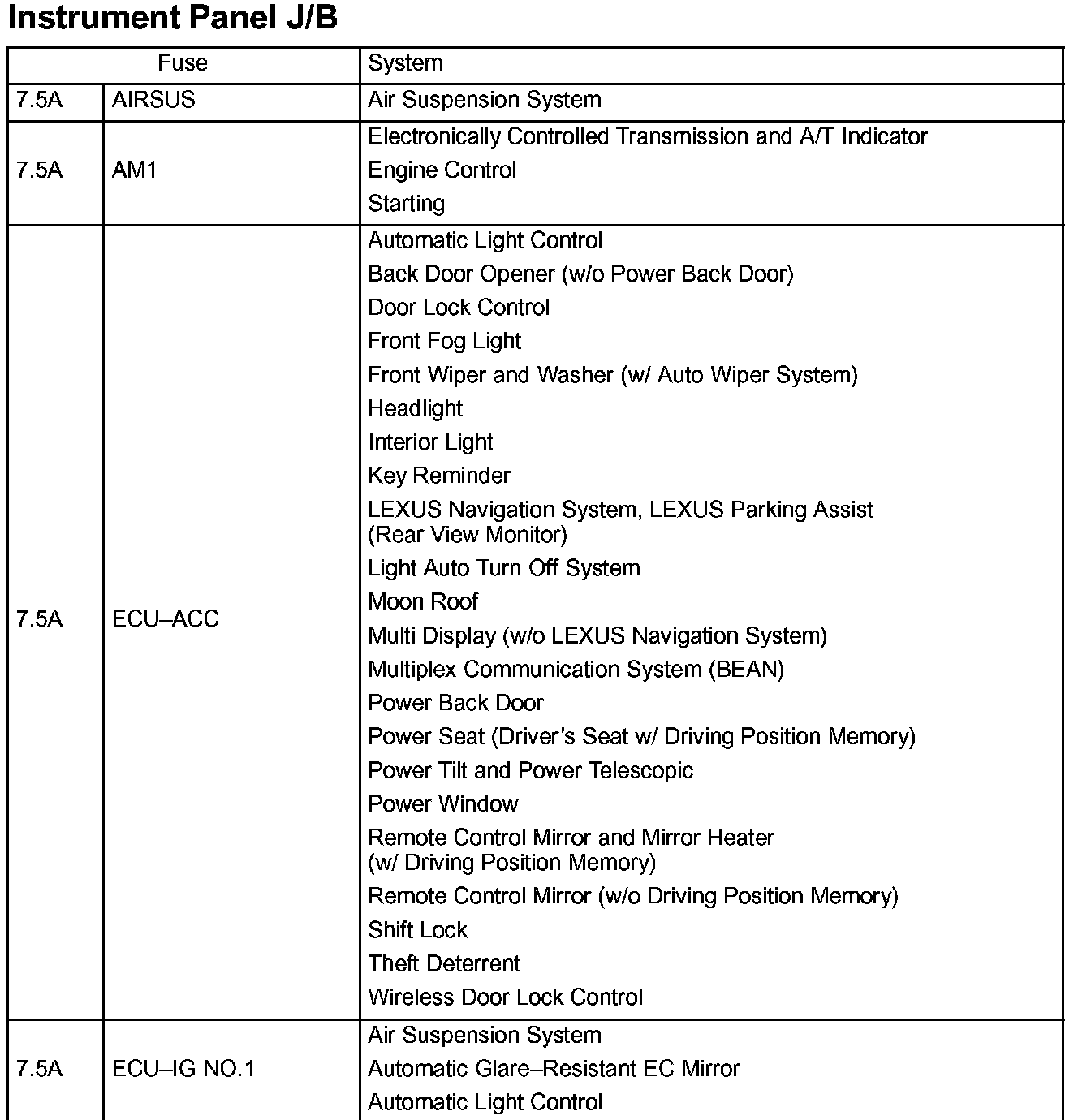

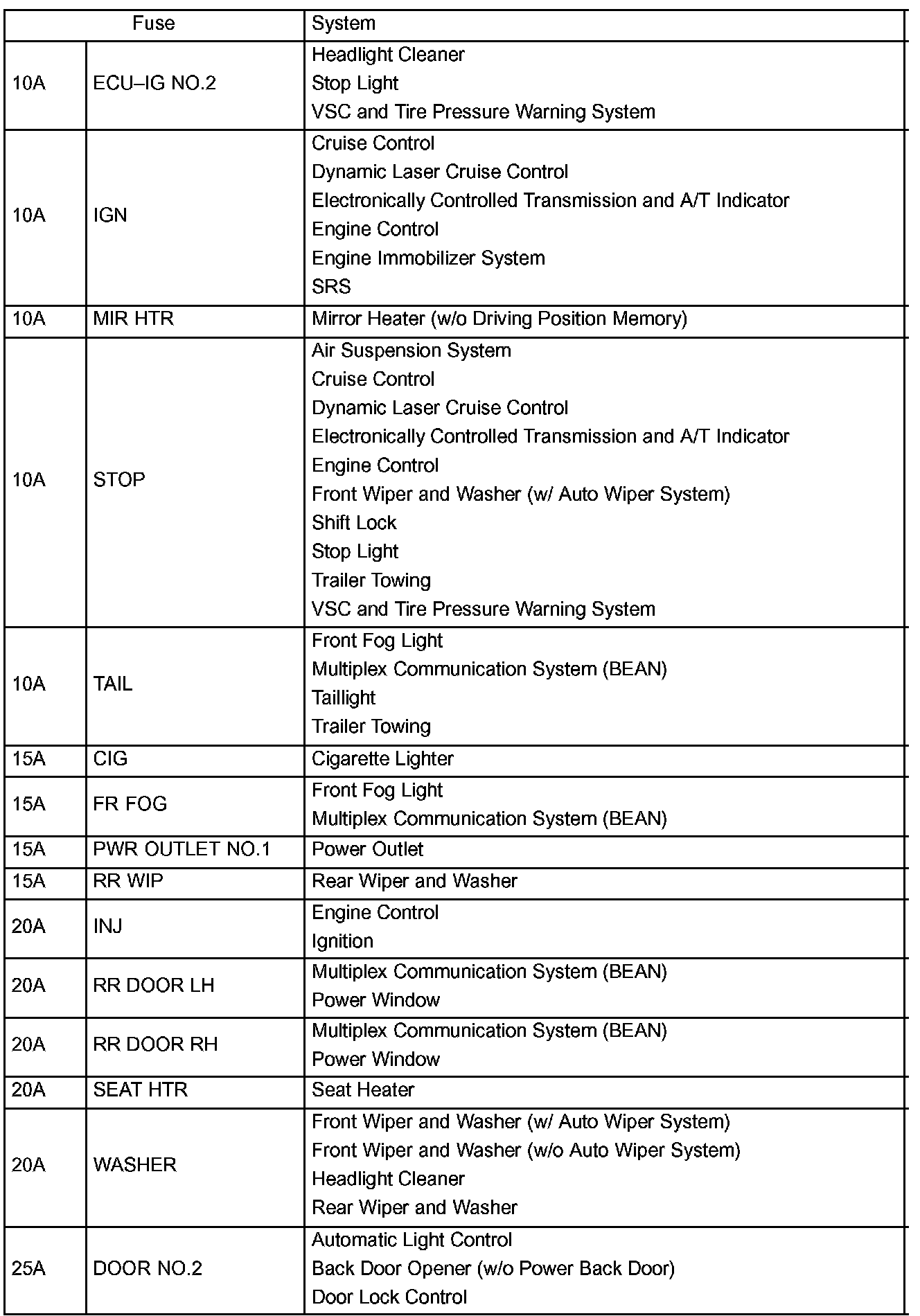

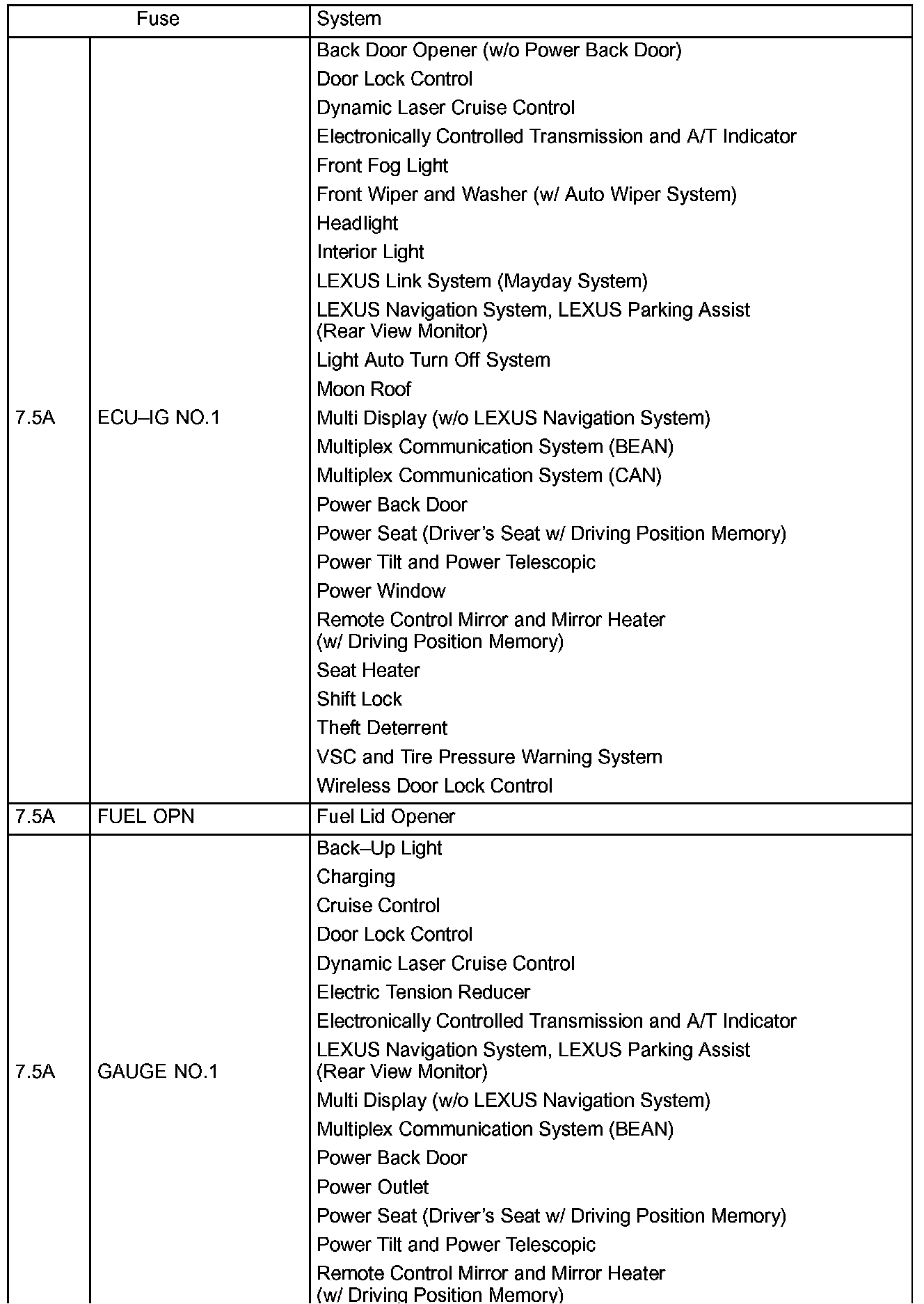

Instrument Panel J/B Fuse ID

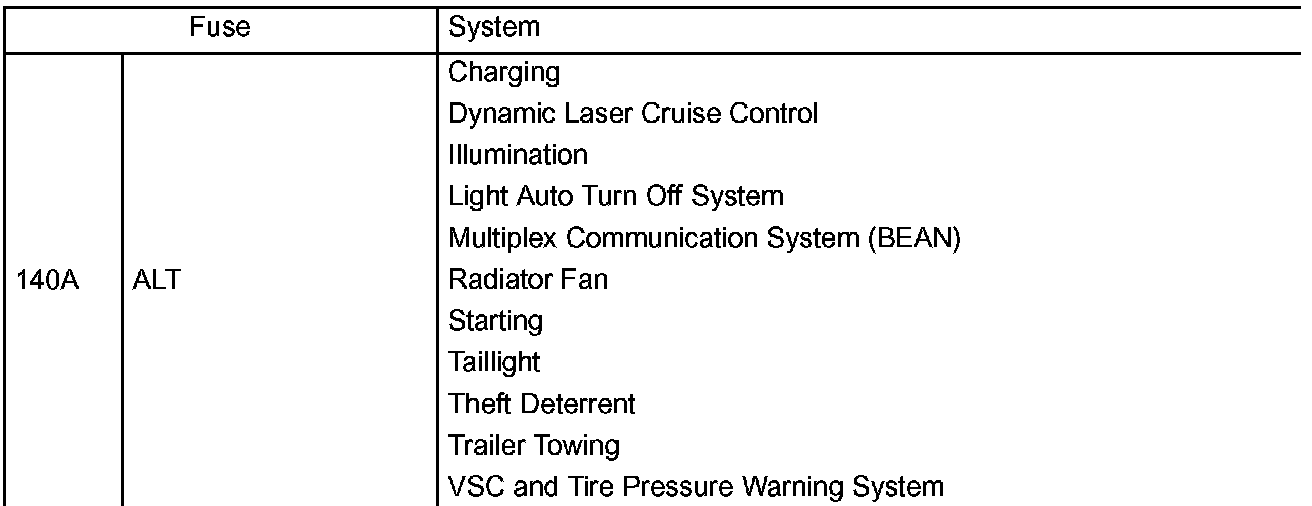

Fusible Link Block
