With Manual Tilt and Manual Telescopic Column

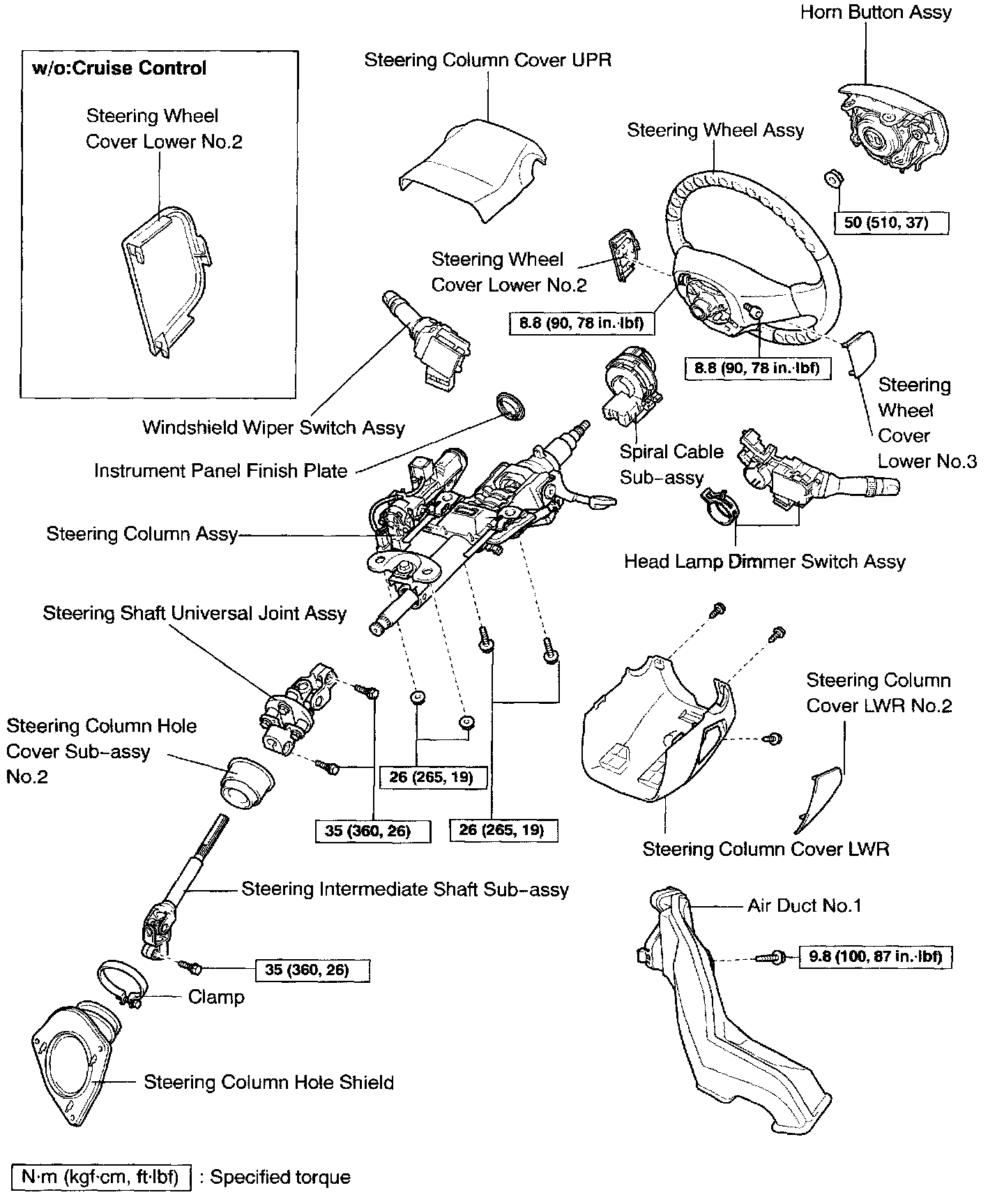

Part 1 Of 2:

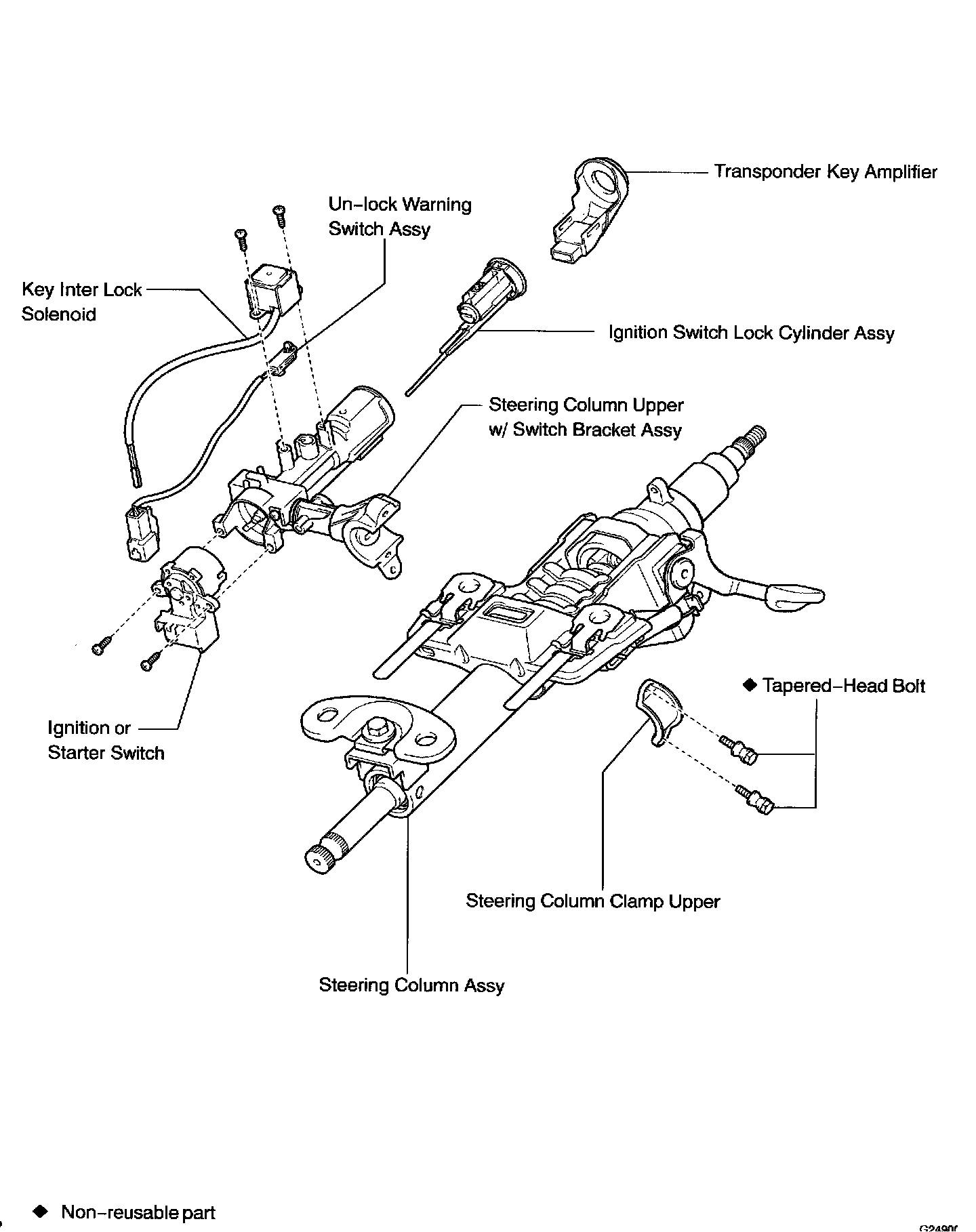

Part 2 Of 2:





STEERING COLUMN ASSEMBLY (MANUAL TILT) OVERHAUL W/ RELATED COMPONENTS
