Height Control Off Indicator Light Circuit

HEIGHT CONTROL OFF INDICATOR LAMP CIRCUIT

CIRCUIT DESCRIPTION
If the suspension control ECU detects a problem, the height control OFF indicator lamp comes on while suspending the height control function at the same time. At this time, the suspension control ECU records a DTC. Connect terminal TC and CG of the DLC3 to make the height control OFF indicator lamp flash and output DTC.

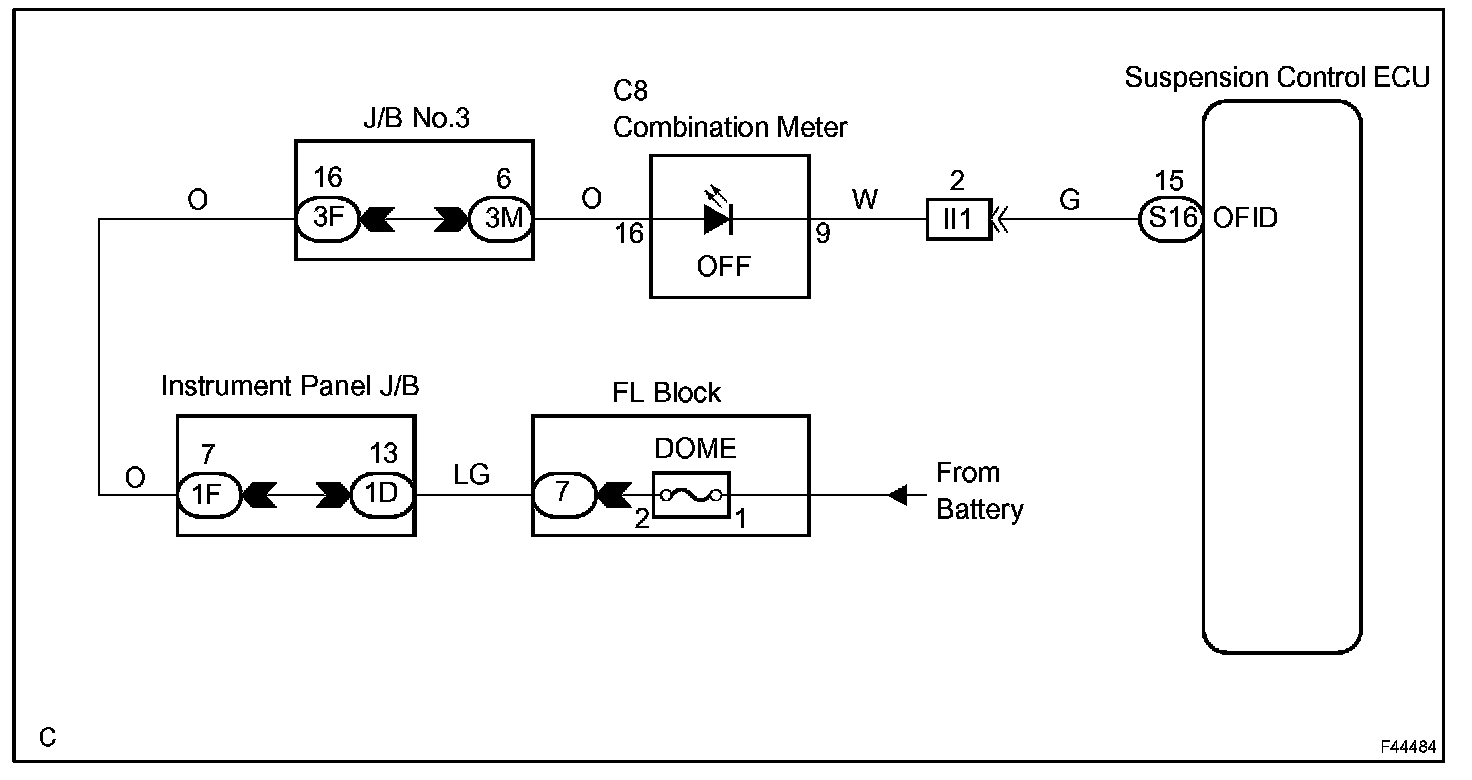

Wiring Diagram:

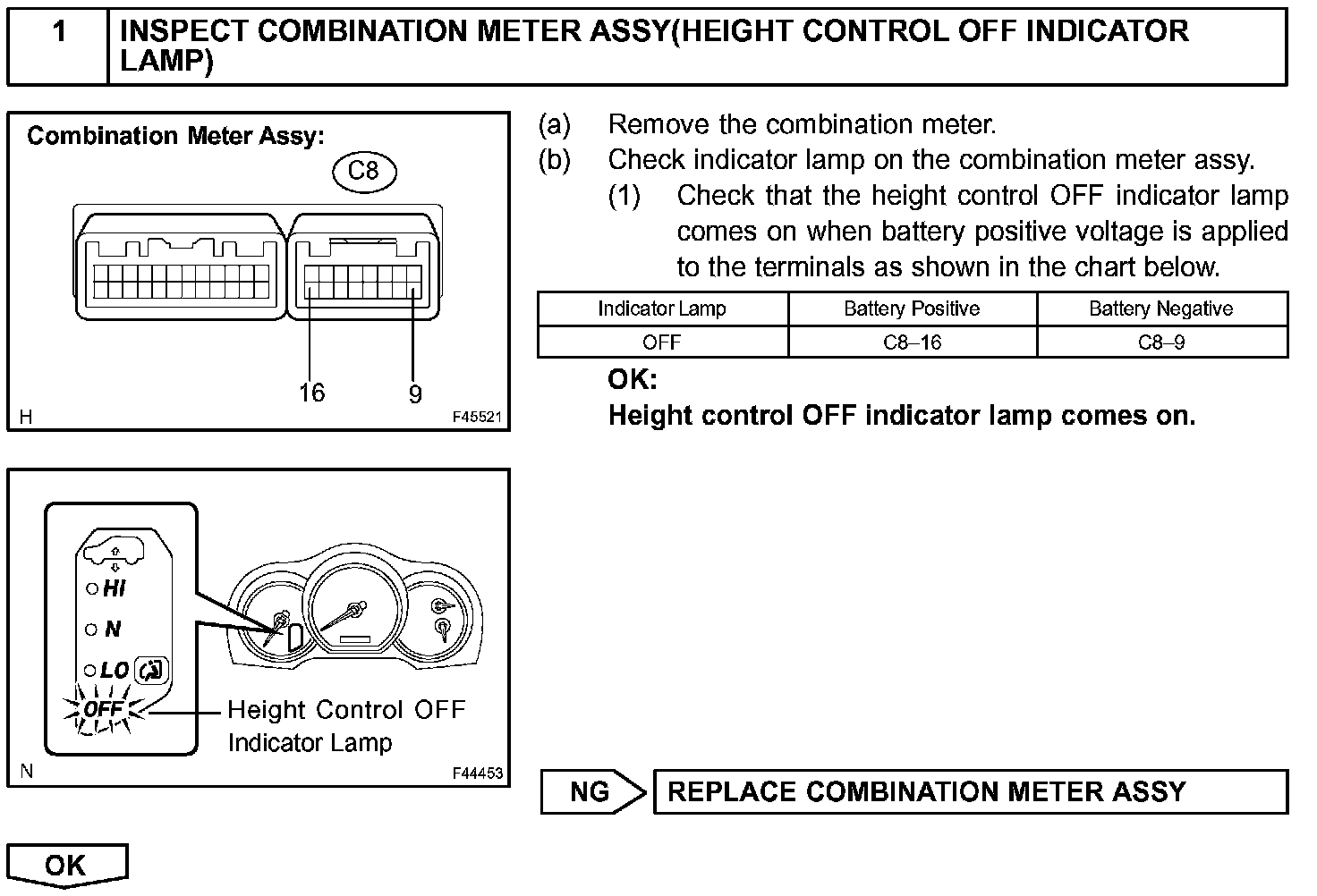

Step 1:

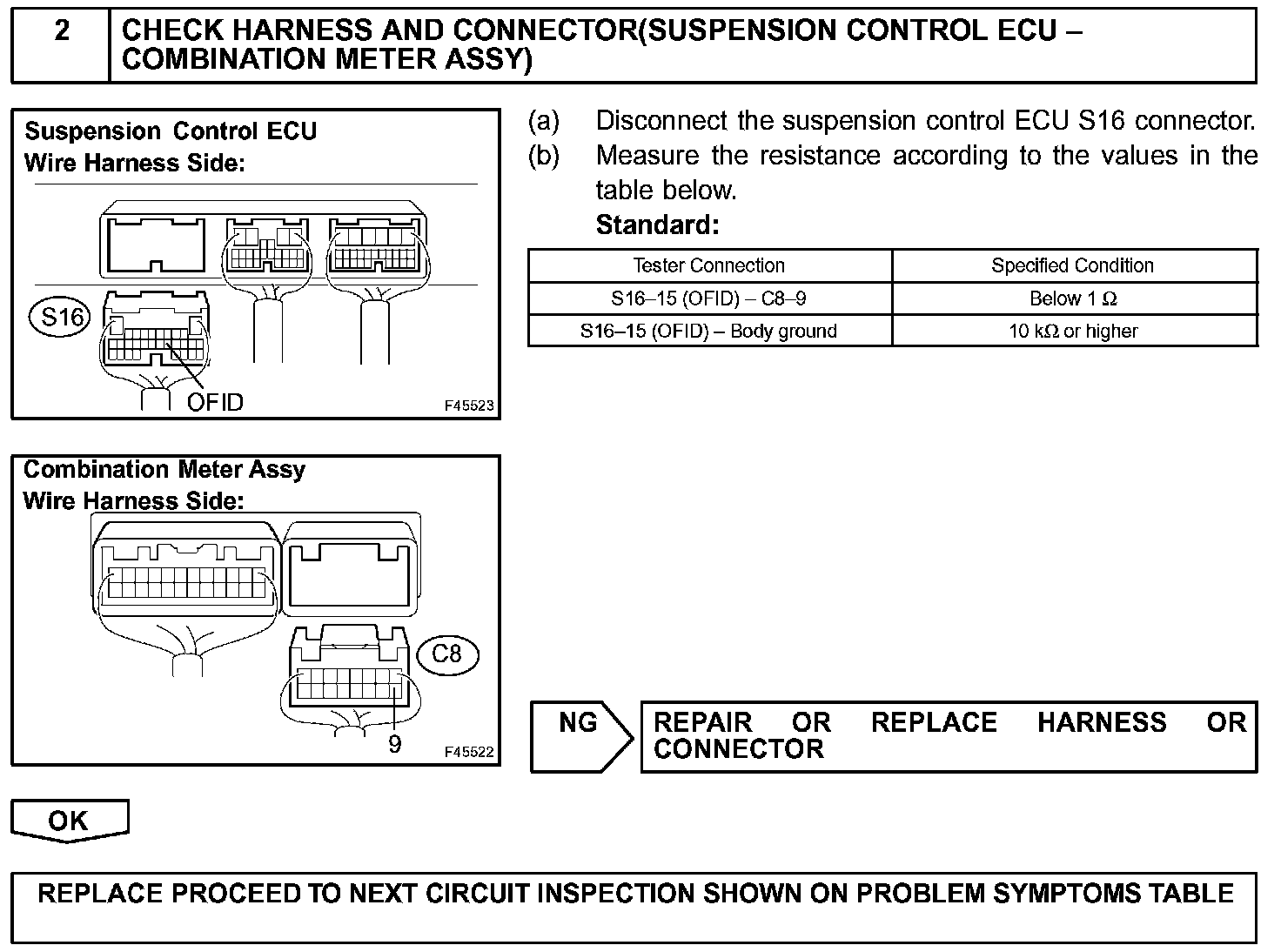

Step 2:

INSPECTION PROCEDURE
