DATA LIST
a.
Connect the hand-held tester to DLC3.
b.
Turn the ignition switch to the ON position.
c.

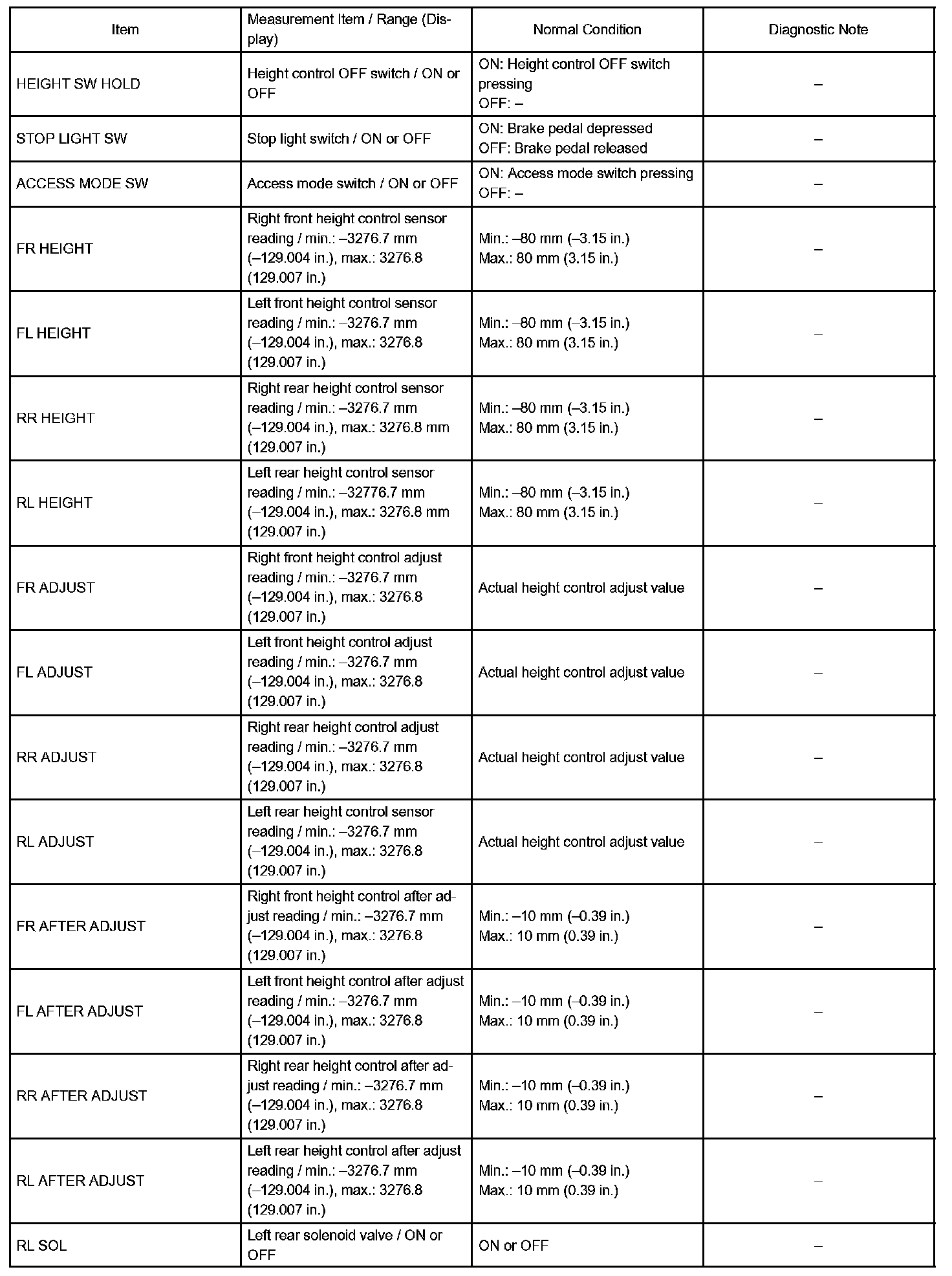

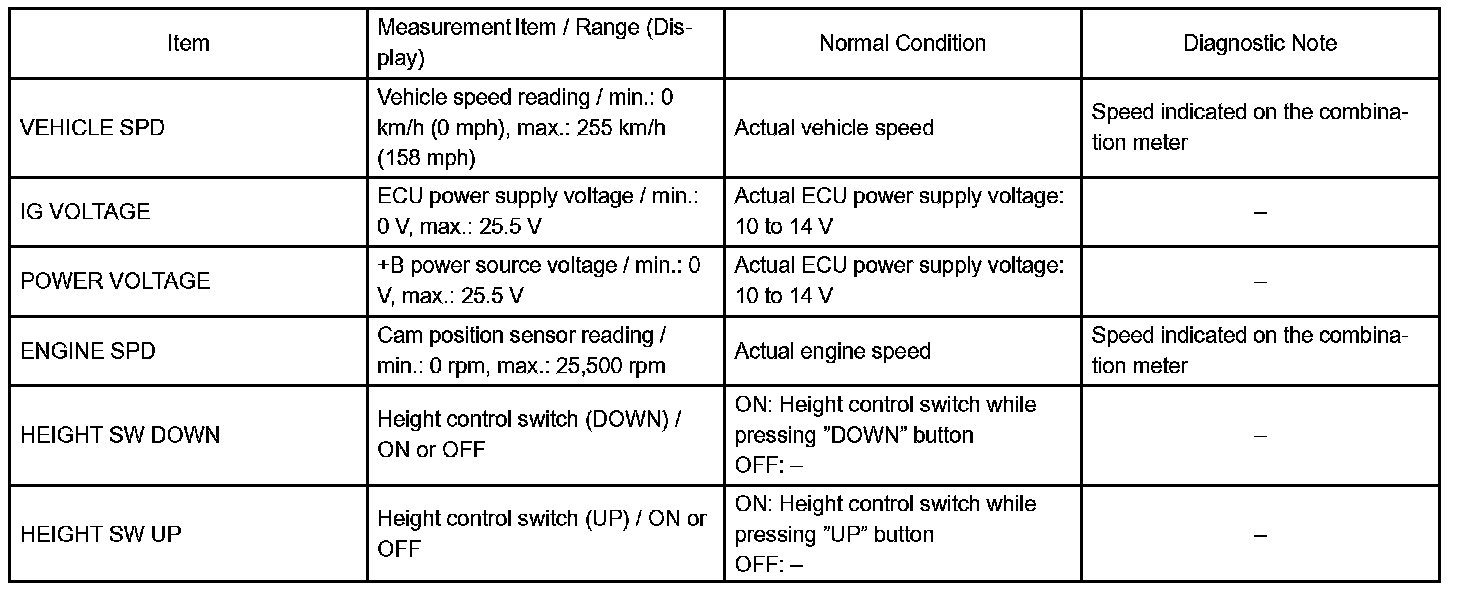

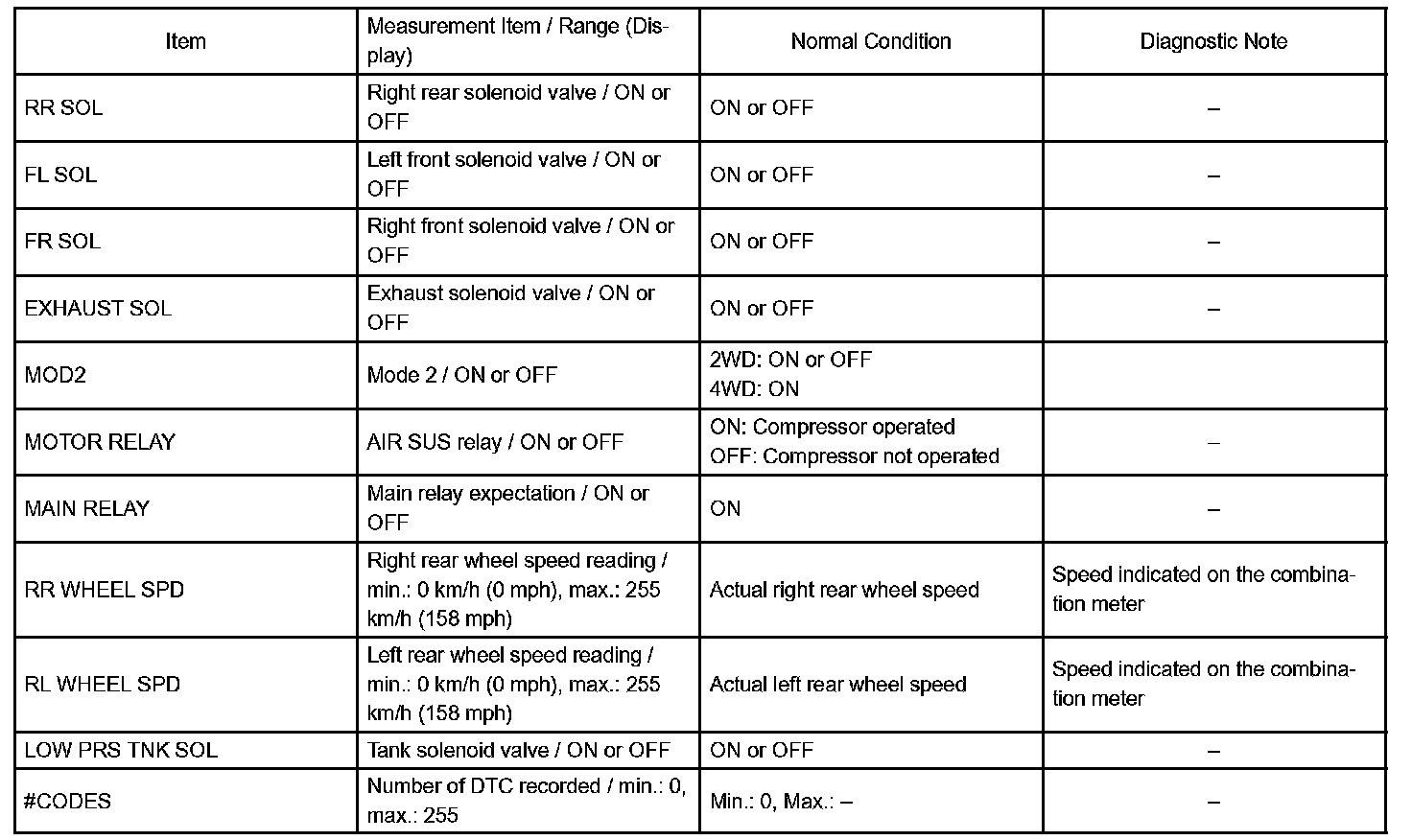

Following the display on the hand-held tester, read the "DATA LIST".
