DATA LIST

HINT: By accessing the ABS DATA LIST displayed by the hand-held tester, you can read the value of the switches and sensors without removing any parts. Reading the DATA LIST is the first step of troubleshooting is one method to shorten labor time.




a. Connect the hand-held tester to DLC3.
b. Turn the ignition switch to the ON position.

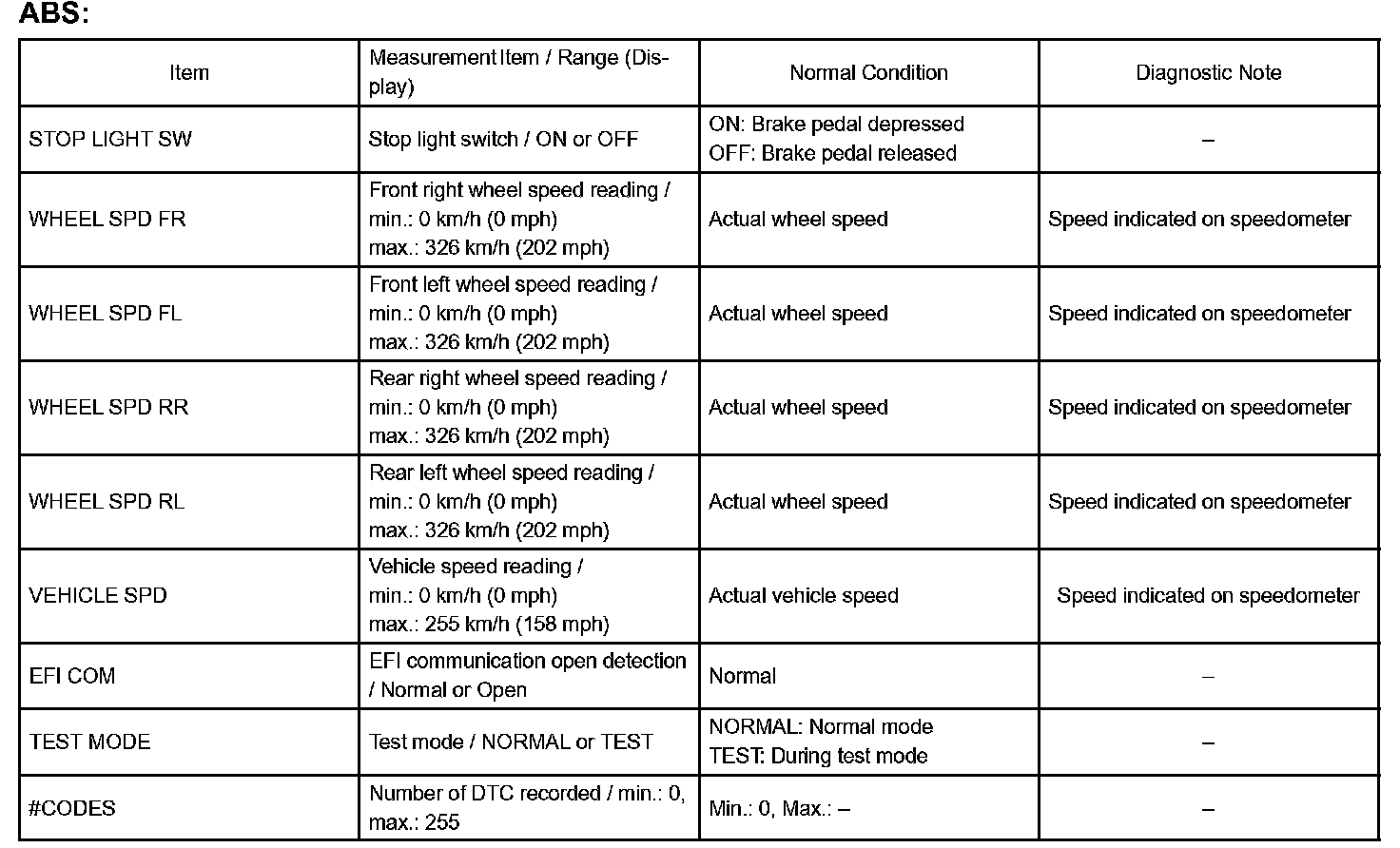

c. Following the display on the tester, select the ABS "DATA LIST".
