Pattern Select Switch Circuit
PATTERN SELECT SWITCH CIRCUITCIRCUIT DESCRIPTION
ECT SNOW is the system that operates the throttle motor to control engine output to reduce skidding of the driving wheels, guarantee takeoff acceleration, driving straightness and turning stability.

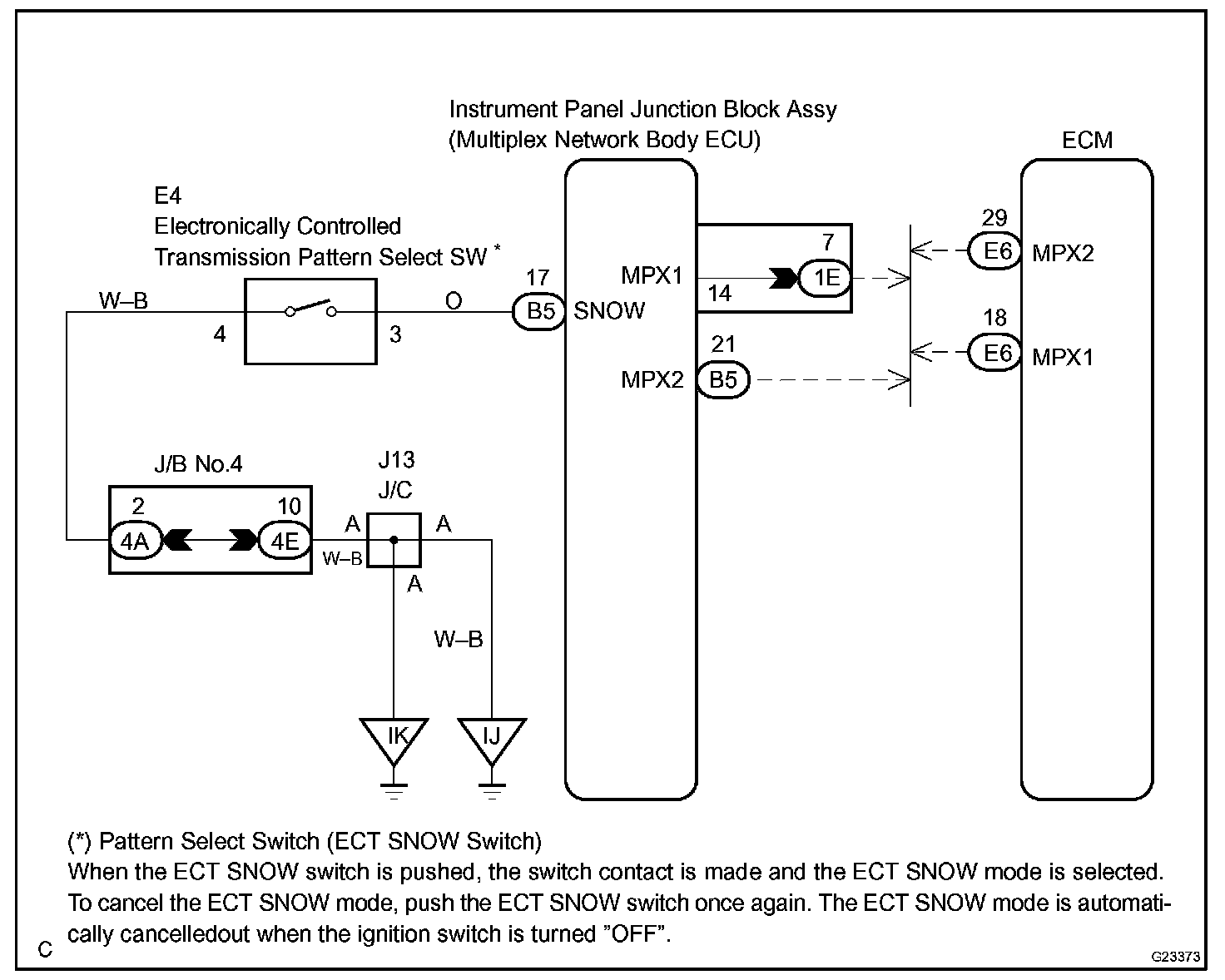

Wiring Diagram:

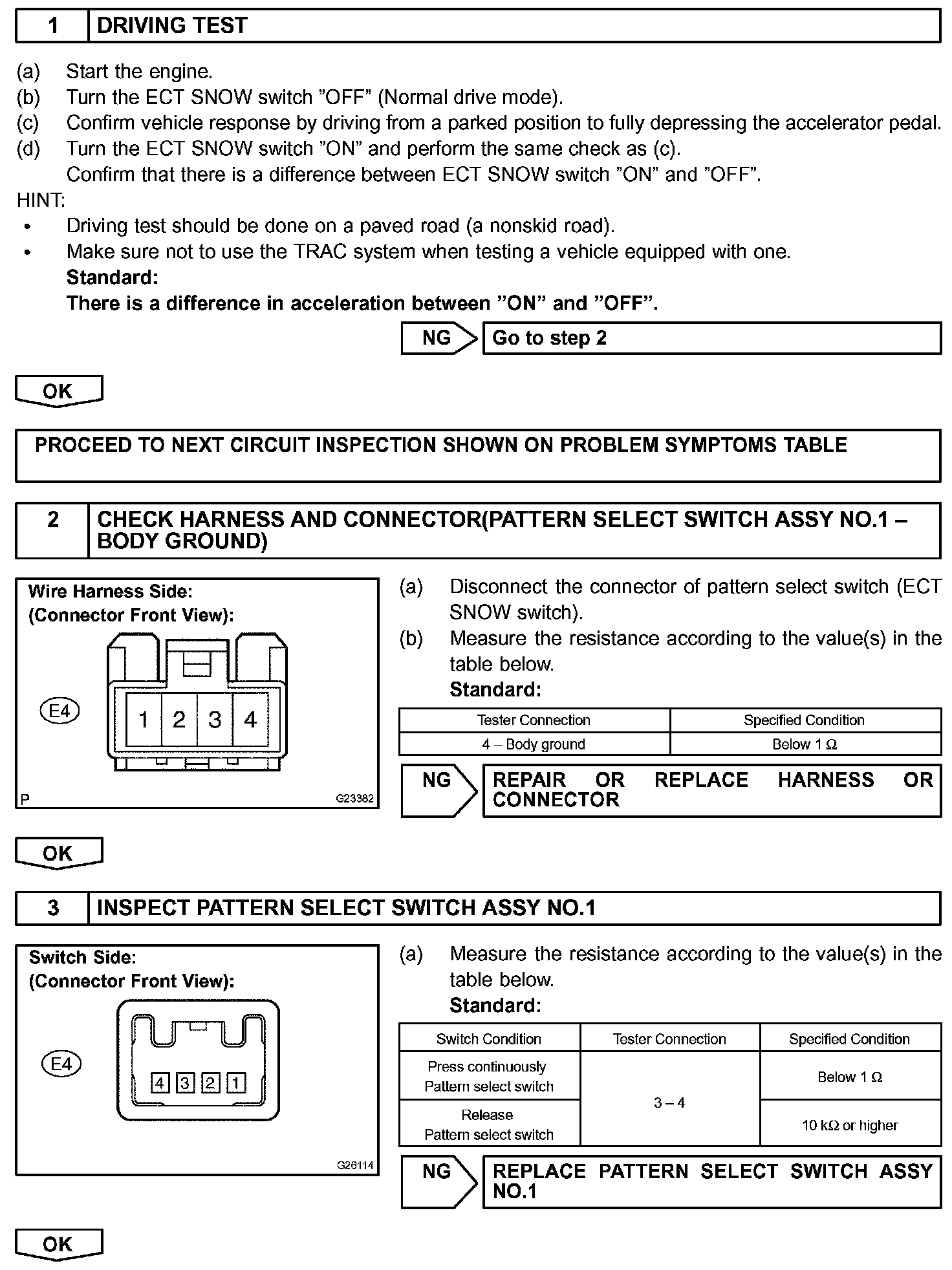

Step 1 - 3:

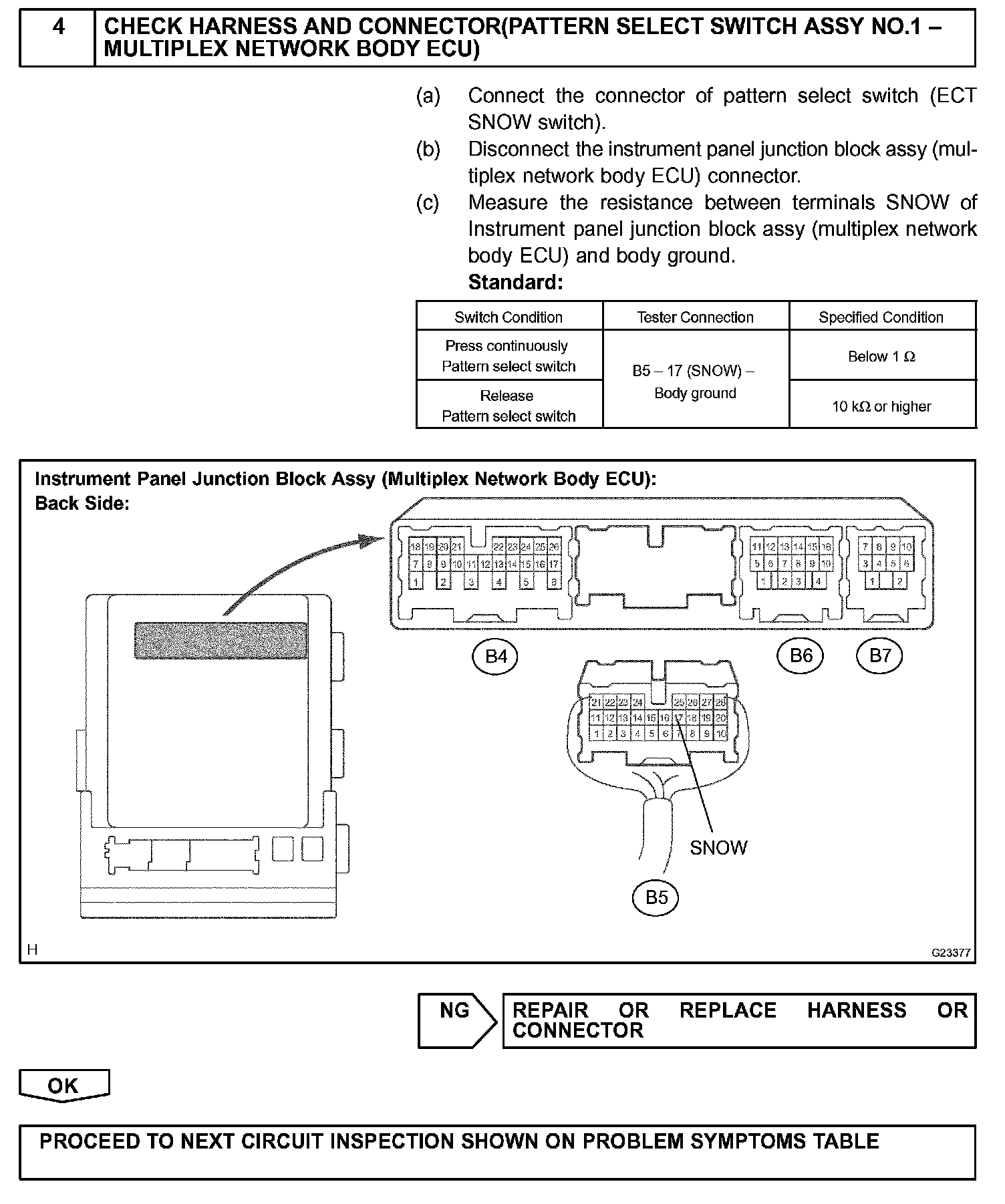

Step 4:
INSPECTION PROCEDURE
