Pinout Values and Diagnostic Parameters

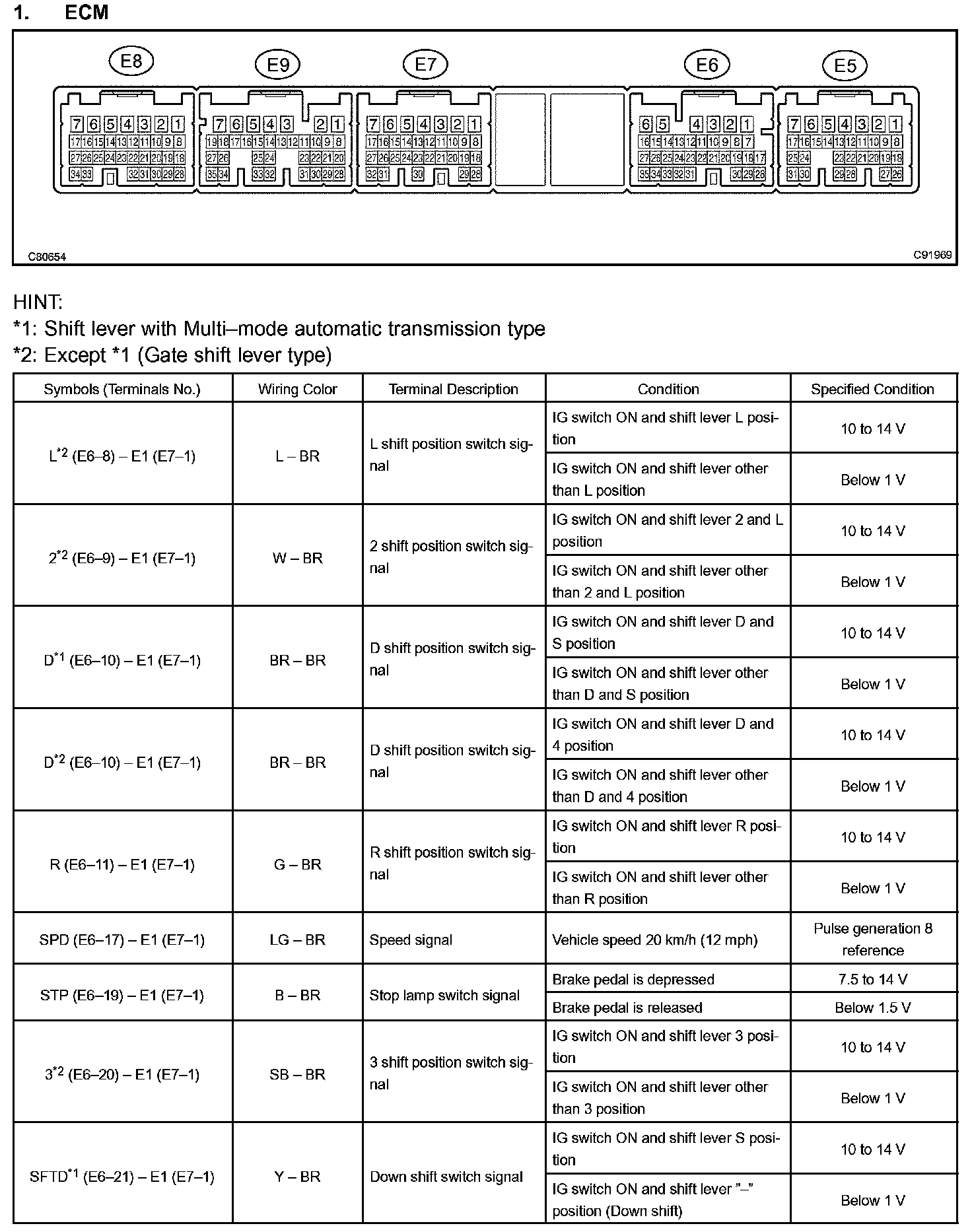

Terminals Of ECM/Pinouts Part 1:

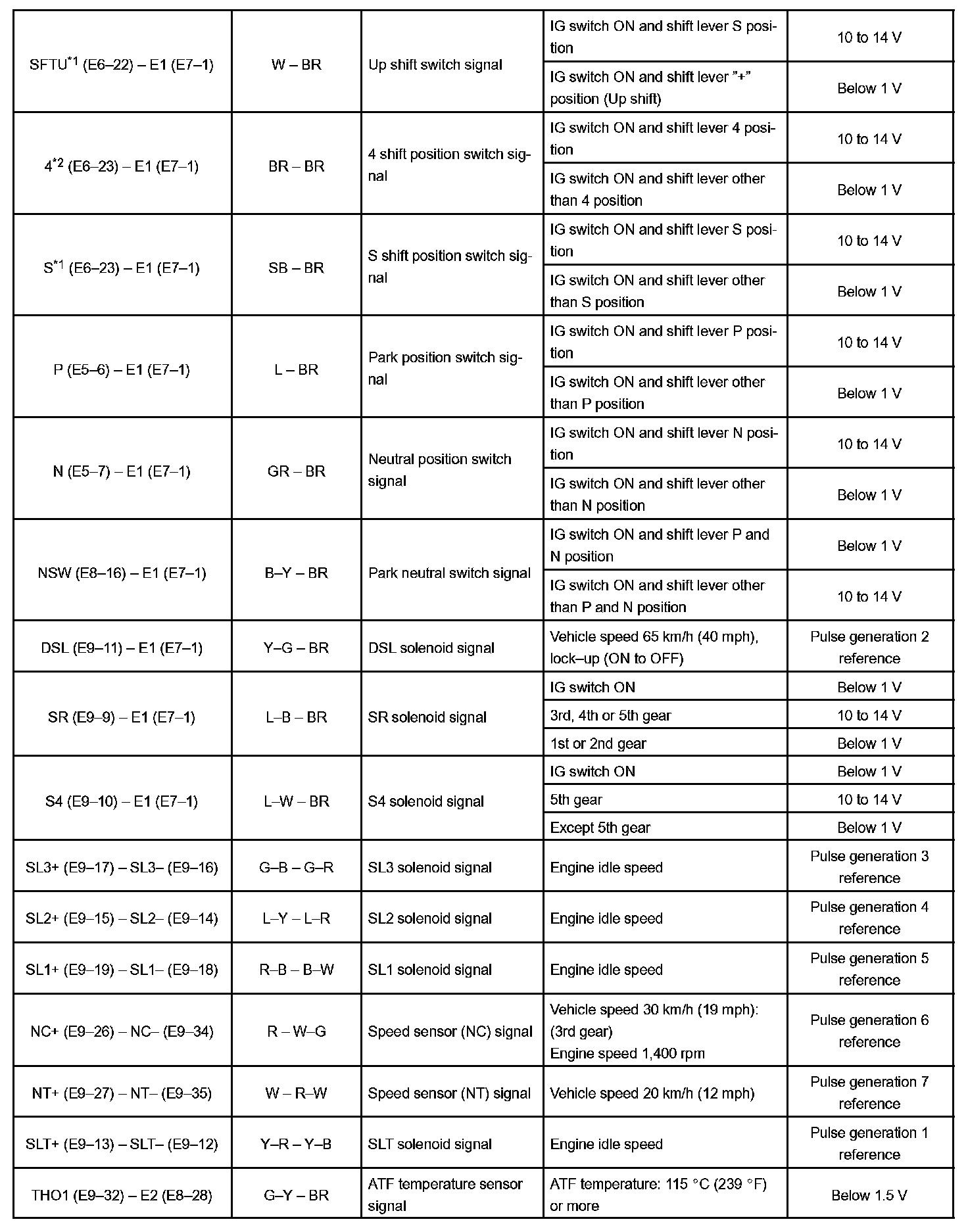

Terminals Of ECM/Pinouts Part 2:

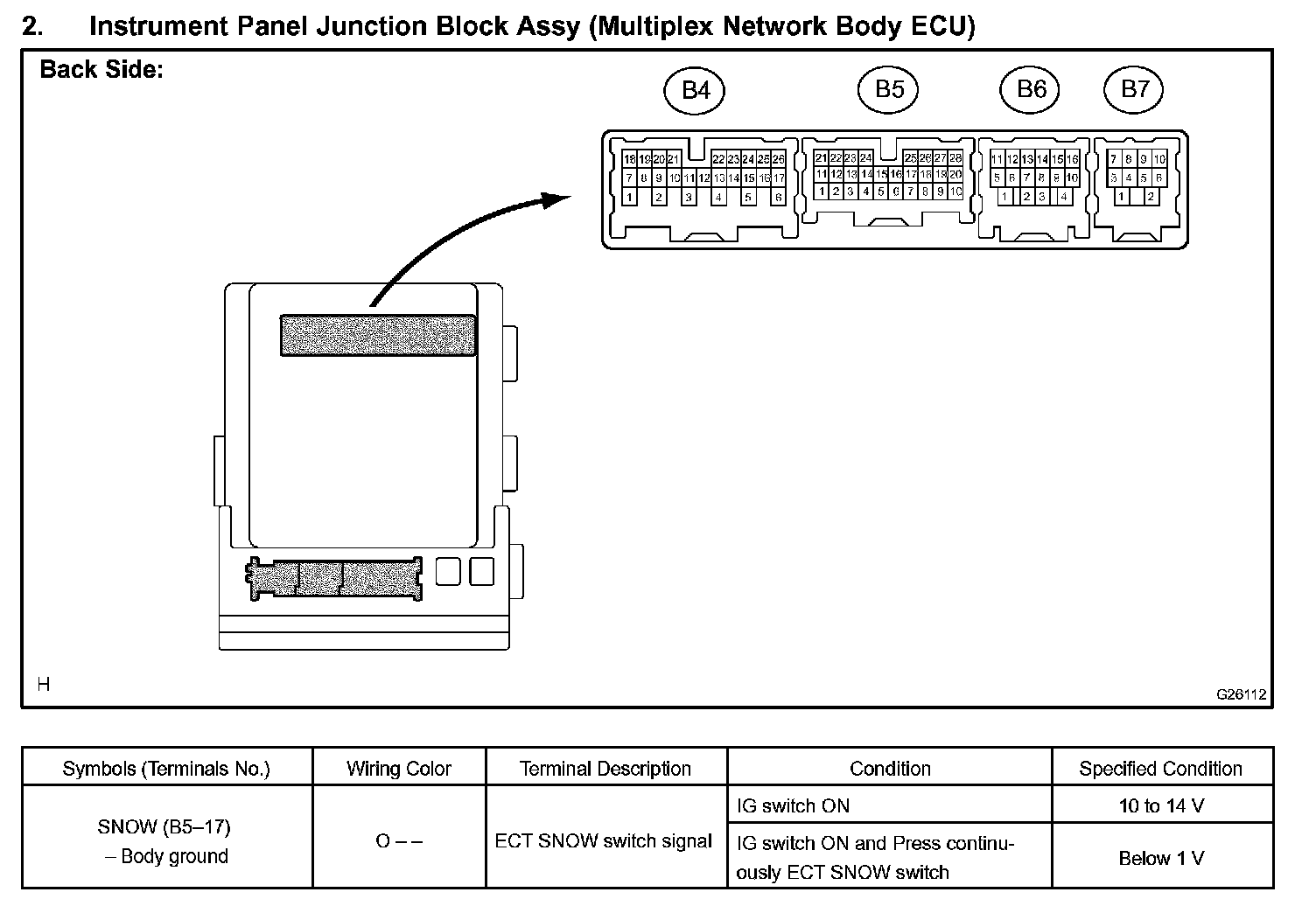

Terminals Of Control Module/Pinouts - Instrument Panel Junction Block Assy (Multiplex Network Body ECU):
