Body - Power Window Initialization

PRE-DELIVERY SERVICE
PD003-04

Title:
INITIALIZATION OF POWER WINDOW

Models:
'05 RX 330

October 22, 2004

Introduction
As a result of the removal of the Short Pin, the "one-touch open and close" and "jam protection" functions of the driver's door Power Window will be inoperative due to loss of the driver's door Power Window position memory stored in the microcomputer. Therefore, please initialize the driver's door Power Window after installing the Short Pin in its original location during Pre-Delivery Service (PDS) at the dealership.

NOTE:
Any time the battery terminal has been disconnected, initialize the driver's door Power Window after reconnecting the battery terminal.

Applicable Vehicles

^ 2005 model year RX 330 vehicles.

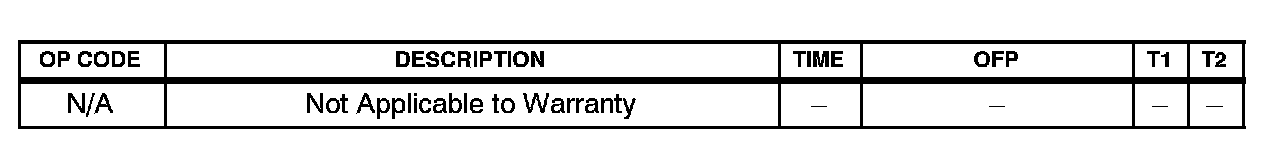

Warranty Information

Initialization Procedure

With ignition switch in the "ON" position, do the following:





1. At this time, the driver's door power window switch should be blinking.

NOTE:
When the battery terminal has been disconnected, each door's power window switch blinks.

2. Push the driver's door power window switch to open the window.

NOTE:
When the battery terminal has been disconnected, push each door's power window switch to open the windows.

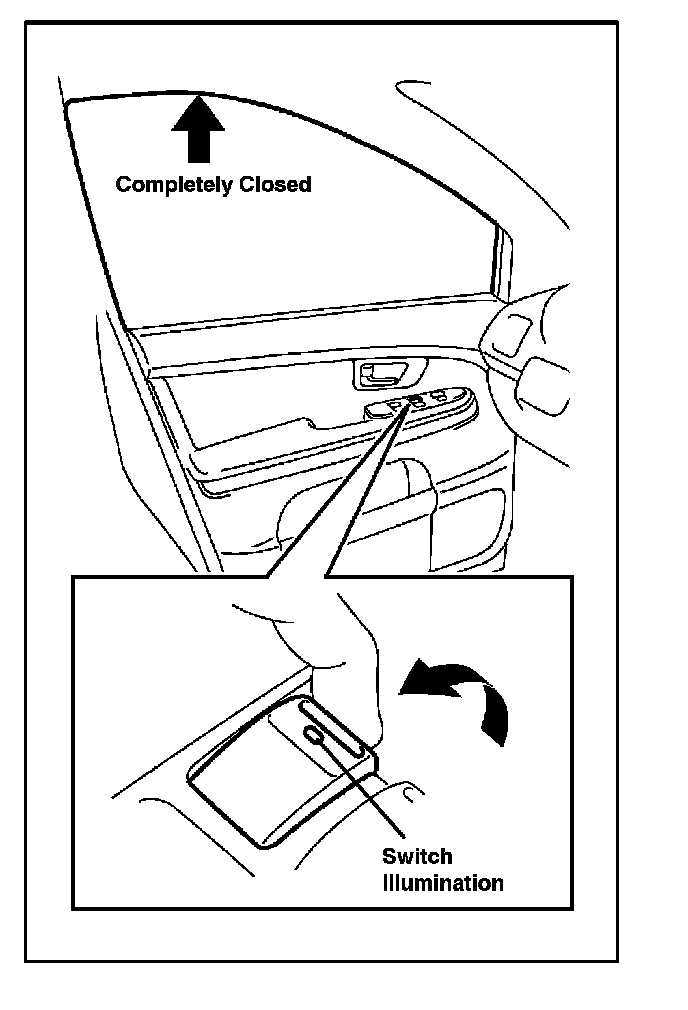

3. Pull up the driver's door power window switch until the window closes, and hold it for approximately one second. At this time, the driver's door power window switch illumination changes from blinking to constant illumination.

NOTE:
When the battery terminal has been disconnected, pull up each door's power window switch until the window closes, and hold it for approximately one second.

At this time, each door's power window switch illumination changes from blinking to constant illumination.

4. Check for proper operation of the "one-touch open and close" function by fully pushing the switch "DOWN" once and fully pulling the switch "UP" once.

NOTE:
Jam protection function is enabled through the above initialization procedure.
