Auto Up Operation Does Not Fully Close Power Window (Jam Protection Function Is Activated)

AUTO UP OPERATION DOES NOT FULLY CLOSE POWER WINDOW (JAM PROTECTION FUNCTION IS ACTIVATED)

CIRCUIT DESCRIPTION
If AUTO UP operation does not fully close the power window, the following conditions may be the cause.
- The power window motor has not been reset, resulting in activation of the jam protection function.
- The memory of the power window switch fails to recognize the fully closed position of the power window, thus the window stops AUTO UP operation halfway.
- The jam protection function is activated at the fully closed position.
- Too much sliding resistance is applied to the window, resulting in activation of the jam protection function.

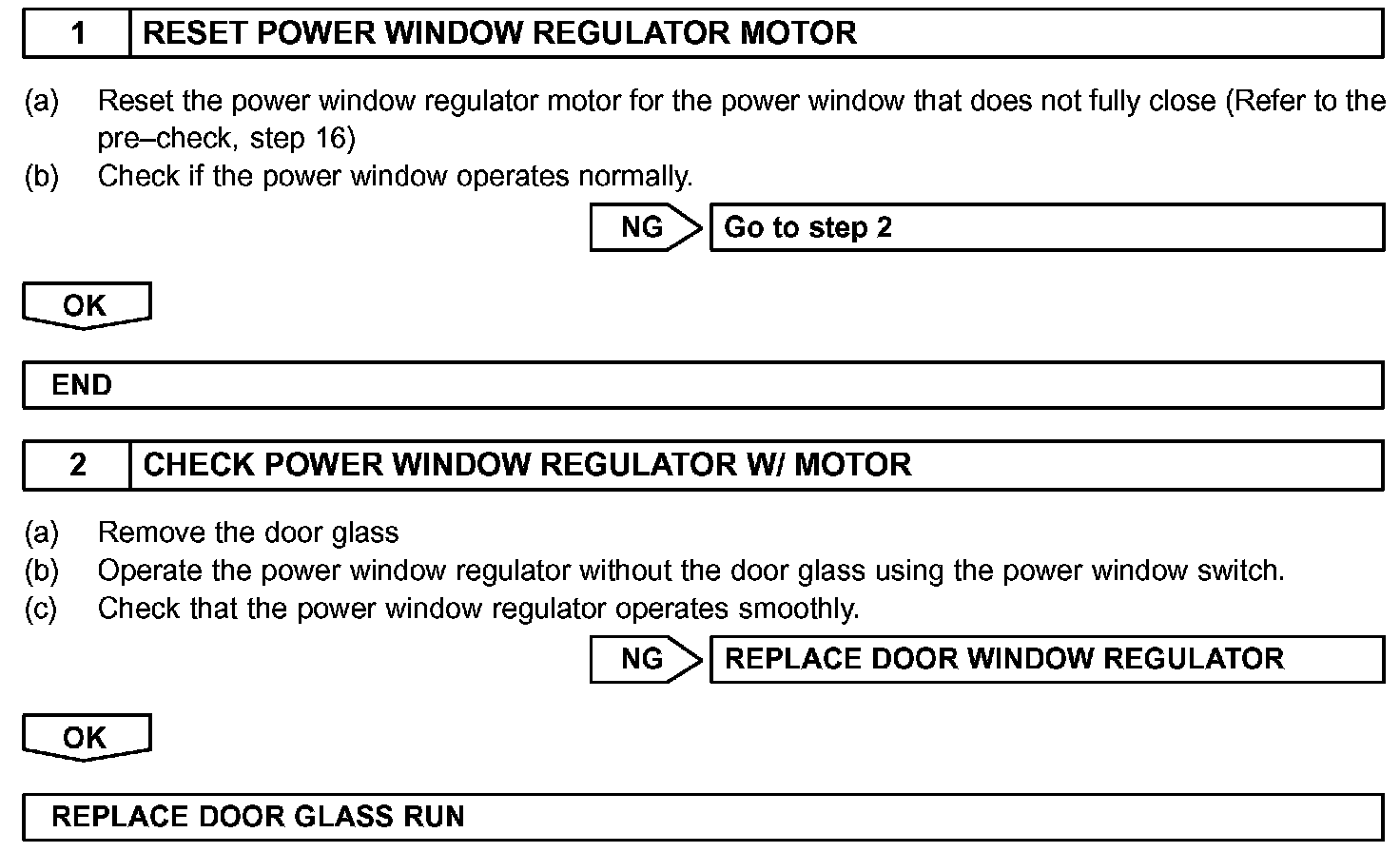

Step 1 - 2:

INSPECTION PROCEDURE
