Auto Up/Down Function Does Not Operate At Rear RH

AUTO UP/DOWN FUNCTION DOES NOT OPERATE AT REAR RH

CIRCUIT DESCRIPTION
If the AUTO UP/DOWN function does not operate, any of the following conditions may be the cause:
- The power window memory of the fully closed position recorded in the power window regulator switch was erased when the battery terminal or connector of the power window regulator switch was disconnected.
- The pulse sensor in the power window regulator motor has a malfunction.
- There is an open or short circuit in the wiring between the power window regulator switch and the corresponding power window regulator motor.
- The power window regulator switch has a malfunction.

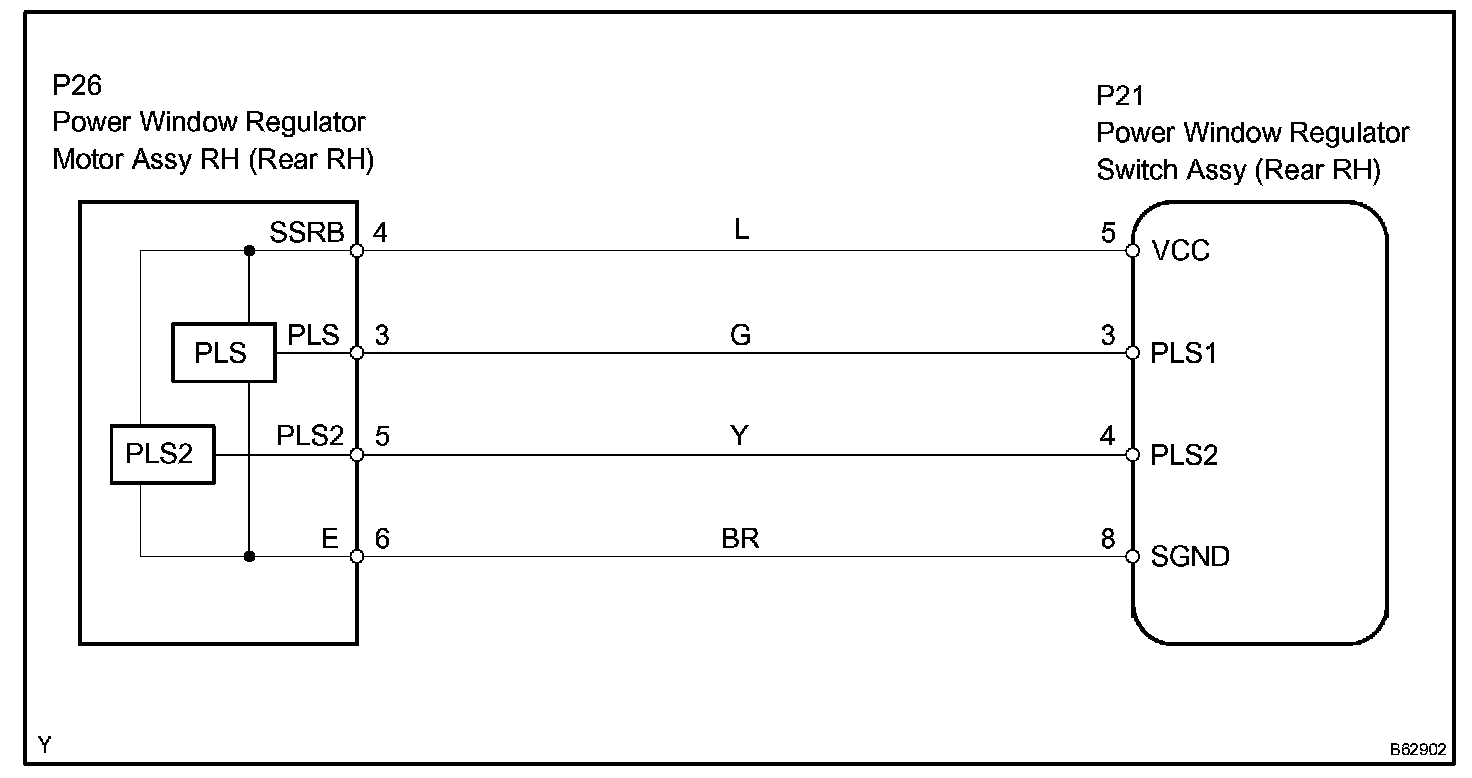

Wiring Diagram:

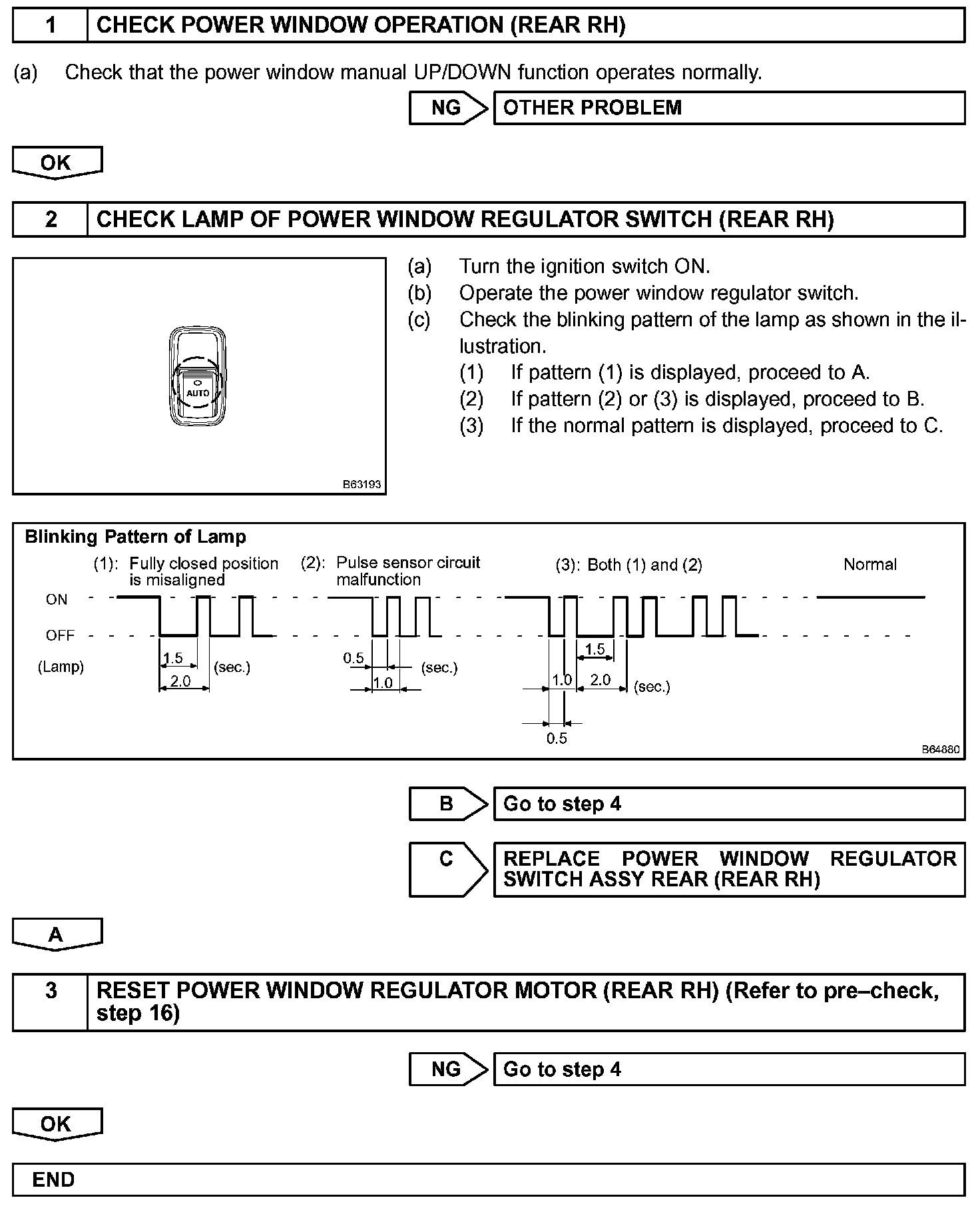

Step 1 - 3:

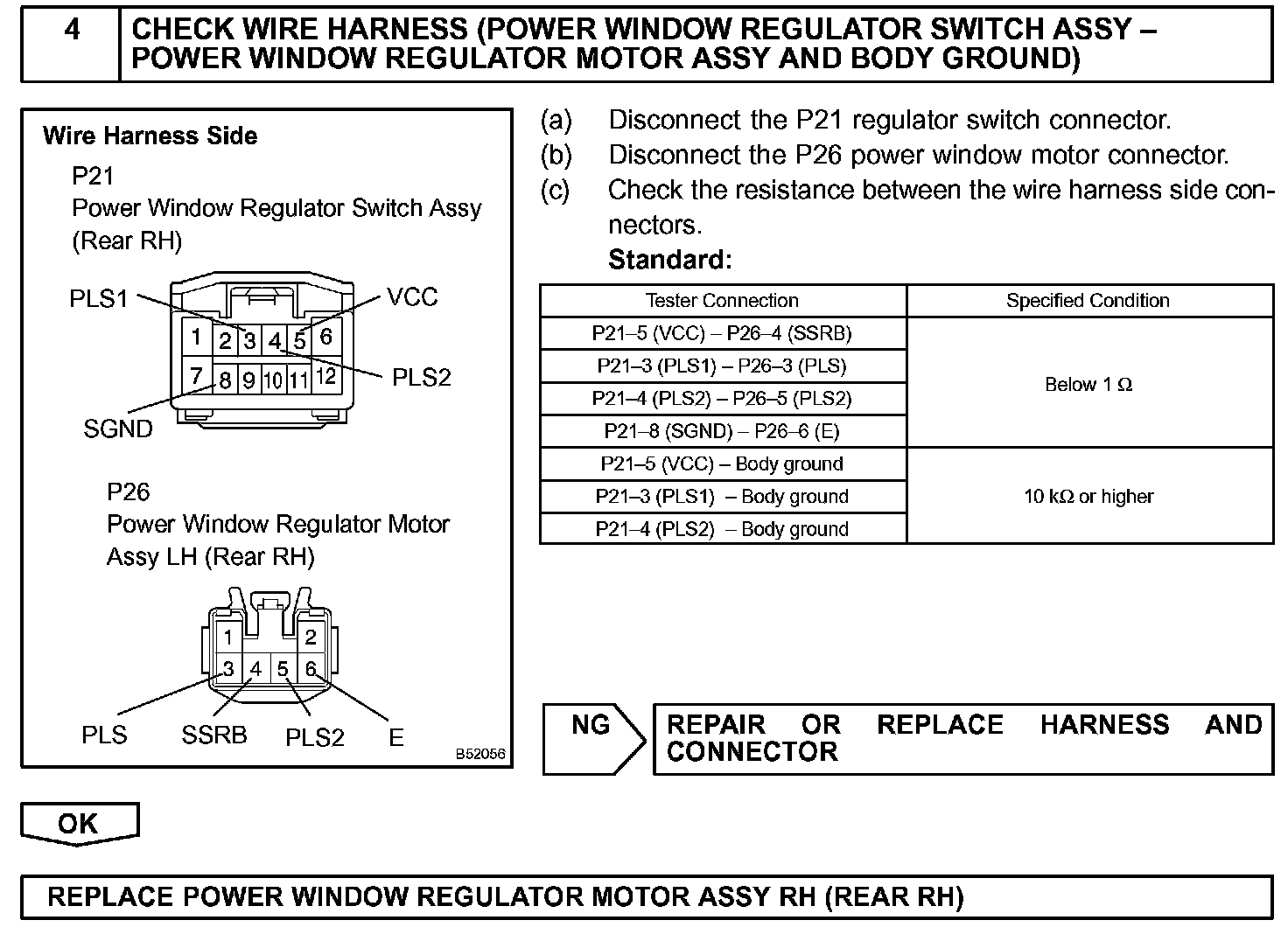

Step 4:

INSPECTION PROCEDURE
