Manual Up/Down Function Does Not Operate At Rear LH
MANUAL UP/DOWN FUNCTION DOES NOT OPERATE AT REAR LHCIRCUIT DESCRIPTION
If the manual UP/DOWN function does not operate, the power window regulator motor, the power window regulator switch or the wire harness may be malfunctioning

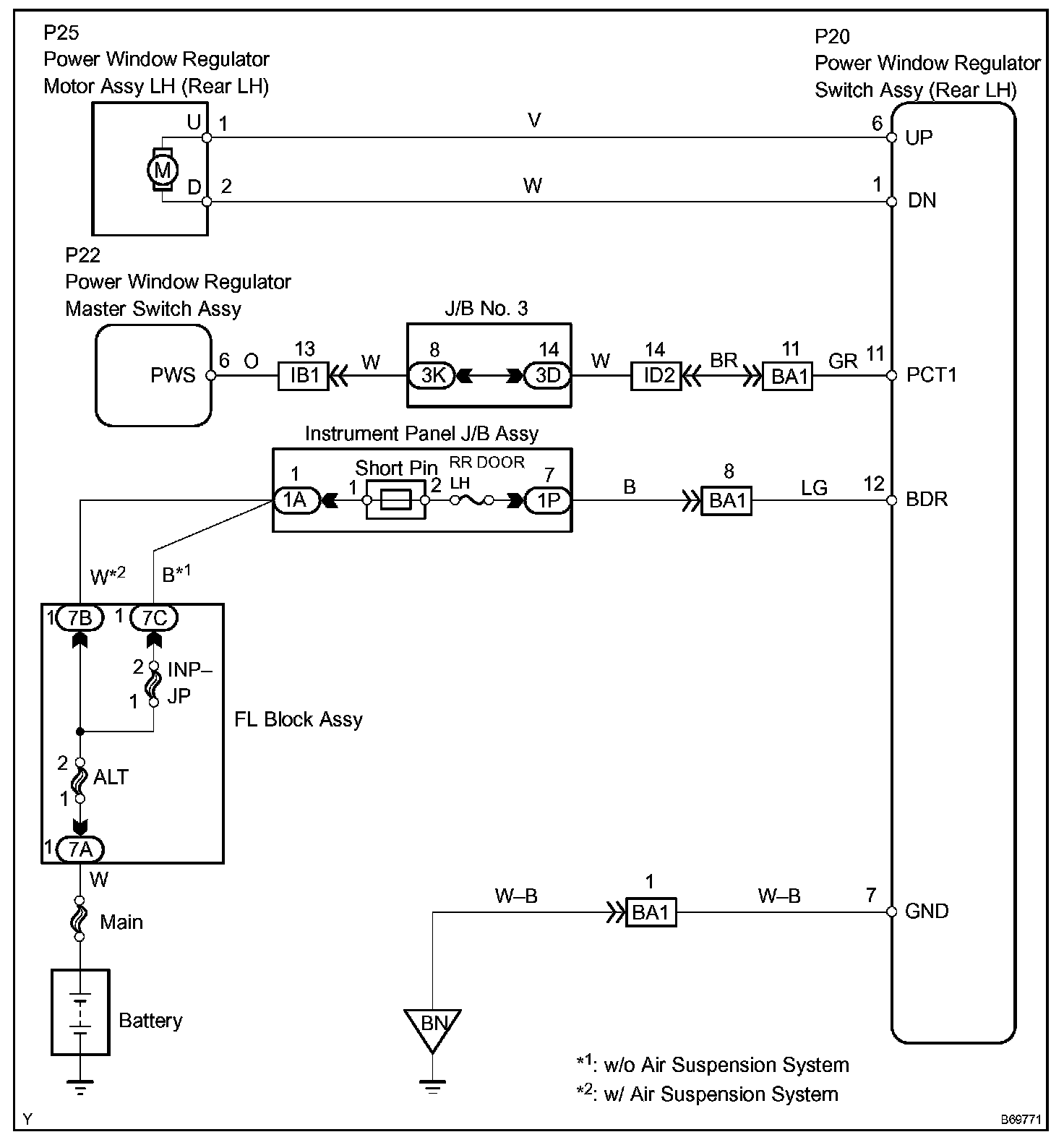

Wiring Diagram:

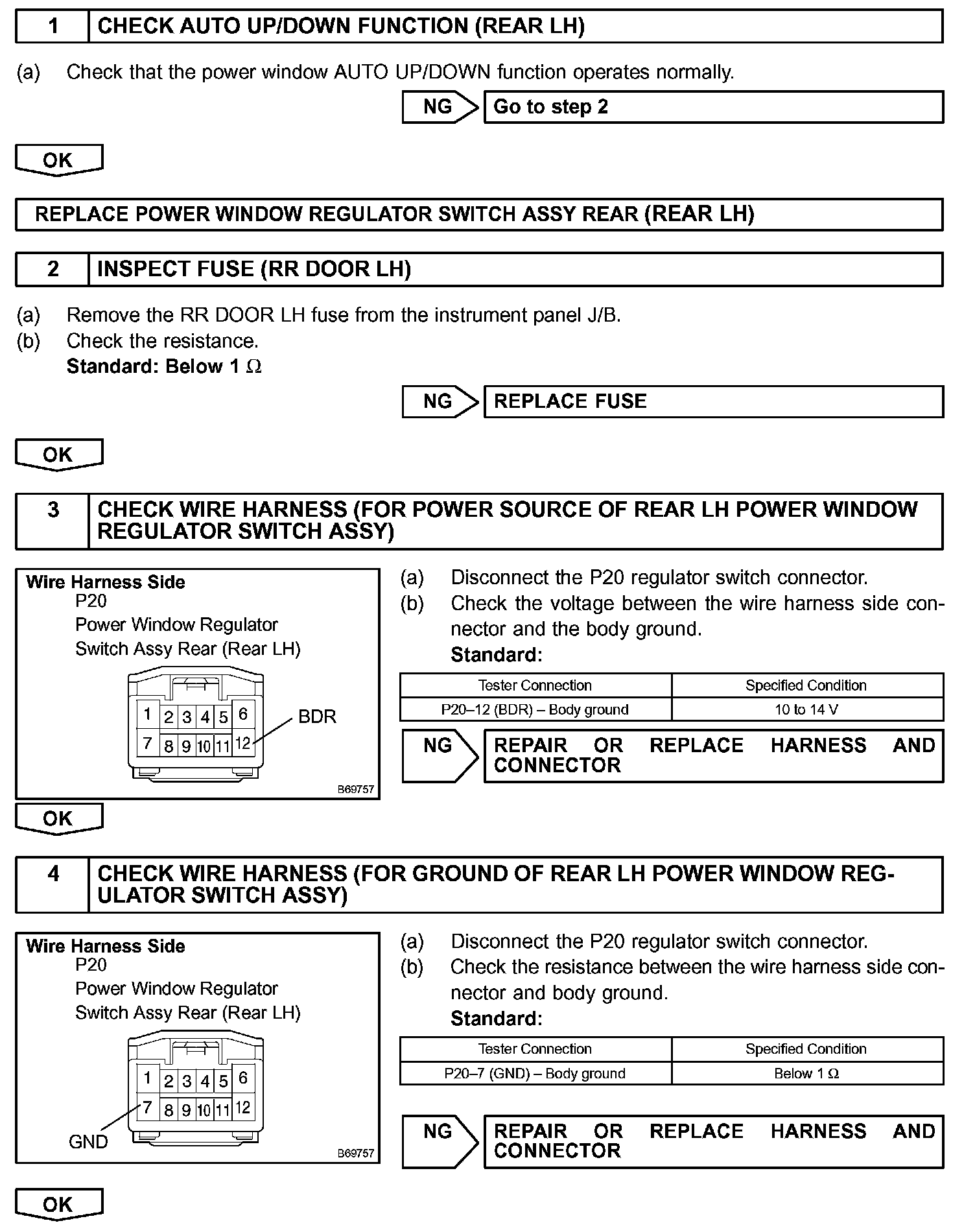

Step 1 - 4:

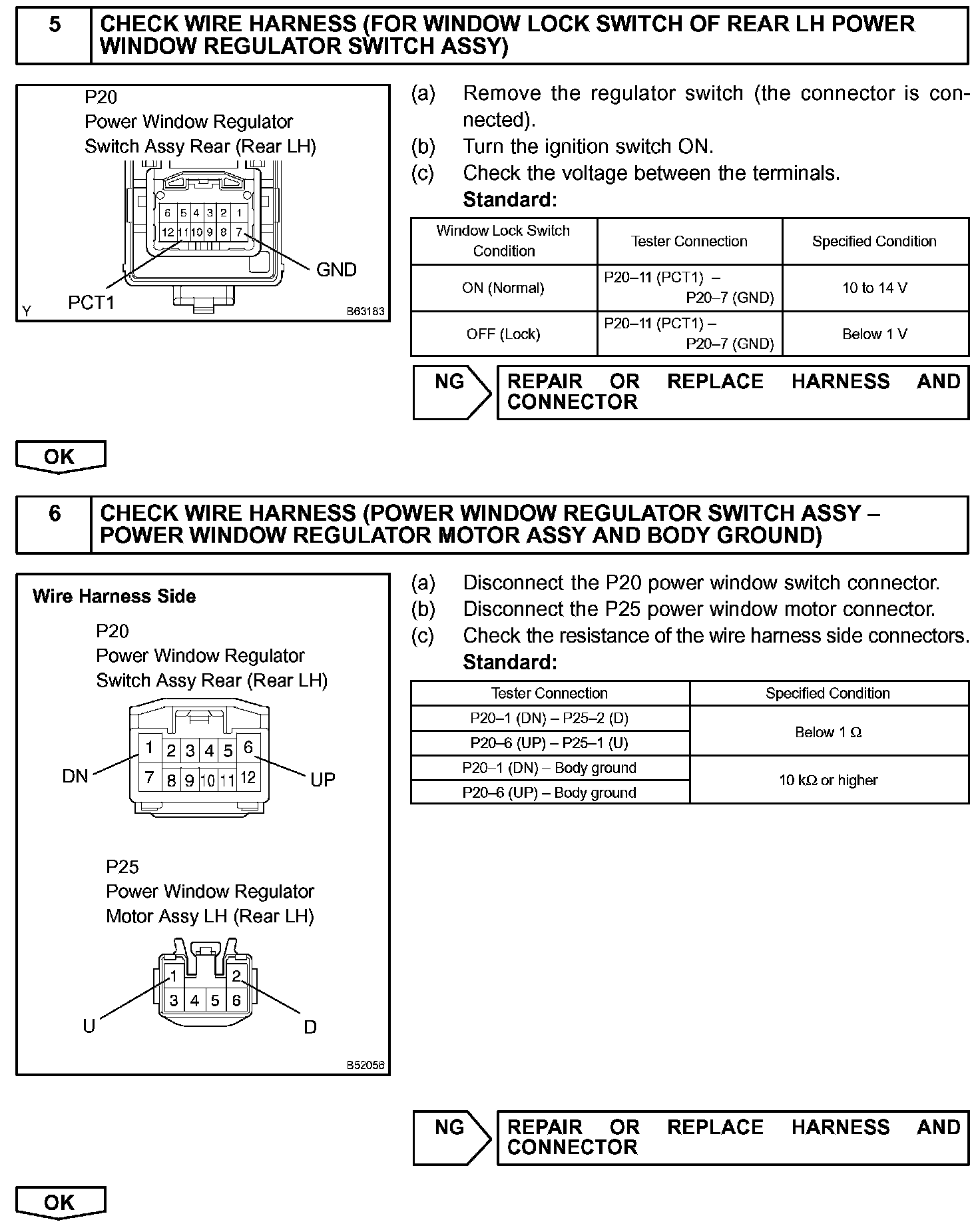

Step 5 - 6:
Step 7:
INSPECTION PROCEDURE
